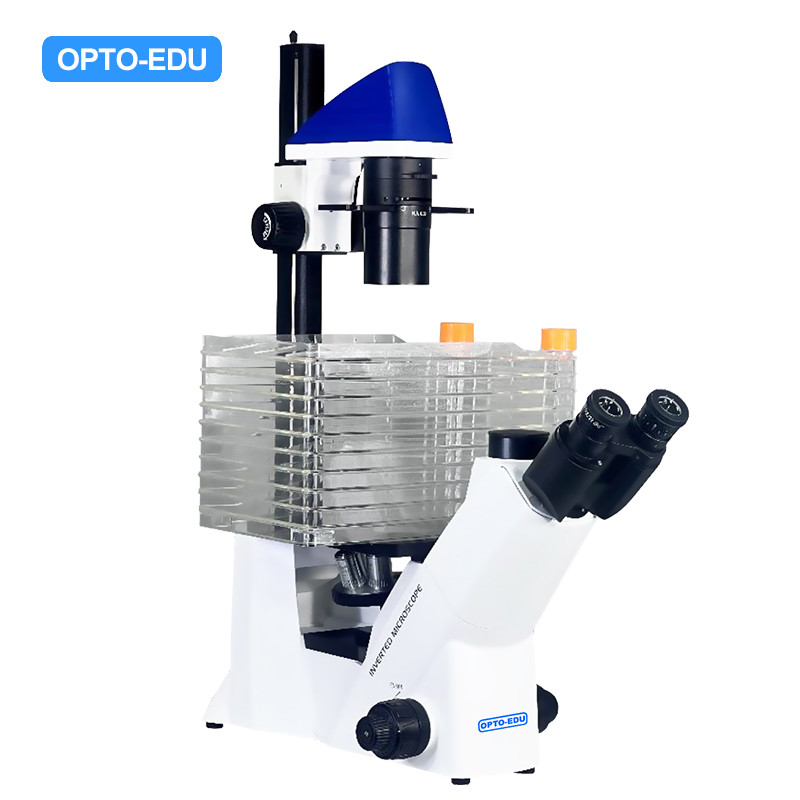

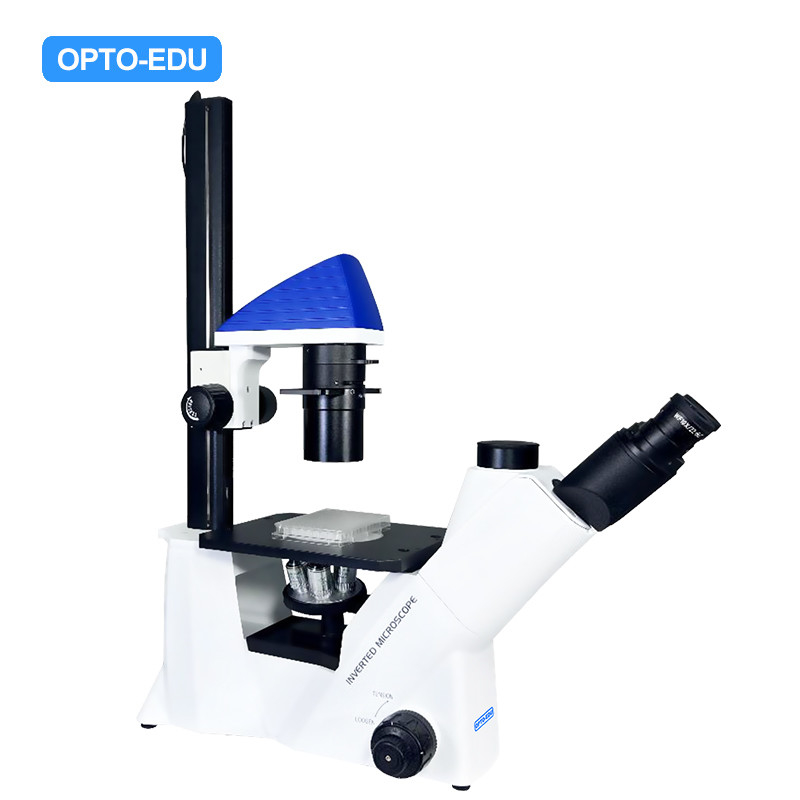

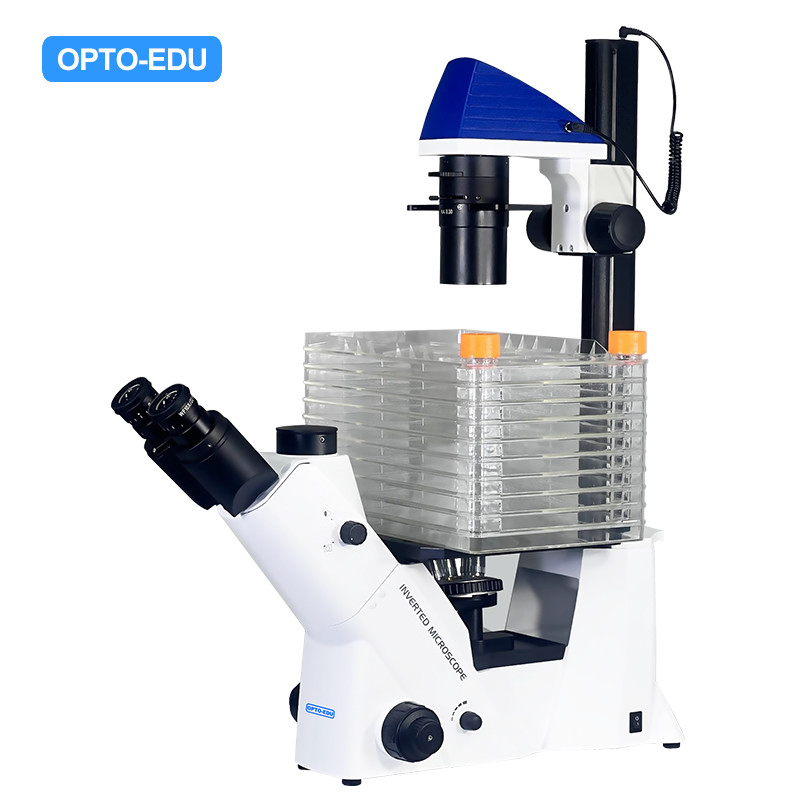

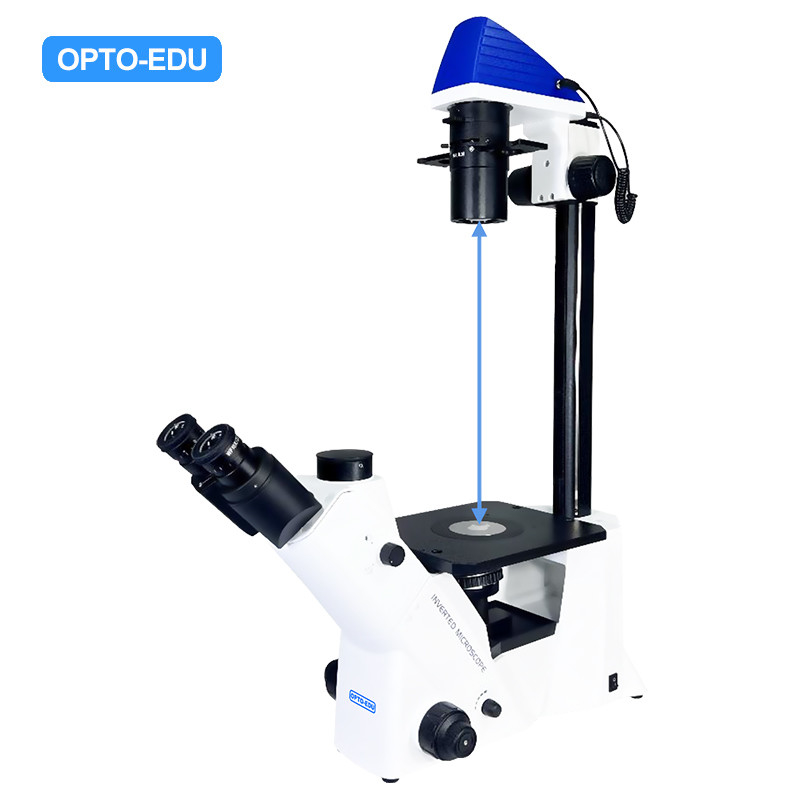

Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
-
Highlight
Phase Contrast Cell Factory Microscope
,Opto-Edu A14.2604 Microscope
,Inverted Optical Trinocular Microscope
-
EyepieceWF10x/22
-
Nosepiece4 Holes
-
ObjectivesAchromatic 4x20x40x, Phase Contrast 10x
-
Working StageAttached Mechanical Stage
-
CondenserAbbe N.A.0.3
-
FocusingCoaxial Coarse & Fine
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA14.2604
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month
Opto-Edu A14.2604 Inverted Optical Trinocular Phase Contrast Cell Factory Microscope
|
Head & Eyepiece Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80; WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable |
|
Condenser & Light Source Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm Koehler Illumination 10W LED |
|
LWD Infinity Plan PH+BF FL Semi-APO Objectives 10x / 4x (Optional), 20x (Optional), 40x (Optional) |
|
Infinity Plan LWD Semi-APO Fluorescent Objective 4x, 20x, 40x / 2x (Optional), 10x (Optional) |
| A14.2604 Inverted Cell Factory Microscope Specification | Cata. No. | ||
| Eyepiece | WF10x／22mm | ●● | A51.2621-1022 |
| LWD Infinity Plan Objectives | Plan FL 2x／0.06, W.D.=7.2mm | ○ | A5F.2635-2 |
| L Plan FL 4x／0.11, W.D.=12.1mm | ● | A5F.2635-4 | |
| L Plan FL 10x／0.25, W.D.=10.3mm | ○ | A5F.2635-10 | |
| L Plan FL 20x／0.45, W.D.=5.8mm | ● | A5F.2635-20 | |
| L Plan FL 40x／0.65, W.D.=5.1mm | ● | A5.2635-40 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4x／0.10, W.D.=9.2mm (Both for Bright Field & Phase Contrast) |
○ | A5C.2635-4 |
| L Plan FL PHP 10x／0.25, W.D.=10.3mm (Both for Bright Field & Phase Contrast) |
● | A5C.2635-10 | |
| L Plan FL PHP 20x／0.45, W.D.=5.8mm (Both for Bright Field & Phase Contrast) |
○ | A5C.2635-20 | |
| L Plan FL PHP 40x／0.65, W.D.=5.1mm (Both for Bright Field & Phase Contrast) |
○ | A5C.2635-40 | |
| Phase Contrast | Annular Spot 10x/20x/ 40x | ● | A5C.2611-10/20/40 |
| Annular Spot 4x | ○ | A5C.2611-4 | |
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece) |
● | A53.2643 |
| Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) |
○ | A53.2643-B | |
| Nosepiece | Quintuple | ● | A54.2610-N925 |
| Mechanical Stage | Stage size: X×Y: 210x241mm, Round slide size:Φ110mm, | ● | A54.2601-D4 |
| Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.) |
○ | A54.2605 | |
| Focusing Unit | Coaxial coarse and fine focusing knobs Coarse stroke 10mm, Fine scale 2μm, coarse with tension adjustment |
||
| Culture Dish Holder | 65mm+35mm | ○ | A54.2606-65/35 |
| 54mm | ○ | A54.2606-54 | |
| blood cell counter | ○ | A54.2606-BC | |
| Glass Holder | ● | A54.2606-GL | |
| Universal Holder | ○ | A54.2606-UH | |
| Condenser | Long working distance, Quickly detachable , N.A.0.3, Working distance: 72-365mm (with condenser), 480mm(without condenser). |
● | A56.2614-D4 |
| Koehler Illumination | 10W LED (input voltage:100V～240V) | ● | |
| Filter(Φ34) | Blue | ○ | A56.2616-34B |
| Green | ○ | A56.2616-34G | |
| Amber /Grey | ○ | A56.2616-34A/34N | |
| C-mount | 1x /0.35x /0.5x /0.75x C-Mount (focus adjustable) | ○ | A55.2601-10/35/05/75 |
