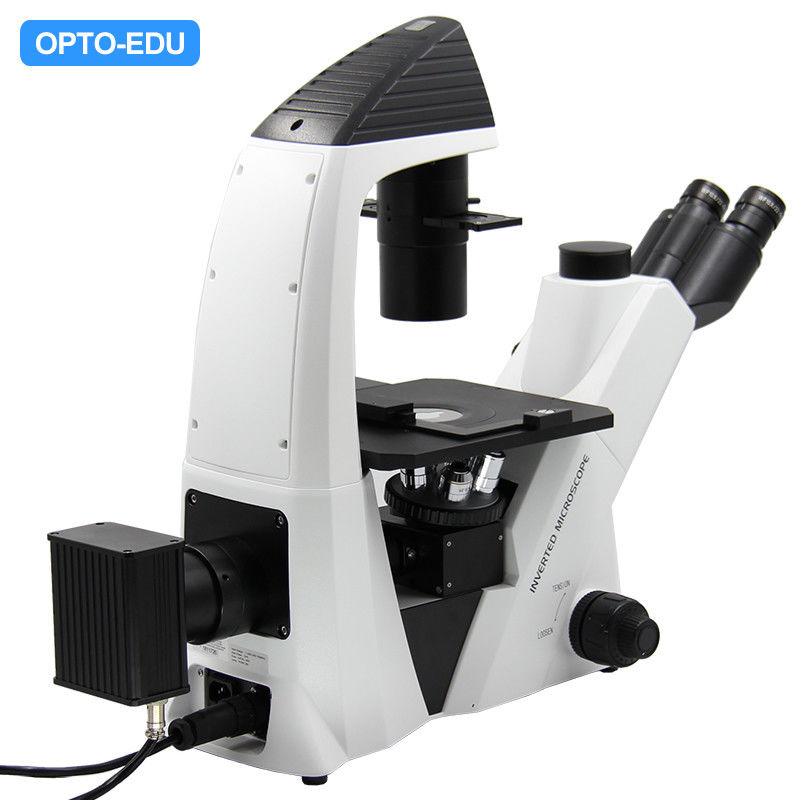

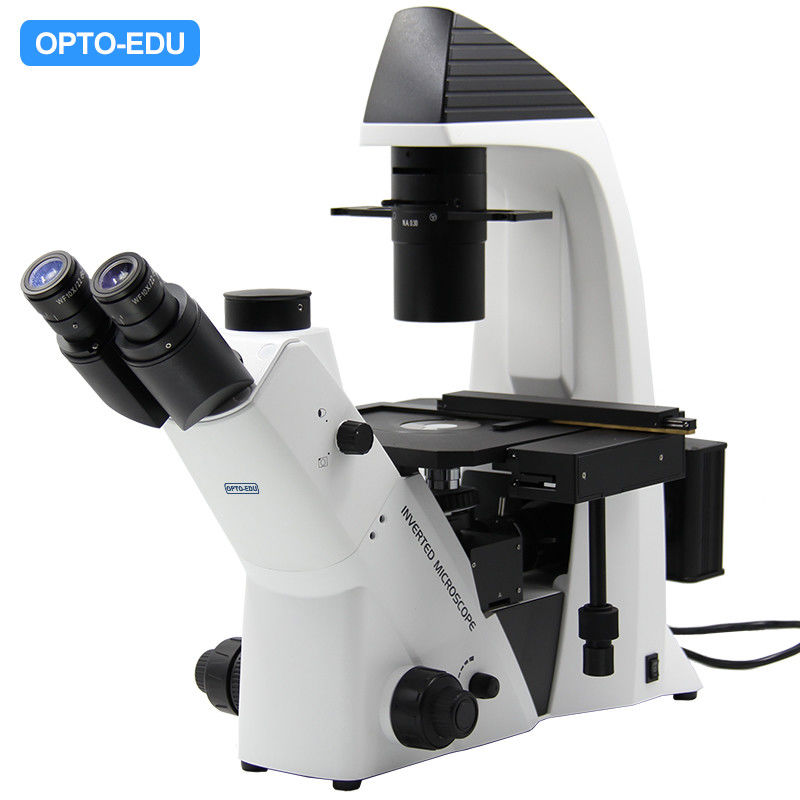

OPTO-EDU A14.2603-TR 100-400x Optical Trinocular Lab Biological Inverted Microscope
A14.2603-TR Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.
| A14.2603-TR Inverted Microscope Specification | ||
| Head | Seidentopf Trinocular Head, Inclined 45°, Interpupilary Distance 48~76mm Light Split (Both) 100:0 and 80:20 | |

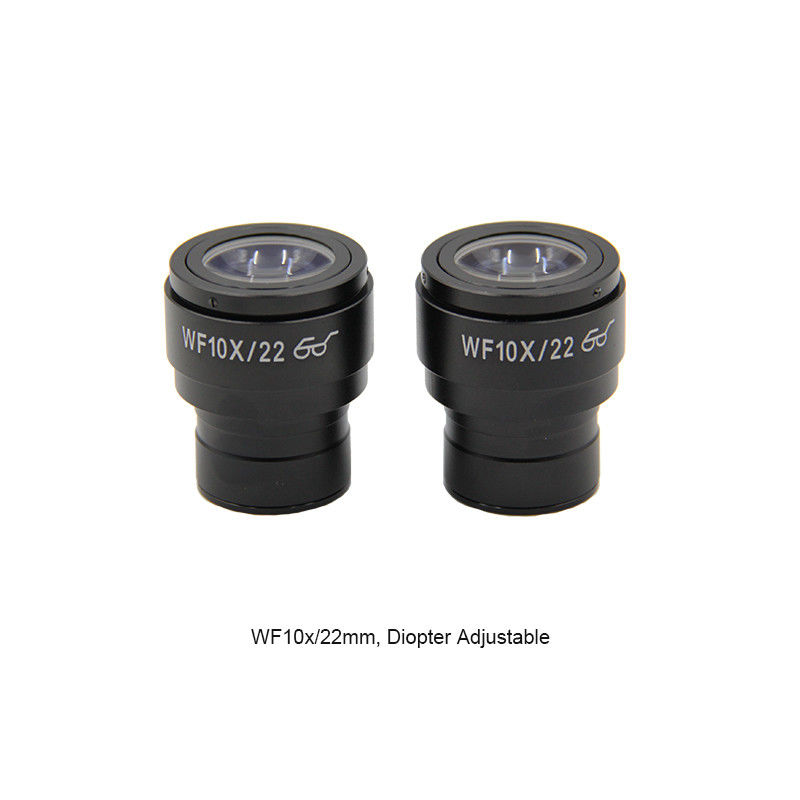

| Eyepiece | WF10x/22mm, Diopter Adjustable | |
| Nosepiece | Large Diameter Quintuple | |

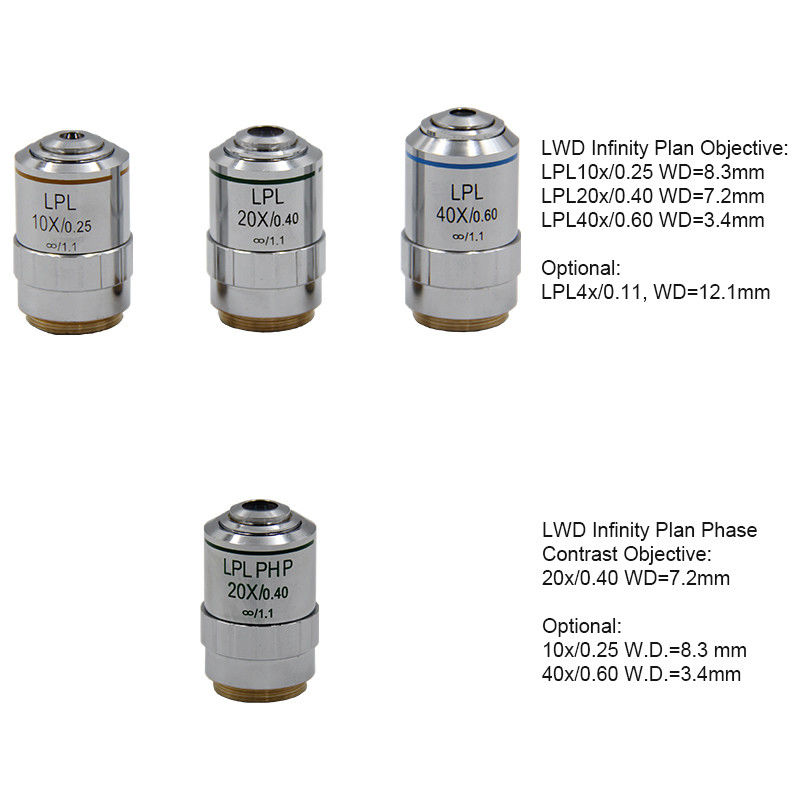

| Objective | LWD Infinity Plan Objective: LPL10x/0.25 WD=8.3mm LPL20x/0.40 WD=7.2mm LPL40x/0.60 WD=3.4mm LWD Infinity Plan Phase Contrast Objective: 20x/0.40 WD=7.2mm Infinity LWD Plan Objective (no cover glass): LPL10x/0.25, W.D.=14.48mm LPL40x/0.13, W.D.=3.90mm |
|
| Focus System | Low Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotataion, Minimum Reading 2μm | |
| Stage | Mechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm, Knob Can Be Changed By Left Or Right | |
| Condenser | Long Working Distance, N.A.0.3, Working Distance 72mm (With Condenser),195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable | |
| Phase Contrast | Phase Contrast Annular Plate For 20x/40x | |
| Filter | Blue, Green | |
| Light Source | Transmit Light, 5W LED | |
| Condenser | LWD N.A.0.3 | |
| Power Supply | Wide Range Voltage 110~240V | |
| Fluorescence | Upgrade To A16.2613 Fluorescent Microscope by: --Epi Fluorescence Unit, Field Diaphragm, Center Adjustable --100W Mercury Lamp --Digital Mercury Lamp Power Box, Input Voltage:100~240V --Fluorescent Filter B, G |
A5F.2601-A |
| Optional Accessories | ||
| Eyepiece | WF15x/16mm | A51.2621-15A |
| 10x Reticle Eyepiece (0.1mm) | A51.2605-10 | |
| Objective | Infinity LWD Plan Objective LPL4x/0.11, WD=12.1mm | A52.2609-4A |
| Infinity Plan Phase Contrast Objective 10x/0.25 W.D.=8.3 mm | A5C.2630-10A | |
| Infinity Plan Phase Contrast Objective 40x/0.60 W.D.=3.4 mm | A5C.2630-40A | |
| Infinity LWD Plan Objective (no cover glass) LPL5x/0.13, W.D.=24.23mm | A5M.2633-5 | |
| Infinity LWD Plan Objective (no cover glass) LPL20x/0.40, W.D.=8.35mm | A5M.2633-20 | |
| Infinity LWD Plan Objective (no cover glass) LPL50x/0.70(S), W.D.=1.95mm | A5M.2633-50 | |
| Infinity LWD Plan Objective (no cover glass) LPL80x/0.80(S), W.D.=0.85mm | A5M.2633-80 | |
| Infinity LWD Plan Objective (no cover glass) LPL100x/0.90(S), W.D.=1.00mm | A5M.2633-100 | |
| Phase Contrast | Centering Telescope | A5C.2610-B |
| Phase Contrast Annular Plate For 10x | A5C.2611-10 | |
| Filter | Amber | A56.2616-A |
| Grey | A56.2616-N | |
| Culture Dish Holder | 65mm | A54.2606-65 |
| 35mm | A54.2606-35 | |
| Adapter | C-Mount Adapter 0.5x (Focus Adjustable) | A55.2601-05A |
| C-Mount Adapter 1.0x | A55.2601-10 | |
Inverted microscope is particularly suitable for living cells and tissues, fluids, sediments and other microscopic research. It is the ideal instrument for biology, cytology, oncology, genetics, immunology and other research work. Inverted microscope is widely used in scientific research, universities, medical, epidemic prevention and agriculture and animal husbandry and other departments.
