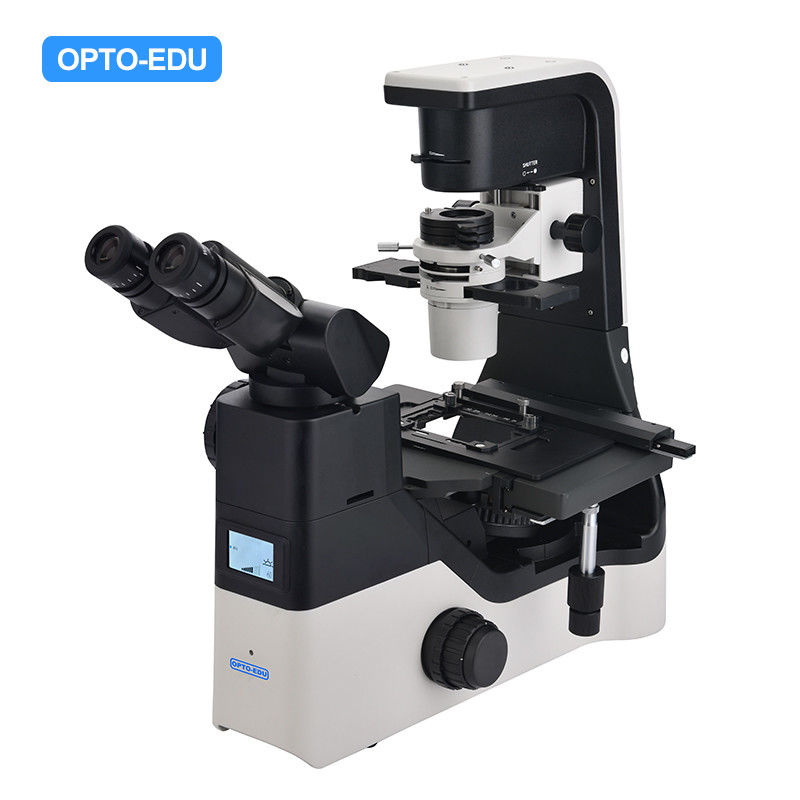

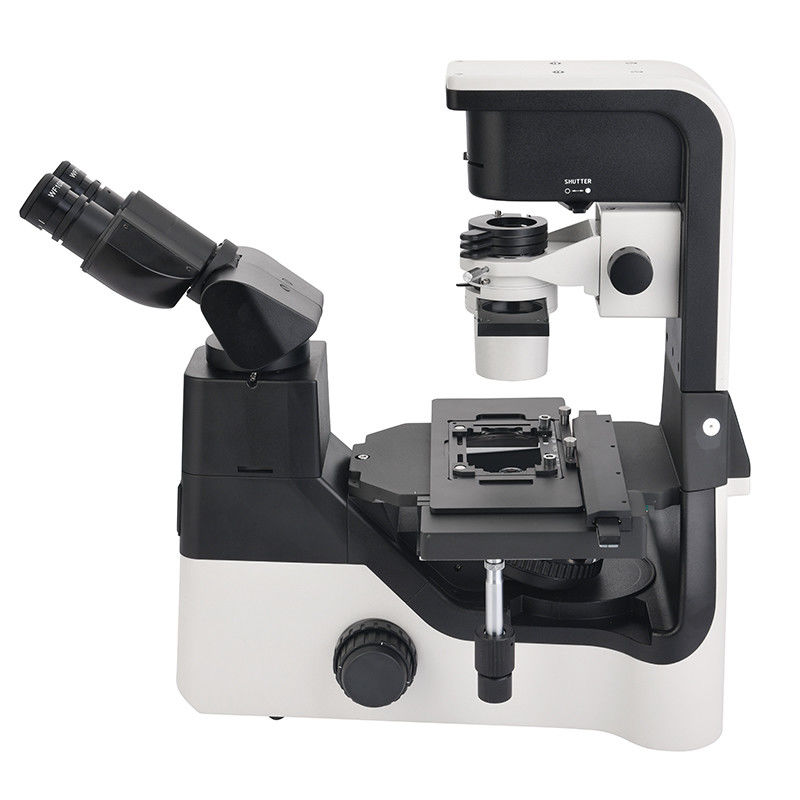

OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope

OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope

  • High Light

    Tilting Inverted Phase Contrast Microscope

    ,

    OPTO EDU inverted phase contrast microscope

    ,

    OPTO EDU inverted light microscope

  • Head
    Tilting Seidentopf Binocular Head, Incline 0-45° Adjustable
  • Eyepiece / F.O.V
    EW10x/22mm, Diopter Adjustable, Dia.30mm
  • Nosepiece
    Coded Quintuple Nosepiece, Dovetail Interface
  • Objective
    "LWD Infinity Plan Phase Contrast Objective"
  • Working Stage
    Plain Working Stage 170(X) X 250(Y)mm,
  • Focusing
    Coaxial Coarse & Fine Adjustment, Tension Adjustable
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A14.1065
  • Minimum Order Quantity
    1 pc
  • Price
    Negotiation
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope

  • Brand New Design 2019 High Level Inverted Laboratory Microscope
  • Super Long Working Distance Upto 187mm Condenser
  • Coded 5 Holes Nospiece With LCD Screen And Auto Brightness Adjust Function
  • Phase Contrast, Hoffman Contrast, Emboss Contrast (DIC) Optional
  • Upgradeable To Fluorescent Research Microscope A16.1064

OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 0
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 1
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 2
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 3

LED Illuminator, Suitable For Various Observation With A High Brightness And Long Lifetime Led
Illumination System For Both Transmission And Fluorescent Lighting, Proving Even Brightness
And Cool Lighting. Adopt Long Life LED Light Source And Infinity Optical System, Easy To Obtain High-definition And High Contrast Wide Viewing Images.


OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 4

Use A Dimming Knob To Achieve Multiple Functions
Click: Enter Standby Status, Press + Up-spin: Switch To The Upper Light Source; Double Click: Light Lock Or Unlock, Press + Down-spin: Switch To The Under Light Source; Rotation: Adjust Brightness, Press 3 Seconds: Set The Time Of Turning Off The Light After Leaving.

OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 5
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 6

The Microscope Control Mechanism Is Reasonable In Layout And Easy To Operate
Make Reasonable Improvement On Basis Of Scientific Research Microscope. More Suitable For Laboratory Observation Of Cells.
The Body Is Compact And Stable, And The Operation Buttons Are Well Arranged, The Cells Can Be Observed, Sampled And Processed In The Super Clean Bench Freely.
The Frequently Used Control Mechanisms Are Close To The User And In Low-hand Position. This Kind Of Design Makes Operation More Quickly And Conveniently, And Reduce The Fatigue Caused By The Long Observation. On The Other Hand, It Reduces The Airflow And Dust Caused By Large Amplitude Operation, And It Is Very Effective To Reduce The Probability Of Sample Pollution. It Is A Strong Guarantee For The Accuracy And Repeatability Of The Experimental Results.




OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 7

The Body Is Compact, Stable And Suitable For Clean Bench
Can Be Sterilized In The Clean Bench
On The Premise Of Ensuring The Effect Of Imaging, A14.1065 Is With Relative Compact Design. The Volume And Weight Of The Body Is Reduced As Much As Possible In Principle Of Stability. The Compact Body Is With Anti-uv Coating And Can Be Placed Into The Clean Bench For Sterilization Under Uv Lamp.

Cell Sampling And Operation Can Be Performed In Clean Bench
The Distance Between The Eye Point To The Operation Button And The Focusing Knob Of The A14.1065 Is Relatively Short, And The Distance From The Stage Is Far Away. It Is Available To Make The Viewing Head And Operating Mechanism Outside, And Stage, Objectives And Sample Inside. So Realize Cell Sampling And Operation Inside And Observing Comfortably Outside.


OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 8
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 9
OPTO EDU A14.1065 Tilting Inverted Phase Contrast Microscope 10

A14.1065 Inverted Biological Microscope,
A16.1065 Inverted LED Fluorescent Microscope
A14.1065 A16.1065 Cata. No.
Optical System NIS60 Infinite Optical System (F200)
Observation Method Bright Field,
Phase Contrast
Epi-Fluorscence
DIC 3D Emboss Contrast
Hoffman Phase Contrast
Head Tilting Seidentopf Binocular Head, Incline 0-45° Adjustable , Interpupillary Distance 48-75mm, Eyepiece Tube Dia.30mm
Eyepiece / F.O.V EW10x/22mm, Diopter Adjustable, Dia.30mm A51.1030-1022
EW15x/16mm, Diopter Adjustable, Dia.30mm A51.1030-1516
EW20x/12mm, Diopter Adjustable, Dia.30mm A51.1030-2012
Nosepiece Coded Quintuple Nosepiece, Dovetail Interface
LWD Infinity Plan
Objective
4x/0.10, W.D.30.0mm  A5M.1032-4
10x/0.25, W.D.10.2mm  A5M.1032-10
20x/0.40, W.D.12.0mm  A5M.1032-20
40x/0.60, W.D.2.20mm  A5M.1032-40
LWD Infinity Plan
Phase Contrast
Objective
4x/0.10, W.D.30.0mm  A5C.1038-4
10x/0.25, W.D.10.2mm  A5C.1038-10
20x/0.40, W.D.12.0mm  A5C.1038-20
40x/0.60, W.D.2.20mm  A5C.1038-40
LWD Infinity Plan
Semi-APO
Phase Contrast
Objective
4x/0.13, W.D.17.0mm  A5C.1039-4
10x/0.3, W.D.7.4mm  A5C.1039-10
20x/0.45, W.D.8.0mm  A5C.1039-20
40x/0.60, W.D.3.6mm  A5C.1039-40
20x/0.45, W.D.7.5-8.8mm  With Iris Adjustable A5C.1040-20
40x/0.60, W.D.3.0-4.4mm  With Iris Adjustable A5C.1040-40
60x/0.70, W.D.1.8-2.6mm With Iris Adjustable A5C.1040-60
LWD  Infinity Plan
Semi-APO
Fluorescent
Objective
4x/0.13, W.D.17.0mm, Cover Glass - - A5F.1032-4
10x/0.30, W.D.7.4mm, Cover Glass1.2mm - A5F.1032-10
20x/0.45, W.D.8.0mm, Cover Glass1.2mm - A5F.1032-20
40x/0.60, W.D.3.3mm, Cover Glass1.2mm - A5F.1032-40
60x/0.70, W.D.1.8-2.6mm, Cover Glass1.2mm A5F.1032-60
Focusing System Coaxial Coarse & Fine Adjustment, Tension Adjustable (At Right Hand), Fine Division 0.002mm,  Coarse Focusing Range Up 7mm, Down 1.5mm, Max Up To 18.5mm After Removing Focusing Limit.
Working Stage Plain Working Stage 170(X) x 250(Y)mm,
Attachable Mechanical Moving Stage,  X-Y Coaxial Moving 128x80mm A54.1063-XY
Stage Clip A54.1063-SC
Well Clamper For Well Plate A54.1063-WC
Glass Stage Plate A54.1063-G
Metal Stage Plate For Culture Bottle A54.1063-M
Auxilliary Plate 2 Pieces (1 Piece Each Side) A54.1063-A
Universal Holder A54.1063-U
Terasaki Holder A54.1063-T
Dia.35mm Petri Dish Holder  A54.1063-35
Dia.54mm Slide & Petri Dish Holder  A54.1063-54
Dia.65mm Slide & Petri Dish Holder  A54.1063-65
Dia.90mm Petri Dish Holder  A54.1063-90
Condenser Long Working Distance Detachable Condenser NA 0.3, W.D.75mm, Without Condenser W.D.187mm
Illumination Transmitted Illumination 3W S-LED Kohler Illumination
Reflected Illumination 3W LED, For Epi-Fluorescence
Phase Contrast Centering Telescope 10x, Tube Dia. 30mm A5C.1063-T
Phase Slider For 4x//10x-20x-40x A5C.1063-S
Phase Slider For 10x-20x,40x APO Objectives A5C.1063-APOS1
Phase Slider For 4x,60x APO Objectives A5C.1063-APOS2
Emboss Contrast DIC Emboss Contrast Slider For 10x-20x-40x
Universal Emboss Contrast Plate For 10x-20x-40x
A5C.1063-DIC
Hoffman Phase Contrast Hoffman Phase Contrast Set:
--Hoffman Phase Contrast Condenser, With Polarizer,
--Hoffman Phase Contrast Objective 10x, 20x, 40x
--Hoffman Phase Slider For 10x, 20x, 40x
--Centering Telescope 10x, Tube Dia. 30mm
A5C.1064
Epi-Fluorescence Attachment Epi-Fluorescence Attachment, Turret With 3 Holes For Filter Cubes, With Noise Terminator Mechanism, With Attachable UV Shield
Filter Cube B + LED Unit, 365nm A5F.1063-B
Filter Cube G + LED Unit, 405nm A5F.1063-G
Filter Cube U + LED Unit, 485nm A5F.1063-U
Filter Cube V + LED Unit, 525nm A5F.1063-V
Filter Cube FITC A5F.1063-FITC
Filter Cube DAPI A5F.1063-DAPI
Filter Cube TRITC A5F.1063-TRITC
Photo Port Head Side Camera Port Switchable 100/0:0/100
Photo Adapter 1.0x C-Mount A55.1063-1.0
0.5x C-Mount A55.1063-0.5
0.7x C-Mount A55.1063-0.7
Power Supply AC 100-240V,50/60Hz
LCD Screen LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, ECO Set Power Off Timer 5 Mins to 8 Hours, And So On.
Dimensions 244(W)x543(D)x526(H) mm
Note:""In Table Is Standard Outfits,"" Is Optional Accessories "-" Is Unavailable
