▶ Elevation Adjustable Viewing Head
The A14.0960/A16.0960 is equipped with a 20-45° adjustable binocular viewing head, which can raise the eye point by 78mm (65mm interpupillary distance) as required. It can be observed easily and quickly even in a standing state, which is effective avoiding fatigue of eyes and limbs. |
|
▶ Integrated Button
A14.0960/A16.0960 retains the traditional coarse and fine adjustment mode, cancels the gear mechanism, integrates electric control technology and realizes manual and automatic integration. The brightness, objectives, attenuator turntable and fluorescent turntable can be quickly switched or rotated through the corresponding buttons on the button panels on both sides. AF one-key auto focus can quickly adjust the Z-axis height according to the real-time image, and eliminates the need for fine-adjusting steps and improves work efficiency.
▶ Low-position Platform Handwheel
The low-position platform handwheel can be rotated 360° ,which can effectively reduce the hand fatigue caused by long-term operation and is ergonomic and improves the convenience of operation. |
|
▶ LWD Semi-APO Series Objectives
Full series of LWD semi-APO objectives were developed for cell culture. The objectives with correction ring have significant advantage for the observation of glass substrates and culture vessels with different thickness, and achieves accurate focusing by correcting the cover glass thickness. |
| BF | DF | DIC | POL | FL | PH | RPC | |||
| LWD Infinity Plan Positive Phase Contrast Objective | 4X/0.13, WD=17mm, | √ | √ | √ | √ | A5C.0960-4 | |||
| 10X/0.30, WD=8.8mm, | √ | √ | √ | √ | √ | A5C.0960-10 | |||
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | √ | A5C.0960-20 | ||
| 40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | √ | A5C.0960-40 | ||
| 60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness | √ | √ | √ | √ | √ | √ | A5C.0960-60 | ||
| LWD Infinity PlanSemi-APO Objective | 4X/0.13, WD=17mm, | √ | √ | √ | A5F.0961-4 | ||||
| 10X/0.30, WD=8.8mm, | √ | √ | √ | √ | A5F.0961-10 | ||||
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | A5F.0961-20 | |||
| 40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | A5F.0961-40 | |||
| 60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness | √ | √ | √ | √ | √ | A5F.0961-60 | |||
| Infinity Plan APOchromatic Objective | 4X/0.16, WD=12.8mm | √ | √ | √ | A5F.0962-4 | ||||
| 10X/0.40, WD=3.2mm | √ | √ | √ | √ | √ | A5F.0962-10 | |||
| 20X/0.75, WD=0.6mm | √ | √ | √ | √ | √ | A5F.0962-20 | |||
| 40X/0.95, WD=0.15mm | √ | √ | √ | √ | A5F.0962-40 | ||||
| 60X/0.90, WD=0.26mm | √ | √ | √ | √ | A5F.0962-60 | ||||
| 60X/1.25, WD=0.14mm Oil | √ | √ | √ | A5F.0962-60S | |||||
| 100X/1.35, WD=0.13mm Oil | √ | √ | √ | A5F.0962-100 | |||||
| Infinity Plan Super APO Objective | 10X/0.14, WD=3.1mm | √ | √ | √ | A5F.0963-10 | ||||
| 20X/0.80, WD=0.6mm | √ | √ | √ | A5F.0963-20 | |||||
| 40X/0.95, WD=0.18mm | √ | √ | √ | A5F.0963-40 | |||||
| 60X/1.42, WD=0.17mm Oil | √ | √ | √ | A5F.0963-60 | |||||
| 100X/1.45, WD=0.14mm Oil (Under development) | √ | √ | √ | A5F.0963-100 | |||||
| LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives | 10X/0.30, WD=8.8mm, | √ | √ | √ | √ | √ | √ | A5C.0965-10 | |
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | √ | A5C.0965-20 | ||
| 40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness | √ | √ | √ | √ | √ | √ | A5C.0965-40 |

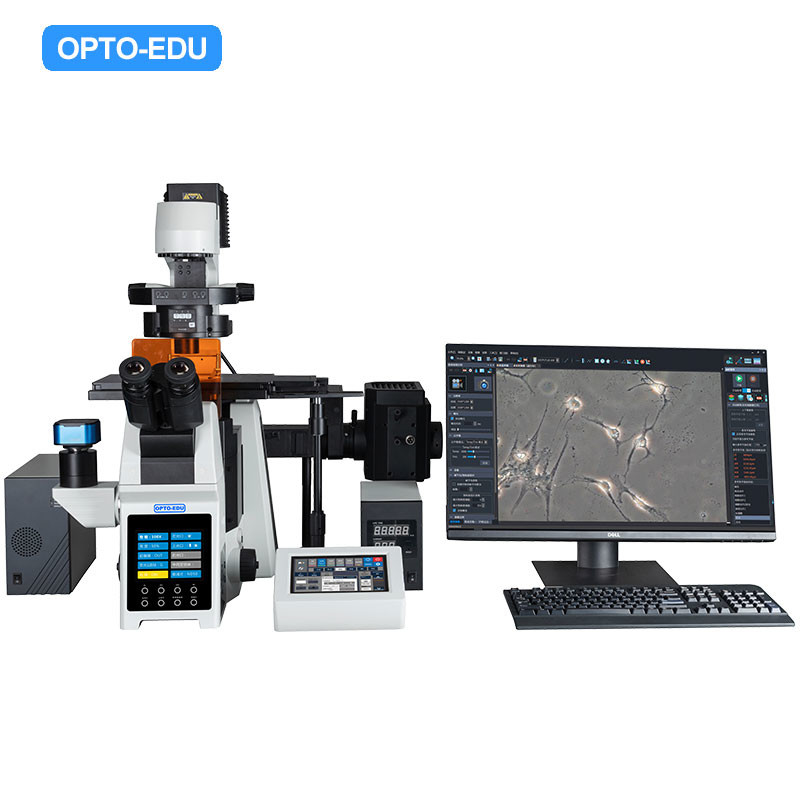

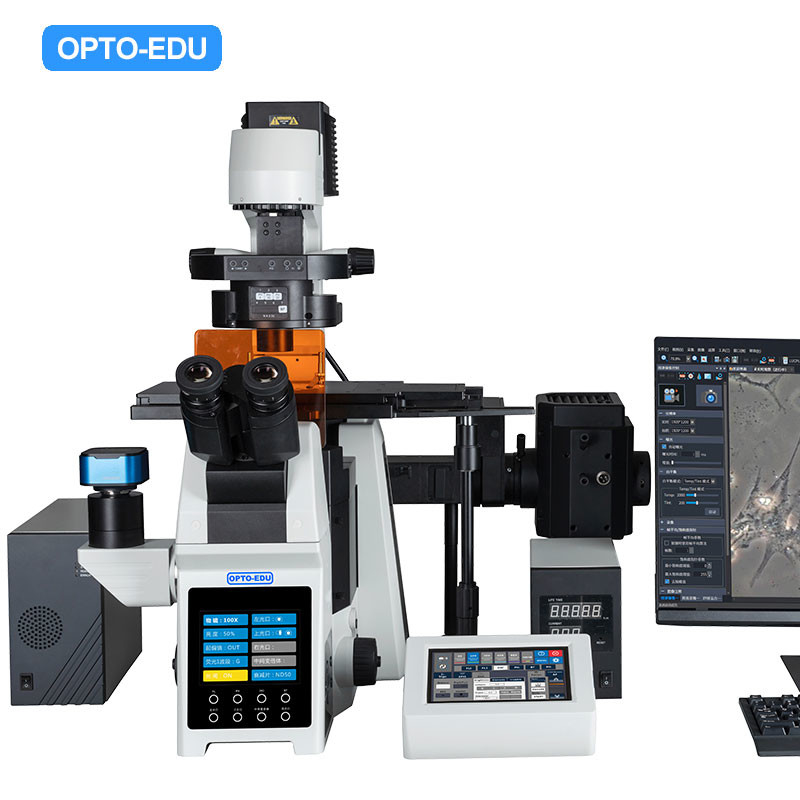

| A14.0960 Research Level Inverted Biological Microscope A16.0960 Research Level Inverted Fluorescent Microscope |
A14.0960 | A16.0960 | ||
| Function | BF, Bright Field | ● | ● | |
| PH, Phase Contrast | ● | ● | ||
| POL, Polarizing | o | o | ||
| DIC, Differential Interfied Contrast | o | o | ||
| Relief Hoffoman Phase Contrast | o | o | ||
| Head | 20º-45º tilting Binocular head, inverted image,interpupillary distance: 50mm~76mm | A53.0960 | ● | ● |
| Eyepiece | High eyepoint plan eyepiece PL10X/22mm,diopter adjustment | A51.0904-1022T | ●● | ●● |
| Nosepiece | Motorized bright filed sextuple nosepiece with DIC slot. | ● | ● | |
| LWD Infinity Plan Semi-APO Positive Phase Contrast Objective |
4X/0.13, WD=17mm, | A5C.0960-4 | ● | ● |
| 10X/0.30, WD=8.8mm, | A5C.0960-10 | ● | ● | |
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | A5C.0960-20 | ● | ● | |
| 40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness | A5C.0960-40 | ● | ● | |
| 60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness | A5C.0960-60 | ● | ● | |
| LWD Infinity Plan Semi-APO Objective |
4X/0.13, WD=17mm, | A5F.0961-4 | o | o |
| 10X/0.30, WD=8.8mm, | A5F.0961-10 | o | o | |
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | A5F.0961-20 | o | o | |
| 40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness | A5F.0961-40 | o | o | |
| 60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness | A5F.0961-60 | o | o | |
| Infinity Plan APOchromatic Objective |
4X/0.16, WD=12.8mm | A5F.0962-4 | o | o |
| 10X/0.40, WD=3.2mm | A5F.0962-10 | o | o | |
| 20X/0.75, WD=0.6mm | A5F.0962-20 | o | o | |
| 40X/0.95, WD=0.15mm | A5F.0962-40 | o | o | |
| 60X/0.90, WD=0.26mm | A5F.0962-60 | o | o | |
| 60X/1.25, WD=0.14mm Oil | A5F.0962-60S | o | o | |
| 100X/1.35, WD=0.13mm Oil | A5F.0962-100 | o | o | |
| Infinity Plan Super APO Objective |
10X/0.14, WD=3.1mm | A5F.0963-10 | o | o |
| 20X/0.80, WD=0.6mm | A5F.0963-20 | o | o | |
| 40X/0.95, WD=0.18mm | A5F.0963-40 | o | o | |
| 60X/1.42, WD=0.17mm Oil | A5F.0963-60 | o | o | |
| 100X/1.45, WD=0.14mm Oil (Under development) | A5F.0963-100 | o | o | |
| Working Stage | Manual mechanical stage, 300mm (X) × 240mm (Y), moving range is 135mm (X) × 85mm (Y),stage thickness is 30mm. Lower universal right side handle. With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips. | A54.0960 | ● | ● |
| Stage: Motorized, 260*153mm with working range 110*75mm, The maximum speed is 3mm/s, the repeat positioning accuracy is ±1um, and it can be adapted to petri dish and slice observation | A54.0963 | o | o | |
| Marzhauser Motorized Stage |
Marzhauser Motorized stage, moving range: 120mm(X) x 80mm(Y); resolution: 0.02μm, repeatability <1μm, with control box and operating handle, with slider holder. | A54.0961 | o | o |
| φ36 Petri dish holder,used with Marzhauser-SCAN | o | o | ||
| 96-well plate petri dish holder,used with Marzhauser-SCAN | o | o | ||
| Teraseki holder,used with Marzhauser-SCAN | o | o | ||
| Prior Motorized Stage |
Prior Motorized stage, moving range: 114mm(X) x 75mm(Y), resolution: 0.01μm, repeatability:0.2 μm, with control box and operating handle. | A54.0962 | o | o |
| φ36 Petri dish holder,used with Prior stage. | o | o | ||
| 96-well plate petri dish holder,used with Prior stage. | o | o | ||
| Teraseki holder,used with Prior stage. | o | o | ||
| Motorized coarse & fine coaxial focusing, range: 10.5mm, precision: 1 μm. Motorized left camera port, splitting ratio:0:100, 50:50, 100:0. Motorized upper camera port, splitting ratio: 100:0, 0:100,with CTV adapter Dual optical path, with fluorescent light barrier. |
● | ● | ||
| Base mounting bracket anti-vibration | A54.0960-AV | o | o | |
| Right camera port, manual two gears switching, splitting ratio: 100:0, 0:100, POV16mm, built-in C-mount 1X. (MUST ordered with whole unit, cannot be added later as optional) | A55.0960 | o | o | |
| Condenser B | Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm Work For BF, PH, DIC. |
A56.0962 | ● | ● |
| Phase Contrast for B | 4X phase contrast aperture group | A5C.0962-4 | ● | ● |
| 10X phase contrast aperture group | A5C.0962-10 | ● | ● | |
| 20X/40X/60X phase contrast aperture group | A5C.0962-204060 | ● | ● | |
| DIC for A,B | DIC slider & Analyzer for transmitted light, Need to select Objectives: A5F.0961-10x,20x,40x,60x A5F.0962-10x,20x,40x,60x A5C.0960-10x,20x,40x,60x |
A5C.0964 | Bo | Bo |
| 10X DIC ring, compatible with condenser B | A5C.0964-10 | Bo | Bo | |
| 20X DIC ring, compatible with condenser B | A5C.0964-20 | Bo | Bo | |
| 40X/60X DIC ring, compatible with condenser B | A5C.0964-4060 | Bo | Bo | |
| Condenser C | Manual 5 positions LWD condenser, NA0.30, WD73mm, to meet 4X-60X phase contrast, simple polarization or 10X-40X RPC relief contrast. Work For BF, PH, POL, Relief |
A56.0963 | o | o |
| Phase Contrast for C | 4X phase contrast aperture group | A5C.0963-4 | Co | Co |
| 10X phase contrast aperture group | A5C.0963-10 | Co | Co | |
| 20X/40X/60X phase contrast aperture group | A5C.0963-204060 | Co | Co | |
| Polarizing for C | Analyzer, MUST be selected for Reflief Hoffman | A5P.0963-A | Co | Co |
| 360° rotatable polarizer, MUST be selected for Reflief Hoffman | A5P.0963-P | Co | Co | |
| Relief Hoffman Phase Contrast Slide & Objective |
10X aperture group, compatible with condenser C | A5C.0965-10S | Co | Co |
| 20X aperture group, compatible with condenser C | A5C.0965-20S | Co | Co | |
| 40X aperture group, compatible with condenser C | A5C.0965-40S | Co | Co | |
| LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives | A5C.0965 | Co | Co | |
| 10X/0.30, WD=8.8mm, | A5C.0965-10 | Co | Co | |
| 20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness | A5C.0965-20 | Co | Co | |
| 40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness | A5C.0965-40 | Co | Co | |
| Transmit Light | Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable, range: 65mm, able to set 4 filters. | A56.0960 | ● | ● |
| 10W Cool LED Light Box, color temperature 5000K | A56.0960-LED | o | o | |
| 12V100W halogen illumination box, filament center preset. | A56.0960-HAL | ● | ● | |
| 12V100W halogen lamp 7724 | A56.0960-12100 | ●● | ●● | |
| LBD filter | A56.0960-LBD | ● | ● | |
| Green filter | A56.0960-G | ● | ● | |
| Reflect Fluorescent Mercury Light |
L-shaped design reflection fluorescence illuminator.with attenuation plate. | A5F.0960-MER | x | ● |
| 100W Fluorescence mercury light box | x | ● | ||
| 100W mercury lamp power supply unit (U5 power supply unit) | x | ● | ||
| 100W Mercury Lamp (OSRAM) | x | ● | ||
| 5 positions Motorized filter wheel is offered for both excitation and observation, BF/Shutter/ND6/ND25/ND50; External connecting cable 100cm | A5F.0960-FW | x | o | |
| Extension accessories | A5F.0960-EX | x | ● | |
| Multi-band LED Light Source Module, with four excitation channels,10W high-power LED |
A5F.0960-LED4 | x | o | |
| Fluorescent Filter | Motorized turret with 8 positions, built-in shutter, External connecting cable 20cm | A5F.0960-60 | x | ● |
| Rotary disk dustproof box | A5F.0960-DB | x | ● | |
| Fluorescence filter(B) (CHROMA) | A5F.0960-B | x | ● | |
| Fluorescence filter(G) (CHROMA) | A5F.0960-G | x | ● | |
| Fluorescence filter(UV) (CHROMA) | A5F.0960-UV | x | ● | |
| Fluorescence filter(R1) (CHROMA) EX:AT620/50X, BS: AT655DC, EM: AT690/50M | A5F.0960-R1 | x | o | |
| CAN Card | Need buy computer too to meet electric control, including MV-image-Research | A54.0966-USB | ● | ● |
| Need buy computer too to meet electric control, including MV-image-Research | A54.0966-PCIE | o | o | |
| Computer | Dell Computer Precision T3650(i7 11700/16GB/256GB+1TB/P620) + P2722H | A54.0966-PC | o | o |
| 7" screen, Motorized control unit | A54.0966-TPC | o | o | |
| External connecting cable 200cm, computer connect with power supply box. | A54.0966-EC | ● | ● | |
| Power supply | External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A |
● | ● | |
| External connecting cable 200cm, power supply box connect to microscope | ● | ● | ||
| Digital Camera | SONY IMX267 color camera,CCD 8.9M, 32fps@8.9MP,USB3.0,Sensor 1" | A59.0960-8.9M | o | o |
| SONY IMX264 color camera,CCD 5.0M, 35fps@5MP,USB3.0,Sensor 2/3" | A59.0960-5.0M | ● | ● | |
| SONY ICX695 color camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1" | A59.0960-6.0M | o | o | |
| SONY ICX695 color cold camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1" | A59.0960-6.0MC | o | o | |
| SONY ICX695 mono color camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1" | A59.0960-6.0MM | o | o | |
| SONY ICX695 mono color cold camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1" | A59.0960-6.0MMC | o | o | |
| RISI 9.9M mono color camera(2960x2960), field of view 17.8mm, pixel size 4.25x 4.25um, 30 fps, 73% quantum efficiency, sensor 17.8mm | A59.0960-9.9M | o | o | |
| Telescope | Phase Contrast Telescope Φ30 | A5C.0910-30 | ● | ● |
| Fluorescence Telescope | A5F.0930-2 | x | ● | |
| C-mount adaptor | C-mount adaptor 0.5X | A55.0930-05 | o | o |
| C-mount adaptor 0.65X | A55.0930-65 | ● | ● | |
| C-mount adaptor 1X | A55.0930-10 | o | o | |
| Accessories | Allen wrench M3 | ●● | ●● | |
| Allen wrench M4 | ●● | ●● | ||
| Allen wrench M5 | ● | ● | ||
| Non-fluorescing immersion oil | o | o | ||
| Packaging | Carton and foam | ● | ● | |
| Remark | ●' means standard outfit, 'o' means optional outfit, 'x' means not compatible, 'A','B','C' means only compatible for specific condenser A,B or C | |||
