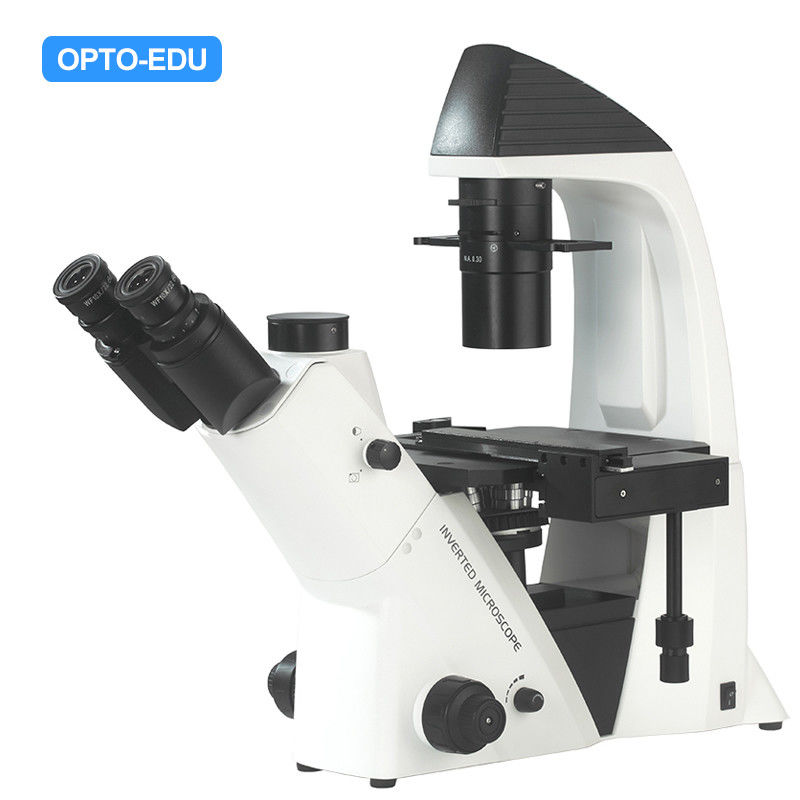

OPTO-EDU A14.2603 Inverted Microscope, Transmit Light , Semi-APO

OPTO-EDU A14.2603 Inverted Microscope, Transmit Light , Semi-APO

  • Highlight

    digital trinocular microscope

    ,

    infinity plan microscope

  • Certification
    CE
  • Working Distance
    100mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A14.2603
  • Document
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A14.2603 Inverted Microscope, Transmit Light , Semi-APO

Inverted Microscope, Transmit Light

  • Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80
  • LWD Infinity Plan Fluorescent Objectives Bright Field & Phase Contrast Observation Supported
  • LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser
  • Standard Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice
  • Fluorescence Attachment Can Be Added To Upgrade It As A16.2614 Fluorescent Microscope
  • Items A14.2603 Inverted Biological Microscope A14.2603 A14.2603-TR Cata. No.
    Head Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 A53.2643
    Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable ●● ●● A51.2621-1022
    WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ ○○ A51.2621-1516
    WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable ○○ ○○ A51.2621-2012
    Nosepiece Quintuple A54.2610-N925
    LWD Infinity Plan Semi-APO Objectives
    Newly Update 2021
    L Plan FL 4x/0.11 W.D.=12.1mm A5F.2635-4
    L Plan FL 10x/0.25 W.D.=10.3mm A5F.2635-10
    L Plan FL 20x/0.45 W.D.=5.8mm A5F.2635-20
    L Plan FL 40x/0.65 W.D.=5.1mm A5F.2635-40
    LWD Infinity Plan Phase Contrast Semi-APO Objectives
    Newly Update 2021
    L Plan FL PHP 4x/0.10 W.D.=9.2mm A5C.2635-4
    L Plan FL PHP 10x/0.25 W.D.=10.3mm A5C.2635-10
    L Plan FL PHP 20x/0.45 W.D.=5.8mm A5C.2635-20
    L Plan FL PHP 40x/0.65 W.D.=5.1mm A5C.2635-40
    Phase Contrast Centering Telescope 11x A5C.2610
    Annular Spot 4x A5C.2611-4
    Annular Spot 20x/ 40x A5C.2611-10
    Annular Spot 10x A5C.2611-20/40
    Working Stage Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm A54.2601-D4
    Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm A54.2605
    Culture Dish Holder 65mm A54.2606-65
    Culture Dish Holder 54mm A54.2606-54
    Culture Dish Holder 35mm A54.2606-35
    Holder For Blood Cell Counter A54.2606-BC
    Universal Holder (New Accessory 2021) A54.2606-UH
    Round Glass Holder (New Accessory 2021) A54.2606-GL
    Condenser Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser). A56.2614-D4
    Tranmist Illumination Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V A56.2613-6V30W
    Koehler Illumination 5W LED,
    Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    A56.2651-5W
    Reflect Illumination Koehler Illumination 5W LED,
    Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    -
    Polarizing Set
    Power ECO, Auto Power Off System.
    Power Off Automatically Upon User Leaving 10 Minutes,
    Power On Automatically Upon User Approaching Detected,
    This Function Can Be Shut Down Manually
    A56.2660
    Filter Blue, Dia.34mm A56.2616-34B
    Green, Dia.34mm A56.2616-34G
    Amber, Dia.34mm A56.2616-34A
    Grey, Dia.34mm A56.2616-34N
    Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
    C-Mount 0.75x, Focus Adjustable A55.2601-75
    C-Mount1.0x, Focus Adjustable A55.2601-10
    Epi Fluorescence Illumination Upgrade to A16.2614-2 Inverted Fluorescence Microscope With:
    B,G China Fluorescent Filter
    3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
    100W Mercury Lamp House
    100W Mercury Power Box, Digital Disp.
    Ultraviolet Protection Barrier
    A5F.2603-2
    Upgrade to A16.2614-4 Inverted Fluorescence Microscope With:
    B,G,U,UV China Fluorescent Filter
    3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
    100W Mercury Lamp House
    100W Mercury Power Box, Digital Disp.
    Ultraviolet Protection Barrier
    A5F.2603-4
    Upgrade to A16.2614-L2 Inverted Fluorescence Microscope With:
    B,G China Fluorescent Filter
    3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
    5W LED Lamp House
    5W LED Power Box
    Ultraviolet Protection Barrier
    A5F.2604-2
    Upgrade to A16.2614-L4 Inverted Fluorescence Microscope With:
    B,G,U,UV China Fluorescent Filter
    3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
    5W LED Lamp House
    5W LED Power Box
    Ultraviolet Protection Barrier
    A5F.2604-4
