Kohler Illumination Inverted Light Microscope OPTO-EDU A14.0900
-
Highlight
Kohler Illumination Inverted Light Microscope
,OPTO-EDU inverted light microscope
,inverted metallurgical microscope
-
ApplicationsLaboratory|Research
-
CertificationCE
-
DrawtubeBinocular|Trinocular
-
IlluminationLED
-
TheoryInverted Microscope
-
Place of OriginChina
-
Brand NameCNOEC
-
CertificationCE
-
Model NumberA14.0900
-
Document
-
Minimum Order Quantity1
-
Price$1-$10000
-
Packaging DetailsCarton
-
Delivery Time1month
-
Payment TermsT/T,West Union and Paypal
-
Supply Ability10000

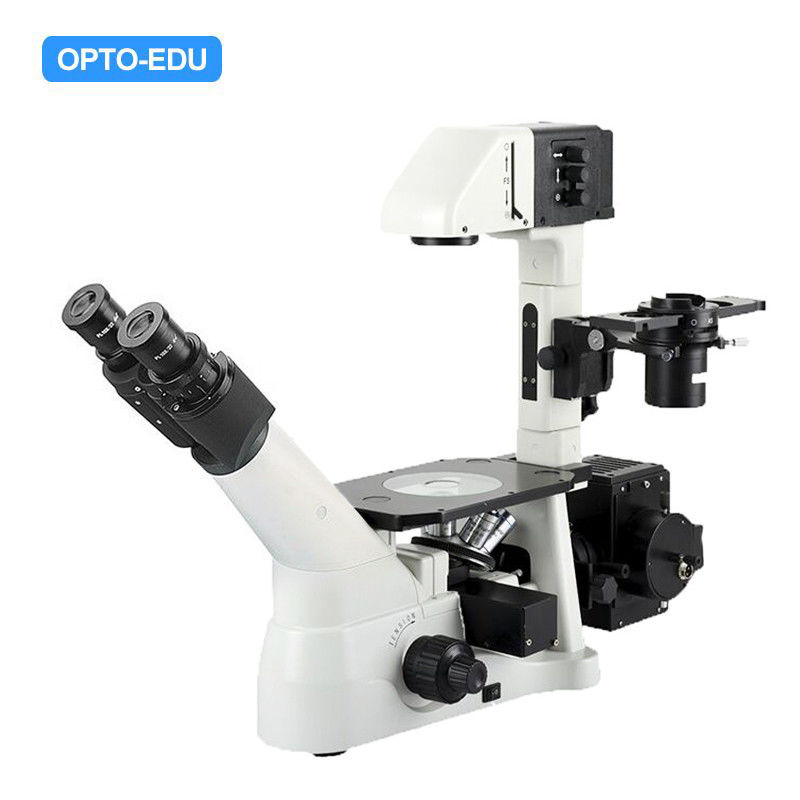

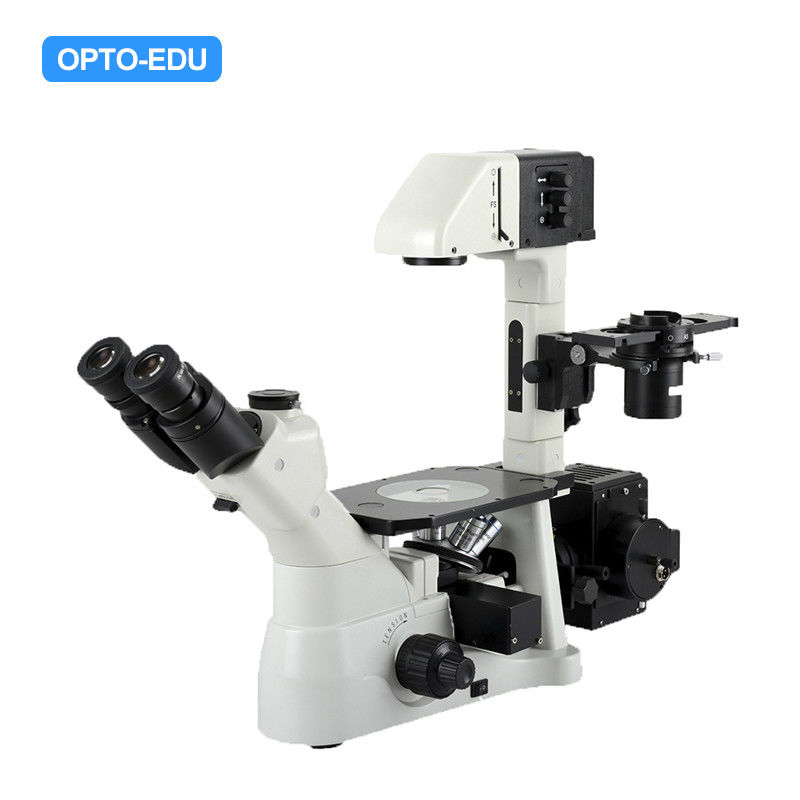

Kohler Illumination Inverted Light Microscope OPTO-EDU A14.0900
| A14.0900 Inverted Microscope | A | B | ||
| Optical System | Infinity Color Corrected Optical System | ● | ● | |
| Head | Binocular Head | ● | ||
| Trinocular Head, Light Split Switch E100:P0/E80:P20 | ● | |||
| Gemel Viewing Head, 45 Degree Inclined, Interpupillary Distance 54-75mm, One eyepiece tube with ±5 Diopter Adjustment, | ● | ● | ||
| Eyepiece | PL10x/22mm, High Eyepoint, Wide Field | ● | ● | |
| PL15x/16mm, High Eyepoint, Wide Field | ○ | ○ | ||
| Nosepiece | Reversed Revolving Quintuple Nosepiece | ● | ● | |
| Objective | Long Working Distance Infinity Plan Achromatic Objectives | LWDPL 4x/0.10, W.D.=22mm | ● | ● |
| LWDPL 10x/0.25, W.D.=7.94mm | ● | ● | ||
| LWDPL 20x/0.40, W.D.=7.66mm | ○ | ○ | ||
| LWDPL 40x/0.60, W.D.=3.72mm | ● | ● | ||
| LWD Infinity Plan Phase Contrast Objectives | LWDPL 10x/0.25, W.D.=7.94mm | ○ | ○ | |
| LWDPL 20x/0.40, W.D.=7.66mm | ● | ● | ||
| LWDPL 40x/0.60, W.D.=3.71mm | ○ | ○ | ||
| Stage | Fixed Stage Size 250*160mm, Slider Clips | ● | ● | |
| Glass Plate | ● | ● | ||
| Metal Plate | ● | ● | ||
| Petri Dish Holder, Dia.35mm | ● | ● | ||
| Movable Ruler, Travel Range 120x78mm | ○ | ○ | ||
| Extension Plate | ○ | ○ | ||
| Focusing | Coaxial Coarse & Fine Focusing System, Working Distance Of Every Circle: 38mm/Coarse Focus, 0.2mm/ Fine Focus, Minimal Read 0.002mm/,With Tension Adjustment, With Safty Stop | ● | ● | |
| Condenser | N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down | ● | ● | |
| N.A.0.5 condenser for option, dismountable | ○ | ○ | ||
| Phase Contrast | Phase Contrast Plug-board for 10x-40x, Center Adjustable | ● | ● | |
| Centering Telescope Dia. 30mm | ● | ● | ||
| Filter | Dia.45mm Green Interference Filter | ● | ● | |
| Dia.45mm Color Temperature Change Filter | ● | ● | ||
| Dia.45mm Infrared Eliminate Filter | ○ | ○ | ||
| Dia.45mm Rubidium Glass Filter | ○ | ○ | ||

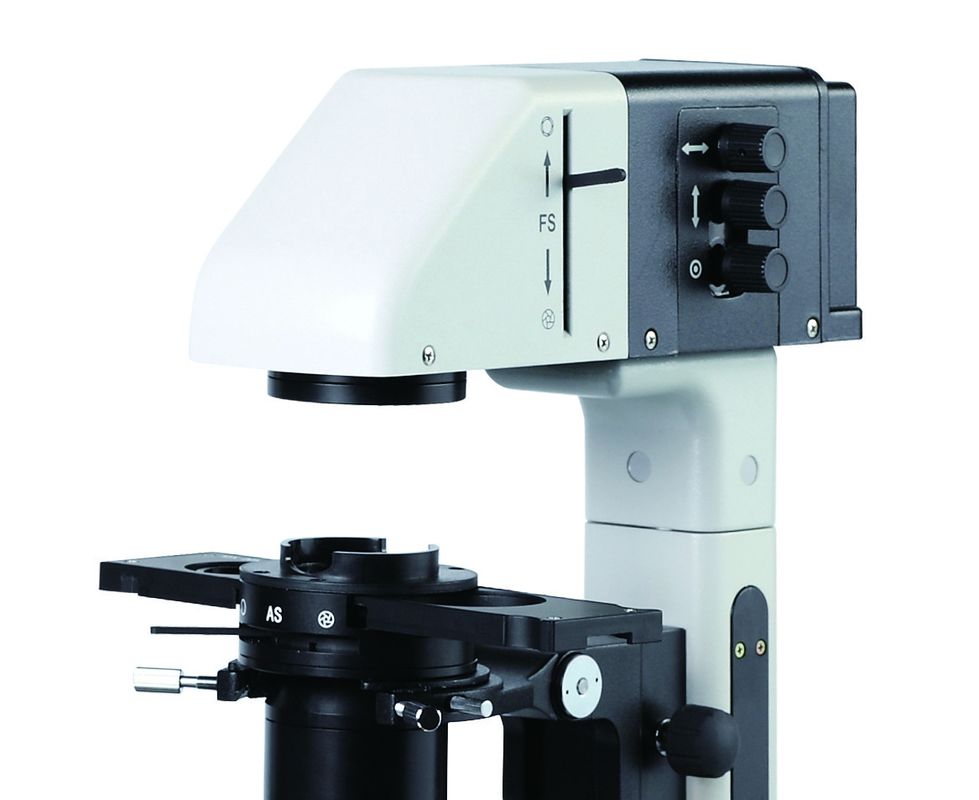

| Light | Kohler Illumination, With Iris Aperture and Field Diaphragm, 6V/30W Halogen Bulb, Center And Focus Adjustable, Brightness Adjustable | ● | ● | |
| Photo Adapter | Photo Tube(with PK adaptor), 3.2x Lens | ○ | ○ | |
| Video Adapter | 0.5x/0.67x C Mount Adaptor | ○ | ○ | |
| Power | Wide Voltage 90-240V | ● | ● | |
| Series | Magnification | N.A. | W.D. | F.N. | Cover Glass Thickness | Immersion | Spring |
| Lplan Series(PH) | Lplan4x | 0.1 | 22 | 22 | 1.2 | / | / |
| Lplan10x | 0.25 | 7.94 | 22 | 1.2 | / | / | |
| Lplan PH10x | 0.25 | 7.94 | 22 | 1.2 | / | / | |
| Lplan20x | 0.4 | 7.66 | 22 | 1.2 | / | / | |
| Lplan PH20x | 0.4 | 7.66 | 22 | 1.2 | / | / | |
| Lplan40x | 0.6 | 3.71 | 22 | 1.2 | / | / | |
| Lplan PH40x | 0.6 | 3.71 | 22 | 1.2 | / | / |
