Detailed Product Description
Head: Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 48~76mm Eyepiece: WF10x/22mm, Diopter Adjustable
Nosepiece: Large Diameter Quintuple Phase Contrast: Phase Contrast Annular Plate For 20x/40x
Filter: Blue, Green Light Source: Transmit Light, Halogen 6V30W, Koehler Illumination

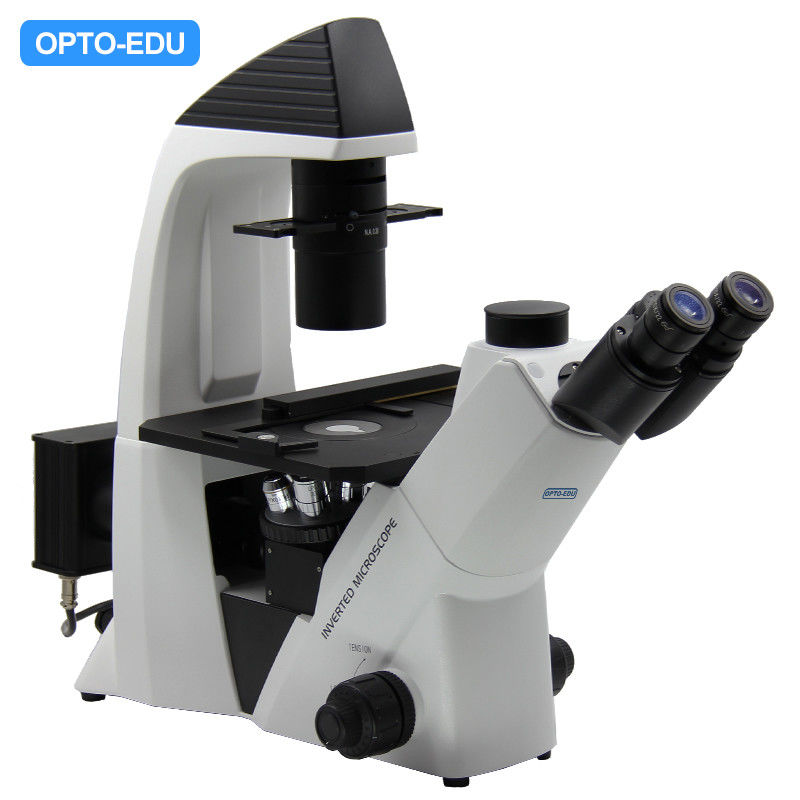

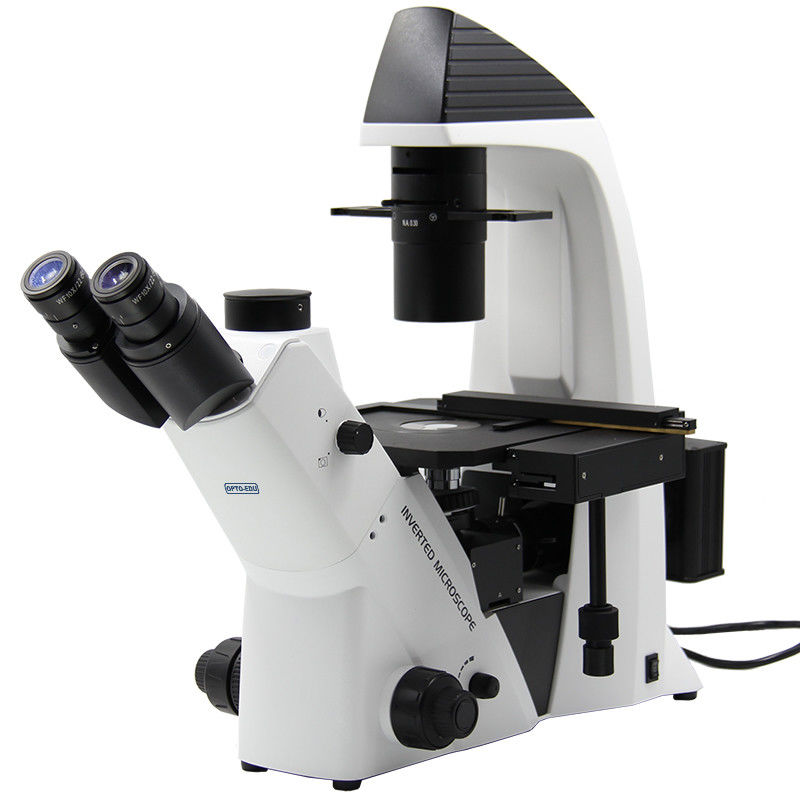

OPTO-EDU A14.2603-TR 100-400x Optical Trinocular Lab Biological Inverted Microscope





A14.2603-TR Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.



A14.2603-TR Inverted Microscope Specification
Head Seidentopf Trinocular Head, Inclined 45°, Interpupilary Distance 48~76mm Light Split (Both) 100:0 and 80:20
Eyepiece WF10x/22mm, Diopter Adjustable
Nosepiece Large Diameter Quintuple
Objective LWD Infinity Plan Objective:
LPL10x/0.25 WD=8.3mm
LPL20x/0.40 WD=7.2mm
LPL40x/0.60 WD=3.4mm

LWD Infinity Plan Phase Contrast Objective:
20x/0.40 WD=7.2mm

Infinity LWD Plan Objective (no cover glass):
LPL10x/0.25, W.D.=14.48mm
LPL40x/0.13, W.D.=3.90mm
Focus System Low Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotataion, Minimum Reading 2μm
Stage Mechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm, Knob Can Be Changed By Left Or Right
Condenser Long Working Distance, N.A.0.3, Working Distance 72mm (With Condenser),195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable

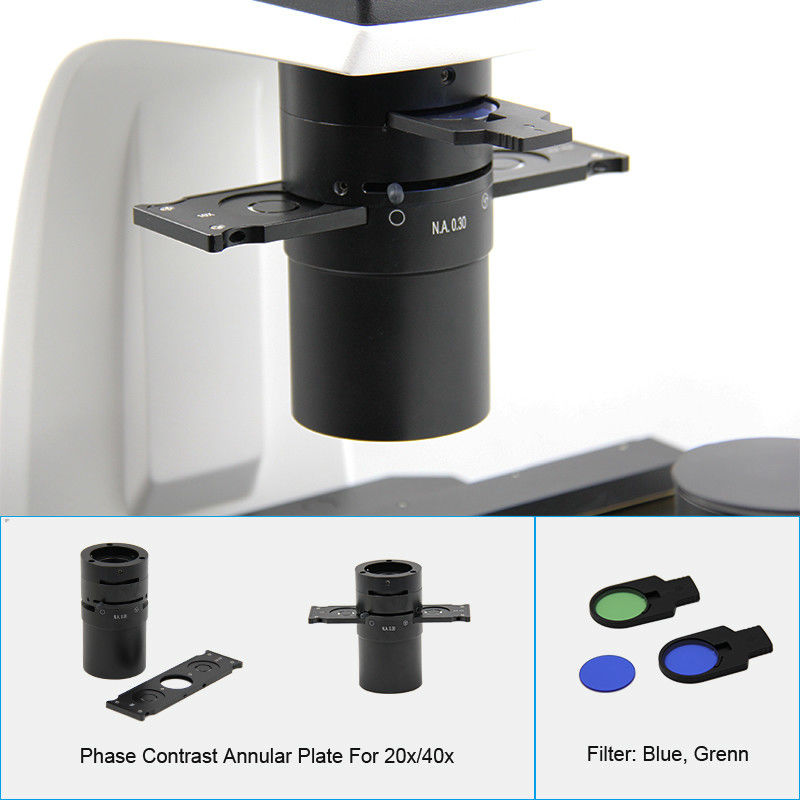

Phase Contrast Phase Contrast Annular Plate For 20x/40x
Filter Blue, Green
Light Source Transmit Light, 5W LED
Condenser LWD N.A.0.3
Power Supply Wide Range Voltage 110~240V
Fluorescence Upgrade To A16.2613 Fluorescent Microscope by:
--Epi Fluorescence Unit, Field Diaphragm, Center Adjustable
--100W Mercury Lamp
--Digital Mercury Lamp Power Box, Input Voltage:100~240V
--Fluorescent Filter B, G
A5F.2601-A



Mechanical Stage Inverted Light Microscope / Digital Inverted Microscope

Mechanical Stage Inverted Light Microscope / Digital Inverted Microscope

Mechanical Stage Inverted Light Microscope / Digital Inverted Microscope



Optional Accessories
Eyepiece WF15x/16mm A51.2621-15A
10x Reticle Eyepiece (0.1mm) A51.2605-10
Objective Infinity LWD Plan Objective LPL4x/0.11, WD=12.1mm A52.2609-4A
Infinity Plan Phase Contrast Objective 10x/0.25 W.D.=8.3 mm A5C.2630-10A
Infinity Plan Phase Contrast Objective 40x/0.60 W.D.=3.4 mm A5C.2630-40A
Infinity LWD Plan Objective (no cover glass) LPL5x/0.13, W.D.=24.23mm A5M.2633-5
Infinity LWD Plan Objective (no cover glass) LPL20x/0.40, W.D.=8.35mm A5M.2633-20
Infinity LWD Plan Objective (no cover glass) LPL50x/0.70(S), W.D.=1.95mm A5M.2633-50
Infinity LWD Plan Objective (no cover glass) LPL80x/0.80(S), W.D.=0.85mm A5M.2633-80
Infinity LWD Plan Objective (no cover glass) LPL100x/0.90(S), W.D.=1.00mm A5M.2633-100
Phase Contrast Centering Telescope A5C.2610-B
Phase Contrast Annular Plate For 10x A5C.2611-10
Filter Amber A56.2616-A
Grey A56.2616-N
Culture Dish Holder 65mm A54.2606-65
35mm A54.2606-35
Adapter C-Mount Adapter 0.5x (Focus Adjustable) A55.2601-05A
C-Mount Adapter 1.0x A55.2601-10



Mechanical Stage Inverted Light Microscope / Digital Inverted Microscope





Inverted microscope is particularly suitable for living cells and tissues, fluids, sediments and other microscopic research. It is the ideal instrument for biology, cytology, oncology, genetics, immunology and other research work. Inverted microscope is widely used in scientific research, universities, medical, epidemic prevention and agriculture and animal husbandry and other departments.
