A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

China A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier
A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research supplier

Large Image :  A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A12.2603

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Eyepiece: WF10x/20 Nosepiece: 5 Holes
Objective: Infinity Plan 4x10x40x100x Working Stage: Double Layer Mechanical
Condenser: Abbe N.A.1.25 Focusing: Coaxial Coarse & Fine
Light Source: LED Power Supply: 100~240V
Magnification: 40x,100x,200x,400x,1000x

OPTO-EDU A12.2603 Biological Research Use Trinocular Lab Microscope With Factory Price

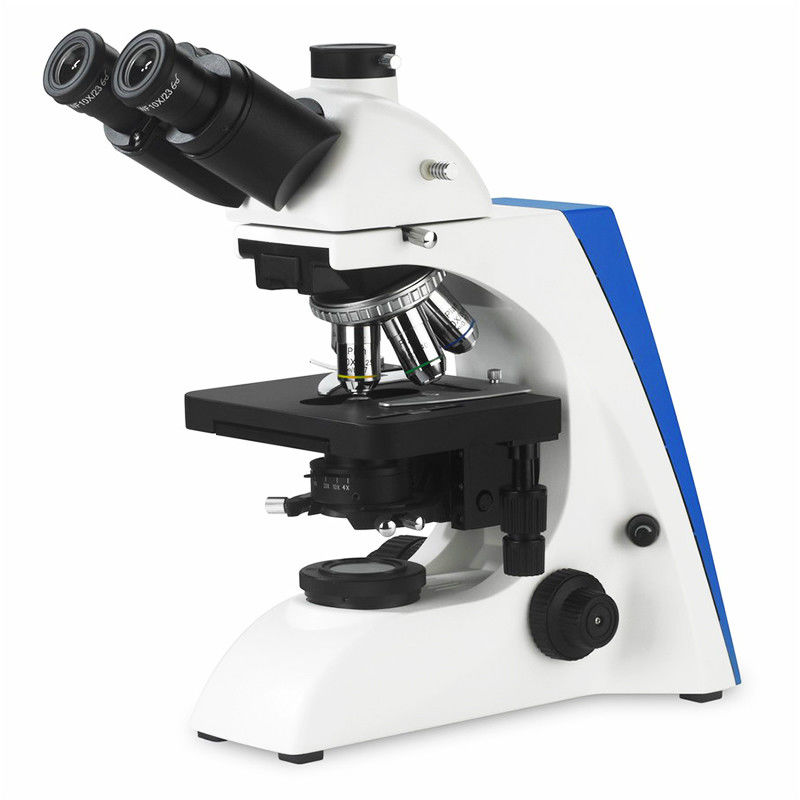

A12.2603 is a type of laboratory biological microscope, it is designed for college teaching and hospital. It is the original style which can upgrade to other microscopes, like polarzing microscope and fluorescent microscope. The features of steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and hospital.



A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research



A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

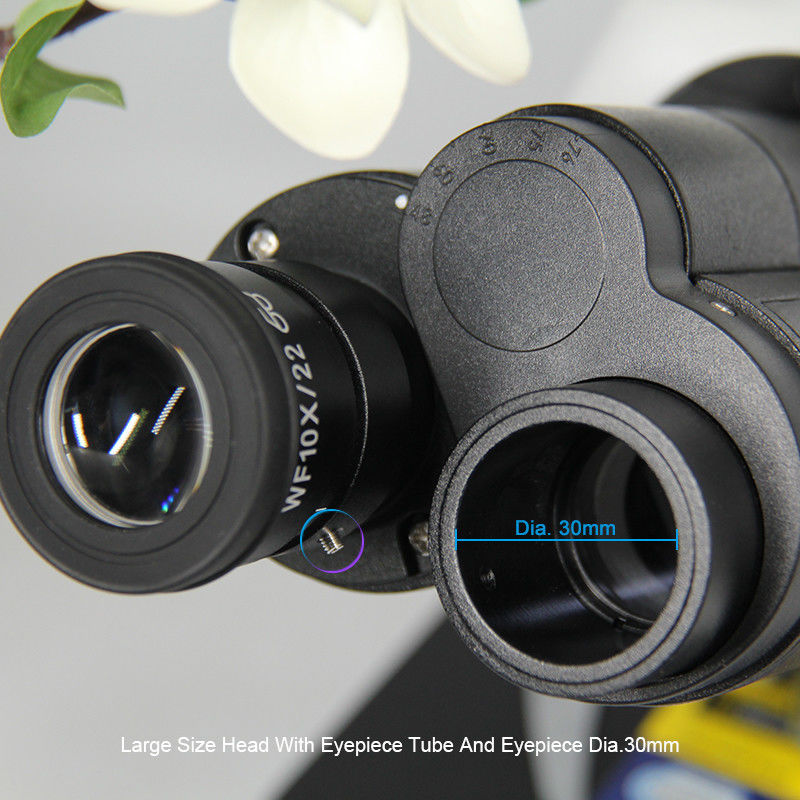

Large Size Head With Eyepiece Tube And Eyepiece Dia.30mm.
Trinocular Head With Switch Light Split Between E100:P0/E20:P80
The Eyepiece Tube Has Fix Screw To Prevent Eyepiece Falling Damage During Move

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

Super Wide Field SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

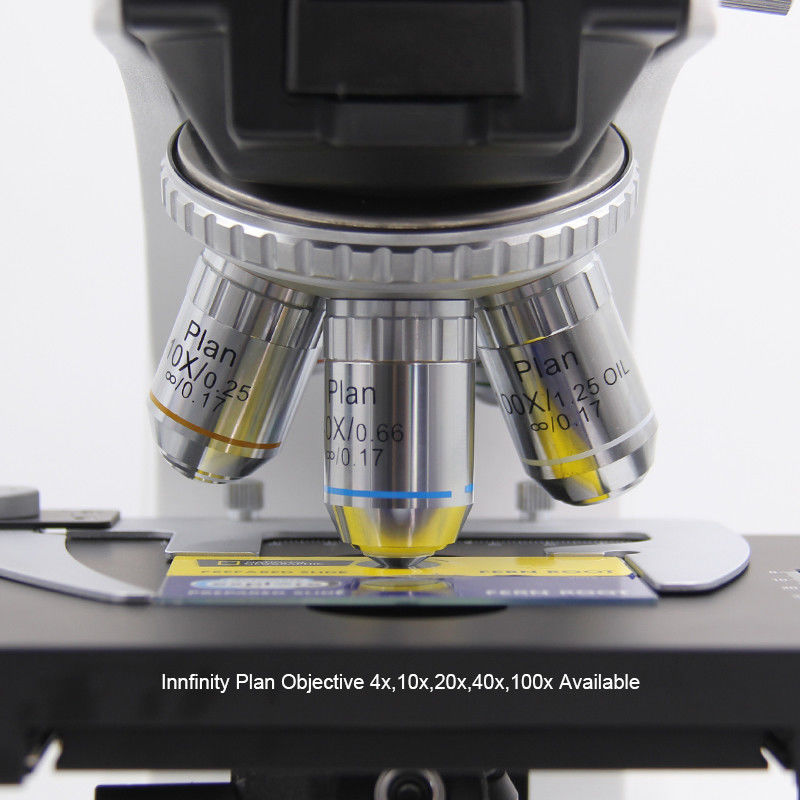

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot, Innfinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

Rackless (Integrated) Mechanical Stage, Large Size 182×140mm, Double Slide Holder

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm, Control The Amount Of Light According To Demand, The Effect Is More Perfect.

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research



A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research

Items A12.2603 Laboratory Biological Microscope Specification -B -T Cata. No.
A12.2603 Upgarde From A12.2602 --Head Upgrade To Large Size With Eyepiece Tube Dia.30mm
--Eyepiece Upgrade To Dia.30mm Diopter Adjustable
--Standard Objectives Upgrade To 5 pcs With 20x
--Working Stage Upgrade To Large Size Rackless 182x140mm
--Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13
--Light Source Upgrade to 6V30W High Brightness + Blue Filter
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm
A53.2623-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
A53.2623-T
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ●● ●● A51.2621-1022
Nosepiece Quintuple A54.2610-N01
Infinity Plan Objective PLAN 2.5X/0.07,W.D.=8.47mm A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm A52.2606-100W
Working Stage Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder A54.2601-S10
Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S01
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
Condenser Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm A56.2614-07a
Illumination Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2613-6V30W
Transmit Light 3W LED
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2651-3W
Field Diaphragm For Kohler Illumnation A56.2615-BK
Power ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually
A56.2660
Filter Dia.45mm, Blue A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective     A5D.2610-BKW
Polarizing Analyzer + Polarizer Set A5P.2601-BK
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-BK
Fluorescence Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-2
Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
  A5F.2601-4
Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-2
Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount 1.0x, Focus Adjustable A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm A55.2610
Package Carton Size 520×475×285mm, 1 Unit/Ctn
Weight Gross Weight: 12 kgs, Net Weight: 10 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories



A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research



Number Specification Cata. No.
01 WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable A51.2621-1022
02 Infinity Plan Objective A52.2606
03 Mechanical Stage Size 175 mm×145mm, Double Slide Holder A54.2601-S01
04 ECO, Auto Power, Off System A56.2660
05 Dark Field Condenser, Dry A5D.2610-BK
06 Dark Field Condenser, Immersion A5D.2610-BKW
07 Field Diaphragm For Kohler Illumnation A56.2615-BK
08 C-Mount 0.5x, Focus Adjustable A55.2601-05
09 C-Mount 0.75x, Focus Adjustable A55.2601-75
10 C-Mount 1.0x, Focus Adjustable A55.2601-10
11 Digital Eyepiece Camera Adapter A55.2610



Upgrade With Full Range Functional Attachment

A12.2603 Is The Best Lab Microscope With Modular Structure Design To Upgrade Easily Even After Order

A12.2603 Compound Optical Microscope 5 Holes WF10x/20 Eyepiece For Research
