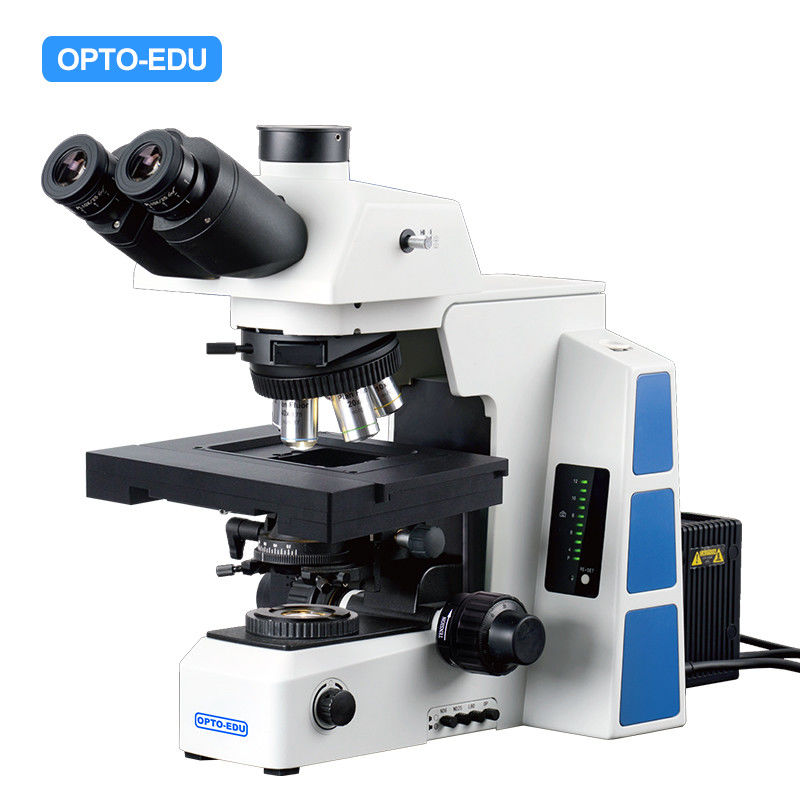

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized

Products - Compound Optical Microscope
  • Highlight

    motorised compound optical microscope

    ,

    2d compound optical microscope

    ,

    compound optical motorised microscope

  • XY Moving
    110x110mm
  • Z Moving
    20mm
  • Resolution
    <0.05um
  • Max. Speed
    50mm/s
  • Repeatability
    ≤20um
  • Maxcope Software
    2D Standard Version, Detail See Software Table
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    M12.5850
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized

  • M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized
Get Price Contact Now

Motorized Biological Microscope, BF, XYZ Motorized

  • Infinity Plan Semi-APO 4x10x20x40x100x Objectives With 6 Holes Motor Nosepiece
  • X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um
  • Full Auto 2D Scan Image Stitching With Quick & Precise Mode
  • Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring
  • USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software
  • Item M12.5850 3D Full Auto SDF Biological Microscope M12.5850 M16.5850 Cata. No.
    M16.5850 3D Full Auto SDF Fluorescent Microscope
    Optical System Infinity Optical System, BF Bright Field ● ● 　
    Semi-APO, Semi Apochromatic ● ● 　
    APO, Apochromatic ○ ○ 　
    DF, Dark Field ○ ○ 　
    PL, Polarzing ○ ○ 　
    PH, Phase Contrast ○ ○ 　
    DIC, Different Interference Contrast ○ ○ 　
    FL, Fluorescent ○ ○ 　
    Head 30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100, ○ ○ A53.0913-T30E
    30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100 ● ● A53.0913-T30
    5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100 ○ ○ A53.0913-T535
    Adapter 0.5x C-Mount, For 1/2"CCD, Focus Adjustable ● ● A55.0930-05
    0.35x C-Mount, For 1/2"CCD, Focus Adjustable ○ ○ A55.0930-35
    0.65x C-Mount, For 1/2"CCD, Focus Adjustable ○ ○ A55.0930-65
    1.0x C-Mount, For 1"CCD, Focus Adjustable ○ ○ A55.0930-10
    Digital Camera USB3.0 CMOS Cooling Digital Camera, For Fluorescent Imaging, GS Shutter, 20M, 1” CMOS, 30@1824x1216, Semi-Conductor Cooling Range -42°C, Anti-Frog, One Hour Exporsure, C-Mount ● ● A59.2225-20MPA
    Eyepiece High Eyepoint Plan PL10x/25mm, Diopter Adjustable ●● ●● A51.0904-1025T
    High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable ○ ○ A51.0904-10265T
    High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle ○ ○ A51.0905-1025T
    High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle ○ ○ A51.0905-10265T
    Nosepiece BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, Coded & Motorized Control by Software ● ● A54.0930-R6
    Objective Infinity Plan Semi-APO Fluorescent Objective 　 　 　
    Semi-APO Fluorescent 4x/0.13, W.D.=16.43mm ● ● A5F.0950-4
    Semi-APO Fluorescent 10x/0.3, W.D.=8.13mm ● ● A5F.0950-10
    Semi-APO Fluorescent 20x/0.5, W.D.=2.03mm ● ● A5F.0950-20
    Semi-APO Fluorescent 40x/0.75, W.D.=0.74mm ● ● A5F.095040
    Semi-APO Fluorescent 100x/1.3, W.D.=0.18mm ● ● A5F.0950-100
    Infinty Plan APO Flourscent Objective 　 　 　
    APO Fluorescent 2x/0.08, WD=6.2mm ○ ○ A5F.0951-2
    APO Fluorescent 4x/0.13, WD=16.6mm ○ ○ A5F.0951-4
    APO Fluorescent 10x/0.40, WD=2.1mm ○ ○ A5F.0951-10
    APO Fluorescent 20x/0.75, WD=0.6mm ○ ○ A5F.0951-20
    APO Fluorescent 40x/0.95, WD=0.15mm ○ ○ A5F.0951-40
    APO Fluorescent 60x/0.90, WD=0.26mm ○ ○ A5F.0951-60
    APO Fluorescent 100x/1.35, WD=0.13mm ○ ○ A5F.0951-100
    Centering Objective For Fluorescent ○ ● A5F.0930-1
    Focusing Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop And Tightness Adjustment. ● ● 　
    Main Body Transmitted Biological Main Body, ● 　 　
    Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function
    Reflected &Transmitted Fluorescent Main Body, 　 ● 　
    Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function
    Transmit 12V100W Halogen Lamp House, Pre-Centered ● ● A56.0915-LH
    Light 12V100W Halogen Bulb (Philps 7724) ● ● A56.0923-12100
    　 Swing-out Type Achromatic Condenser, N.A.0.9/0.25 ● ● A56.0934-R
    　 Built-In Transmit Filters LBD/ND6/ND25 ● ● 　
    Reflect Epi Full Set, 6 Holes Reflect Epi-Fluroescent Illumation, With Iris Diaphragm, With Aperture Diaphragm, With Filter Slot, With Polarizing Analyizer Slot, With Protect Barrier, With Fluroescent Shutter 　 ● A5F.0906
    Fluorescent Light --100W Mercury Light Box, Center Adjustable
    　 --Digital Power Supply 90~240V
    　 --HBO 100W Mercury Bulb OSRAM
    　 --Attenuation Filter ND50
    　 --Fluorescent Filter B,G,UV
    　 --Fluorescent Filter V 　 　 A5F.0906-V
    Power Built-In 100-240V Wide Voltage Transformer ● ● 　
    Other Allen Key M4 ● ● 　
    Universal Condenser For Dark Field, Polarizing, Phase Contrast, DIC View
    Universal Condenser Universal Condenser, Disc With 8 Holes For Function DF, PL, PH, DIC ○ ○ A56.0960
    --3 Small Holes For Phase Contrast Rings A5C.0960, PH Objectives A5C.0961
    --3 Big Holes Only For DIC Rings A5M.0960
    --2 Big Holes Center Adjustable, For Dark Field Ring A5D.0960 or DIC Ring A5M.0960
    --Polarizier Lens Included In Socket Under Universal Condenser
    --Need to Select N.A.0.9 Condenser Lens As Standard
    N.A.0.9 Condenser Lens, Standard Selection, For Objective 10x20x40x60x100x ○ ○ A56.0960-09
    Screw On Universal Condenser Disc
    N.A.0.2 Condenser Lens, Optional Selection, For Objective 4x ○ ○ A56.0960-02
    Screw On Universal Condenser Disc
    N.A.1.4 Condenser Lens, Optional Selection, For Objective 20x40x60x100x ○ ○ A56.0960-14
    Screw On Universal Condenser Disc
    Dark Field Dark Field Ring, Dry Type N.A.0.9, For Objective 10x,20x ○ ○ A5D.0960-D
    Dark Field Ring, Immersion Oil Type N.A.1.4, For Objective 40x,60x ○ ○ A5D.0960-I
    DIC Transmission DIC Slide, Insert To DIC Socket On Nosepiece ○ ○ A5M.0960
    Transmission DIC Ring 10x ○ ○ A5M.0960-10
    Transmission DIC Ring 20x ○ ○ A5M.0960-20
    Transmission DIC Ring 40x/60x ○ ○ A5M.0960-4060
    Phase Contrast Infinity Plan Apochromatic Positive Phase Contrast Objective ○ ○ 　
    APO Objective APO PH 4x/0.16, WD=12.8m ○ ○ A5C.0950-4
    　 APO PH 10x/0.40, WD=2.5mm ○ ○ A5C.0950-10
    　 APO PH 20x/0.75, WD=0.6mm ○ ○ A5C.0950-20
    　 APO PH 40x/0.95, WD=0.15m ○ ○ A5C.0950-40
    　 APO PH 60x/0.90, WD=0.26mm ○ ○ A5C.0950-60
    　 APO PH 100x/1.35, WD=0.13mm ○ ○ A5C.0950-100
    Polarizing Polarizier Lens Included In Plug-in Socket Under Universal Condenser ○ ○ 　
    Analyzer Slide, Insert To Analyzer Socket On Nosepiece ○ ○ A5P.0960
    Upgrade Series Model
    Metallurgical Upgrade to M13.5850 3D Full Auto SDF DIC Metallurgical Microscope, APO 　 　 M13.5850

    Remark: '●' Means Standard Outfit, '○' Means Optional

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 0

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 1

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 2

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 3

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 4



M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 5

XY Motorized Control
Control the motorized stage through software, support one-click set/return to origin point, Long press the mouse and drag in the camera preview window to control the electric platform to move in the corresponding direction
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 6
Z Motorized Control
The software controls the Z-axis motorized lift, support professional functions such as manual focus/auto focus/super depth of field fusion, create 3D image for view & measurement
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 7
Motorized Nosepiece
Optional motorized nosepiece models, you can select different objective lenses in the software, and switch the magnification with one key
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 8
2D Map Guide
After scanning and stitching to generate a panoramic image, it can be used as an electronic 2D map for navigation. Click the 2D map to control the motorized stage to quickly locate the specified position for high-magnification observation

M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 9
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 10
Free Stitching Area
10 stitching area modes can quickly set stitching areas of any shape. Outline mode can automatically detect the edge contour of the object as the stitching area.
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 11
Stitching Optimize
The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition, no offset, no grid, no shadow.
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 12
2D Measurement
10+ Functions, including length, angle, radius, diameter, free curve length, radius, diameter, arc length, RGB measurement, counting, etc., and a variety of auxiliary lines and reference line tools are provided.
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 13
One Click Auto Measurement
Multiple measurement items can be saved as templates, software intelligently matches similar shapes, removes redundant targets or separates overlapping targets, automatically performs unified measurement, counting and analysis for multiple targets by one click
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 14
3D Stitching
3D stitching mode can automatically focus on uneven objects, take pictures at different heights, obtain a full-frame clear 2D image composed of all clearly focused images, and stitch all focused image together to form a 3D image, and retain all the 3D measurement data of the observed object
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 15
3D Image Comparision
Two 3D images can be opened at the same time, synchronously rotated, zoomed in and out, compared and analyzed, and the comparison results such as height difference and shape difference can be automatically displayed through color identification
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 16
3D Image View
The saved 3D image can be opened at any time, controlled by the mouse to rotate freely, zoom in and out, open the ruler, color identification and other auxiliary tools, which is convenient to visually observe the 2D surface shape and 3D structure of the object from any angle
M12.5850 Compound Optical Microscope Biological Bf 2d Xyz Motorized 17
3D Measurement
3D image also saves all the three-dimensional measurement data of the observed object, and supports any measurement of the observed object later, including the height, depth, length, roughness, convex area, concave area, convex volume, concave volume, etc
