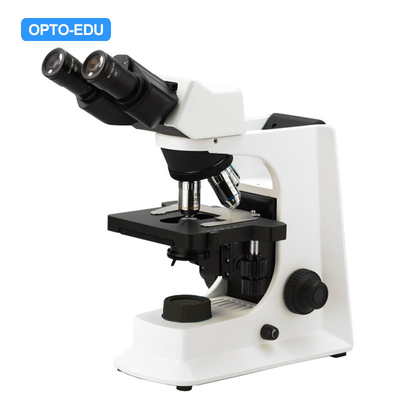

OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic

OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic

  • High Light

    digital trinocular microscope

    ,

    infinity plan microscope

  • Eyepiece
    WF10x/18mm
  • Nosepiece
    Quadruple, Backward
  • Objective
    Achromatic Objective
  • Working Stage
    Mechanical Stage Size: 145 Mm×140mm
  • Focusing
    Coaxial Coarse & Fine Focusing
  • Condenser
    Abbe Condenser N.A.1.25, Iris Diaphragm
  • Illumination
    3W-LED Illumination Systems
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A12.2601-A
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic

Seidentopf Head

Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece,

Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel,

Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic 0

Quadruple, Backward

4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

Double Slide Holder Working Stage

Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm
OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic 1

Condenser & Light Source

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder

3W-LED Illumination Systems

OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic 2


Items A12.2601 Biological Microscope Specification -A -AT -B -BT -C -CT -D -DT Cata. No.
Head Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm A53.2621-B
Seidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 A53.2621-T
Eyepiece WF10x/18mm ●● ●●             A51.2602-1018
WF10X/20mm (High Eyepoint)     ●● ●● ●● ●● ●● ●● A51.2602-1020
Nosepiece Quadruple, Backward A54.2610-N734
Quintuple, Backward A54.2610-N735
Achromatic Objective 4x/0.1, W.D.=18.6mm             A52.2601-4
10x/0.25, W.D.=6.5mm             A52.2601-10
20x/0.40, W.D.=1.75mm             A52.2601-20
40x/0.6(S), W.D.=0.47mm             A52.2601-40
60x/0.80(S), W.D.=0.10mm             A52.2601-60
100x/1.25(S,O), W.D.=0.07mm             A52.2601-100
Plan
Objective
4x/0.1, W.D.=14.5mm             A52.2603-4
10x/0.25, W.D.=5.65mm             A52.2603-10
20x/0.40, W.D.=5.65mm             A52.2603-20
40x/0.6(S), W.D.=0.85mm             A52.2603-40
100x/1.25(S,O), W.D.=0.07mm             A52.2603-100
Infinity E-Plan Objective EPLAN 4x/0.10,W.D.=12.1mm             A52.2605-4
EPLAN 10x/0.25,W.D.=4.14mm             A52.2605-10
EPLAN 20x/0.4             A52.2605-20
EPLAN 40x/0.65(S),W.D.=0.58mm             A52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mm             A52.2605-100
Infinity Plan Objectives PLAN 2.5x/0.07,W.D.=8.47mm             A52.2606-2.5
PLAN 4X/0.10.W.D.=12.1mm             A52.2606-4
PLAN 10X/0.25.W.D.=4.64mm             A52.2606-10
PLAN 20X/0.40(S).W.D.=2.41mm             A52.2606-20
PLAN 40X/0.66(S).W.D.=0.65mm             A52.2606-40
PLAN 60X/0.80(S).W.D.=0.33mm             A52.2606-60
PLAN 100X/1.25(S,Oil).W.D.=0.12mm             A52.2606-100
PLAN 100X/1.15(S,Water).W.D.=0.19mm             A52.2606-100W
Working Stage Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder A54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder
A54.2601-S12
Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder A56.2614-C06b
Illumination 3W-LED Illumination Systems
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2613-3W
12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V A56.2650-20W
6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V A56.2650-30W
Field Diaphragm Upgrade To Kohler Illumnation A56.2615-S
Filter Dia.45mm, Blue  A56.2616-45B
Dia.45mm, Green A56.2616-45G
Dia.45mm, Yellow A56.2616-45A
Dark Field Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective A5D.2610-S
Polarizing Analyzer + Polarizer Set A5P.2601-S
Phase Contrast Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter A5C.2601-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-S
Fluorescence Unit Upgrade to A16.2601-B2/T2 Fluorescence Microscope With:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
            A5F.2601-2
Upgrade to A16.2601-B4/T4 Fluorescence Microscope With:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs
            A5F.2601-4
Upgrade to A16.2601-LB2/LT2 Fluorescence Microscope With:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
            A5F.2602-2
Upgrade to A16.2601--LB4/LT4 Fluorescence Microscope With:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
            A5F.2602-4
Adapter C-Mount 0.5x, Focus Adjustable A55.2601-05
C-Mount 0.75x, Focus Adjustable A55.2601-75
C-Mount1.0x, Focus Adjustable                 A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm                 A55.2610
Mirror Reflecting Mirror & Holder A56.2601
Attachment Wire Winding Device A50.2602-S
Package Carton Size 390×280×450mm, 1 Unit/Ctn
Weight Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories



OPTO-EDU A12.2601-A Laboratory Biological Microscope Binocular Achromatic 3
