Items |

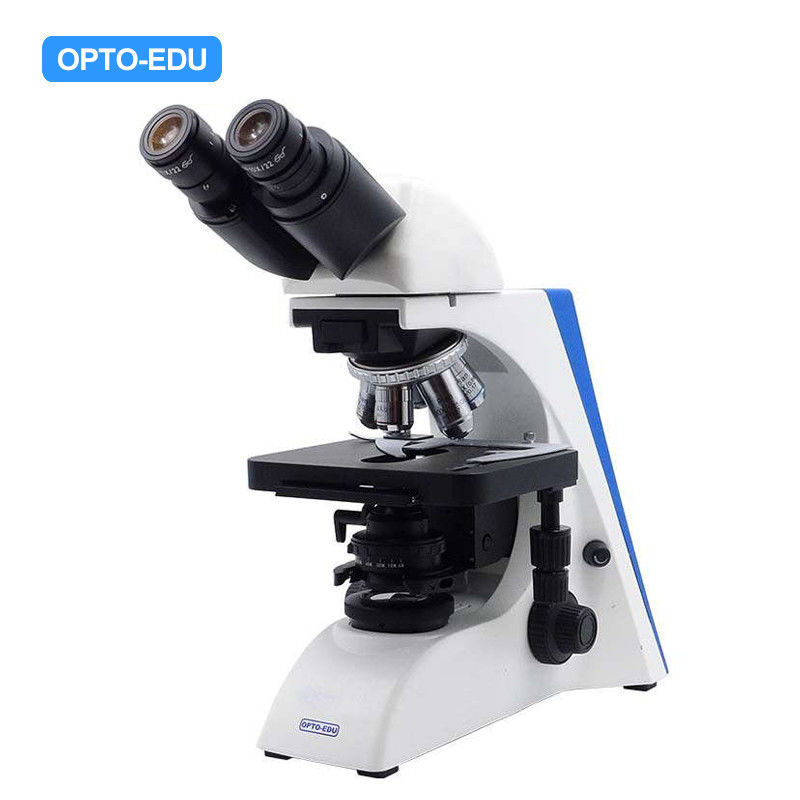

A12.2603 Laboratory Biological Microscope Specification |
-B |
-T |
Cata. No. |
A12.2603 Upgarde From A12.2602 |
--Head Upgrade To Large Size With Eyepiece Tube Dia.30mm
--Eyepiece Upgrade To Dia.30mm Diopter Adjustable
--Standard Objectives Upgrade To 5 pcs With 20x
--Working Stage Upgrade To Large Size Rackless 182x140mm
--Condenser Abbe N.A.1.25 Upgrade To Swing Out Condenser N.A.0.9/0.13
--Light Source Upgrade to 6V30W High Brightness + Blue Filter |
Head |
Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm |
● |
○ |
A53.2623-B |
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm |
○ |
● |
A53.2623-T |
Eyepiece |
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable |
●● |
●● |
A51.2621-1022 |
Nosepiece |
Quintuple |
● |
● |
A54.2610-N01 |
Infinity Plan Objective |
PLAN 2.5X/0.07,W.D.=8.47mm |
○ |
○ |
A52.2606-2.5 |
PLAN 4X/0.10,W.D.=12.10mm |
● |
● |
A52.2606-4 |
PLAN 10X/0.25,,W.D.=4.64mm |
● |
● |
A52.2606-10 |
PLAN 20X/0.40(S),W.D.=2.41mm |
● |
● |
A52.2606-20 |
PLAN 40X/0.66(S),W.D.=0.65mm |
● |
● |
A52.2606-40 |
PLAN 60X/0.80(S),W.D.=0.33mm |
○ |
○ |
A52.2606-60 |
PLAN 100X/1.25(S,Oil),W.D.=0.12mm |
● |
● |
A52.2606-100 |
PLAN 100X/1.15(S,Water),W.D.=0.19mm |
○ |
○ |
A52.2606-100W |
Working Stage |
Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder |
● |
● |
A54.2601-S10 |
Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder |
○ |
○ |
A54.2601-S01 |
Focusing |
Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm |
● |
● |
|
Condenser |
Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm |
● |
● |
A56.2614-07a |
Illumination |
6V30W Halogen Koehler Illumination, With Field Diaphragm
Power Supply Wide Voltage 100V~240V |
● |
● |
A56.2613-6V30W |
3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use |
○ |
○ |
A56.2651-3W |
Field Diaphragm |
For Kohler Illumnation |
● |
● |
A56.2615-BK |
Power |
ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually |
○ |
○ |
A56.2660 |
Filter |
Dia.45mm, Blue |
● |
● |
A56.2616-45B |
Dia.45mm, Green |
○ |
○ |
A56.2616-45G |
Dia.45mm, Yellow |
○ |
○ |
A56.2616-45A |
Dark Field |
Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective |
○ |
○ |
A5D.2610-BK |
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective |
|
|
A5D.2610-BKW |
Polarizing |
Analyzer + Polarizer Set |
○ |
○ |
A5P.2601-BK |
Phase Contrast |
Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
A5C.2602-10 |
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
A5C.2602-20 |
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
A5C.2602-40 |
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter |
○ |
○ |
A5C.2602-100 |
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter |
○ |
○ |
A5C.2603-BK |
Fluorescence |
Upgrade to A16.2604-T2 Fluorescence Microscope With A5F.2601-2:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs |
|
○ |
A5F.2601-2 |
Upgrade to A16.2604-T4 Fluorescence Microscope With A5F.2601-4:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs |
|
○ |
A5F.2601-4 |
Upgrade to A16.2604-LT2 Fluorescence Microscope With A5F.2602-2:
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier |
|
○ |
A5F.2602-2 |
Upgrade to A16.2604-LT4 Fluorescence Microscope With A5F.2602-4:
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier |
|
○ |
A5F.2602-4 |
Adapter |
C-Mount 0.5x, Focus Adjustable |
○ |
○ |
A55.2601-05 |
C-Mount 0.75x, Focus Adjustable |
○ |
○ |
A55.2601-75 |
C-Mount 1.0x, Focus Adjustable |
○ |
○ |
A55.2601-10 |
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm |
○ |
○ |
A55.2610 |
Package |
Carton Size 520×475×285mm, 1 Unit/Ctn |
Weight |
Gross Weight: 12 kgs, Net Weight: 10 kgs |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories |
