Magnification: | 7X-45X | Applications: | Teaching|Medical| |
---|---|---|---|
Certification: | CE|Rohs | Drawtube: | Binocular |
Product Name: | Stereo Zoom Microscope | Theory: | Stereo Microscope |
High Light: | stereo zoom microscopes,stereo binocular microscopes |

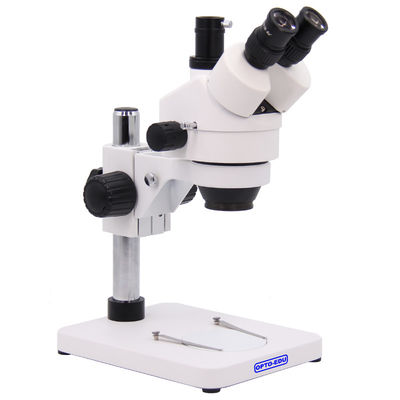

0.7~4.5X Zoom Lens Stereo Microscope A23.1502 With WF 10x/20mm Eyepiece
Introduction
A23.1502 is a type of stereo microscope whose price is a litter bit higher than others, because it is a professional stereo microscope in teaching demonstration, biological engineering, IT testing and some other fields. With zoom lens 0.7-4.5x, you can get the continuous zoom image you need. A23.1502 has high eyepoint with WF10x/20mm eyepiece, and the field of view is 1~95.2mm.
A23.1502 Zoom Stereo Microscope Specification | B1 | T1 | |
Head | Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | o | |
Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | o | ||
Eyepiece | WF10x/20mm, High Eyepoint | ||
Zoom Lens | 0.7~4.5x | ||
Zoom Ratio | 1:6.5 | ||
Magnification | 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives | ||
Working Distance | 100mm, With Auxiliary Objectives 30~177mm | ||
Field Of View | 1~95.2mm | ||
Light Source | No Light Source | ||
Stand | Pole Stand ST1, Height 248mm, Base 200*255*22mm |
A23.1502 Zoom Stereo Microscope Optional Accessories | Cata. No. | |
Eyepiece | WF15x/15mm, High eyepoint | A51.1520-15 |
WF20x/10mm, High eyepoint | A51.1520-20 | |
Auxiliary Lens | 0.5x,W.D. 177mm | A52.1520-05 |
0.75x,W.D. 120mm | A52.1520-75 | |
2.0x,W.D. 30mm | A52.1520-20 | |
CCD Adapter | 0.5x | A55.1520 |
Application
Zoom stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A23.1502 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.
