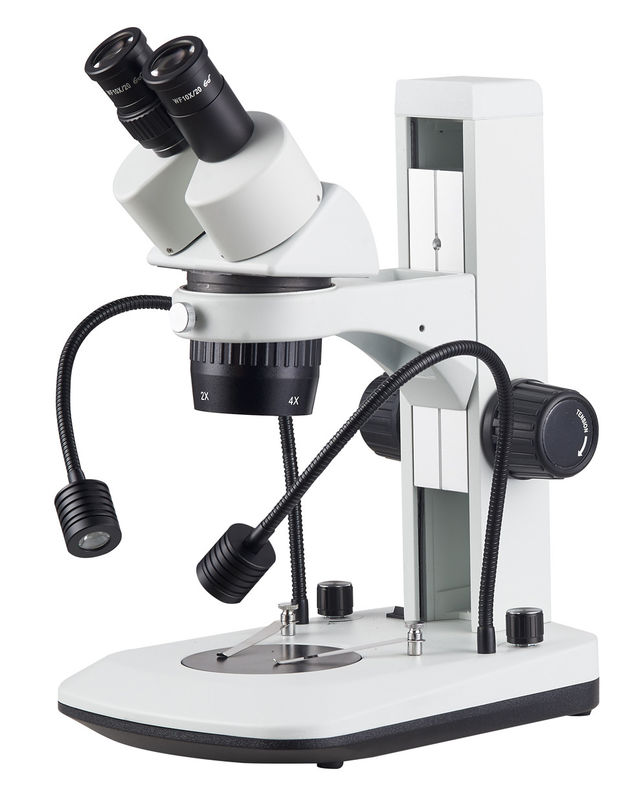

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X

Products - Stereo Optical Microscope
  • Highlight

    wf10x stereo microscope binocular

    ,

    20mm stereo microscope binocular

    ,

    stereo binocular opto edu microscope

  • Eyepiece
    WF10x/20mm
  • Head
    45°Binocular Head
  • Objective
    Turret Objective 1x3x Or 2X/4X
  • Magnification Range
    10X-80X
  • Working Distance
    100mm
  • Stand
    Pole Stand, No Light Source
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A22.3660
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X

  • A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X
  • A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X
  • A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X
  • A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X
  • A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X
Get Price Contact Now

Stereo microscope is widely used in materials such as macroscopic surface observation, failure analysis, fracture analysis and other industries field

  • Binocular Head, 45° Inclined, 360° Rotatable
  • Wide Field, High-Eyepoint Eyepiece-WF10X20mm
  • Turret Objective 1x/3x, 2x/4x or 1x/2x
  • Pole Stand, No Light Source
A22.3660-B1 Stereo Microscope Speicification
Head 45°Binocular head
Eyepiece Wide Field, High-eyepoint Eyepiece-WF10X20mm
Objective Turret Objective 1x3x or 2X/4X
Magnification Range 10X-80X
Inter-Pupillay Distance 55-75mm
Diopter Range 5mm
Working Distance 100mm
Stand Pole Stand, No Light Source

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 0

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 1

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 2

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 3

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 4

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 5

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 6

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 7

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 8

A22.3660 OPTO EDU Stereo Microscope Binocular 1x3x Or 2X/4X 9



Objective Optics Parameter
Model Magnification Eyepiece Working Distance
SZMEWh
10X20		 SZMEWh
15X15		 SZMEWh
20X10
A22.3660-B1-12 1X 10X20mm 15X15mm 20X10mm 100mm
2X 10X20mm 30X7.5mm 40X5mm
A22.3660-B1-13 1X 10X20mm 15X15mm 20X10mm
3X 30X6.7mm 45X5mm 60X3.3mm
A22.3660-B1-24 2X 10X20mm 30X7.5mm 40X5mm
4X 40X5mm 60X3.75mm 80X2.5mm
