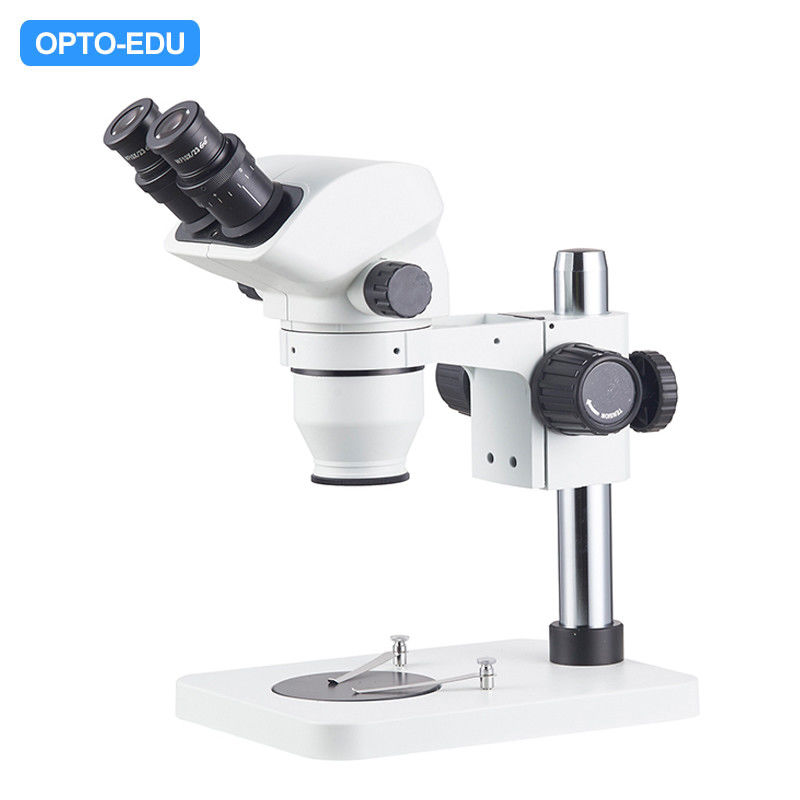

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular

Products - Stereo Optical Microscope
  • High Light

    pole stand stereo optical microscope

    ,

    binocular stereo optical microscope

    ,

    pole stand opto edu microscope

  • Eyepiece
    WF10x/23mm
  • Head
    45°Binocular Head
  • Objective
    Turret Objective 1x2x Or 1x3x Or 2X/4X
  • Magnification Range
    10X-120X
  • Working Distance
    110mm
  • Stand
    Pole Stand, No Light Source
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A22.3670
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular

  • A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular
  • A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular
  • A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular
  • A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular
  • A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular
Get Price Contact Now

The stereoscopic microscope has a positive stereoscopic sense, which is easy to operate and dissect. The field of view is large in diameter, the working distance is long, and the depth of focus is large, which is convenient to observe the whole layer of the object being detected.

  • Binocular Head, 45° Inclined, 360° Rotatable
  • Wide Field, High-Eyepoint Eyepiece-WF10X23mm
  • Standard Turret Objective 2x/4x, Optional 1x/3x, 1x/2x
  • Total Magnification 20x/40x, Up To 10x-120x With Optional Eyepieces & Objectives
  • 35 Kinds Stand Optional, Details See A54.3630
A22.3670-B1 Stereo Microscope Speicification
Head 45°Binocular head
Eyepiece Wide Field, High-eyepoint Eyepiece-WF10X23mm
Objective Turret Objective 1x2x or 1x3x or 2X/4X
Magnification Range 10X-120X
Working Distance 110mm
Stand Pole Stand, No Light Source



A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 0

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 1

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 2

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 3

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 4

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 5

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 6

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 7

A22.3670 OPTO EDU Stereo Optical Microscope 1x2x Or 1x3x Or 2X/4X Binocular 8



Objective Optics Parameter
Magnification Eyepiece Working Distance
10X23 10X20 15X16 20X12
1X 10X23mm 10X20mm 15X16mm 20X12mm 110mm
2X 20X11.5mm 20X10mm 30X8mm 40X6mm
3X 30X7.7mm 30X6.7mm 45X5.3mm 60X4mm
4X 40X5.8mm 40X5mm 60X4mm 80X3mm
