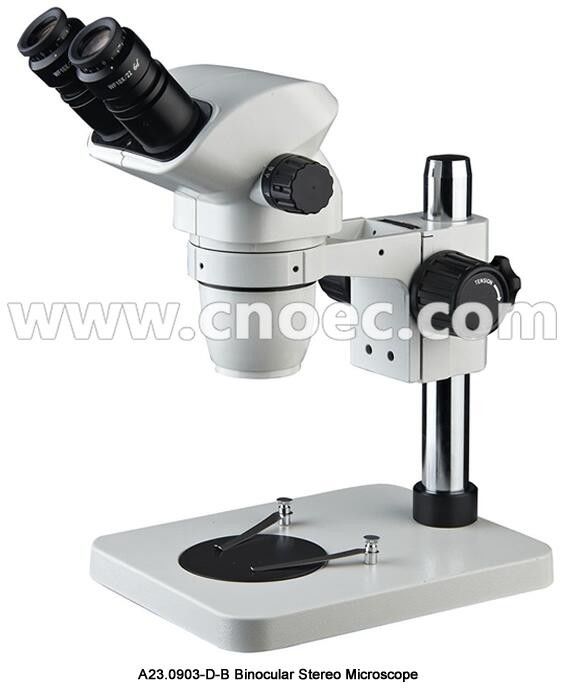

Binocular Stereo Optical Microscope With Pole Stand A23.0903 - D
-- Ergonomic design can make users feel comfortable after long-time operation
-- Standard zoom magnification6.7 X-45 with zoom ratio 1:6.5.Standard working distance is 100mm
-- Configured with WF10X/22mm eyepiece.
-- Full set of eyepiece, auxiliary objectives and other accessories can fulfill different needs.
A23.0903-D Zoom Stereo Microscope, 0.67x-4.5x Specification
|
B
|
T
|
B1
|
T1
|
Head |
Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm |
o
|
|
o
|
|
Trrinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm |
|
o
|
|
o
|
Zoom Range |
0.67~4.5x |
Zoom Ratio |
1:6.5 |
Eyepiece |
WF10x/20mm, Both with Eye-cup |
Magnification |
6.7~45x, |
Working Distance |
105mm |
Stand |
Pole Stand,With Focusing Knob, Focusing Range 50mm |
o
|
o
|
|
|
Track Stand,With Focusing Knob, Focusing Range 50mm |
|
|
o
|
o
|
Illumination |
No Light Source |
A23.0903-D- Zoom Stereo Microscope, 0.67x-4.5x Optional Accessories
|
Eyepiece |
WF15x/15mm |
A51.0923-15
|
WF20x/10mm (Micrometer is available, Optional) |
A51.0923-20
|
Auxiliary Lens |
0.5x, W.D. 165mm |
A52.0928-05
|
2x, W.D. 30mm |
A52.0928-75
|
Adapter |
0.5x, C-Mount |
A55.3601-05
|
1x, C-Mount |
A55.3601-1
|
|
