OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen

  • High Light

    digital trinocular microscope

    ,

    usb digital microscope

  • Magnification
    40x~1600x
  • Objective
    Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
  • Stage
    Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
  • Condenser
    N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A33.1009
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen

A33.1009 Biological Microscope Specification
Magnification 40x~1600x
Head Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount
Eyepiece Wide Field WF10x/18mm
Wide Field WF16x/11mm
Nosepiece Quadruple Nosepiece
Objective Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil)
Stage Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
Focusing Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit
Condenser N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
Filter Blue, Yellow, Green
Light Source LED Illumination, Brightness Adjustable
A33.1009 LCD Digital Camera Specification
Sensor 1/2.8"Sony Star Light Level CMOS Sensor
Resolution 5.0M CMOS
LCD Screen 9"LCD, Resolution 1024x600 High Clearance Screen
Output USB 2.0 Type-A, TF Card
Pixel Size 2.0x2.0um
Power Supply DC 12V/2A Power Adapter, Input 100-240V AC
Function Photo, Video, Meaure, Compare
SupportUSB Mouse Control To Capture Photo, Video, Measure, Setting
USB 2.0 To Win 7, Win10 System, Software S-Eye Included
Brightness, Contrast, Exposure, White Balance Adjustable
10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae
Storage To TF Card
Cross Line With Scale, Calibrated
Net Line 8 Kinds, Width & Color Adjustable
Size / Weight Product Size 225x52x175mm, Net Weight 0.7Kg
Standard Package LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter
USB Mouse Control Operation Manual 1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera.
2. Turn on the power switch, when the camera is running, the LED light turns blue
3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon : Take Photo, Record Video, Preview, Measure, Setting.
4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon:
Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split
5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics.
6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE.Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps.
7.Click mm/PX to open or close the screen scale.
8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on)

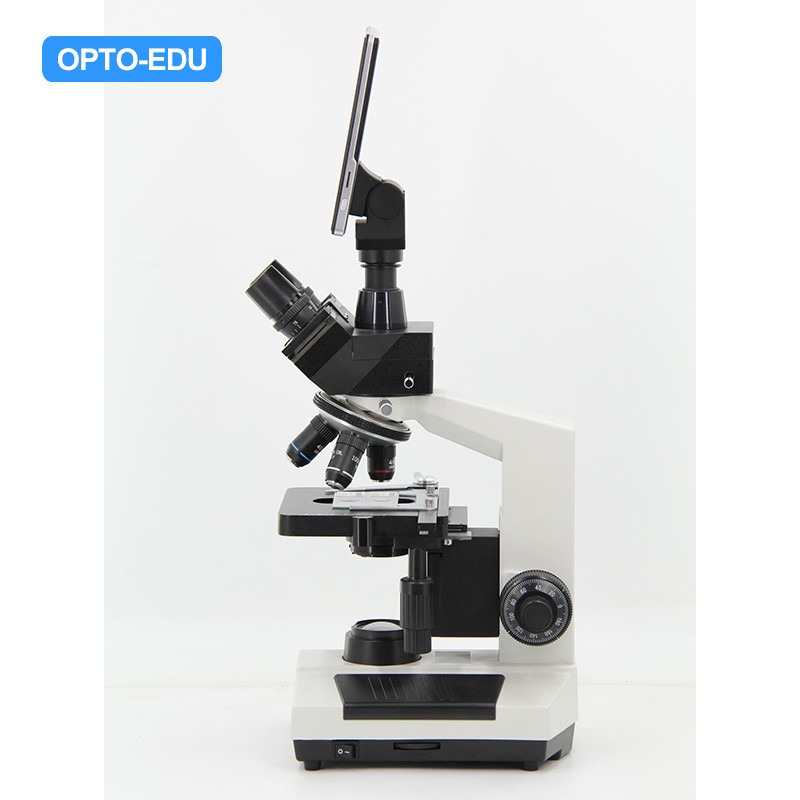

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 0

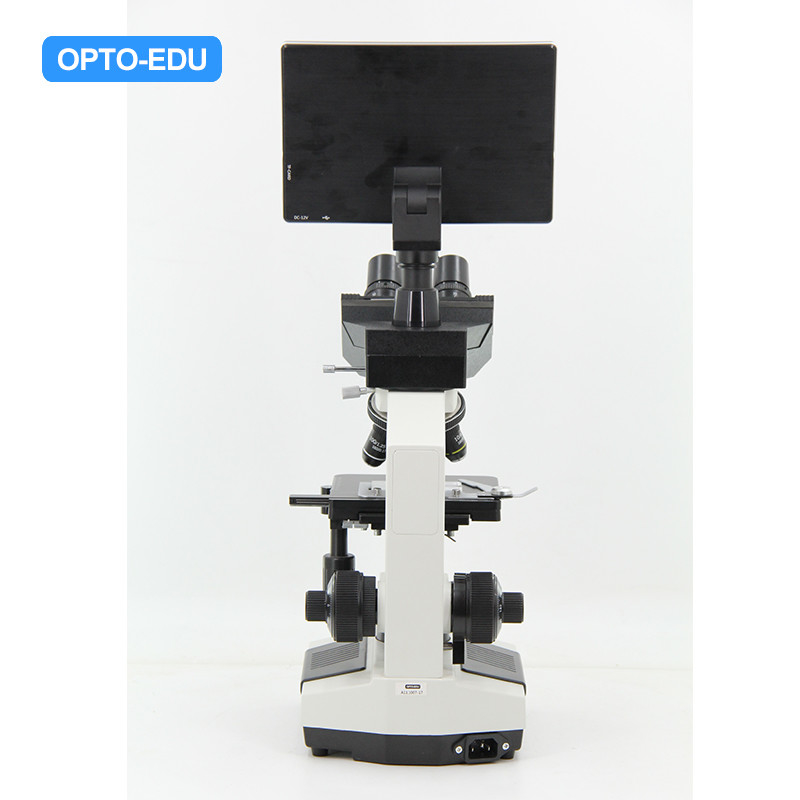

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 1

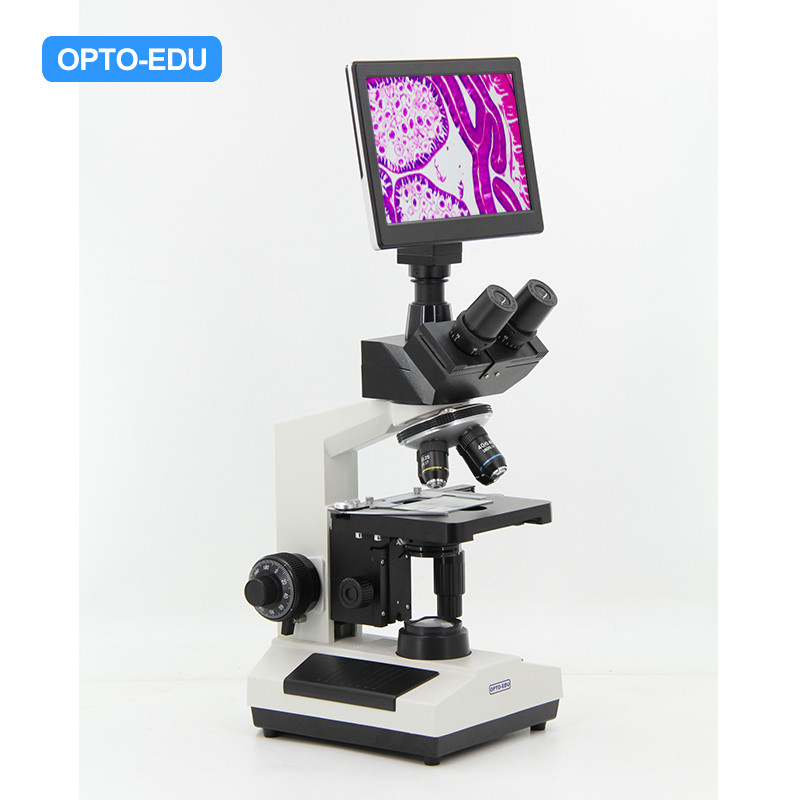

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 2

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 3

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 4

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 5

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 6

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 7

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 8

OPTO-EDU A33.1009 Video Optical Compound Biology Digital Microscope With Lcd Screen 9

A33.1009 LCD Digital Biological Microscope Optional Accessories Cata. No.
Adapter 0.45x C-mount With Reduction A55.1002-45
Objective Achromatic 20x/0.4, W.D.=9mm A52.1001-20
Achromatic 60x/085(S) A52.1001-60
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry A5D.1006-D
Dark Field Condenser, N.A. 1.25~1.35, Immersion A5D.1006-I
Achromatic 100X with Cone Diaphram for Oil Dark Field Observation A5D.1030-1
Plan 100X with Iris Diaphram for Oil Dark Field Observation A5D.1030-2
Polarizing Simple Polarizing Kit A5P.1001
Phase Contrast Sliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter
A5C.1002-C3
Fluorescent EPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G
A5F.1001
--Excitation Filter U/V A5F.1001-UV
