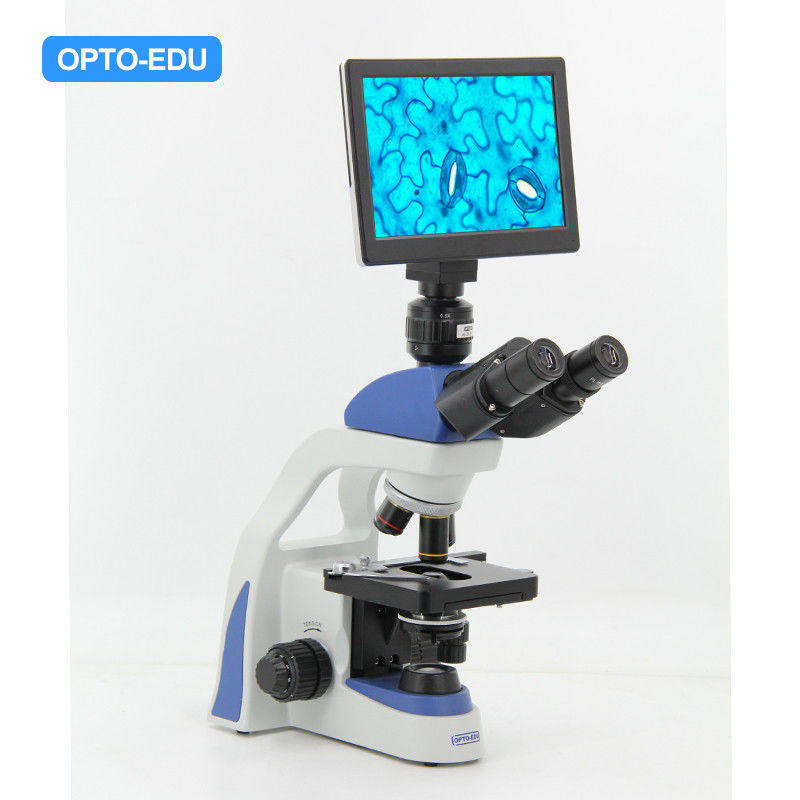

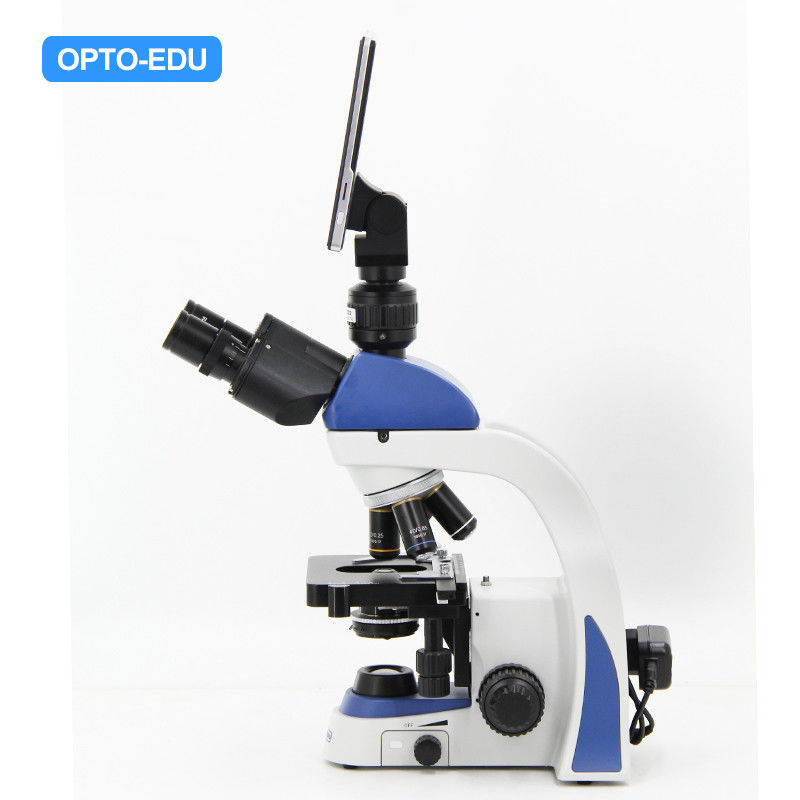

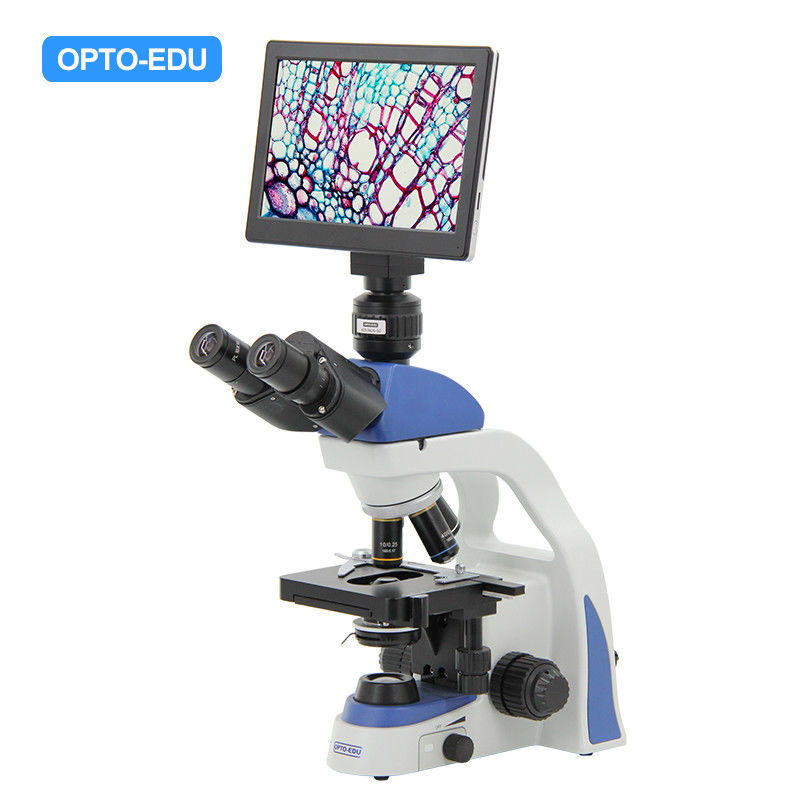

OPTO-EDU A33.0913 5.0M HDMI USB 9" LCD Digital Biological Microscope
Trinocular, WF10X/18mm, Quadruple, Achromatic Objective 4x10x40x100x, Double Layer Mechanical Stage 115x125mm, N.A.1.25, Coaxial Coarse & Fine Focus, 0.2W LED, 0.5x C-Mount,
5.0M, 9" LCD, 1/2.8" CMOS, Screen Resolution 1024*600, USB2.0 Real Time Image Output, TF Card, USB Mouse Control Menu For Measure, DC12V/2A, 100~240V.
9" HD LCD Screen With Measure, Photo, Video Function
5.0M HDMI Mouse Control+ USB2.0 Digital Camera With TF Card
Double Layers Mechanical Stage 115x125mm Coaxial Course & Fine Focusing
LED Light Source Brightness Adjustable, With Built-in Rechargeable
Power By USB Adapter or USB Bank, Computer USB Port
| A33.0913 Biological Microscope Specification | |
| Head | Trinocular Head 30° Iinclined, 360° Rotatable, Inter-pupillary Distance 50~75mm, Light Splitting Ratio Fixed 50:50 |
| Eyepiece | WF Plan Eyepiece 10x/18mm With Eye Guard |
| Nosepiece | Reversed Quadruple Nosepiece |
| Objective | Achromatic Objectives 4x/0.10(Black) |
| Achromatic Objectives 10x/0.25(Black) | |
| Achromatic Objectives 40xS/0.65(Black) | |
| Achromatic Objectives 100xS/1.25(Oil)(Black) | |
| Working Stage | 115x125mm Double Layers Mechanical Stage, With N.A.1.25 Abbe Condenser, With Iris Diaphragm & Filter Holder, Moving Range 22mm-71mm |
| Focusing | Coaxial Coarse & Fine Focus, With Coarse Adjustment Stop Screw And Tightness Adjustment, Focusing Range 13mm With Clip Stage, (7mm With Mechnical Stage), Precision 0.002mm |
| Light | 0.2W LED Center Presetting, Intensity Adjustable |
| Power | External Wide Voltage AC Adapter Wide Range 100V~240V, Power By 5V1A DC Input or USB Charge, Without Battery. |
| Adapter | C-Mount 0.5x Focus Adjustable |
| Other | M4 Allen Key Focus Adjustable |
| Package by Foam And Paper Master Carton | |
| A33.0913 LCD Digital Camera Specification | |
| Sensor | 1/2.8"Sony Star Light Level CMOS Sensor |
| Resolution | 5.0M CMOS |
| LCD Screen | 9"LCD, Resolution 1024x600 High Clearance Screen |
| Output | USB 2.0 Type-A, TF Card |
| Pixel Size | 2.0x2.0um |
| Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC |
| Function | Photo, Video, Meaure, Compare |
| SupportUSB Mouse Control To Capture Photo, Video, Measure, Setting | |
| USB 2.0 To Win 7, Win10 System, Software S-Eye Included | |
| Brightness, Contrast, Exposure, White Balance Adjustable | |
| 10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae | |
| Storage To TF Card | |
| Cross Line With Scale, Calibrated | |
| Net Line 8 Kinds, Width & Color Adjustable | |
| Size / Weight | Product Size 225x52x175mm, Net Weight 0.7Kg |
| Standard Package | LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter |
| USB Mouse Control Operation Manual | 1. Insert the mouse into the camera Type-A USB 2.0 port, connect 12V power supply to camera. |
| 2. Turn on the power switch, when the camera is running, the LED light turns blue | |
| 3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon : Take Photo, Record Video, Preview, Measure, Setting. | |
| 4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon: Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split | |
| 5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics. | |
| 6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE.Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps. | |
| 7.Click mm/PX to open or close the screen scale. | |
| 8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on) | |
