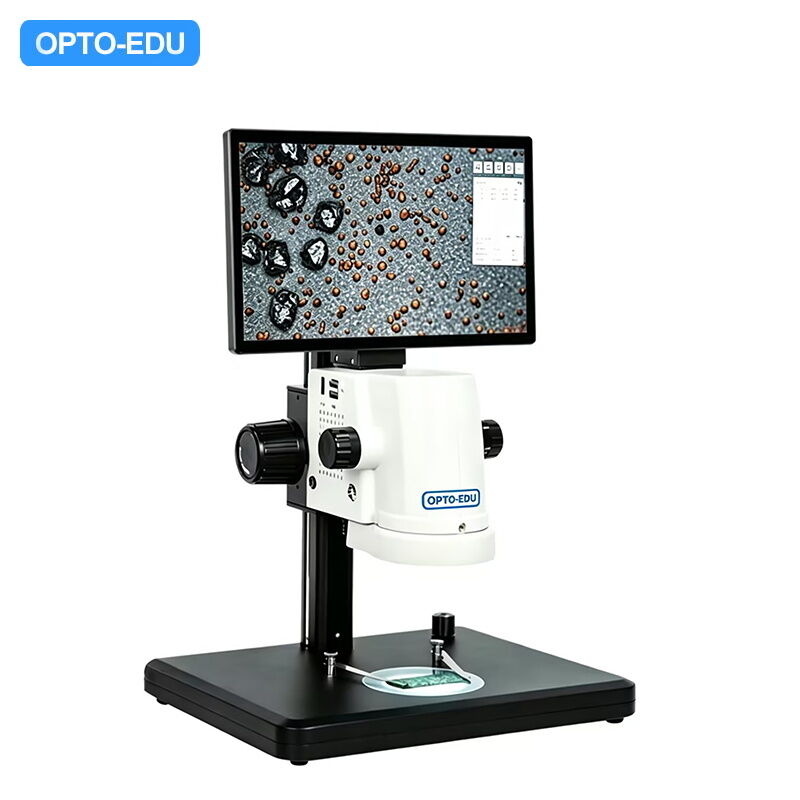

OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope 11.6 inch 5MP CMOS Camera Stereo Video Microscope
OPTO-EDU A36.3602 Professional 110X LCD Digital Measuring Microscope
11.6 inch 5MP CMOS Camera Stereo Video Microscope
The A36.3602 LCD stereo microscope integrates a zoom optical module with high-definition camera, designed for convenient use in narrow and small workspaces. Featuring ergonomic internal optical corner design and adjustable display screen angle, it allows operators to view the display comfortably. Through the HDMI HD interface, it can connect to an additional display simultaneously.
A36.3602 LCD Digital Stereo Microscope Specifications
| Magnification | 17X-110X |
| Objectives | 0.75X-4.5X stereo zoom, zoom ratio 6.4:1 |
| Display | 11.6 Inch, 1920H*1080V, IPS screen, detachable |
| Imaging sensor | 1/2.8 Inch SONY CMOS |
| Real-time image frame rate | 60fps@1920*1080 |
| Photograph | 5 Mega-pixel |
| Recording | 45fps@1920*1080 |
| Output Interface | HDMI |
| Input Interface | Double USB2.0 |
| Camera Parameters | Exposure, White-balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Gray |
| OSD Operation | Mouse |
| Storage Function | Snap, Record, USB Storage |
| Measurement | Point, Line, Parallel lines, Broken lines, Angle, Diameter circle, Radius circle, Three-point circle, Distance from circle to line, Concentric circles, Double circle, Vertical line, Arbitrary line, Polygon, Arc, Mark, Screenshot, Table data export, Calibration, Parameter Settings |
| Other Functions | Flip horizontally, Flip vertically, Freeze |
| Scale Ruler | 3 kinds, customizable colors, line widths, display switches |
| Grid Lines | 8 group, customizable colors, line widths, display switches |
| Languages | Simplified Chinese, Traditional Chinese, English, French, Russian, Japanese, Italian, German |
| Auxiliary Lens | 0.5x, 2.0x |
| Light Source | 56-LED ring light, brightness adjustable |
| Base | Various bases available according to customer requirements |
Microscope Optical Data Sheet
| Objective | Standard | Auxiliary 0.5X | Auxiliary 2X |
|---|---|---|---|
| W.D. | 100mm | 165mm | 30mm |
| 11.6'' Magnification | 17.2x-110.5x | 8.6x-55.2x | 34.4x-221x |
| View Field | 18.5x10.5-2.8x1.5 | 37.5x21-5.5x3.0 | 9.5x5.5-1.5x0.7 |
