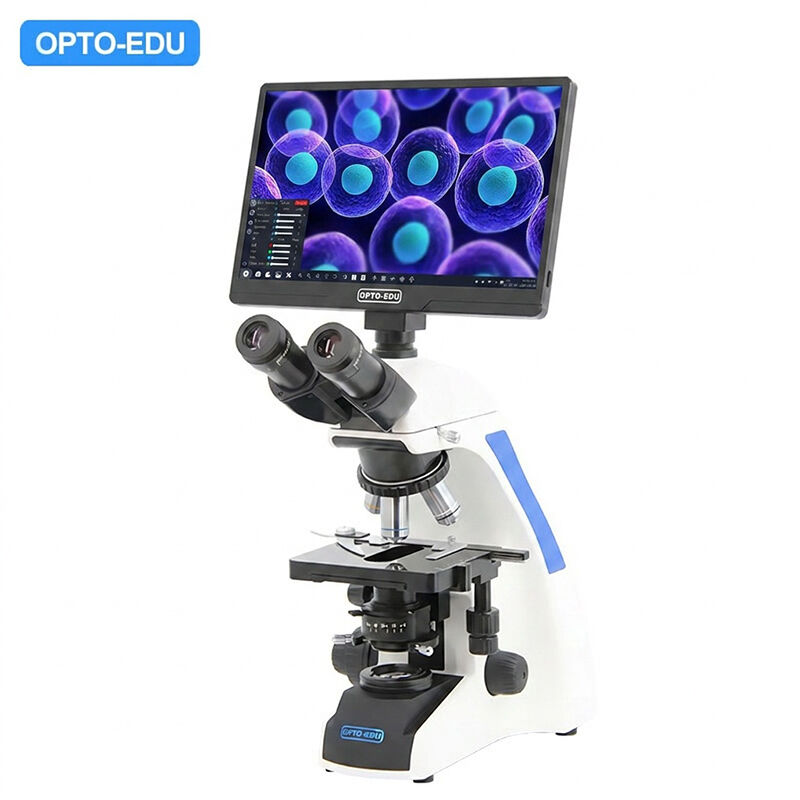

OPTO-EDU A33.1550 Laboratory Biological 11.6" LCD 8.0M Digital Microscope HDMI USB3.0 WIFI Output

The A33.1550 Digital Microscope Imaging System integrates a professional trinocular laboratory microscope (A11.1502-AT) with an 11.6-inch high-definition digital camera display (A59.3550). The microscope features an Achromatic HC (High Contrast) optical system for sharp, clear imaging, and is equipped with a spacious 143×132mm working stage for easy handling of larger specimens. Widely suitable for professional applications in scientific research, university teaching, industrial quality inspection, and biomedical analysis.

The 8.0M digital camera module supports real-time HD preview and image/video capture on the 11.6-inch LCD screen. The system comes standard with HDMI, USB 3.0, and Wi-Fi wireless transmission interfaces, supporting LAN sharing and multi-device connectivity for easy remote observation, teaching demonstrations, experiment archiving, and digital report generation.

Move the mouse to the bottom of screen to access the main menu. The A59.3550 Built-in Software S-Eye enables photo and video capture, storage, calibration, measurement, marking, and analysis. Users can adjust brightness, contrast, exposure, white balance, and more for optimal imaging.

Compatible with PC ImageView software, it supports EDF (Extended Depth of Focus) and image stitching for enhanced detail and panoramic views. Additionally, built-in Wi-Fi allows seamless integration into digital interactive classrooms, supporting simultaneous connections for up to 60 microscopes and cameras—ideal for collaborative education and real-time sharing in academic or professional settings.

Connect camera to computer with installed S-Eye software for real-time micro image output to PC. Provides similar settings and functions as built-in S-Eye software for easy computer-based work.

The mobile device searches for the camera's WIFI signal and connects to the camera's WIFI. Open the S-EYE2.0 APP on your cell phone for mobile viewing and control.
