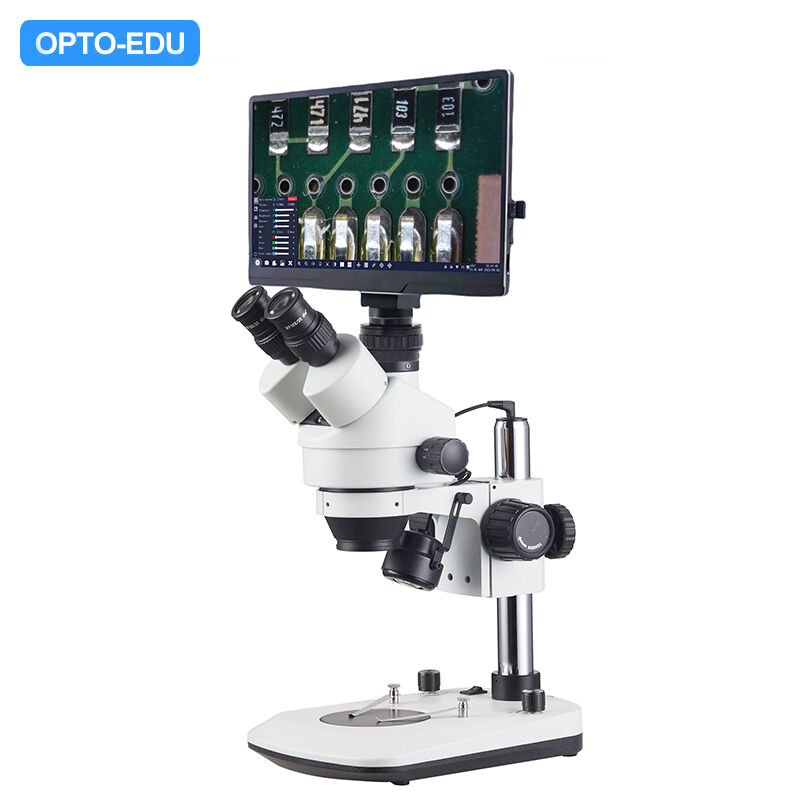

OPTO-EDU A36.3610 8.0M 11.6" LCD Digital Stereo Microscope HDMI USB3.0 WIFI Support WIFI Net
-
Highlight
digital stereo microscope with HDMI
,LCD stereo microscope USB3.0
,WIFI stereo microscope 11.6 inch
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA36.3610
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A36.3610 8.0M 11.6" LCD Digital Stereo Microscope HDMI USB3.0 WIFI Support WIFI Net
OPTO-EDU A36.3610 8.0M 11.6" LCD Digital Stereo Microscope
Advanced digital stereo microscope system with HDMI, USB 3.0, and WIFI connectivity for professional industrial and educational applications.
System Configuration
A36.3610 = A23.3645-B8LT + A59.3550
A23.3645-B8LT Zoom Stereo Microscope Specifications
Optical Head
- Trinocular Head, 45° Inclined, 360° Rotatable
- Interpupillary Adjustment: 54-75mm
- Both Eyepiece Tube ±5° Diopter Adjustable
- 0.5x C-Mount Focus Adjustable
- Light Split Fixed P50:E50
- Simul Focal Design for simultaneous eyepiece and photo port viewing
Eyepiece
WF10x/20mm, High Eyepoint, Diameter 30mm
Zoom Lens
0.7x~4.5x with 1:6.5 Zoom Ratio
Magnification Range
7x-45x (expandable to 3.5x-270x with optional eyepieces and auxiliary objectives)
Working Distance
100mm standard (expandable to 30-165mm with auxiliary objectives)
Field of View
0.9-57.1mm (detailed specifications in optical data sheet)
Focusing Mechanism
- Pole Stand: Coarse focusing range 50mm, tension adjustable
- Track Stand: Coarse focusing range 74mm, tension adjustable
A59.3550 11.6" LCD Digital Camera Specifications
Display
- 11.6" LCD Screen
- Resolution: 1920x1080p High Clearance
- Brightness: 220cd/㎡
Camera System
- 8.0M 4K Digital Camera
- Sensor: 1/1.8" IMX334 CMOS
- Resolution: 3840×2160 Pixels @60 fps Preview
- Photo: 16M
- Video: 1920x1080p
- Pixel Size: 2.0×2.0μm
Processing & Memory
- CPU: ARM Cortex A55 @1.4GHz
- Memory: 4GB LPDDR4
- Digital Zoom: 10x
Control Interface
USB Mouse + Keyboard control for built-in software (computer not required)
Data Interfaces
- USB 3.0 ×3
- USB 2.0 ×2
- HDMI ×1
- WIFI
- Standard C-Mount microscope interface
Output Options
- LCD with built-in S-Eye software
- HDMI to monitor (S-Eye software)
- USB 3.0 to PC (S-Eye software)
- USB 3.0 to USB disk storage
- WIFI6 to PC (S-Eye software)
- WIFI6 to mobile phone (S-Eye App)
Software Features
- Photo and video capture & storage
- Calibration and measurement functions
- Marking and analysis capabilities
- Brightness, contrast, exposure, white balance adjustments
- PC Software ImageView supports EDF & stitching functions
- WIFI output supports digital interactive classroom (up to 60 microscopes & cameras)
Language Support
Chinese, English, German, French, Japanese, Italian, Russian (custom languages available)
Power Supply
DC 12V/2A Power Adapter, Input 100-240V AC
Physical Specifications
- Product Size: 271×171.5×55mm
- Net Weight: 0.7kg
Package Contents
- LCD Camera
- AC Adapter
- USB Cable
- HDMI Cable
Packaging
Packing Box: 33.5×25×9cm, 1.2kg, 1 set per box
Optional Accessories for A23.3645 & A23.3645N
| Component | Description | Catalog No. |
|---|---|---|
| Head | Binocular Head + WF10x/20mm | A53.3645-B |
| Head | Trinocular Head + WF10x/20mm | A53.3645-T |
| Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | A51.3621-1020 |
| Eyepiece | WF15x/15mm, High Eyepoint, Dia.30mm | A51.3621-1515 |
| Eyepiece | WF20x/10mm, High Eyepoint, Dia.30mm | A51.3621-2010 |
| Eyepiece | WF25x/9mm, High Eyepoint, Dia.30mm | A51.3621-2509 |
| Eyepiece | WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-3008 |
| Auxiliary Lens | 0.5x, W.D. 165mm | A52.3621-05 |
| Auxiliary Lens | 1.5x, W.D. 45mm | A52.3621-15 |
| Auxiliary Lens | 2.0x, W.D. 30mm | A52.3621-20 |
| CCD Adapter | Eyepiece Adapter Focus Adjustable | A55.3623-E |
| CCD Adapter | 1.0x, Focus Adjustable | A55.3623-10 |
| CCD Adapter | 0.50x, Focus Adjustable, For 1/2"CCD | A55.3623-05 |
| CCD Adapter | 0.35x, Focus Adjustable, For 1/3"CCD | A55.3623-35 |
A36.3610 Zoom Stereo Microscope Optical Data Sheet
| Eyepiece | Auxiliary Lens | Working Distance | Magnification | View Field (mm) |
|---|---|---|---|---|
| WF10x/20mm | 0.5x | 165mm | 3.5x-22.5x | 57.1-8.9 |
| 1.0x (Standard) | 100mm | 7.0x-45x | 28.6-4.4 | |
| 1.5x | 45mm | 10.5x-67.5x | 19.0-3.2 | |
| 2.0x | 30mm | 14x-90x | 14.3-2.2 | |
| WF15x/15mm | 0.5x | 165mm | 5.25x-33.75x | 42.8-6.7 |
| 1.0x (Standard) | 100mm | 10.5x-67.5x | 21.1-3.3 | |
| 1.5x | 45mm | 15.75x-101.25x | 14.3-2.2 | |
| 2.0x | 30mm | 21x-135x | 10.7-1.7 | |
| WF20x/10mm | 0.5x | 165mm | 7.0x-45x | 28.6-4.4 |
| 1.0x (Standard) | 100mm | 14.0x-90x | 14.3-2.2 | |
| 1.5x | 45mm | 21.0x-135x | 9.5-1.5 | |
| 2.0x | 30mm | 28x-180x | 7.1-1.1 | |
| WF25x/9mm | 0.5x | 165mm | 8.85x-56.3x | 25.4-4.0 |
| 1.0x (Standard) | 100mm | 17.5x-112.5x | 12.9-2.0 | |
| 1.5x | 45mm | 26.2x-168.8x | 8.6-1.3 | |
| 2.0x | 30mm | 35x-225x | 6.4-1.0 | |
| WF30x/8mm | 0.5x | 165mm | 10.5x-67.5x | 22.9-3.6 |
| 1.0x (Standard) | 100mm | 21x-135x | 11.4-1.8 | |
| 1.5x | 45mm | 31.5x-202.5x | 7.6-1.2 | |
| 2.0x | 30mm | 42x-270x | 5.7-0.9 |
Zoom Lens: 0.7x~4.5x
