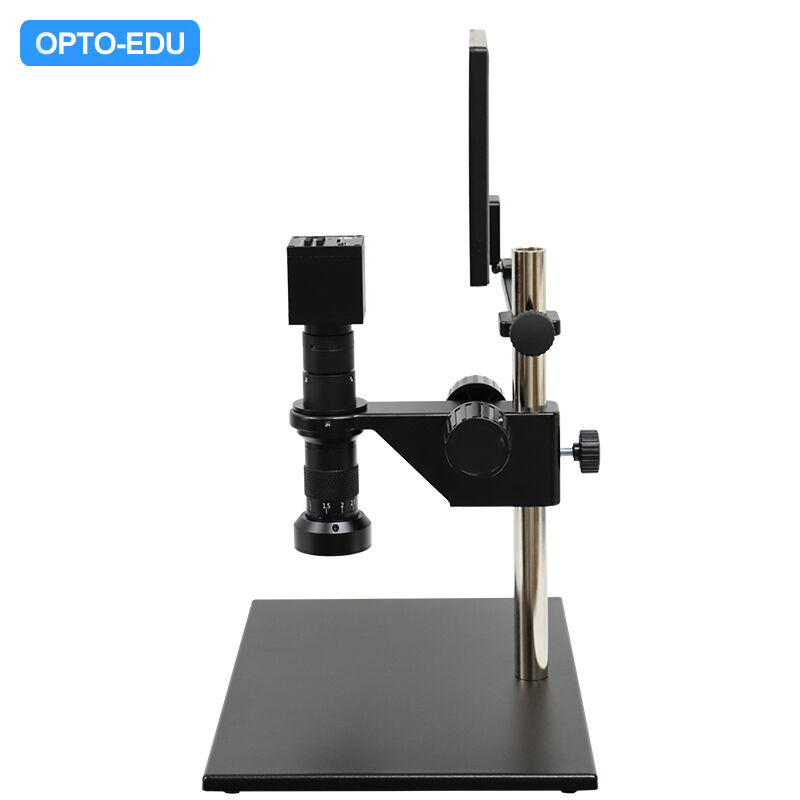

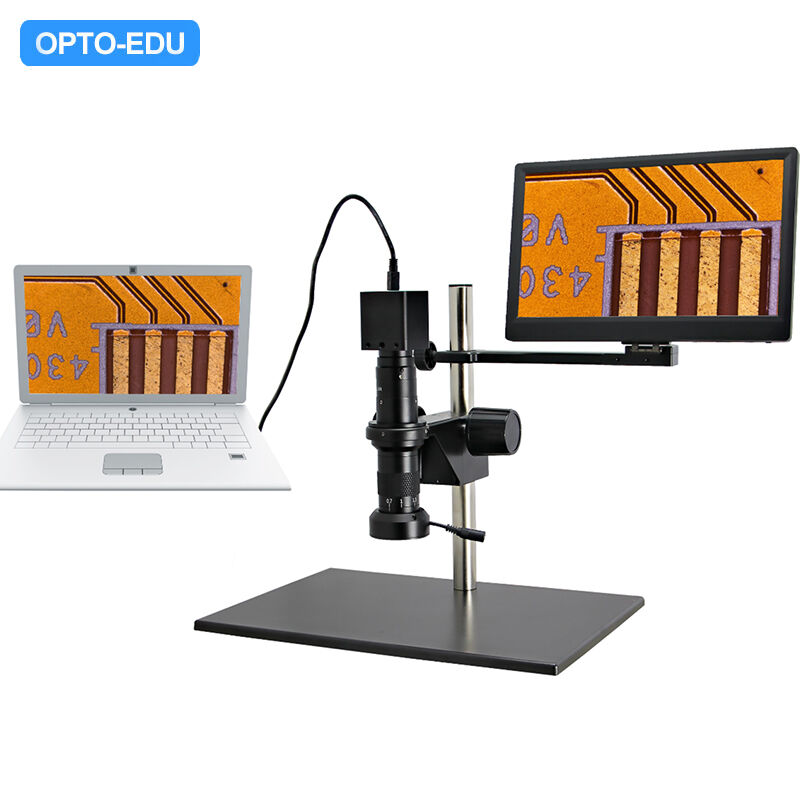

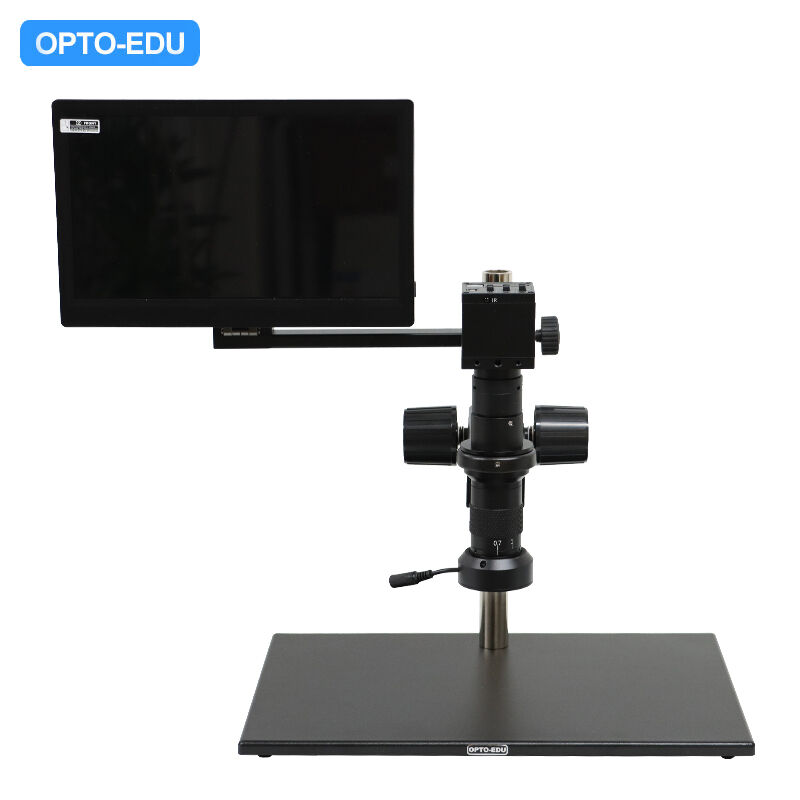

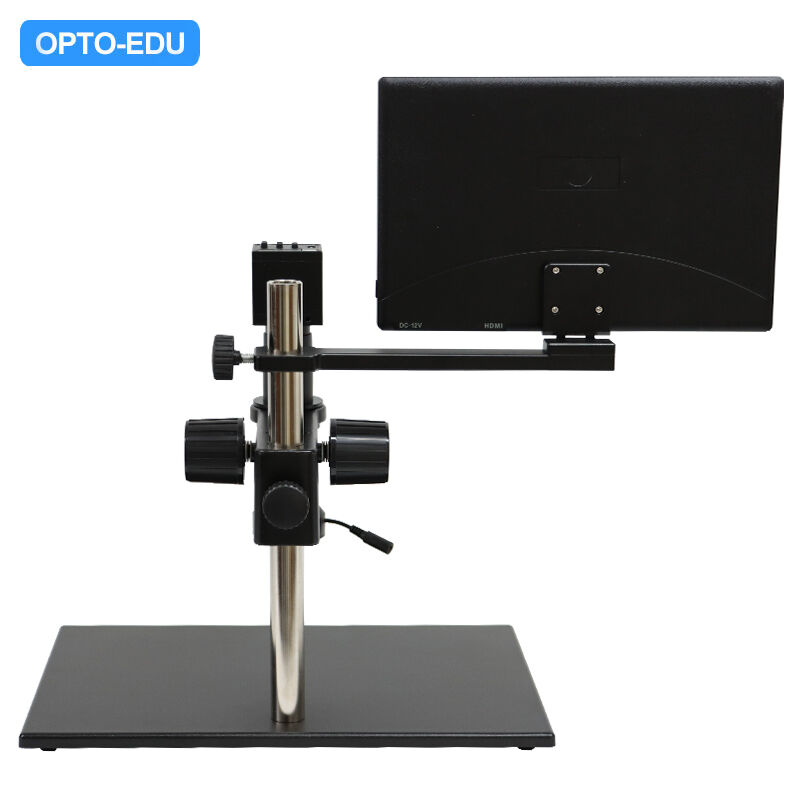

OPTO-EDU 11.6" LCD Monocular Zoom Video Stereo Microscope 0.7x-5.0x
-
Highlight
11.6 LCD stereo microscope
,monocular zoom video microscope
,0.7x-5.0x zoom optical microscope
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA21.1650
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU 11.6" LCD Monocular Zoom Video Stereo Microscope 0.7x-5.0x
OPTO-EDU 11.6" LCD Monocular Zoom Video Stereo Microscope 0.7x-5.0x
Product Overview
- 11.6" HD Monitor with 1920×1080 resolution
- 16M 1/2.33" CMOS sensor with 5x digital zoom
- Total magnification range: 16x-115x
- 0.7x-5.0x monocular continuous zoom body with 0.5x C-Mount and 1.0x lens
- 52-piece LED ring light illumination
- HDMI output: 1920×1080@60fps with remote controller for photo capture and video recording
- USB output to computer: 1920×1080@30fps with RS software for photo, video, and measurement
- Large black stand: 380×260mm base, 320mm pole height, 25mm pole diameter with coarse focus knob
Technical Specifications
| Optical System |
Zoom Body: 0.7x-5.0x Continuous Zoom Total Magnification: 16x-115x on 11.6" Monitor, 80x-575x with Digital Zoom Field of View: 16×9-2.24×1.26mm Working Distance: 86mm Install Diameter: 50mm |
|---|---|
| C-Mount Options |
Standard: 0.5x Optional: A21.1650-C03 C-Mount 0.3x, A21.1650-C10 C-Mount 1.0x |
| Auxiliary Lens Options |
Standard: 1.0x Optional: A21.1650-L03 (0.3x, WD:270mm), A21.1650-L04 (0.4x, WD:195mm), A21.1650-L05 (0.5x, WD:160mm), A21.1650-L06 (0.6x, WD:130mm), A21.1650-L75 (0.75x, WD:105mm), A21.1650-L15 (1.5x, WD:50mm), A21.1650-L20 (2.0x, WD:39mm) |
| Stand Specifications |
Base Size: 380×260mm Pole Height: 320mm Pole Diameter: 25mm Focusing: Coarse Focus Knob |
| Light Source |
Light Type: LED Ring Light Input Voltage (AC): 110-240V Output Voltage (DC): 12V Power: 5W Color: White (Red/Yellow/Blue/Green/Infrared 850nm/950nm Optional) Inner Diameter: 32mm Outer Diameter: 58mm LED Quantity: 52 pieces |
| Camera Specifications |
Sensor: 16M 1/2.33" CMOS Pixel Size: 1.335µm × 1.335µm Digital Zoom: 1.0x-5.0x HDMI Output: 1920×1080 60fps USB Output: 1920×1080/30, 1280×720/30, 640×480/30, 320×240/30 (MJPG) Mount: C/CS Exposure: Manual/Auto with Exposure Compensation White Balance: Manual/Auto with RGB Adjustable Memory: TF Card Slot (Supports up to 64GB) Input Voltage (AC): DC 5V-12V Crosshair: Supports 8 Crosshair Lines with Adjustable Color, Width, Position Language: English/Chinese Software: Image View for Windows - supports photo/video capture, camera settings, measurement and analysis functions. Download from www.optoedu.com/download |
