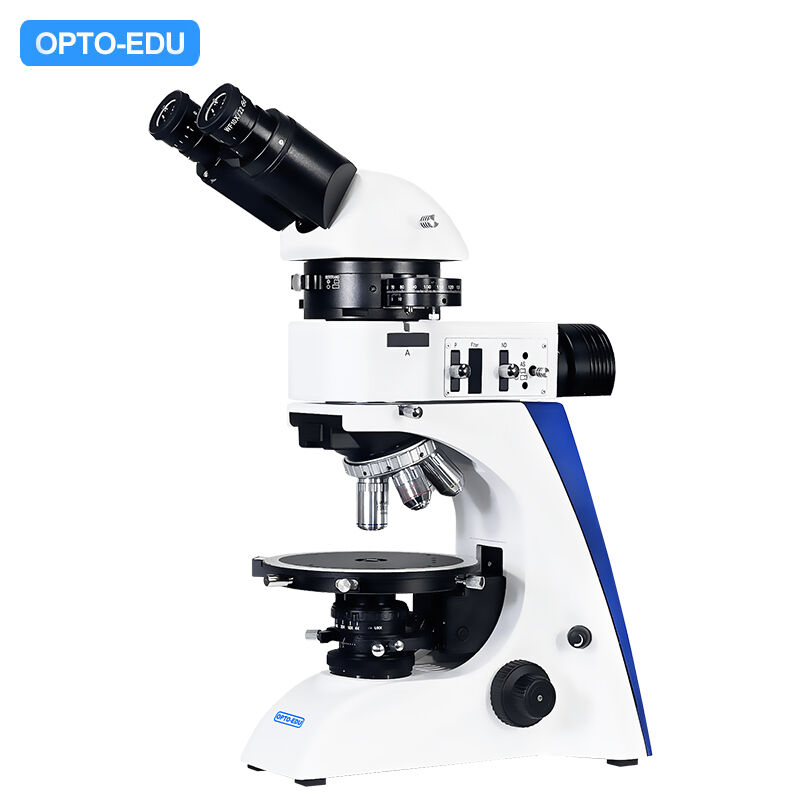

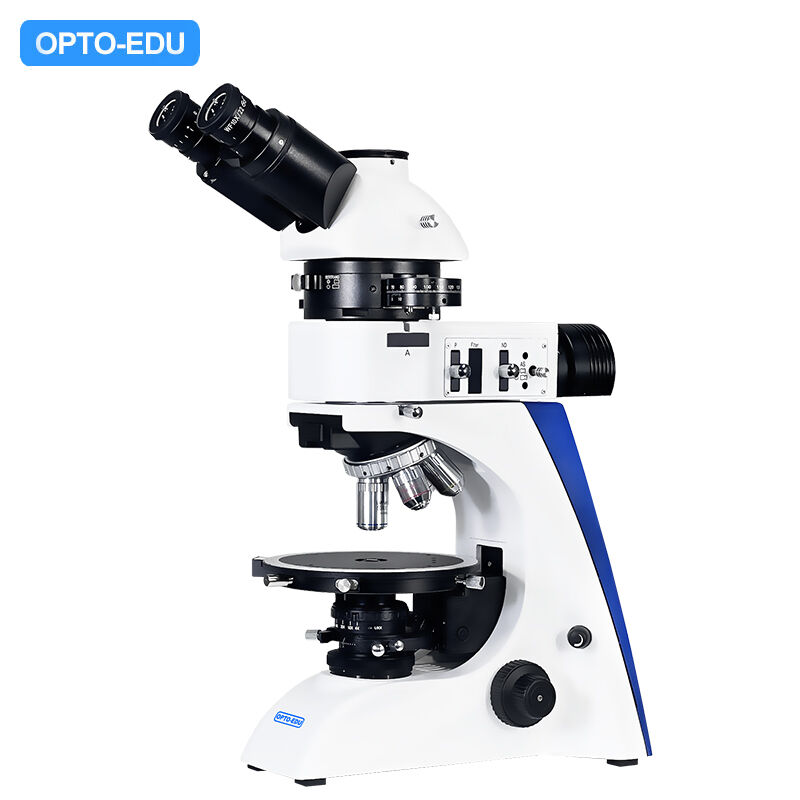

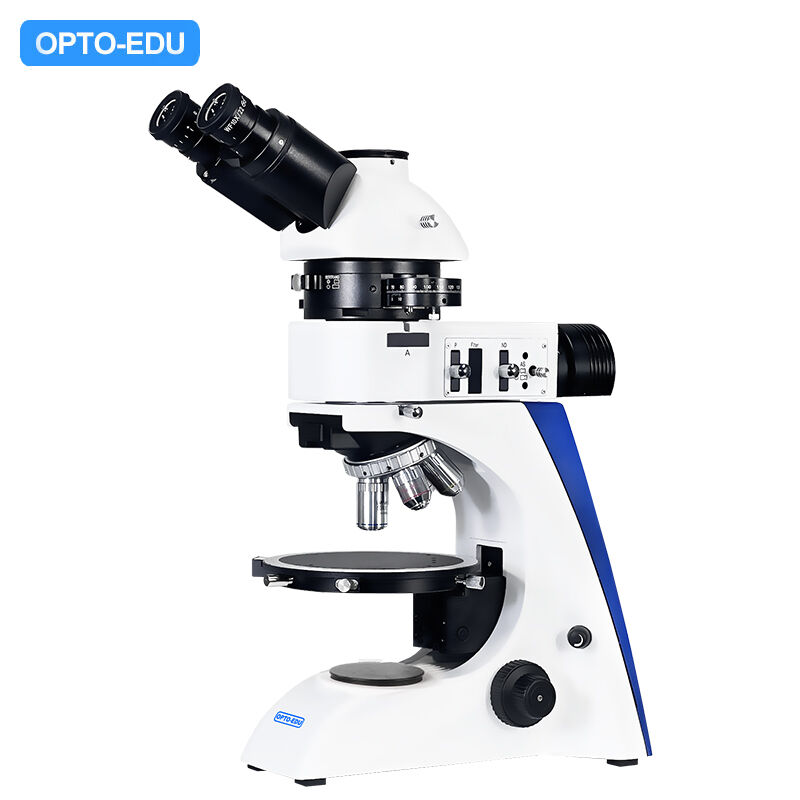

OPTO-EDU A15.2601 Polarizing Microscope, Transmit, LED

Highlight

LED polarizing microscope
,
transmit polarizing microscope
,
OPTO-EDU digital microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A15.2601-TT
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T,West Union,Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A15.2601 Polarizing Microscope, Transmit, LED

button button

Get Price Contact Now

Reflect 5W LED Illumination + Swing Out Condenser N.A. 0.9/0.13 Center Adjustable
Head & Eyepiece With Joint Move Design To Keep Right Side Eyepiece's Cross Direction
Professional Polarizing Non-Stress LWD Infinity Plan Objective (Reflecting)
Professional Polarizing Lens, Analyzer With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge.
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Retical Eyepiece WF10x/20mm, Dia.30mm With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable
Joint Move Design: Specially For Polarizing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned.

Super Wide Field Eyepiece SWF10x/22mm, Eyepiece Dia.30mm Diopter Adjustable
The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Large Size High Precision Centering Quintuple Nosepiece, Non-Stress Infinity Plan Objective (Transmitting) 4x,10x,20x,40x Available
Remark: The Yellow Mark On Nosepiece Is Standard Position For 10x Objective, The Rest Objectives Should Be Mounted From High To Low Power In Clockwise Direction, As Above Picture Shown.

Rotatable 360°, Division 1', Vernier, Division 6', Can Be Locked

Swing-out Condenser, N.A.0.9/0.13, With Polarizer For A15.2601-T&RT
Lens In Bottom, With Scale, Can Be Locked.
Swing The Lens In To Get Excellent Image When Using High Power Objective To Make Observation.

3W LED Koehler Illumination, Field Diaphragm
Powered By Safety Low Voltage Charger
Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

Items	A15.2601 Series Polarzing Microscope	A15.2601-T Transmit		A15.2601-R Reflect		A15.2601-RT Trans&Reflect		Cata. No.
Items	A15.2601 Series Polarzing Microscope	TB	TT	RB	RT	RTB	RTT	Cata. No.
Head	Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm, Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned	●		●		●		A53.2625-B
Head	Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned		●		●		●	A53.2625-T
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●					A51.2621-1022
	WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move	●	●					A51.2622-1022P
	WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable			●	●	●	●	A51.2621-1020
	WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move			●	●	●	●	A51.2622-1020P
Nosepiece	Quintuple, Center Adjustable	●	●	●	●	●	●	A54.2610-N02
Non-Stress Infinity Plan Objective (Transmitting)	PLAN 4x/0.10, W.D.=12.1mm	●	●			●	●	A5P.2630-4
	PLAN 10x/0.25, W.D.=4.64mm	●	●			●	●	A5P.2630-10
	PLAN 20x/0.40(S), W.D.=2.41mm	●	●			●	●	A5P.2630-20
	PLAN 40x/0.66(S), W.D.=0.65mm	●	●			●	●	A5P.2630-40
	PLAN 60x/0.8(S), W.D.=0.33mm							A5P.2630-60
	PLAN 100x/1.25(S,Oil), W.D.=0.12mm							A5P.2630-100
Non-Stress LWD Infinity Plan Objective (Reflecting)	LPL5x/0.13, W.D.=16.04mm			●	●	○	○	A5M.2633-5
	LPL10x/0.25 W.D.=18.48mm			●	●	○	○	A5M.2633-10
	LPL20x/0.40 W.D.=8.35mm			●	●	○	○	A5M.2633-20
	LPL50x/0.70(S) W.D.=1.95mm			●	●	●	●	A5M.2633-50
	LPL100x/0.90(S,Dry) W.D.=1.10mm			○	○	○	○	A5M.2633-100
Working Stage	Round Stage Diameter Φ174mm, For Transmit Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked	●	●	○	○	●	●	A54.2602-S06
	Round Stage Diameter Φ148mm, For Reflect Light, Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked			●	●			A54.2602-S06a
	Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm	○	○	○	○	○	○	A5P.2616
	Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens	○	○	○	○	○	○	A5P.2616-LK
Condenser	Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked	●	●			●	●	A56.2614-C10
Polarizing Unit	Analyzer Media Unit, Between Head And Body, Analyzer 0~360° Adjustable, Can Be Locked, With Betrand Lens Built-in Focus Adjustable,	●	●	●	●	●	●	A5P.2621-BK
	Compensator Slide, With λ Slip (First Class Red)	●	●	●	●	●	●	A5P.2614-16a
	Compensator Slide, With λ/4 Slip	●	●	●	●	●	●	A5P.2614-15a
	Quartz Wedge Slide (I-IV Class)	●	●	●	●	●	●	A5P.2615-17
	Quartz Wedge Slide (0-IV Class) Long Type	○	○	○	○	○	○	A5P.2615-17a
	Polarizer Lens, Bulit-in Bottom Part Of Condenser	●	●	●	●	●	●	A5P.2610-BK
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●	●	●	●	●
Illumination	Transmit Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●			●	●	A56.2650-5WLED
	Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V	○	○			○	○	A56.2650-6V30WH
	Reflect Light 5W LED Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use			●	●	●	●	A56.2650-5WLED
	Reflect Light 12V50W Halogen Koehler Illumination, Wide Voltage 100V~240V			○	○	○	○	A56.2650-12V50W
Field Diaphragm	For Kohler Illumnation	●	●	●	●	●	●	A56.2615-BK
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○			○	○	A56.2660
Filter	Dia.45mm, Blue	○	○	○	○	○	○	A56.2616-45B
	Dia.45mm, Green	○	○	○	○	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	○	○	○	○	A56.2616-45A
Adapter	C-Mount 0.5x, Focus Adjustable		○		○		○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable		○		○		○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable		○		○		○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm		○		○		○	A55.2610
Package & Weight	Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs							A15.2601-TB,TT
	Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs							A15.2601-RB,RT
	Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs							A15.2601-RTB,RTT
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories

A15.2601 Polarizing Microscope, with full polarizing function, is the best tools for school and student use. It is a professional polarizing microscope, also named mineralogical microscope, with advanced multifunction, is necessary for researching double refraction sample. It can observe mineral crystal figure, color and interference color and also identify its optical performance. It is a good microscope used in geology, petroleum, coal, Chemical fiber, medical treatment, mineral, drug, criminal investigation fields and physic inspection. It is also widely used in academic demonstration and research.
