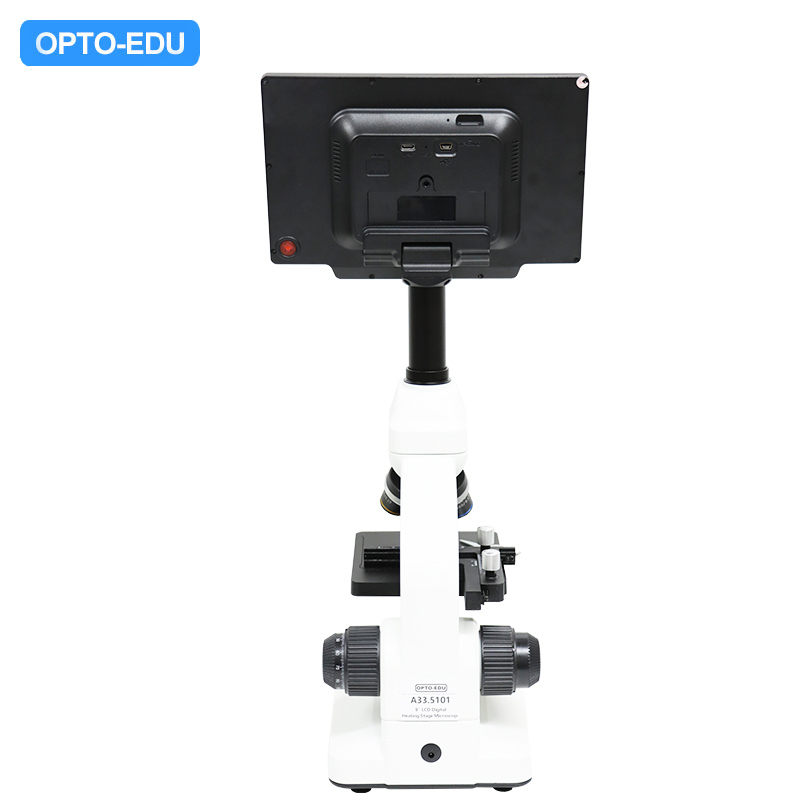

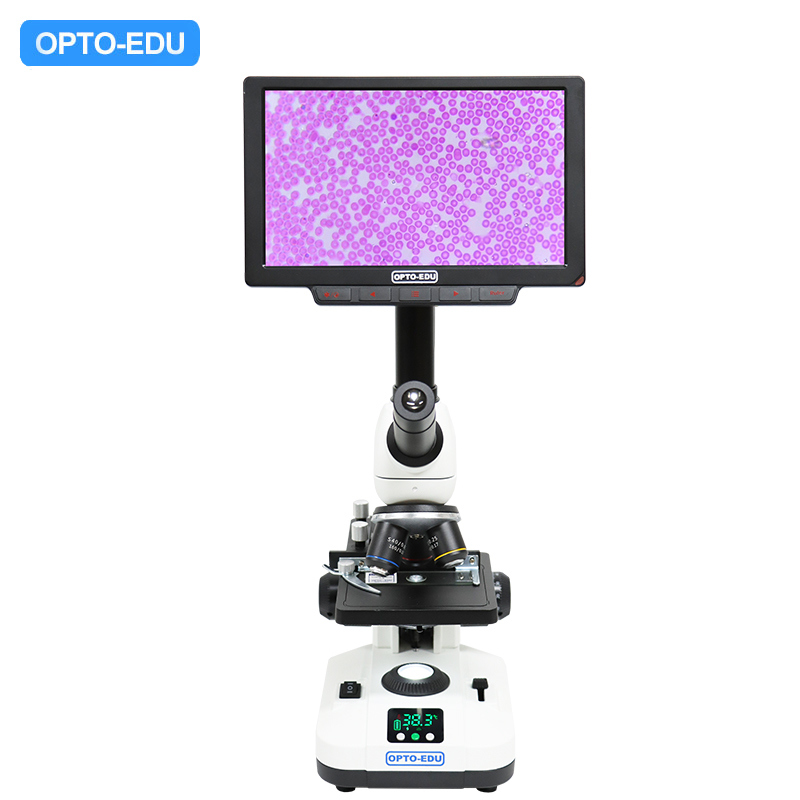

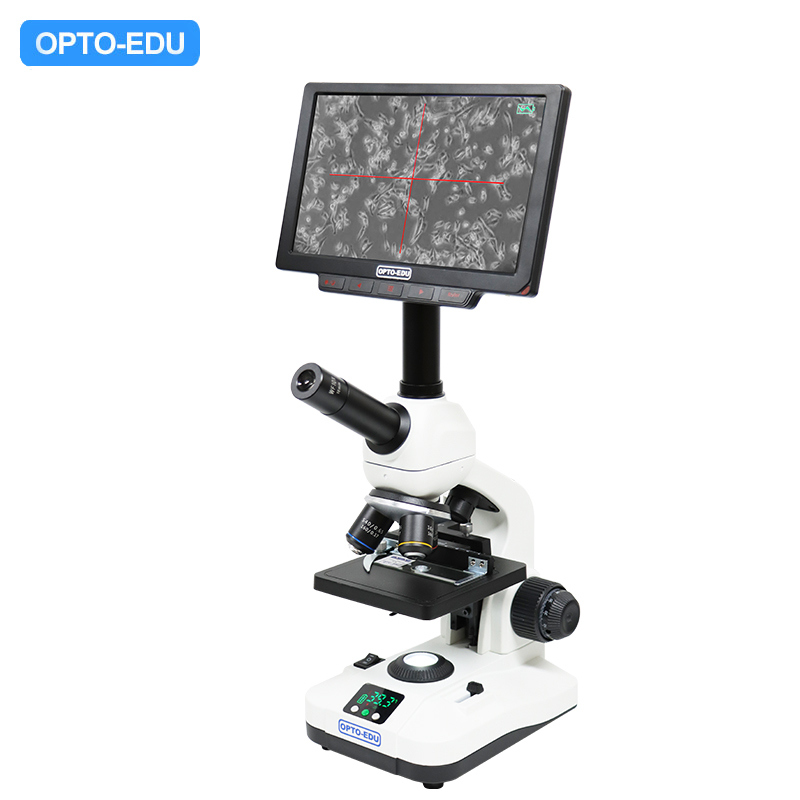

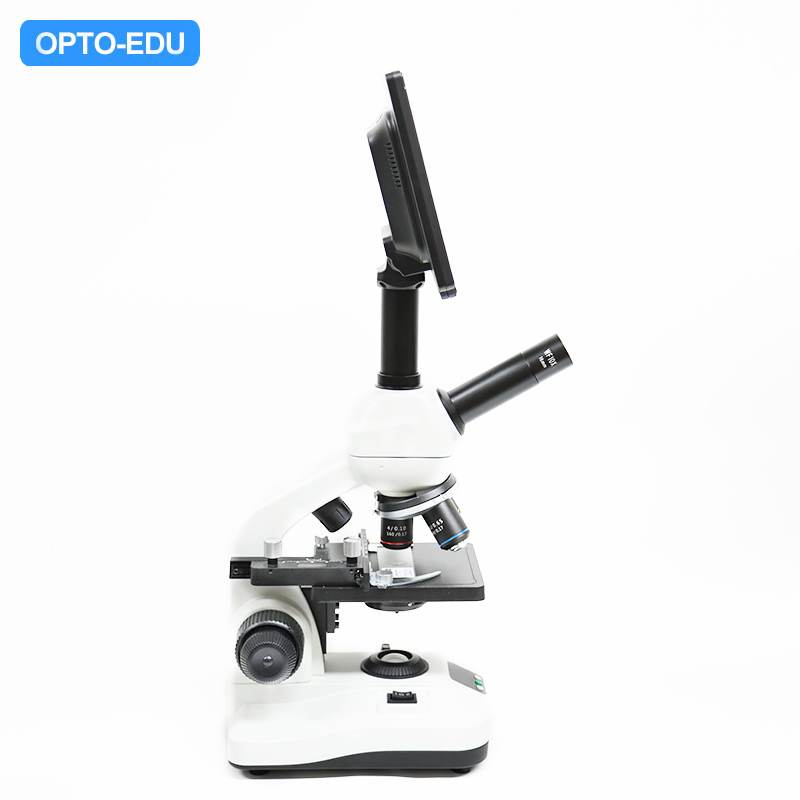

OPTO-EDU A33.5115 9" LCD Heating Stage Microscope with 40x~640x Optical Magnification and 60fps
-
Highlight
9" LCD Screen Microscope
,40x~640x Optical Magnification Microscope
,60fps Digital Microscope
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE, Rohs
-
Model NumberA33.5115
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T,West Union,Paypal
-
Supply Ability5000 pcs/ Month
OPTO-EDU A33.5115 9" LCD Heating Stage Microscope with 40x~640x Optical Magnification and 60fps
OPTO-EDU A33.5115 9" LCD Heating Stage Microscope
Key Features
- 9" LCD screen specialized for sperm and blood checking
- Heating stage with temperature control (20-50°C)
- Dual LED illumination with adjustable brightness
- Solid metal construction for durability
- Digital LCD panel displaying temperature, battery level, and charging status
- 360° rotating dual viewing head
Technical Specifications
| Magnification | Optical: 40x-640x Digital: 97.5x Total on LCD: 195x-1950x |
|---|---|
| LCD Camera | A59.5120-9C |
| LCD Specifications | 9" CVBS LCD Screen Resolution: 728×488 |
| Sensor | CMOS 1/3" Pixel Size: 6.35×7.4μm 60fps |
| Microscope Body | Solid metal construction Dual viewing head (30° incline, 360° rotation) |
| Optical Components | Eyepieces: WF10x/16mm, WF16x/13mm Objectives: Achromatic 4x, 10x, 40x(S) Abbe condenser N.A.0.65 with iris diaphragm |
| Working Stage | Mechanical heating stage 110×120mm Movement: 25×55mm Temperature control: 20-50°C |
| Focusing | Coaxial coarse & fine focusing Fine division: 0.008mm Range: 0-15mm |
| Power Supply | Adapter: Input AC100-240V, Output DC 5V2A Battery: 18650 rechargeable 3.7V 2000mAh (not included for air shipment) |
Packing List
- Microscope main unit
- LCD digital camera
- Power adapter
- Instruction manual
- Dust cover
- 18650 battery (not included for air shipment)
Dimensions & Weight
| Microscope | 19×14×48cm, 3.5kg net weight |
|---|---|
| Standard Package | Carry bag & carton: 31×21×39cm, 4.5kg gross weight |
| Optional Package | Aluminium case & carton: 45×35×22cm, 6.0kg gross weight |
Specialized Applications
This 9" LCD heating stage microscope is specifically designed for medical and laboratory applications including sperm analysis, blood checking, and other temperature-sensitive microscopic examinations.
