OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output

OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output

Products - Stereo Optical Microscope
  • Highlight

    38x Magnification Digital Stereo Microscope

    ,

    4K Resolution Stereo Optical Microscope

    ,

    8.3M Sensor HDMI USB Microscope

  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A32.4201
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T,West Union,Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output

  • OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output
Get Price Contact Now
OPTO-EDU Digital Stereo Microscope 38x 4K 8.3M HDMI USB
OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 0 OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 1 OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 2 OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 3

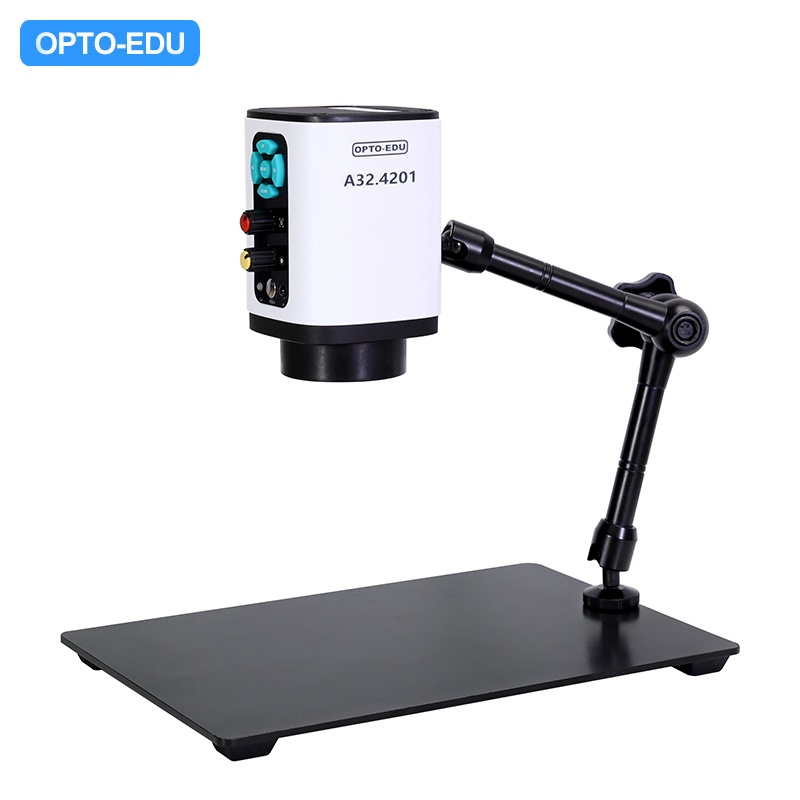

Model: A32.4201 Digital Stereo Microscope
Key Specifications Details
Magnification
  • Optical Magnification: 38x
  • Digital Zoom: 5x
  • Total Magnification: 190x (With 23" LCD)
Resolution 8.3M 4K
Sensor 1/2.8" Sony CMOS Sensor
Pixel Size 1.45µm x 1.45µm
Output Options
  • 4K HDMI to monitor
  • USB to USB disk storage
  • USB/Type-C to computer
  • Note: USB and HDMI cannot output simultaneously
HDMI Output
  • 3840*2160 @30 Frames
  • 1920*1080 @60 Frame
HDMI Menu Options Line Settings, Exposure, AWB, Color, Frequency, Record Size, Resolution, Mirror, Display Scale, Brightness, Contrast, Hue, Edge, System
USB Output 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
USB Software Opto-Edu Image View
Working Distance 100mm | 150mm | 200mm | 250mm | 300mm
Field of View 25x14mm | 38x21mm | 50x28mm | 64x36mm | 78x43mm
Exposure Automatic/Manual
White Balance Automatic/Manual, Supports R, G, B Adjustable
Storage Maximum Support 64GB
Input Voltage DC 12V
Light Source Built-In High-Brightness 24 LEDs Ring Lights, Brightness Adjustable
Lens HD Microscope Lens
Language Support English/Chinese/Arabic/Italian/Russian/Japanese/Spanish/French/Portuguese
Included Accessories Remote Controller
Focus Mode Manual Focus (By Focus Knob, Remote Control)
Stand Standard Universal Stand, Base 230*150*5mm, Max Height 280mm
Net Weight 200g
Product Size Main Body 48*48*60mm
OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 4 OPTO-EDU Digital Stereo Microscope with 38x Magnification 4K Resolution and 8.3M Sensor HDMI USB Output 5
