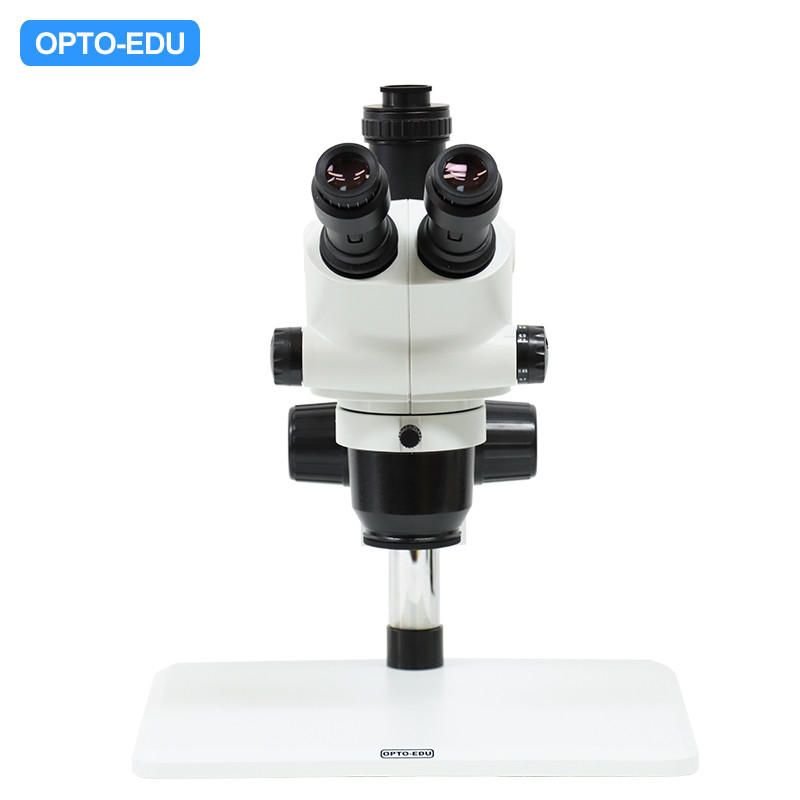

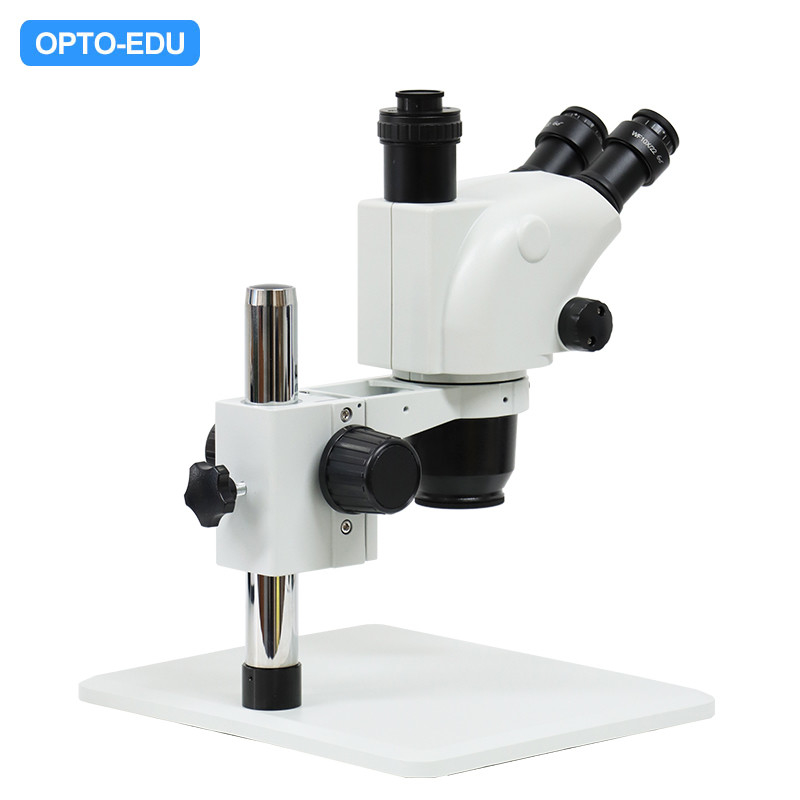

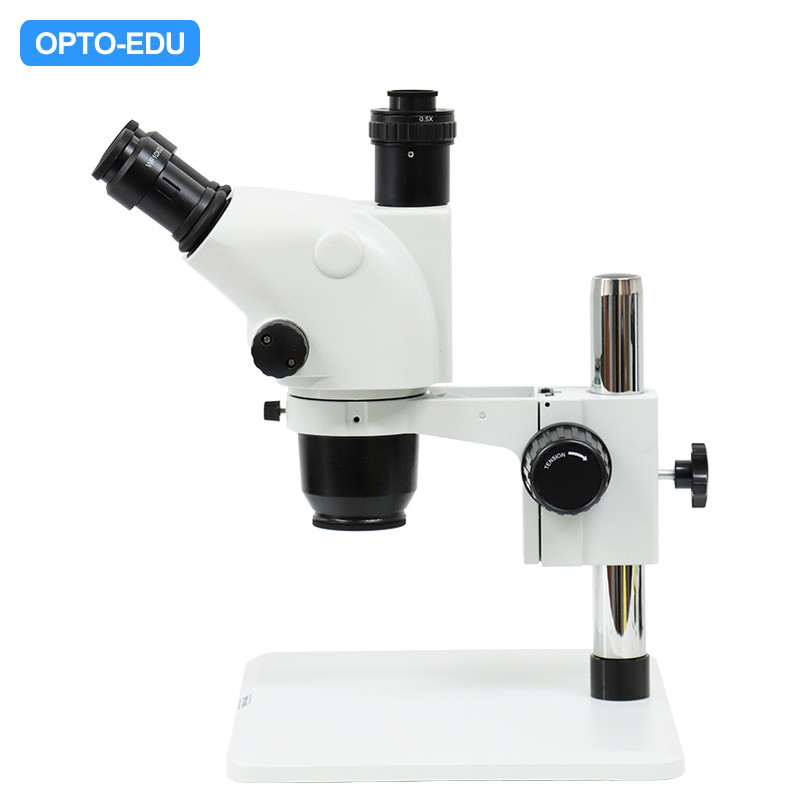

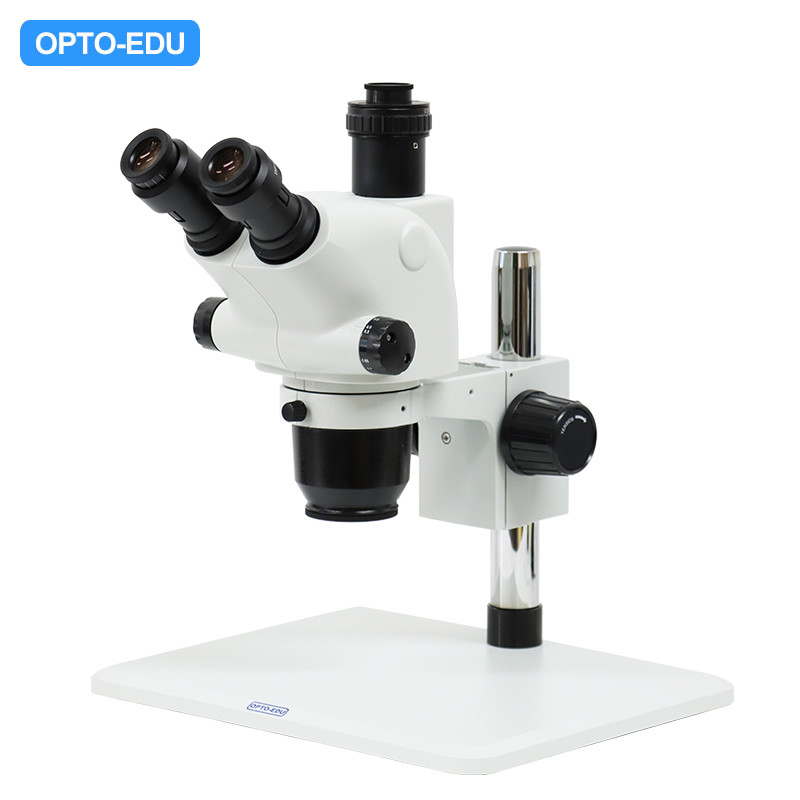

OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope

OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope

Products - Stereo Optical Microscope
  • Optical System
    Greenough
  • Head
    Binocular / Trinocular Head, Interpupillary Distance 55~75mm
  • Magnification
    0.65x~6.5x Continuous Zoom Body, Total Magnification 1.95x~325x
  • Zoom Ratio
    1:10
  • Eyepiece
    WF10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm
  • Max Field Of View
    Ф36 Mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.3665
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope

  • OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope
  • OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope
  • OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope
  • OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope
Get Price Contact Now
  • Continous Zoom 0.65x-6.5x Binocular & Trinocular Head, Zoom Ratio 1:10
  • Standard 6.5x-65x, Up To 1.95x-325x With Optional Eyepieces & Auxiliary Objectives
  • High Eyepoint, Dia.30mm WF10x/22mm, Optional WF15x, WF20x, WF25x
  • Working Distance 110mm, Up To 30~287mm With Auxiliary Objectives
  • 35 Kinds Stand Optional, Details See A54.3630
OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope 0

OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope 1
A23.3665 Zoom Stereo Microscope, 0.65-6.5x, 1:10
Optical System Greenough
Head Binocular / Trinocular Head, Interpupillary Distance 55~75mm
Magnification 0.65x~6.5x Continuous Zoom Body, Total Magnification 1.95x~325x (With Optional Eyepiece & Lens)
Zoom Ratio 1:10
Eyepiece WF10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm
Max Field of View Ф36 mm
Working Distance 110mm, Optional 30~287mm
Bracket Holder Hole Inner Dia. Ф76mm
Model A23.3665-B6T
Trinocular Head, Light Split Fixed 4/6
B6 Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, No Light Source,
0.5x C-Mount
A23.3665-B8LT
Trinocular Head, Light Split Fixed 4/6,
B8L Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED,
0.5x C-Mount
A23.3665-B8LST
Trinocular Head, Light Split Fixed 4/6,
B8LS Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED,
0.5x C-Mount
A23.3665-B3T
Trinocular Head, Light Split Fixed 4/6,
B3 Pole Stand, Size 380*260*20mm, Pole Dia.32mm, Height 240mm, No Light Source,
0.5x C-Mount
Optional Eyepiece WF15x, WF20x, WF25x, A51.3622
Auxiliary Lens 0.5x, 0.7x, 1.5x, 2.0x, A52.3622
C-Mount 0.35x, 1.0x, A55.3623
35 Kinds of Stands & Brackets, See A54.3630


A23.3665 Optical Data Sheet
Eyepiece Auxiliary Objective Lens
0.3x 0.5x 0.7x 1.0x (Standard) 1.5x 2.0x
Working Distance Working Distance Working Distance Working Distance Working Distance Working Distance
287mm 165mm 120mm 110mm 45mm 30mm
Mag. View(mm) Mag. View(mm) Mag. View(mm) Mag. View(mm) Mag. View(mm) Mag. View(mm)
WF10x/22mm 1.95x 107.3 3.25x 64.4 4.55x 46 6.5x 32.2 9.75x 21.5 13x 16.1
19.5x 11.3 32.5x 6.8 45.5x 11.2 65x 3.4 97.5x 2.3 130x 1.7
WF15x/16mm 2.92x 78.03 4.87x 46.83 6.82x 33.45 9.75x 23.42 14.62x 15.64 19.5x 11.71
29.2x 8.21 48.75x 4.95 68.25x 8.15 97.5x 2.47 146.25x 1.67 195x 1.24
WF20x/12mm 3.9x 58.52 6.5x 35.13 9.1x 25.09 13x 17.56 19.5x 11.73 26x 8.78
39x 6.16 65x 3.71 91x 6.11 130x 1.85 195x 1.25 260x 0.93
WF25x/9mm 4.87x 43.89 8.12x 26.34 11.37x 18.82 16.25x 13.17 24.37x 8.79 32.5x 6.59
48.75x 4.62 81.25x 2.78 113.75x 4.58 162.5x 1.39 243.75x 0.94 325x 0.69
OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope 2

OPTO-EDU A23.3665 0.65-6.5x 1:10 Zoom Stereo Microscope 3
