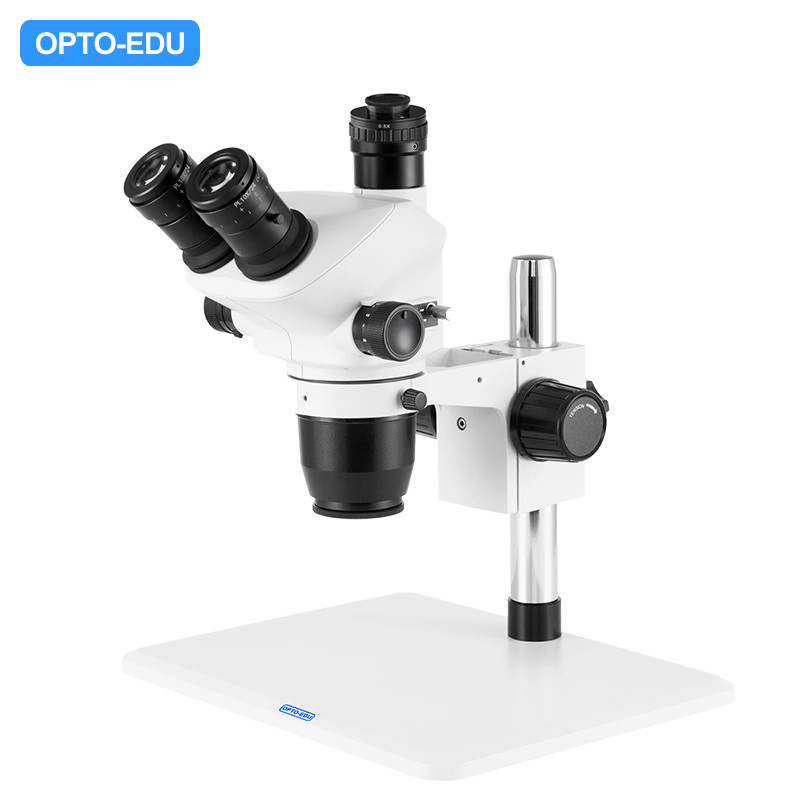

OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

Products - Stereo Optical Microscope
  • Optical System
    Greenough
  • Head
    Binocular / Trinocular Head, Interpupillary Distance 55~75mm
  • Magnification
    0.65x~5.2x Continuous Zoom Body, Total Magnification 3.25x~260x
  • Zoom Ratio
    1:8
  • Eyepiece
    WF10x/24mm, Dia.30mm, High Eyepoint, Diopter Adjustable
  • Max Field Of View
    Ф42 Mm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.3652
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope

  • OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope
Get Price Contact Now
  • Continous Zoom 0.65-5.2x Binocular & Trinocular Head, Zoom Ratio 1:8
  • Standard 6.5x-52x, Up To 3.25x-260x With Optional Eyepieces & Auxiliary Objectives
  • High Eyepoint, Dia.30mm WF10x/22mm, Optional WF15x, WF20x, WF25x
  • Working Distance 118mm, Up To 42~218mm With Auxiliary Objectives
  • 35 Kinds Stand Optional, Details See A54.3630
OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope 0

OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope 1
A23.3652 Zoom Stereo Microscope, 0.65-5.2x
Optical System Greenough
Head Binocular / Trinocular Head, Interpupillary Distance 55~75mm
Magnification 0.65x~5.2x Continuous Zoom Body, Total Magnification 3.25x~260x (With Optional Eyepiece & Lens)
Zoom Ratio 1:8
Eyepiece WF10x/24mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Max Field of View Ф42 mm
Working Distance 118mm (1x), Optional 42~218mm
Bracket Holder Hole Inner Dia. Ф76mm
Model A23.3652-B6T
Trinocular Head, Light Split Switch 100:0/0:100
B6 Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, No Light Source,
0.5x C-Mount
A23.3652-B8LT
Trinocular Head, Light Split Switch 100:0/0:100
B8L Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up/Bottom 3W LED,
0.5x C-Mount
A23.3652-B8LST
Trinocular Head, Light Split Switch 100:0/0:100
B8LS Pole Stand, Size 210*274*38mm, Pole Dia.32mm, Height 240mm, Up Dual Pipe LED Brightness Separately Adjustable, Bottom 3W LED,
0.5x C-Mount
A23.3652-B3T
Trinocular Head, Light Split Switch 100:0/0:100
B3 Pole Stand, Size 380*260*20mm, Pole Dia.32mm, Height 240mm, No Light Source,
0.5x C-Mount
Optional Eyepiece WF15x, WF20x, WF25x, A51.3622
Auxiliary Lens 0.5x, 0.75x, 1.5x, 2.0x, A52.3652
C-Mount 1.0x, A55.3623
35 Kinds of Stands & Brackets, See A54.3630


A23.3652 Optical Data Sheet
Auxiliary Objective Lens 0.5x 0.75x 1x (Standard) 1.5x 2.0x
Working Distance 218 mm 140 mm 118 mm 68 mm 42mm
WF10x/24mm Magnification 3.25x~26x 4.88x~39x 6.5x~52x 9.75x~78x 13x~104x
Field of View(mm) 73.85~9 .23 49.23~6.15 36.92~4.62 24.62~3.08 18.46~2.31
WF15x/16mm Magnification 4.88x~39x 7.31x~58.5x 9.75x~78x 14.63x~117x 19.5x~156x
Field of View(mm) 49.23~6.15 32.82~4.1 24.62~3 .08 16 .41~2.05 12.31~1.54
WF20x/12mm Magnification 6.5x~52x 9.75x~78x 13x~104x 19.5x~156x 26x~208x
Field of View(mm) 36.36~4.62 24.62~3 .08 18 .46~2 .31 12 .31~1.54 9 .23~1.15
WF25x/10mm Magnification 8.13x~65x 12.19x~97.5x 16.25x~130x 24.38x~195x 32.5x~260x
Field of View(mm) 30.77~3 .84 20.51~2.56 15 .38~1 .92 10.26~1.28 7.69~0.96



OPTO-EDU A23.3652 0.65-5.2x 1:8 Zoom Stereo Microscope 2
