Items | Biological Laboratory Microscope | Cata. No. | |
Head | Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, Light Split Fixed P20:E80 | A53.2621-T | |
Eyepiece | WF10X/20mm (High Eyepoint) | A51.2602-1020 | |
Nosepiece | Quadruple, Backward | A54.2610-N734 | |
Infinity Plan Objective | PLAN 4x/0.10,W.D.=12.1mm | A52.2606-4 | |
PLAN 10x/0.25,W.D.=4.14mm | A52.2606-10 | ||
PLAN 40x/0.65(S),W.D.=0.58mm | A52.2606-40 | ||
PLAN 100x/1.25(S, Oil),W.D.=0.19mm | A52.2606-100 | ||
Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | A54.2601-S04 | |
Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | ||
Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | A56.2614-C06b | |
Illumination | 3W-LED Illumination Systems | A56.2613-3W | |
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | |||
Package | Carton Size 390×280×450mm, 1 Unit/Ctn | ||
Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | ||
10.5“ Touch Screen Android Pad Digital Camera, 8.0M | |||
Spec. | Model | A59.3521 All-in-One Android Tablet Digital Camera | |
Sensor | 1/1.8” CMOS Sensor | ||
Resolution | 8M, 4K, 3840*2158@30FPS | ||
Pixel size | 2.0um*2.0um | ||
Screen | 10.5” High-Definition Touch Screen | ||
Memory | Built-in RAM 2G, ROM 16G | ||
System | Android 11 Tablet, Pre-Installed Measure Software S-Eye | ||
WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | ||
Bluetooth | Bluetooth 5.0 | ||
Output | HDMI to Monitor | ||
USB3.0*2, to U Disk, or OTG to Computer For File Copy | |||
Gigabit LAN Port to Computer | |||
USB2.0*1, to Mouse & Keyboard | |||
Power | Output DC 12V/2A, Input 110~220V Wide Range | ||
Function | Measure Software | S-Eye 2.0 Measure Software, For All Kinds Measure Function | |
Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | ||
Camera Function | Mirror, Flip, Freeze, Black and White | ||
Control | USB Mouse & Keyboard, Or Touch Screen Operation | ||
Photo | 8.0M Image Capture | ||
Video | 1080P Video | ||
Storage | Photo And Video Store to Built-in 16G Memory, or to USB Disk | ||
Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | ||
Length Measure | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | ||
Geometric Measure | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | ||
Area Measure | Polygon, Rectangle | ||
Languages | Android System Support 90 Languages | ||
Manual | Built-in Instruction Manual For Quick View |

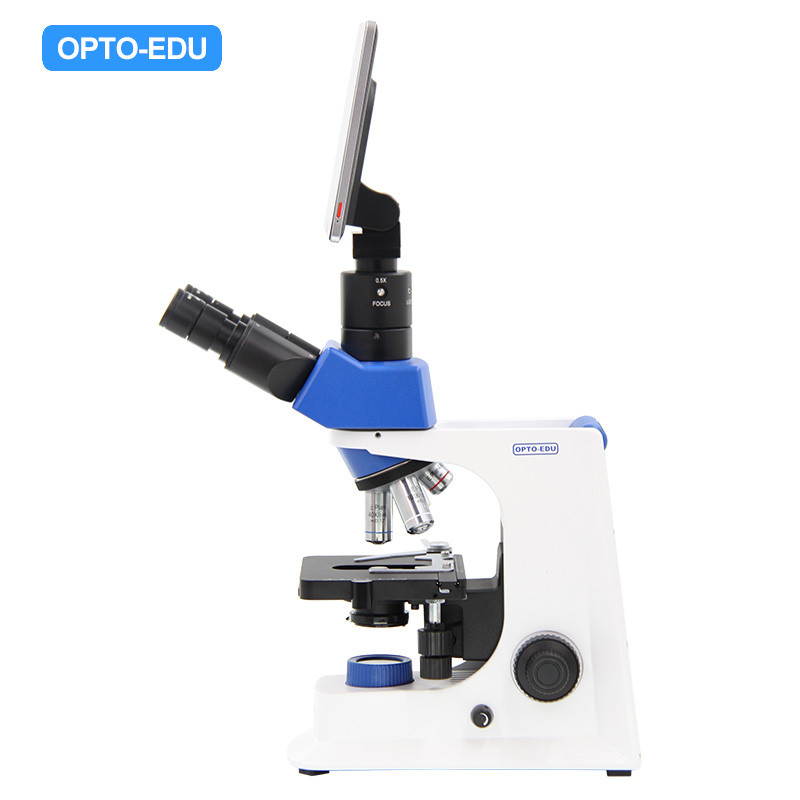

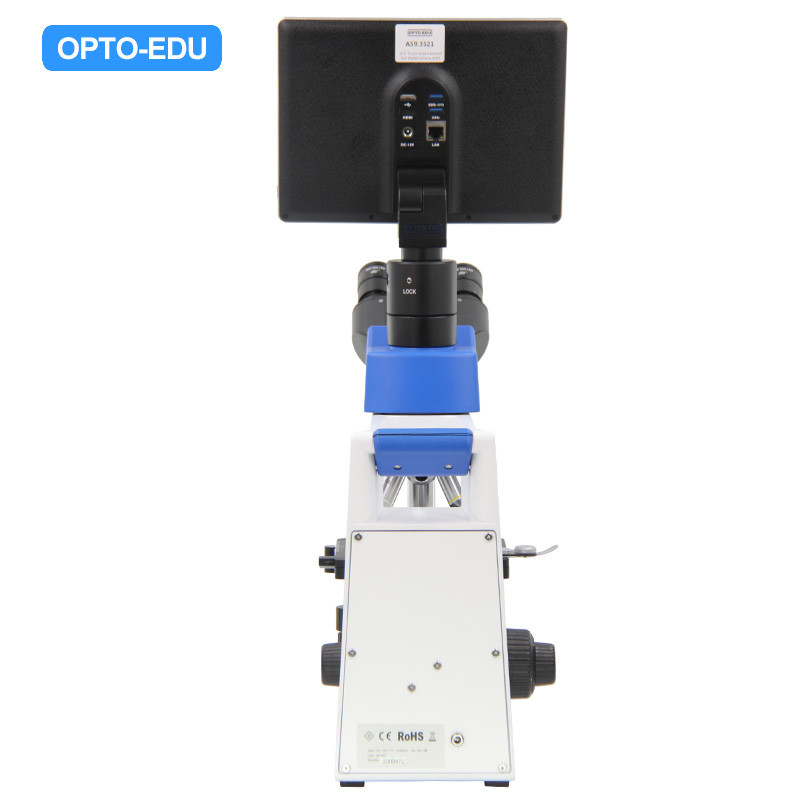

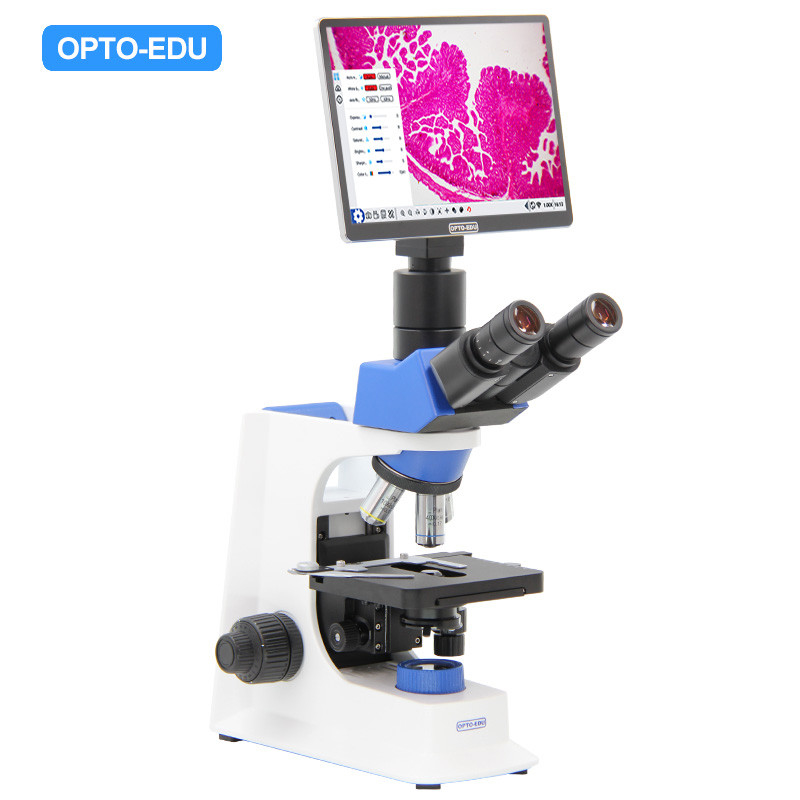

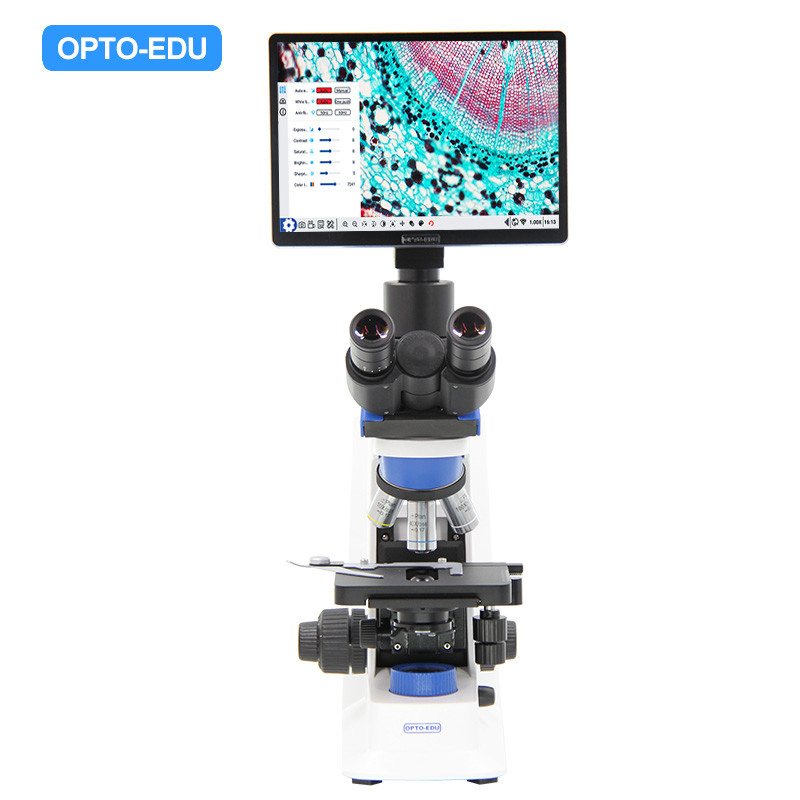

A33.2601 10.5" LCD Touch Screen Digital Microscope, 8.0M, Android Pad Infinity Plan A33.2601 is the best sell LCD microscope on Alibaba.com and world market. It comes with 10.5” touch screen android pad and pre-installed S-Eye measure software, you can do all of the watch, capture, measure & analysis work on the high-quality infinity plan optical microscope, easily controlled by touch screen or USB mouse & keyboard, A33.2601 is a ideal All-in-One tools for your lab work! |
LCD Screen | 7” | 9” | 10.5” Touch Screen Tablet | 10.5” Touch Screen Tablet |
Digital Camera | 2.0M + 1.3M | 5.0M | 8.0M | 8.0M |
Control | Touch Button | USB Mouse & Keyboard | Touch Screen | Touch Screen |
USB Mouse & Keyboard | USB Mouse & Keyboard | |||
Measure | PC Measure Software | Built-in HDMI Measure | Built-in HDMI Measure | Built-in HDMI Measure |
PC Measure Software | ||||
Output | USB to Computer, | USB to Computer | HDMI, USB to U Disk, | HDMI, USB to U Disk, |
Mobile Phone | LAN, WIFI, Bluetooth | LAN, WIFI, Bluetooth | ||
Storage | Micro SD Card | TF Card | 16G Memory | 16G Memory |
C-Mount | 0.3x | 0.5x | 0.5x | 0.5x |
Eyepiece | WF10x, WF16 | WF10x, WF16x | WF10x Dia.30mm | WF10X/20mm |
(High Eyepoint) | ||||
Objective | Achromatic 4x10x40x100x | Achromatic | Achromatic | Infinity Plan 4x10x40x100x |
4x10x40x100x | 4x10x40x100x | |||
Optical Magnification | 40x-1600x | 40x-1600x | 40x-1000x | 40x-1000x |
Magnification on LCD | 36.72x~918x | 78.8x-1970x | 121.2x-3030x | 121.2x-3030x |
Working Stage | 115x125mm/30x75mm | 140x140mm/50x75mm | 142x132mm/50x75mm | 145x140mm/76x52mm |
Dimension | 13*18*46cm | 18*22*57cm | 20*28*58cm | 39*24*59cm |
Package | 1pc / 1ctn, 30*20*40cm, G.W. 5Kg, 0.0240CBM | 1pc / 1ctn, 33*28*55cm, G.W. 9Kg, 0.0508CBM | 1pc / 1ctn, 53*33*54cm, G.W. 11.5Kg, 0.0922CBM | 1pc / 1ctn, 40*28*60cm, G.W. 10Kg, 0.0802CBM |
Features | Handheld Microscope | Upgradeable To | Touch Screen Android Pad With Measure Software, | Touch Screen Android Pad With Measure Software, |
Experiment Kit, Carry Bag | -Plan Objective | |||
-DF,PH,PL,FL | Upgradeable To | Upgradeable To | ||
-Infinity Plan Objective | -DF,PH,PL,FL | |||
-DF,PH,PL,FL | ||||
Application | School | Hospital, Laboratory | Hospital, Laboratory | Hospital, Laboratory |
Butterfly Seidentopf Head Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Butterfly Eyepiece Tube Can Rotate Freely 360° |
Infinity E-Plan Objective Quadruple, Backward, 4x/10x/40x/100 |
Double Slide Holder Mechanical Stage Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder For Easy Switch Slides |
Condenser Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder |
Items | Optional Accessories | Cata. No. | |
Nosepiece | Quintuple, Backward | A54.2610-N735 | |
Eyepiece | WF12.5x, High Eyepoint, | A51.2602-125 | |
WF15x/13mm, High Eyepoint, | A51.2602-1513 | ||
WF16x/13mm, High Eyepoint, | A51.2602-1613 | ||
Objective | Infinity Plan Objective PLAN 2x/0.06,W.D.=7.2mm | A52.2606-2 | |
Infinity Plan Objective PLAN 20x/0.40,W.D.=2.41mm | A52.2606-2 | ||
Infinity Plan Objective PLAN 60x/0.80,W.D.=0.33mm | A52.2606-2 | ||
Infinity Plan Objective PLAN 100x/1.15(S, Water),W.D.=0.19mm | A52.2606-2 | ||
Field Diaphragm | Upgrade To Kohler Illumination | A56.2615-S | |
Filter | Dia.45mm, Blue | A56.2616-45B | |
Dia.45mm, Green | A56.2616-45G | ||
Dia.45mm, Yellow | A56.2616-45A | ||
Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | A5D.2610-S | |
Polarizing | Analyzer + Polarizer Set | A5P.2601-S | |
Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | A5C.2601-10 | |
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | A5C.2601-20 | ||
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | A5C.2601-40 | ||
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | A5C.2601-100 | ||
Turret Phase Contrast Attachment | A5C.2603-S | ||
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | |||
Fluorescence Unit | Upgrade to A16.2601-B2/T2 Fluorescence Microscope With: | A5F.2601-2 | |
B,G China Fluorescent Set | |||
100W Mercury Lamp House | |||
100W Mercury Power Box, Digital Disp. | |||
6 Holes Disc Fluorescent Unit | |||
Ultraviolet Protection Barrier | |||
Centering Objective | |||
China 100W Mercury Lamp 2 pcs | |||
Upgrade to A16.2601-B4/T4 Fluorescence Microscope With: | A5F.2601-4 | ||
B,G,U,UV China Fluorescent Set | |||
100W Mercury Lamp House | |||
100W Mercury Power Box, Digital Disp. | |||
6 Holes Disc Fluorescent Unit | |||
Ultraviolet Protection Barrier | |||
Centering Objective | |||
China 100W Mercury Lamp 2 pcs | |||
Upgrade to A16.2601-LB2/LT2 Fluorescence Microscope With: | A5F.2602-2 | ||
B,G China Fluorescent Set | |||
6 Holes Disc Fluorescent Unit | |||
5W LED Lamp House | |||
5W LED Power Box | |||
Ultraviolet Protection Barrier | |||
Upgrade to A16.2601--LB4/LT4 Fluorescence Microscope With: | A5F.2602-4 | ||
B,G,U,UV China Fluorescent Set | |||
6 Holes Disc Fluorescent Unit | |||
5W LED Lamp House | |||
5W LED Power Box | |||
Ultraviolet Protection Barrier | |||
Adapter | C-Mount 0.35x, Focus Adjustable | A55.2601-35 | |
C-Mount 0.75x, Focus Adjustable | A55.2601-75 | ||
Mirror | Reflecting Mirror & Holder | A56.2601 | |
Attachment | Wire Winding Device | A50.2602-S |
