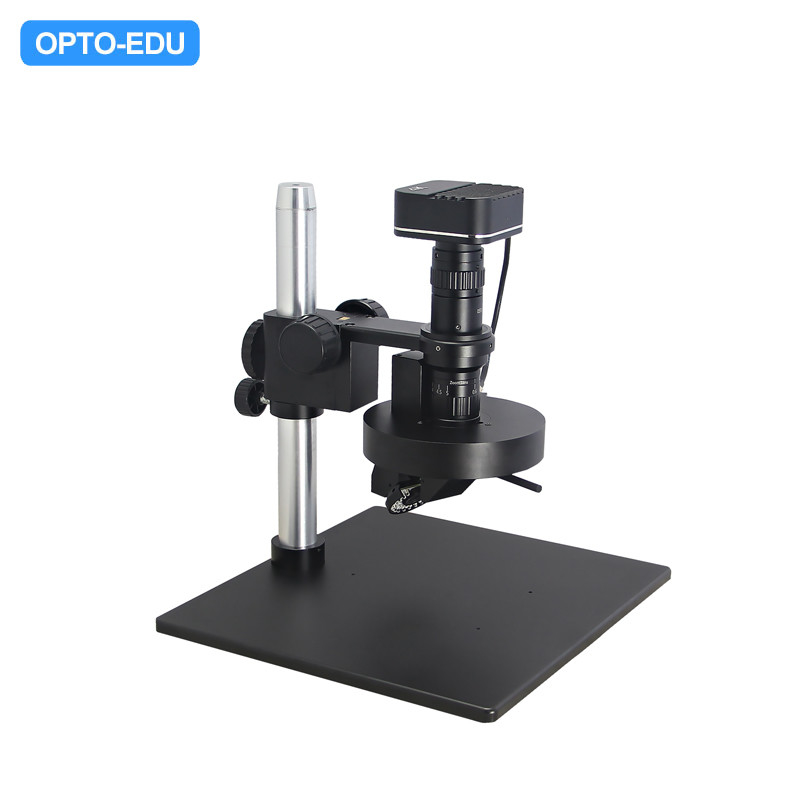

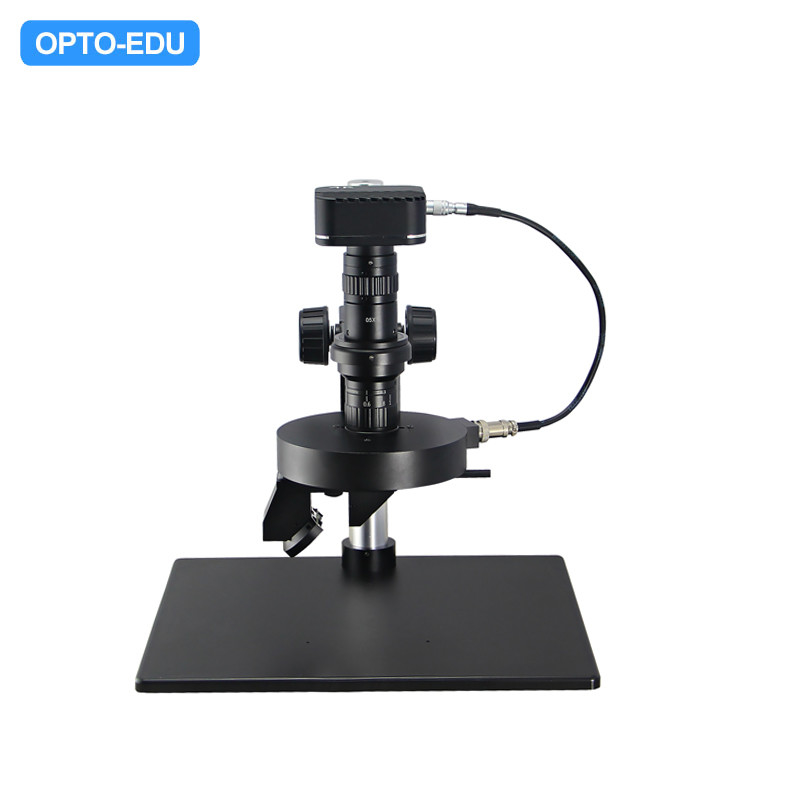

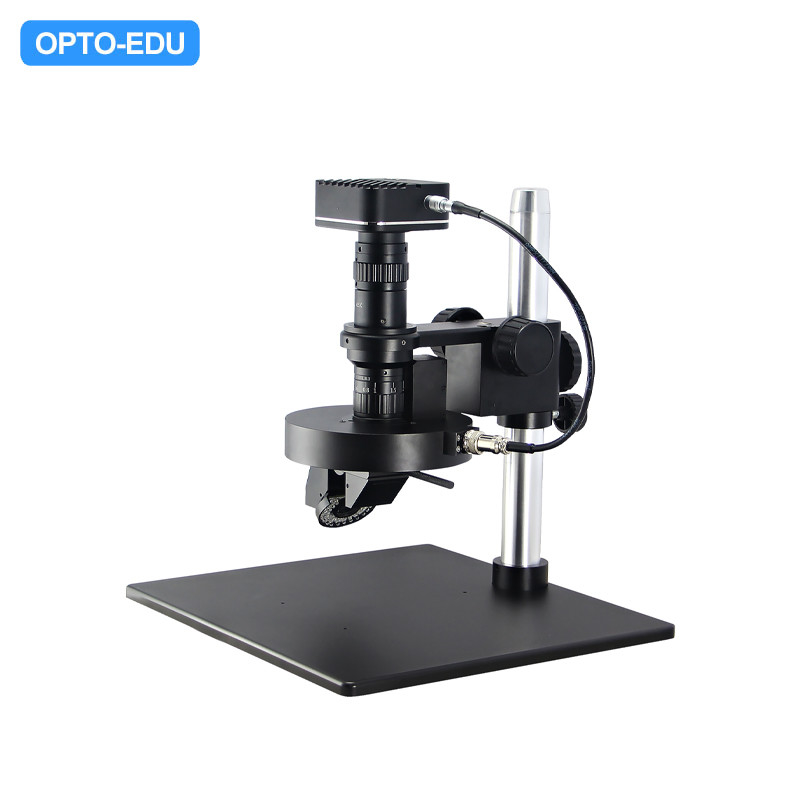

A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
-
Highlight
opto edu 3d video microscope
,dual light 3d video microscope
,2d opto edu microscope
-
Optical Magnification0.6-5.0X Zoom Body With 0.5X C Mount
-
Total Magnification14-120X (based On 15.6 Inch 4K Monitor)
-
Working Distance2D:86mm 3D:50mm
-
Ratio1:8.3
-
Field Of View25.6x14.4-3.0*1.7mm
-
Lens MountStandard C Mount
-
Image Sensor1/1.8”SONY CMOS
-
Max Magnification3840x2160
-
Pixel Size2.0μm X 2.0μm
-
OutputHDMI TYPE
-
Memory FunctionSupport Measuring Of Line, Angle, Circle, Radian, Rectangle, Polygon Etc., Precision Reaches The Level Of Micron.
-
Place of OriginChina
-
Brand NameCNOEC, OPTO-EDU
-
CertificationCE,
-
Model NumberA21.1611
-
Document
-
Minimum Order Quantity1 pc
-
PriceFOB $1~1000, Depend on Order Quantity
-
Packaging DetailsCarton Packing, For Export Transportation
-
Delivery Time5~20 Days
-
Payment TermsT/T, West Union, Paypal
-
Supply Ability5000 pcs/ Month
A21.1611 OPTO EDU 2D / 3d Video Microscope Auto Rotate Zoom Dual Light
2D/3D Auto Rotate Zoom Video Microscope, Dual Light
- 45° Lens+LED Light, 3D 360° Auto Rotate Control By HDMI Camera Mouse
- Main Body Optical Zoom Lens 0.6x-5.0x, With 8.0M 60fps HDMI Camera
- Totatl Magnification 14x-120x (15.6" LCD), View Field 25.6x14.4-3.0*1.7mm
- Dual Light Included: Main Light 276 LEDs, Oblique Light 31 LEDs Attached To 45° Lens Rotate Togehter

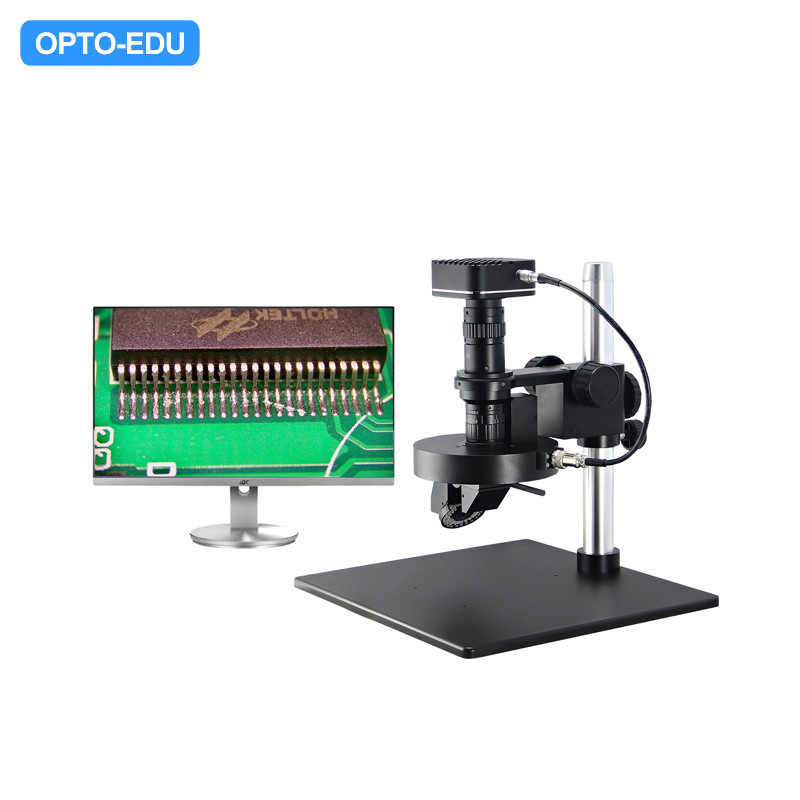

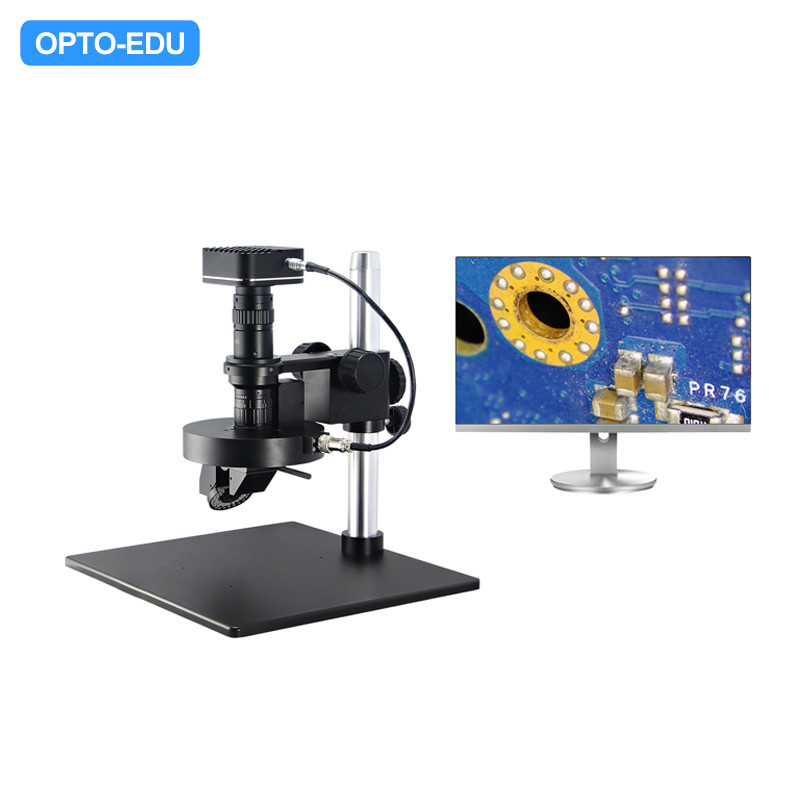

- Widely Used For SMT, PCB, BGA Surface Board Assembly Industry
| Front Light And Side Light No dead angle lighting, independent switch, independent control of the brightness of the light source, the side lights follow the 3D main body 360° rotation.Positive light: 267 LED lamp beads, color temperature 6000K Side lights: 31 LED lamp beads, color temperature 6000K. |
| A21.1611 Automatic 360 Degree Rotation 3D Microscope(Controlled By Camera) | ||
| Lens Parameter | Optical Magnification | 0.6-5.0X zoom body with 0.5X C mount |
| Total Magnification | 14-120X (based on 15.6 inch 4K monitor) | |
| Working Distance | 2D:86mm 3D:50mm | |
| Ratio | 1:8.3 | |
| Field Of View | 25.6x14.4-3.0*1.7mm | |
| Lens Mount | Standard C mount | |
| Camera Parameter | Image Sensor | 1/1.8”SONY CMOS |
| Resolution | 3840x2160 | |
| Pixel Size | 2.0μm x 2.0μm | |
| Memory Function | Support Measuring Of Line, Angle, Circle, Radian, Rectangle, Polygon etc., Precision Reaches The Level Of Micron. | |
| Output | HDMI outpu | |
| Light Source Parameter | Front light | 267 PCS LED,Color Temperature 6000K,Brightness 0-100% Adjustable |
| Side light | 31 PCS LED, Color Temperature 6000K,Brightness 0-100% Adjustable | |
| Stand Parameter | Focus | Coarse Focus |
| Base Size | 330*300mm | |
| Height | 318mm | |
