Eyepiece WF10X/20mm, High Eyepoint, Eyepiece Tube Diopter Adjustable
0.67x-4.5x, Magnification Up To 3.35x-270x With Optional Eyepieces And Auxiliary Objectives

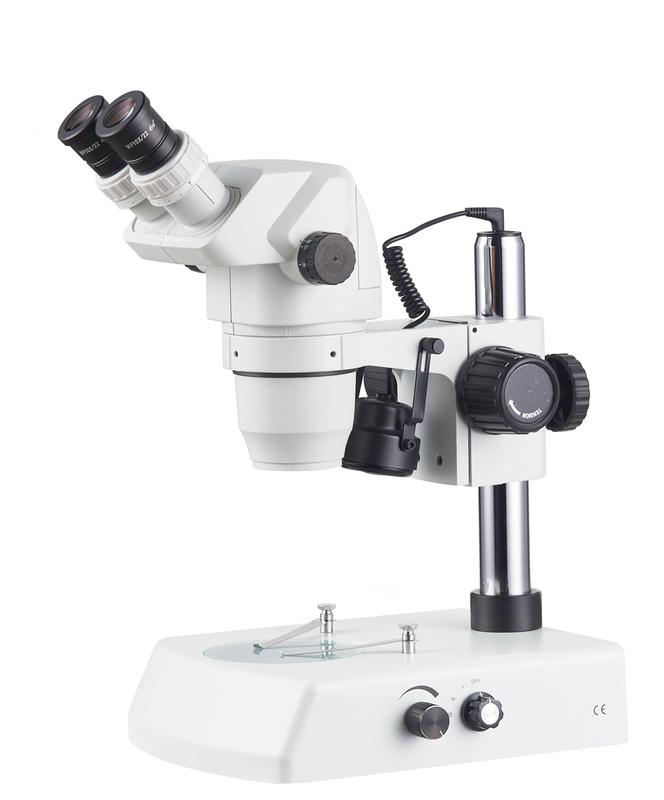

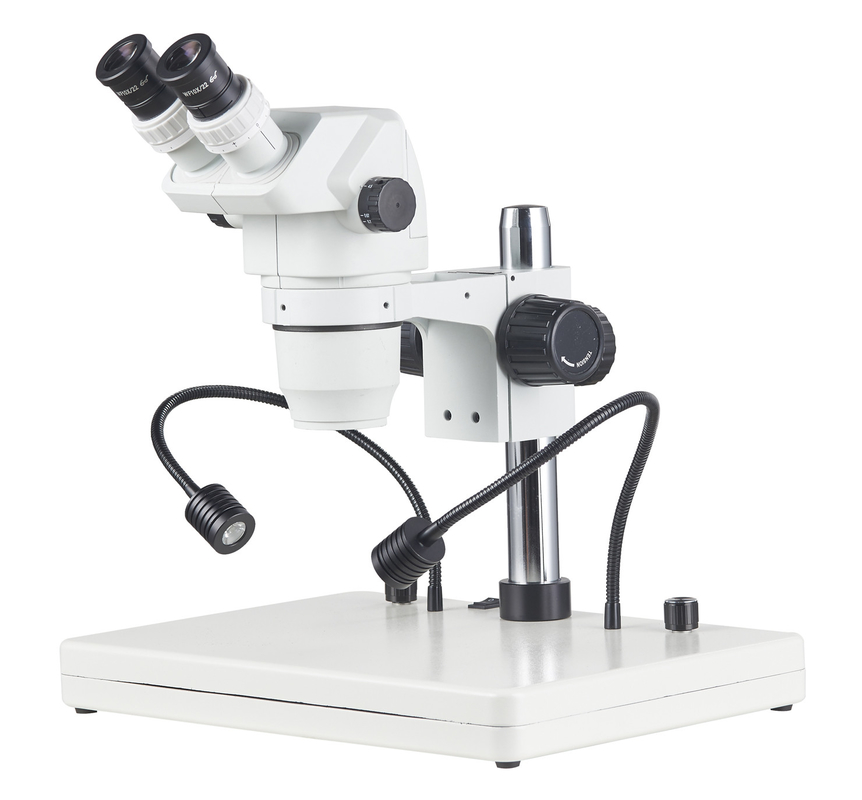

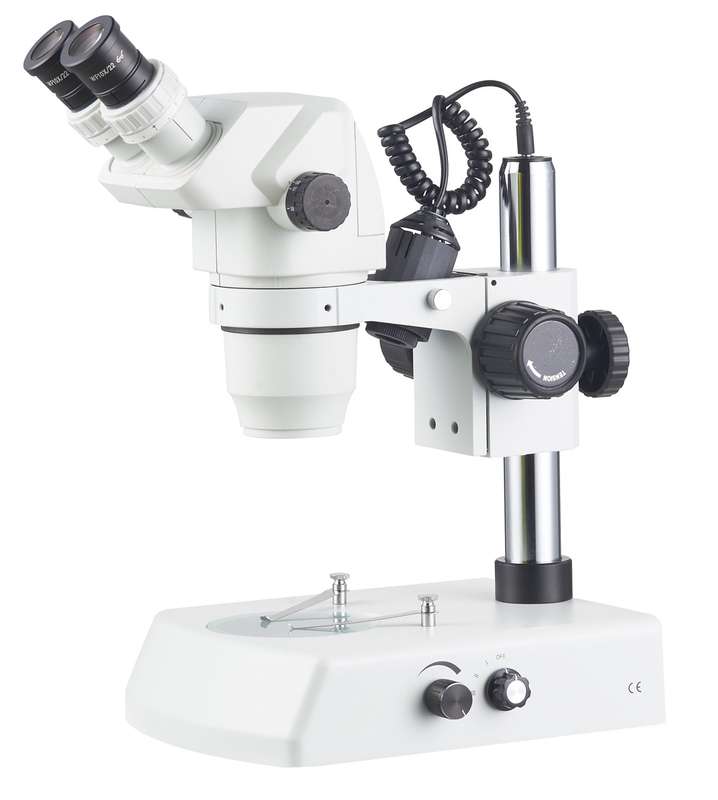

A54.3640 35 Kinds Stands Optional For Different Usage & Condition
| A23.3667L-B1 Zoom Stereo Microscope Specification | B | T | |||||
| Head | Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | O | |||||
| Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter | O | ||||||
| Eyepiece | WF10x/20mm,High Eyepoint | ||||||
| Zoom Range | 0.67~4.5x | ||||||
| Zoom Ratio | 1:6.7 | ||||||
| Magnification | 6.7~45x, (2x~225x With Auxliary Objective) | ||||||
| Working Distance | 100mm, With Auxiliary Objectives 26~287mm | ||||||

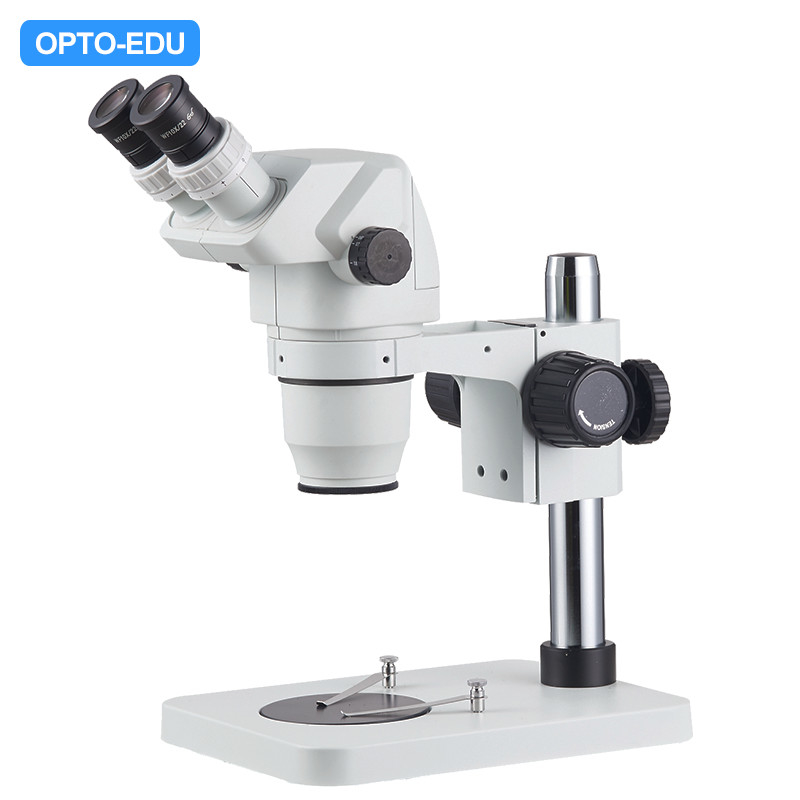

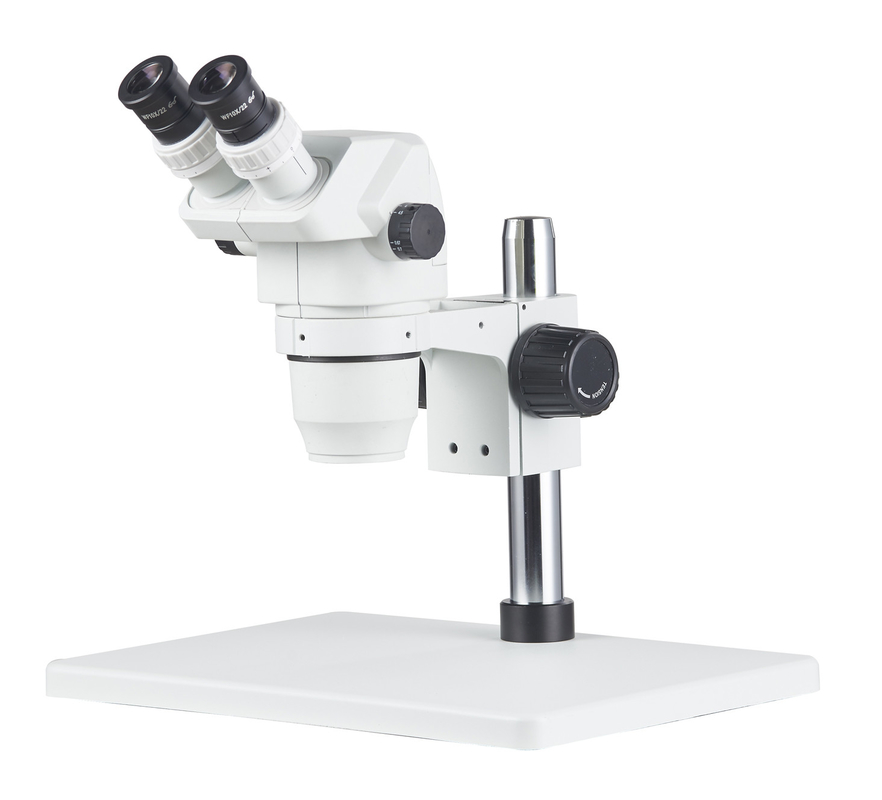

| Stand | Pole Stand, No Light Source | ||||||
| Optional Accessories | Cata.No. | ||||||
| Head | With WF10X eyepiece; 6.7-45x continuously adjustable | A53.3667L-B | |||||
| Trinocular With WF10X eyepiece; 6.7-45x continuously adjustable | A53.3667L-T | ||||||
| Eyepiece | WF10x/20mm, High-eyepoint | A51.3621-1020 | |||||
| WF10x/22mm, High-eyepoint | A51.3621-1022 | ||||||
| WF10x/23mm, High-eyepoint | A51.3621-1023 | ||||||
| WF15x/15mm, High-eyepoint | A51.3621-1515 | ||||||
| WF20x/10mm, High-eyepoint | A51.3621-2010 | ||||||
| WF25x/9mm, High-eyepoint | A51.3621-2509 | ||||||
| WF30x/8mm, High-eyepoint | A51.3621-3008 | ||||||
| WF10x/22mm, High-eyepoint, Diopter Adjustable | A51.3622-1022 | ||||||
| WF15x/15mm, High-eyepoint, Diopter Adjustable | A51.3622-1515 | ||||||
| WF20x/10mm, High-eyepoint, Diopter Adjustable | A51.3622-2010 | ||||||
| WF25x/9mm, High-eyepoint, Diopter Adjustable | A51.3622-2509 | ||||||
| WF30x/8mm, High-eyepoint, Diopter Adjustable | A51.3622-3008 | ||||||
| Auxiliary Lens | 0.3X,W.D. 287mm | A52.3622-0.3x | |||||
| 0.5X,W.D. 177mm | A52.3622-0.5x | ||||||
| 0.7X,W.D. 113mm | A52.3622-0.7x | ||||||
| 0.75X,W.D. 116mm | A52.3622-0.75x | ||||||
| 1.5X,W.D. 47mm | A52.3622-1.5x | ||||||
| 2.0X,W.D. 26mm | A52.3622-2.0x | ||||||
| CCD Adapter | 1.0x, For CTV | A55.3622-1.0x | |||||
| 0.50x, For 1/2" CCD | A55.3622-0.5x | ||||||
| A23.3667L Zoom Stereo Microscope Optical Data Sheet | ||||||||
| Auxiliary Lens | 0.3X | 0.4X | 0.5X | 0.75X | 1.0X | 1.5X | 2.0X | |
| W,D. | 287mm | 217mm | 177mm | 117mm | 100mm | 47mm | 26mm | |
| WF10X | Magnification | 2.0-13.5x | 2.7-18.0x | 3.4-22.5x | 5.0-33.8x | 6.7-45.0x | 10.1-67.5x | 13.4-90.0x |
| View Field(mm) | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 | 43.8-6.5 | 32.8-4.9 | 21.9-3.3 | 16.4-2.4 | |
| WF15X | Magnification | 3.0-20.3x | 4.0-27.0x | 5.0-33.8x | 7.5-50.6x | 10.1-67.5x | 15.1-101.3x | 20.1-135x |
| View Field(mm) | 79.6-11.9 | 59.7-8.9 | 47.8-7.1 | 31.8-4.7 | 23.9-3.6 | 15.9-2.4 | 11.9-1.8 | |
| WF20X | Magnification | 4.0-27.0x | 5.4-36.0x | 6.7-45.0x | 10.1-67.5x | 13.4-90.0x | 20.1-135.0x | 26.8-180x |
| View Field(mm) | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 12.9-2.4 | 17.9-2.7 | 11.9-1.8 | 9-1.3 | |
| WF25X | Magnification | 5.0-33.8x | 6.7-45.0x | 8.4-56.3x | 12.6-84.4x | 16.8-112.5x | 25.1-168.8x | 33.5-225x |
| View Field(mm) | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 | |
