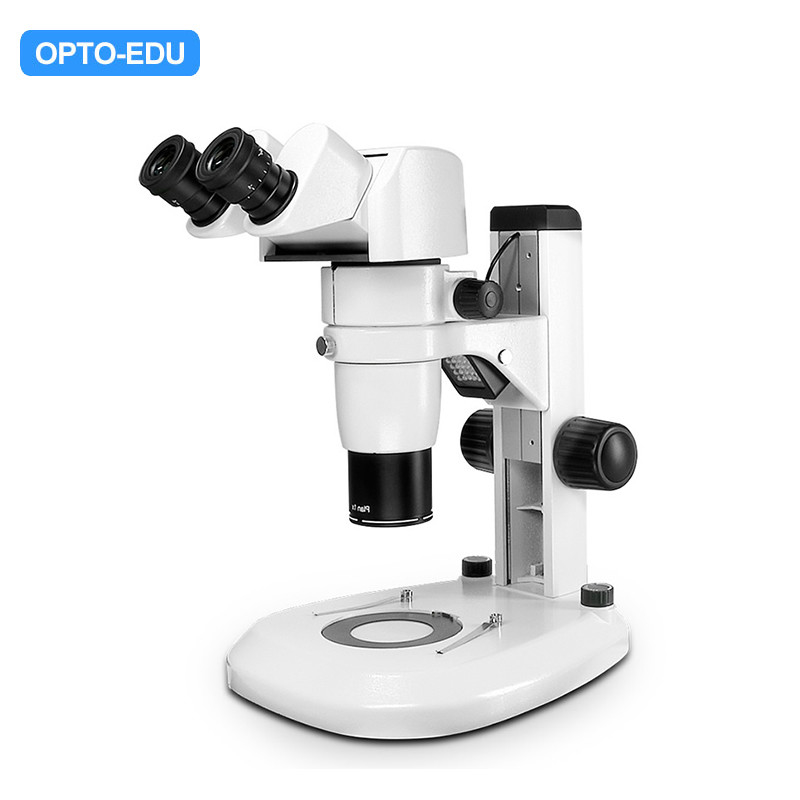

A23.1001-T LED Zoom Stereo Microscope With Digital Slr Camera

High Light

led type zoom stereo microscope
,
zoom stereo microscope with slr camera
,
stereoscopic zoom microscope with digital camera
Optical System

Parallel Optical System, Module Design To Add Function Easily
Head

Titling Head 0°-35° Viewing Angle Adjustable For User
Eyepiece

Extra Wide Field Eyepiece EWF10x/22mm
Auxiliary Lens

Plan Achromatic Lens 1.0x
Working Distance

78mm
Focusing

Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm, Focusing Mount Inner Dia. 76mm
Illumination

Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
Zoom Body

0.8~5.0x, Zoom Ratio 1:6 0.8~6.4x, Zoom Ratio 1:8 0.8~8.0x, Zoom Ratio 1:10
Place of Origin

China
Brand Name

OPTO-EDU
Certification

CE, Rohs
Model Number

A23.1001-T
Minimum Order Quantity

1pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

Western Union, T/T Paypal
Supply Ability

5000 pcs/ Month

A23.1001-T LED Zoom Stereo Microscope With Digital Slr Camera

Name: A23.1001-T LED Zoom Stereo Microscope With Digital Slr Camera
Brand: OPTO-EDU
SKU: A23.1001-T
Price: 1 USD
Availability: InStock
Rating: 4.8 (178 reviews)

button button

Get Price Contact Now

A23.1001-T LED Zoom Stereo Microscope With Digital Slr Camera 0

A23.1001-T Zoom Stereo Microscope, With Tilting head		A23.1001-T06	A23.1001-T08	A23.1001-T10
Optical System	Parallel Optical System, Module Design to Add Function Easily	●	●	●
Head	Titling Head 0°-35° Viewing Angle Adjustable for User	●	●	●
Eyepiece	Extra Wide Field Eyepiece EWF10x/22mm	●	●	●
Zoom Body	0.8~5.0x, Zoom Ratio 1:6	●	-	-
	0.8~6.4x, Zoom Ratio 1:8	-	●	-
	0.8~8.0x, Zoom Ratio 1:10	-	-	●
Auxiliary Lens	Plan Achromatic Lens 1.0x	●	●	●
Working Distance	78mm	●	●	●
Focusing	Coarse Focusing Konb, Range 105mm	●	●
	Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm, Focusing Mount Inner Dia. 76mm			●
Illumination	Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
A23.1001-T Zoom Stereo Microscope, With Tilting head		Cata. No.
Eyepiece	WF15x/16mm	A51.1027-1516
	WF20x/12mm	A51.1027-2012
	WF30x	A51.1027-30
Auxiliary Lens	Plan Apochromatic Lens 0.5x	A52.1023-05A
	Plan Achromatic Lens 1.0x	A52.1023-10
	Plan Achromatic Lens 2.0x	A52.1023-20
	Achromatic Lens 0.3x	A52.1023-03
	Achromatic Lens 0.5x	A52.1023-05
Illumination	Coaxial Illumination Set:	A56.1021
	--Cold Light Power Supplier,
	--Dual Light Guide,
	--Coaxial Episcopic Illuminator,
	--Iris Diaphragm
	Iris Diaphragm	A56.1021-2
Working Stage	Temperature Control Stage	A54.1004
	Movable Working Stage	A54.1007
Stand Click to see	Universal Table Stand	A54.1011
		A54.1012
		A54.1013
		A54.1014
	Track Stand, Transmit & Reflect Light Source With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F	A54.1019
		A54.1020
		A54.1021
Fluorescent	EPI-Fluorescent Attachment For Stereo Microscope	A5F.1020
Dark Field	Dark Field Attachment For Stereo Microscope	A5D.1001
Polarizing	Simple Polarizing Attachment For Stereo Microscope	A5P.1003
Adapter	Photo Tube, Beamsplitter 1 Port	A55.1003-S1
	Photo Tube, Beamsplitter 2 Port	A55.1003-S2
	Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera	A55.1020-2X
	C-mount 0.5x	A55.1021-05
	C-mount 1.0x	A55.1021-10
