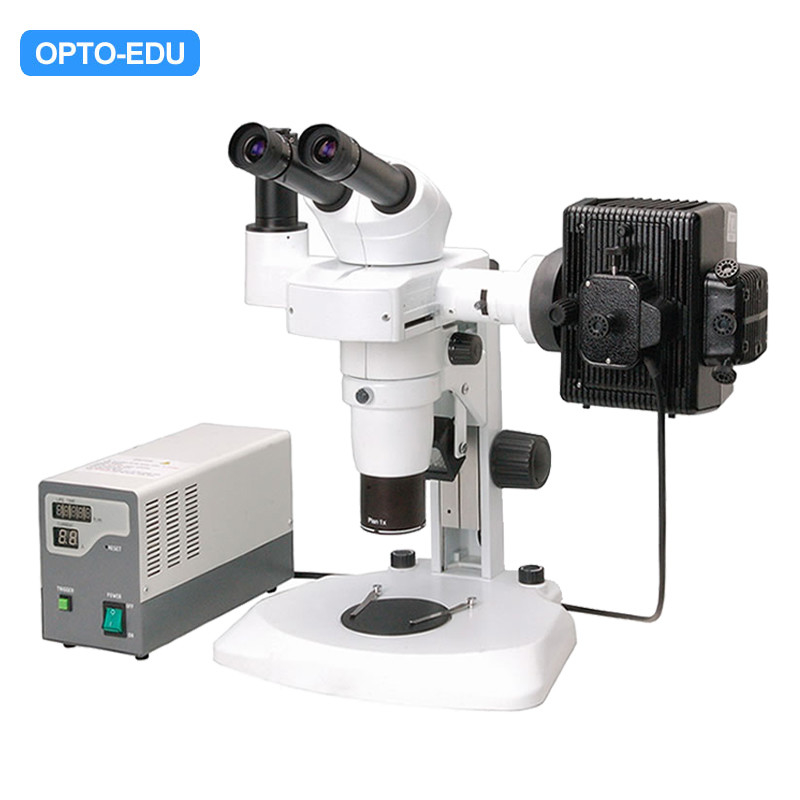

A23.1001-F Fluorescent Zoom Stereo Microscope |
A23.1001-F06 |
A23.1001-F08 |
A23.1001-F10 |
Optical System |
Parallel Optical System, Module Design to Add Function Easily |
● |
● |
● |
Head |
Binocular Head 20° Inclined |
● |
● |
● |
Eyepiece |
Extra Wide Field Eyepiece EWF10x/22mm |
● |
● |
● |
Zoom Body |
0.8~5.0x, Zoom Ratio 1:6 |
● |
- |
- |
0.8~6.4x, Zoom Ratio 1:8 |
- |
● |
- |
0.8~8.0x, Zoom Ratio 1:10 |
- |
- |
● |
Auxiliary Lens |
Plan Achromatic Lens 1.0x |
● |
● |
● |
Working Distance |
78mm |
● |
● |
● |
Focusing |
Coarse Focusing Knob, Range 105mm |
● |
● |
|
Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm, Focusing Mount Inner Dia. 76mm |
|
|
● |
Illumination |
Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours |
Photo Tube |
Photo Tube, Beamsplitter 1 Port |
Fluorescent |
--Fluorescent Filter System Including |
GFP-B(EX480-500,DM505,BA510-560) |
GFP-L(EX460-500,DM505,BA510) |
--100W Ultra Hi-Voltage Spherical Mercury Lamp |
--Power Supplier NFP-1, Digital Display |
A23.1001-F Fluorescent Zoom Stereo Microscope Optional Accessories |
Cata. No. |
Eyepiece |
WF15x/16mm |
A51.1027-1516 |
WF20x/12mm |
A51.1027-2012 |
WF30x |
A51.1027-30 |
Auxiliary Lens |
Plan Apochromatic Lens 0.5x |
A52.1023-05A |
Plan Achromatic Lens 1.0x |
A52.1023-10 |
Plan Achromatic Lens 2.0x |
A52.1023-20 |
Achromatic Lens 0.3x |
A52.1023-03 |
Achromatic Lens 0.5x |
A52.1023-05 |
Illumination |
Coaxial Illumination Set: |
A56.1021 |
--Cold Light Power Supplier, |
--Dual Light Guide, |
--Coaxial Episcopic Illuminator, |
--Iris Diaphragm |
Iris Diaphragm |
A56.1021-2 |
Fluorescent |
GFP-B(EX430-450,DM455,BA465-495) |
A5F.1021-GB |
GFP-B(EX430-450,DM455,BA465-495) |
A5F.1021-YB |
G(EX515-550,DM5750,BA590) |
A5F.1021-G |
RFP-B(EX525-555,DM570,BA585) |
A5F.1021-FB |
Working Stage |
Temperature Control Stage |
A54.1004 |
Movable Working Stage |
A54.1007 |
Adapter |
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera |
A55.1020-2X |
C-mount 0.5x |
A55.1021-05 |
C-mount 1.0x |
A55.1021-10 |
