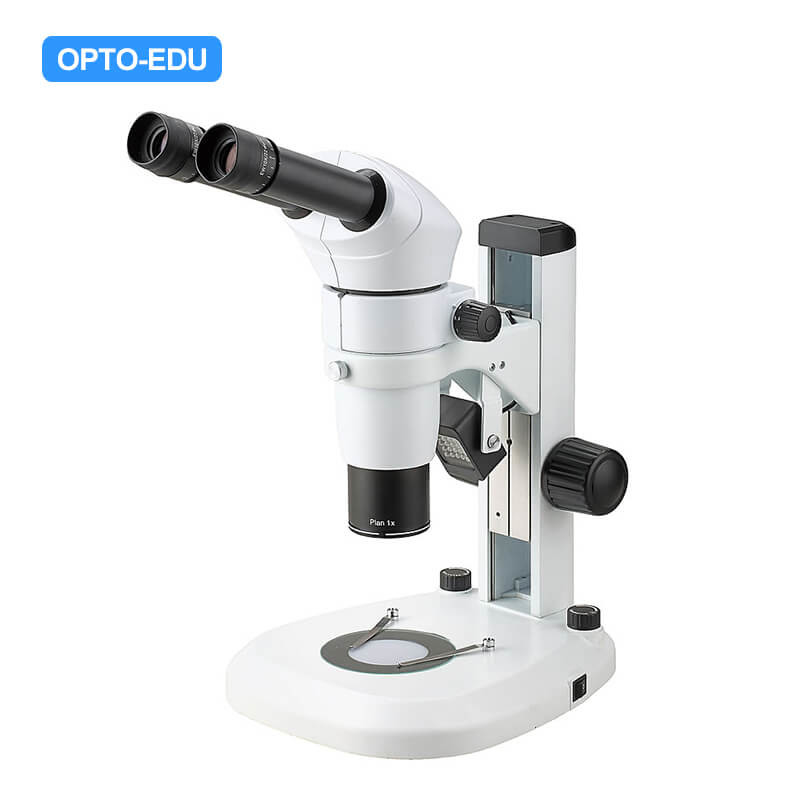

Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x

Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x

Products - Stereo Optical Microscope
  • Highlight

    0.8x stereo zoom binocular microscope

    ,

    inclined head stereo zoom binocular microscope

    ,

    8x zoom stereo microscope

  • Head
    Binocular Head 20° Inclined
  • Eyepiece
    Extra Wide Field Eyepiece EWF10x/22mm，Diopter Adjustable,Interpupillary 55-75mm
  • Auxiliary Lens
    Plan Achromatic Lens 1.0x
  • Focusing
    Coarse Focusing Konb, Range 105mm
  • Illumination
    Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
  • Working Distance
    78mm
  • Place of Origin
    China
  • Brand Name
    OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.1001
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    Western Union, T/T Paypal
  • Supply Ability
    5000 pcs/ Month

Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x

  • Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x
Get Price Contact Now
  • Parallel Optical System, Module Design to Add Function Easily
  • Large Zoom Ratio Up to 1:10 With Tilting Head 0°-35° Viewing Angle Adjustable for User
  • Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
  • Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
  • Plan Apochromatic Objective 0.5x Optional
  •
Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 0



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 1



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 2



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 3



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 4



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 5



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 6



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 7



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 8



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 9



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 10



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 11



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 12



Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x 13

A23.1001 Zoom Stereo Microscope A23.1001-06  A23.1001-08 A23.1001-10
Optical System Parallel Optical System, Module Design to Add Function Easily ● ● ●
Head Binocular Head 20° Inclined ● ● ●
Titling Head 0°-35° Viewing Angle Adjustable for User
With Titling Head, Model Change to A23.1001-T		 o o o
Eyepiece Extra Wide Field Eyepiece EWF10x/22mm,Diopter Adjustable,Interpupillary 55-75mm ● ● ●
Zoom Body 0.8~5.0x, Zoom Ratio 1:6 ● - -
0.8~6.4x, Zoom Ratio 1:8  - ● -
0.8~8.0x, Zoom Ratio 1:10 - - ●
Auxiliary Lens Plan Achromatic Lens 1.0x ● ● ●
Working Distance 78mm ● ● ●
Focusing Coarse Focusing Konb, Range 105mm ● ● 　
Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm 　 　 ●
Illumination Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
A23.1001 Zoom Stereo Microscope Cata. No.
Head Titling Head 0°-35° Viewing Angle Adjustable for User
Model Change to A23.1005		 A53.1014
Eyepiece WF15x/16mm A51.1027-1516
WF20x/12mm A51.1027-2012
WF30x A51.1027-30
Auxiliary Lens Plan Apochromatic Lens 0.5x A52.1023-05A
Plan Achromatic Lens 1.0x A52.1023-10
Plan Achromatic Lens 2.0x A52.1023-20
Achromatic Lens 0.3x A52.1023-03
Achromatic Lens 0.5x A52.1023-05
Illumination Coaxial Illumination Set: A56.1021
--Cold Light Power Supplier,
--Dual Light Guide,
--Coaxial Episcopic Illuminator,
--Iris Diaphragm
Iris Diaphragm A56.1021-2
Working Stage Temperature Control Stage A54.1004
Movable Working Stage A54.1007
Stand Click to See Universal Table Stand A54.1011
A54.1012
Track Stand, Transmit & Reflect Light Source
With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F		 A54.1013
A54.1014
A54.1019
A54.1020
A54.1021
Fluorescent

EPI-Fluorescent Attachment For Stereo Microscope
Model Change to A36.100-F
A5F.1020
Dark Field Dark Field Attachment For Stereo Microscope A5D.1001
Polarizing Simple Polarizing Attachment For Stereo Microscope A5P.1003
LCD Monitor 8.4" TFT Touch Screen LCD Monitor & Connector
Model Change to A36.1001		 A59.1006
Adapter Photo Tube, Beamsplitter 1 Port A55.1003-S1
Photo Tube, Beamsplitter 2 Port A55.1003-S2
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera A55.1020-2X
C-mount 0.5x A55.1021-05
C-mount 1.0x A55.1021-10
