LED Opto-Edu A17.0950-5 Multi Viewing Microscope Rohs

LED Opto-Edu A17.0950-5 Multi Viewing Microscope Rohs

  • High Light

    rohs multi viewing microscope

    ,

    led multi viewing microscope

    ,

    multi view opto edu microscope

  • Head
    1pc Of 30° Inclined, Inverted Image, Infinity Gemel Trinocular Head With Interpupillary Distance 50~76mm, Three Split Ratio 0:100, 20:80, 100:0
  • Certification
    CE|Rohs
  • Condenser
    Swing-out Achromatic Condenser (NA 0.9)
  • Cursor Module
    Middle Cursor Module , With LED Cursor, Red/Green/Blue Changeable, Light Intensity Of Cursor Adjustable
  • Theory
    Multi Viewing Microscope
  • Stand
    2Sets Of Pole Stand
  • Name
    Opto-edu A17.0950-5 Multi Viewing Microscope
  • Nosepiece
    BF Sextuple Nosepiece(With Socket For DIC)
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A17.0950-5
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

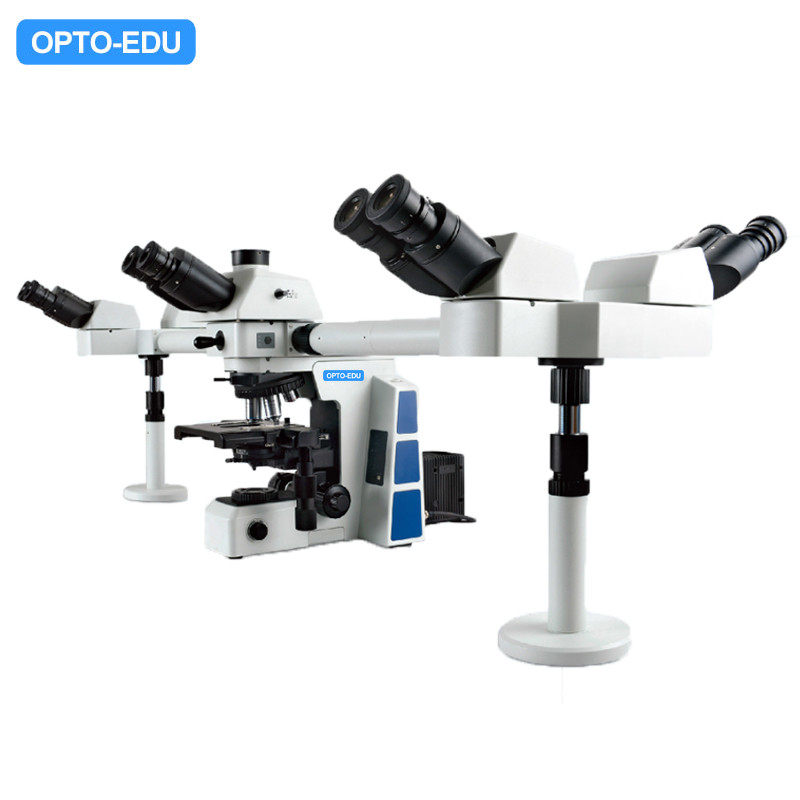

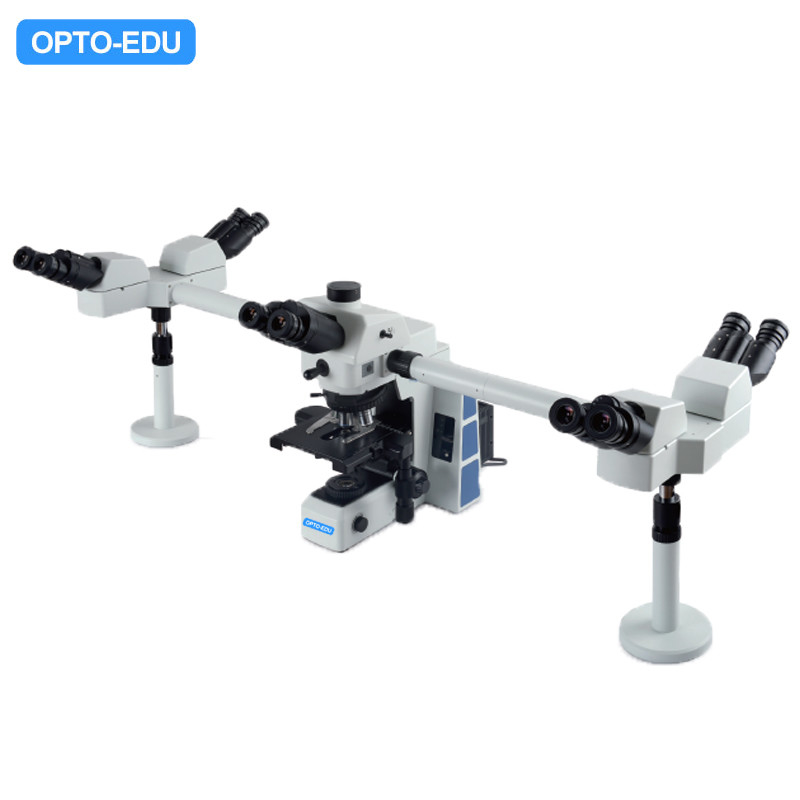

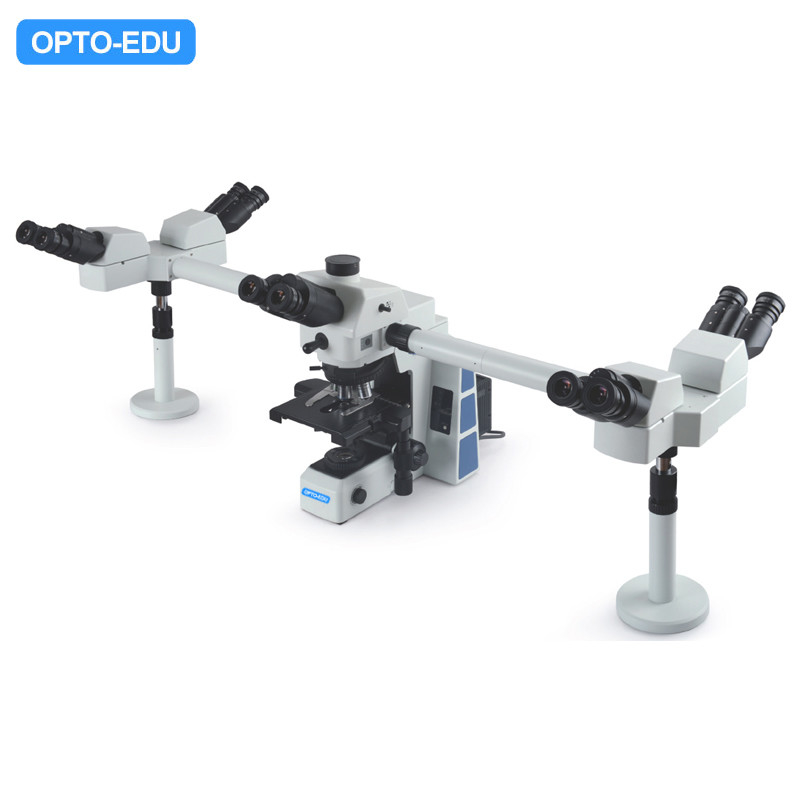

LED Opto-Edu A17.0950-5 Multi Viewing Microscope Rohs

Multi View Microscope, 5 People

3 People, 5 People, 10 People, Research Level Laboratory Microscope Upgrade BF+DF+PL+PH+FL+DIC, Metallurgical

PL10x/22 Eyepiece, Infinity Plan Objective 4x10x20x40x100x

BF Nosepiece Sextuple Nosepiece, With Socket For DIC

Transmit Light 12V100W Halogen, Digital Dimming System With Light Indicator, Brightness Set & Reset Function

LED Cursor Red/Green/Blue Changeable, Brightness Adjustable

A17.0950 Multi Viewing Research Laboratory Microscope 3 5 10
Optical System Infinity Color Corrected Optical System
Head 1pc of 30° Inclined, Inverted Image, Infinity Gemel Trinocular Head With Interpupillary Distance 50~76mm, Three Split Ratio 0:100, 20:80, 100:0
2pcs of Infinity Gemel Binocular Head, 30° Inclined
4pcs of Infinity Gemel Binocular Head, 30° Inclined, Erect Image.
5pcs of Infinity Gemel Binocular Head, 30° Inclined, Inverted Image.
Eyepiece 1Pair Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable, With Screw.
2Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable
4Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable
9Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable
Objective Plan Achromatic Objective, Each One Piece
4X/0.1 WD=15.00mm
10X/0.25 WD=10.8mm
20X/0.4 WD=1.50mm
40X/0.65 WD=0.80mm
100X/1.25 WD=0.21mm
Nosepiece BF Sextuple Nosepiece(With Socket For DIC)
Frame (For Transmission Biological Microscope) Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range: 25mm, Fine Adjustment Precision: 0.001mm. 100-240V Wideband Voltage Transformer, Adopt Digital Dimming, With the Function Of Light Set And Reset, Built-In Filter(LBD,ND6,ND25)
Illumination 12V100W Halogen Lamphouse (Centered), With 12V/100W Halogen Bulb(Philips 7724)
Adaptor, 110-240V, Output 12V
Stage 187x166mm Double Layer Mechanical Stage, Moving Range 80x55mm,Precision 0.1mm,Bidirectional Transmission, Left and Right Position Handle For Option. Tension Of the Torque is Adjustable.
Condenser Swing-out Achromatic Condenser (NA 0.9)
Achromatic Abbe Condenser (NA 1.1), With Diopter Diaphragm

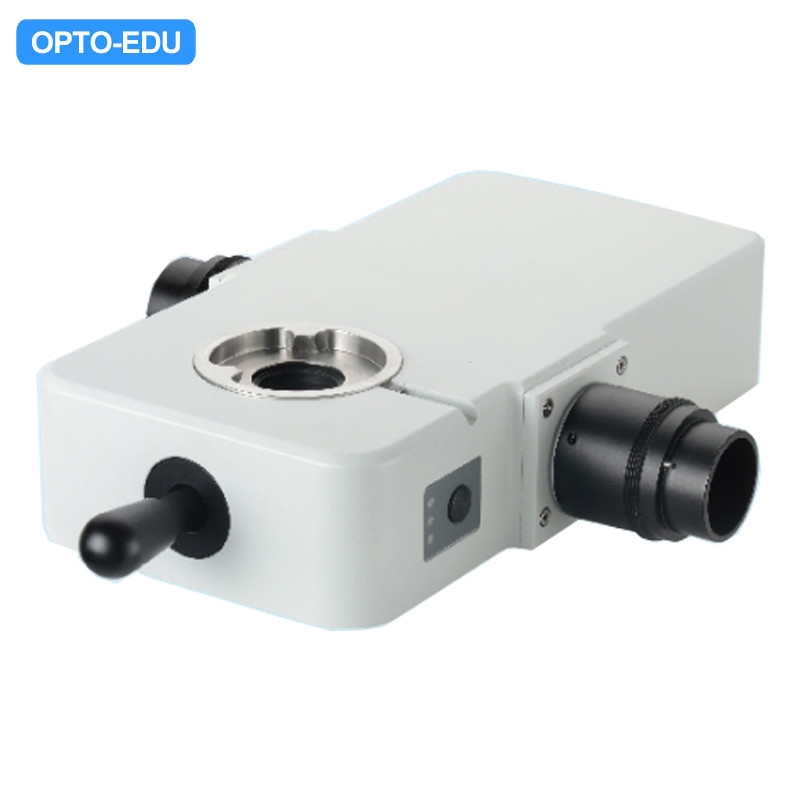

Cursor module Middle Cursor Module , with LED Cursor, Red/Green/Blue Changeable, Light Intensity of Cursor Adjustable
Stand 1Sets of Pole Stand
2Sets of Pole Stand
5Sets of Pole Stand
Package Sponge + inner box + carton box(For single pack)
