Inclined 22mm Multi Viewing Microscope Opto-Edu A17.0950-3

Highlight

inclined multi viewing microscope
,
22mm multi viewing microscope
,
multi viewing opto edu microscope
Head

1pc Of 30° Inclined, Inverted Image, Infinity Gemel Trinocular Head With Interpupillary Distance 50~76mm, Three Split Ratio 0:100, 20:80, 100:0
Certification

CE|Rohs
Condenser

Swing-out Achromatic Condenser (NA 0.9）
Cursor Module

Middle Cursor Module , With LED Cursor, Red/Green/Blue Changeable, Light Intensity Of Cursor Adjustable
Product Name

Microscope
Theory

Multi Viewing Microscope
Stand

1Sets Of Pole Stand
Keyword

Opto Edu Microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A17.0950-3
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

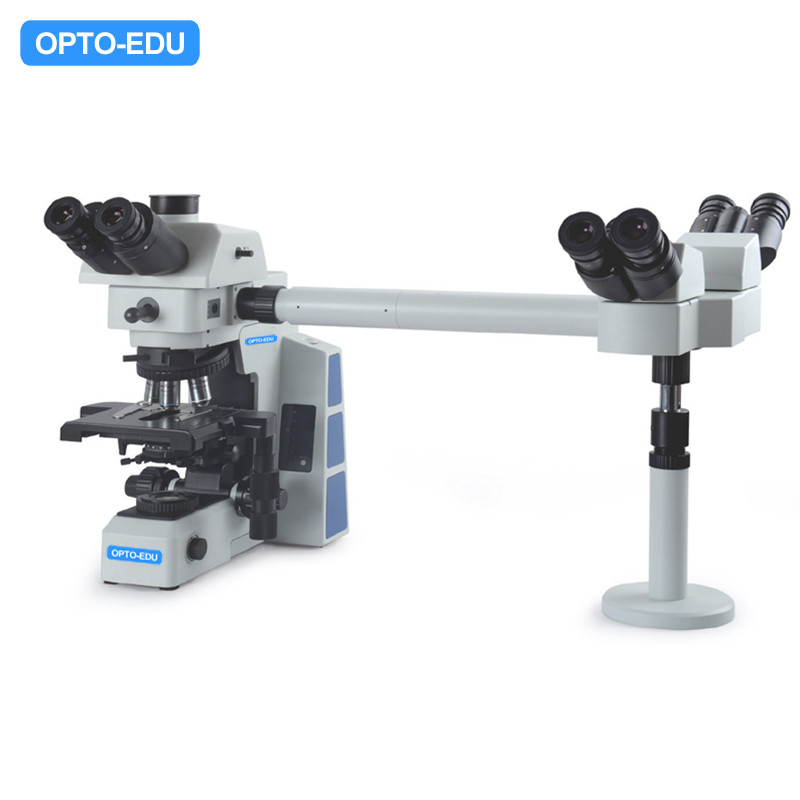

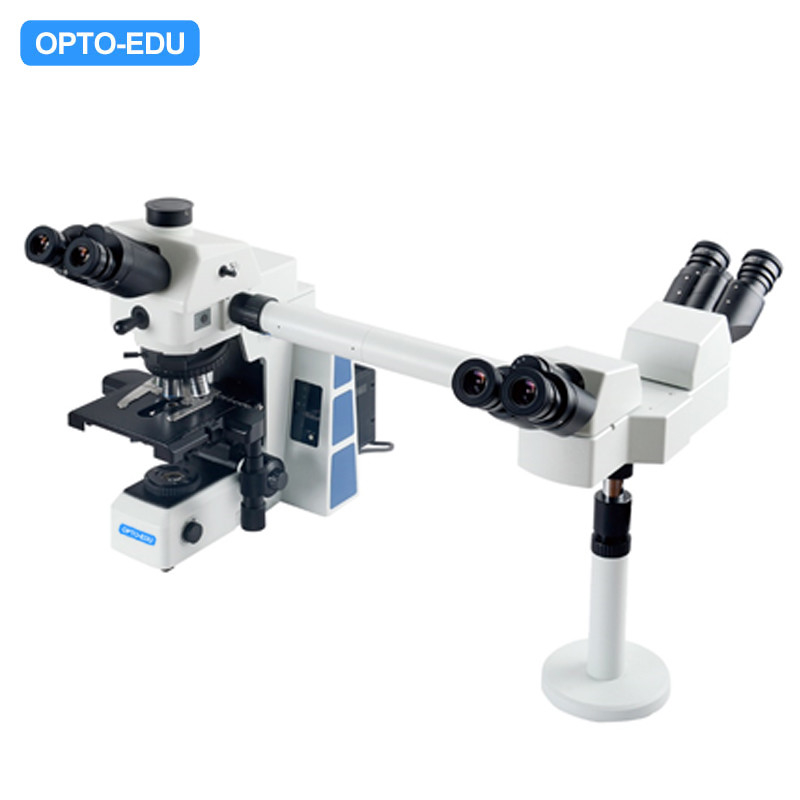

Inclined 22mm Multi Viewing Microscope Opto-Edu A17.0950-3

Name: Inclined 22mm Multi Viewing Microscope Opto-Edu A17.0950-3
Brand: CNOEC, OPTO-EDU
SKU: A17.0950-3
Price: 1 USD
Availability: InStock
Rating: 5 (152 reviews)

button button

Get Price Contact Now

Multi View Microscope, 3 People

3 People, 5 People, 10 People, Research Level Laboratory Microscope Upgrade BF+DF+PL+PH+FL+DIC, Metallurgical
PL10x/22 Eyepiece, Infinity Plan Objective 4x10x20x40x100x
BF Nosepiece Sextuple Nosepiece, With Socket For DIC
Transmit Light 12V100W Halogen, Digital Dimming System With Light Indicator, Brightness Set & Reset Function
LED Cursor Red/Green/Blue Changeable, Brightness Adjustable

A17.0950 Multi Viewing Research Laboratory Microscope		3	5	10
Optical System	Infinity Color Corrected Optical System	●	●	●
Head	1pc of 30° Inclined, Inverted Image, Infinity Gemel Trinocular Head With Interpupillary Distance 50~76mm, Three Split Ratio 0:100, 20:80, 100:0	●	●	●
	2pcs of Infinity Gemel Binocular Head, 30° Inclined	●
	4pcs of Infinity Gemel Binocular Head, 30° Inclined, Erect Image.		●
	5pcs of Infinity Gemel Binocular Head, 30° Inclined, Inverted Image.			●
Eyepiece	1Pair Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable, With Screw.	●	●	●
	2Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable	●
	4Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable		●
	9Pairs Of High-Eyepoint Plan Eyepiece PL10X/22mm, Diopter Adjustable			●
Objective	Plan Achromatic Objective, Each One Piece 4X/0.1 WD=15.00mm 10X/0.25 WD=10.8mm 20X/0.4 WD=1.50mm 40X/0.65 WD=0.80mm 100X/1.25 WD=0.21mm	●	●	●
Nosepiece	BF Sextuple Nosepiece(With Socket For DIC)	●	●	●
Frame	(For Transmission Biological Microscope) Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range: 25mm, Fine Adjustment Precision: 0.001mm. 100-240V Wideband Voltage Transformer, Adopt Digital Dimming, With the Function Of Light Set And Reset, Built-In Filter(LBD,ND6,ND25)	●	●	●
Illumination	12V100W Halogen Lamphouse (Centered), With 12V/100W Halogen Bulb(Philips 7724) Adaptor, 110-240V, Output 12V	●	●	●
Stage	187x166mm Double Layer Mechanical Stage, Moving Range 80x55mm,Precision 0.1mm,Bidirectional Transmission, Left and Right Position Handle For Option. Tension Of the Torque is Adjustable.	●	●	●
Condenser	Swing-out Achromatic Condenser (NA 0.9)	●	●
Condenser	Achromatic Abbe Condenser (NA 1.1), With Diopter Diaphragm			●
Cursor module	Middle Cursor Module , with LED Cursor, Red/Green/Blue Changeable, Light Intensity of Cursor Adjustable	●	●	●
Stand	1Sets of Pole Stand	●
	2Sets of Pole Stand		●
	5Sets of Pole Stand			●
Package	Sponge + inner box + carton box(For single pack)	●	●	●
