Rohs OPTO EDU A17.1091 Manual Microscope Research Laboratory 10 People

Products - Multi Viewing Microscope

Highlight

opto edu multi viewing microscope
,
opto edu manual microscope
,
25mm eyepiece manual microscope
Main Body

Manual Body + Halogen Illumination
Head

Seidentopf Trinocular Head, Inclined 30°
Eyepiece

SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
Nosepiece

Manual Nosepiece, Sextuple, Backward
Objective

NIS60 N-PLN Infinity Plan Objective
Working Stage

Double Layer Mechnical Stage Full Size 302x152mm
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A17.1091-10
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

Rohs OPTO EDU A17.1091 Manual Microscope Research Laboratory 10 People

button button

Get Price Contact Now

A17.1091 Multi Viewing Research Laboratory Microscope

Auto Light Intensity Management
The Management system can automatically adjust to the suitable light intensity according to thedifferent setup
of objectives from the low to high magnifications, and reduce the eye fatigue at the same time.
The long-life LED lamp can keep the light intensity and easy for maintenance.

A17.1091 Multi Viewing Research Laboratory Microscope		2	2R	2L	3	5	10	Cata.No.
Optical System	NIS60 Infinity Optical System	●	●	●	●	●	●
Observation Method	Bright Field	●	●	●	●	●	●
	Dark Field	○	○	○	○	○	○
	Polarizing	○	○	○	○	○	○
	Phase Contrast	○	○	○	○	○	○
	Flourescent	○	○	○	○	○	○
	DIC	○	○	○	○	○	○
Main Body	Manual Body + Halogen Illumination(LED Illumination Optional).						●	A54.1090-BH
Main Body	ATH Semi-Auto Body + Halogen Illumination(LED Illumination Optional). Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	●	●	●	●	●		A54.1090-ATH
Head	Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100						●	A53.1090-T
Head	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	●	●	●	●		A53.1090-TT

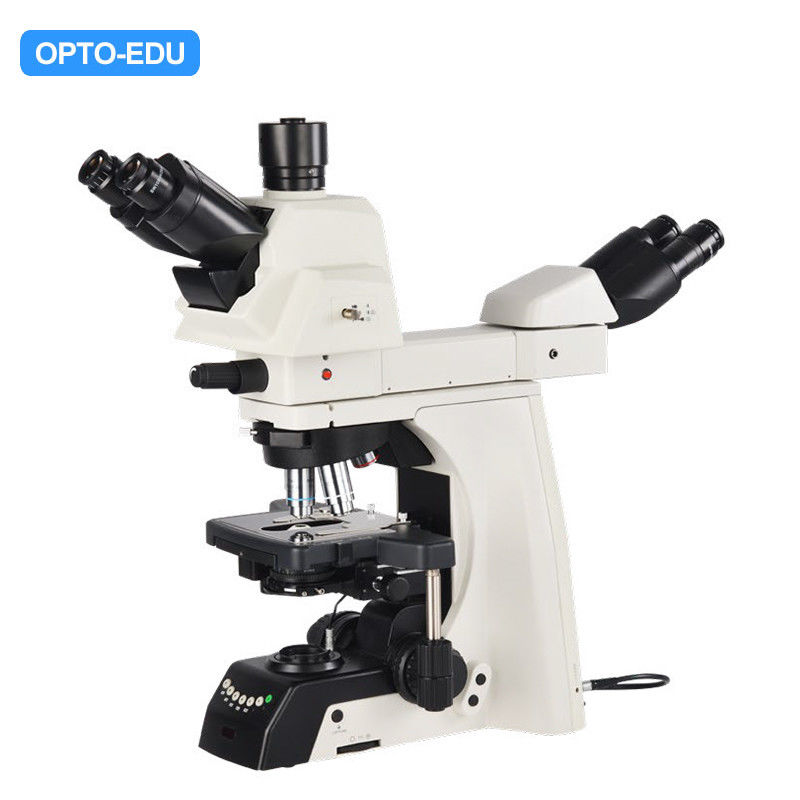

Multi Viewing Head	2 Heads Opsite	●

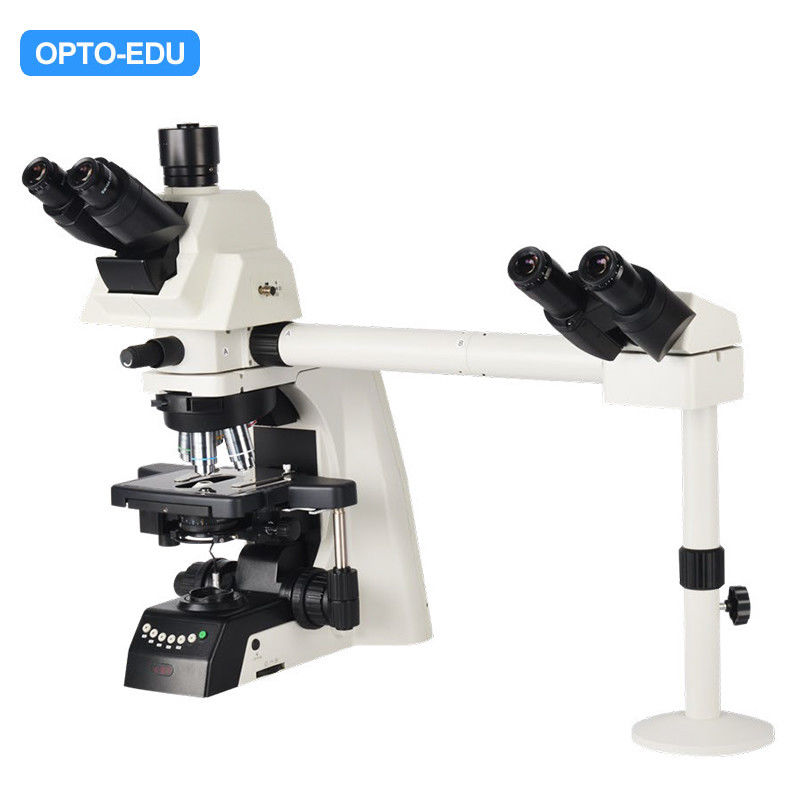

	2 Heads Right Side		●

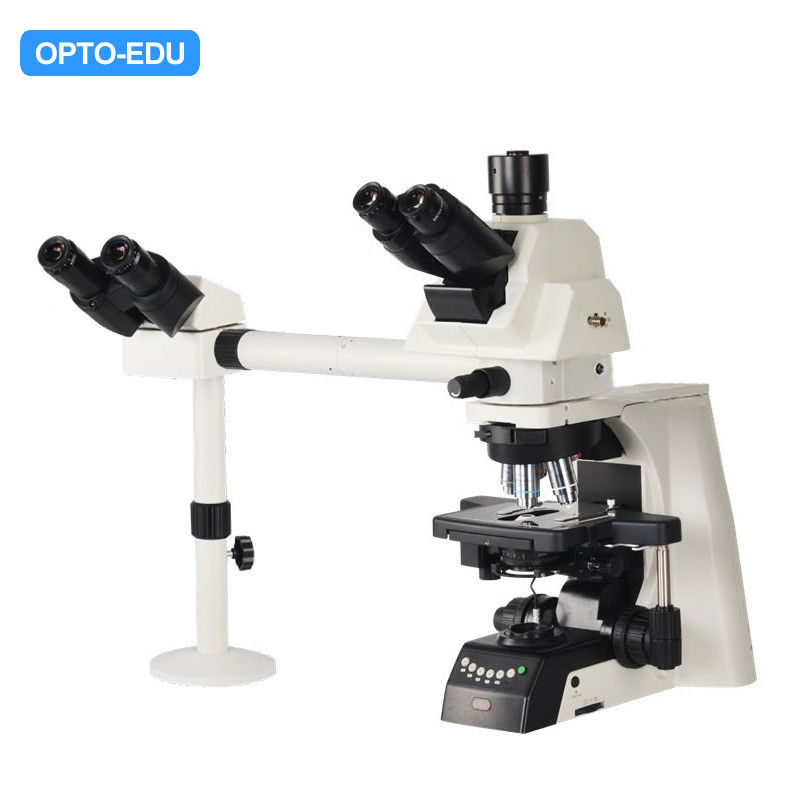

	2 Heads Left Side			●

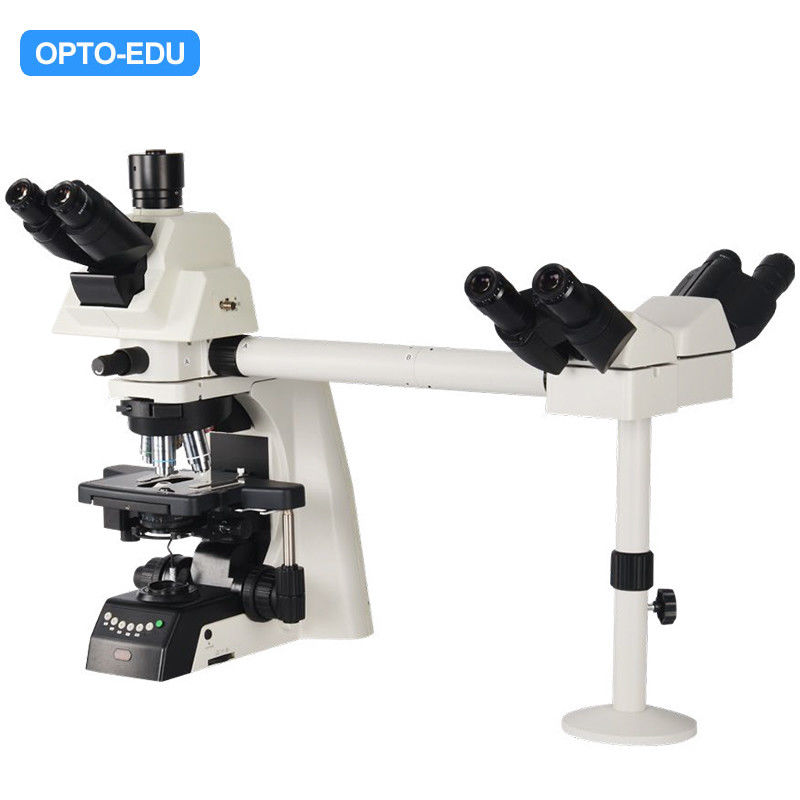

	3 Heads, Trinocular				●

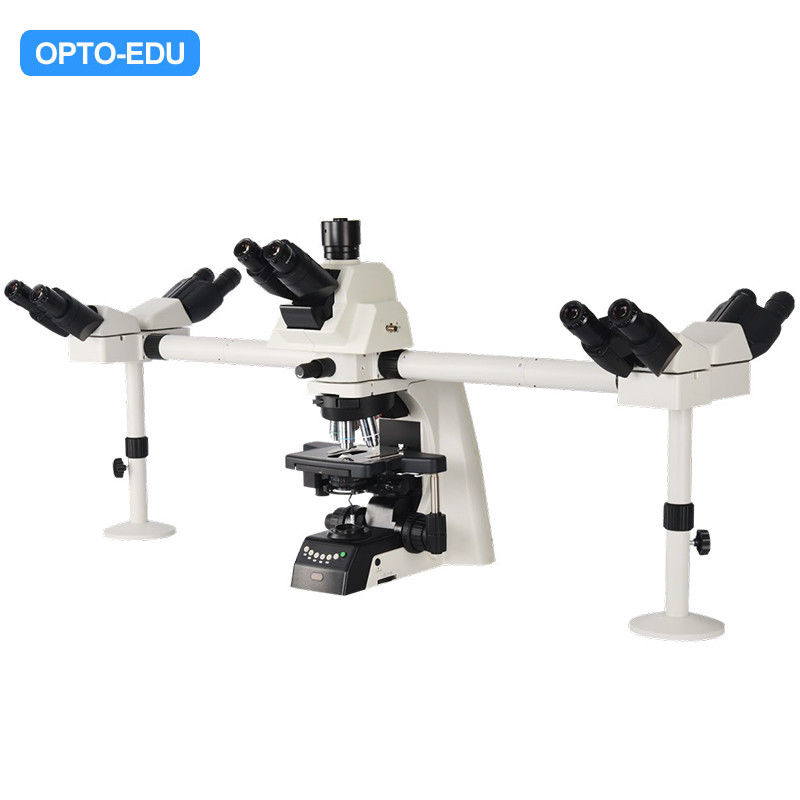

	5 Heads, Trinocular					●

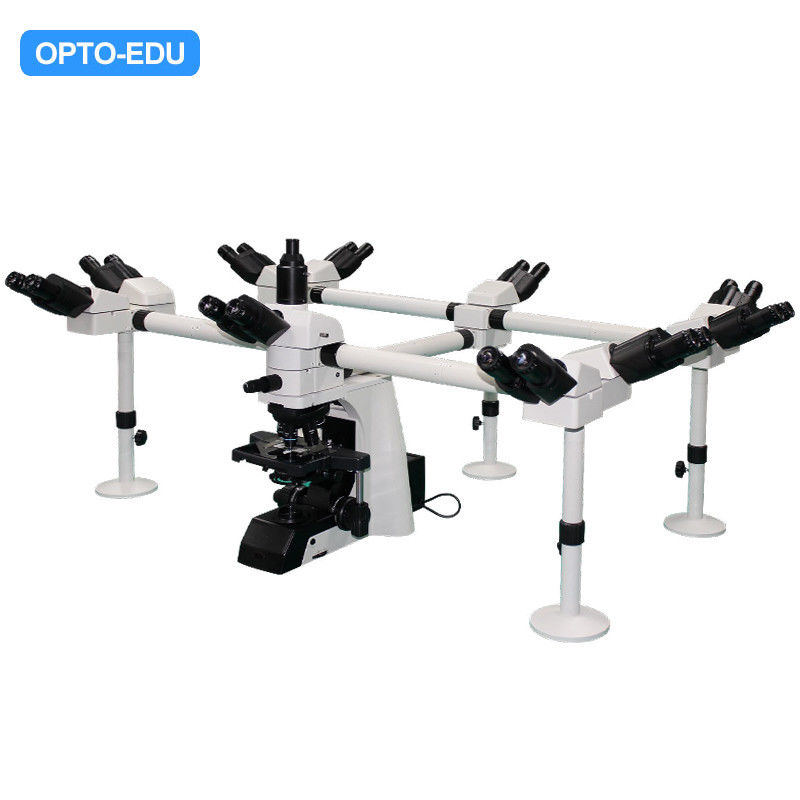

	Deca Heads, Trinocular						●
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●●	●●	●●	●●	●●	●●	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-1022
	EW12.5x/16mm, High Eyepoint	○	○	○	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	○	○	A51.1090-2012
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable							A54.1091-5M
	Manual Nosepiece, Sextuple, Backward						●	A54.1091-6M
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust						○	A54.1091-6C
	Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them	●	●	●	●	●	○	A54.1091-6A
	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●	●	●	●
	Protect Cover For Nosepiece Holes	●	●	●	●	●	●
NIS60 N-PLN Infinity Plan Objective	2x/0.06, W.D.7.5mm, Cover Glass 0.17mm	○	○	○	○	○	○	A52.1090-2
	4x/0.10, W.D.30mm, Cover Glass 0.17mm	●	●	●	●	●	●	A52.1090-4
	10x/0.25, W.D.10.2mm, Cover Glass 0.17mm	●	●	●	●	●	●	A52.1090-10
	20x/0.40, W.D.12mm, Cover Glass 0.17mm	●	●	●	●	●	●	A52.1090-20
	40x/0.65, W.D.0.7mm, Cover Glass 0.17mm	●	●	●	●	●	●	A52.1090-40
	50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm	○	○	○	○	○	○	A52.1090-50
	60x/0.8, W.D.0.3mm, Cover Glass 0.17mm	○	○	○	○	○	○	A52.1090-60
	100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm	●	●	●	●	●	●	A52.1090-100
NIS60 APO Infinity Plan	20x/0.75, W.D.1.1mm, Cover Glass 0.17mm	○	○	○	○	○	○	A52.1091-20
NIS60 APO Infinity Plan	100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm	○	○	○	○	○	○	A52.1091-100
Working Stage	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle						○	A54.1092-GL
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle						●	A54.1092-GR
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle	○	○	○	○	○		A54.1092-SL
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle	●	●	●	●	●		A54.1092-SR
	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	●	●	●	●	●	●
Condenser	Swing-Out Condenser NA0.9/0.25						●	A56.1091-S
Condenser	Auto Swing-Out Condenser NA0.9/0.25	●	●	●	●	●		A56.1091-A
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●	●	●	●	●
Light Source	Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House	●	●	●	●		●	A56.1090-12V100W
	Transmit Kohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body					●		A56.1090-3WLED
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	●	●	●	●	A56.1090-ECO
	Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected A12.1091 Upgradeable To Auto Brightness Adjust, Must Upgrade To A54.1091-6C Coded Nosepiece At Same Time	●	●	●	●	●	○	A56.1090-AB
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	●	●	●	●	A56.1092-H
	Filter LBD	●	●	●	●	●	●	A56.1092-LBD
	Filter Green	●	●	●	●	●	●	A56.1092-G
	Filter Yellow	●	●	●	●	●	●	A56.1092-Y
	Filter ND6	●	●	●	●	●	●	A56.1092-ND6
	Filter ND25	●	●	●	●	●	●	A56.1092-ND25
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	○	○	○	A55.1090-1.0x
	C-Mount 0.5x	○	○	○	○	○	○	A55.1090-0.5x
Software	NOMIS Basic Image Processiing Software	○	○	○	○	○	○	A30.1090
Full-Auto Motorized Control Unit	Including Control Stick, Controller Box, Z Axis Moto Control Part, Motorized X/Y Mechanical Stage --Travel Range X:125mm, Y:75mmm, --Minimum Step 0.1um --Re-Position Accurate +/-1.5um --Max Speed 25mm/s --Size: 275x239x44.5mm --Soft Stop, Mechanical Stop, Opto-Electro Switch Stop --Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um --Z Axis Max Speed 10r/s --3D Control Stick, 4 Speeds --Connection By USB2.0 & RS232 --Communication Speed 9600 bits	○	○	○	○	○		A54.1095-A
Full-Auto Motorized Control Unit	Upgrade To Z Axis With Optical Grating Ruler	○	○	○	○	○		A54.1095-B
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	○	○	○	○	○	○	A5D.1090-D
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	○	○	○	○	○	○	A5D.1090-I
	Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation	○	○	○	○	○	○	A5D.1030-3
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation	○	○	○	○	○	○	A5D.1030-4
Polarizing	Polarizer For Transmit Light Source	○	○	○	○	○	○	A5P.1091-P
Polarizing	Analyzer Slide For Transmit Light Source	○	○	○	○	○	○	A5P.1091-A
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	○	○	○	○	○	○	A5C.1090
	Centering Telescope 10x	○	○	○	○	○	○	A5C.1092
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	○	○	○	○	○	○	A5C.1091-10
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	○	○	○	○	○	○	A5C.1091-20
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	○	○	○	○	○	○	A5C.1091-40
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	○	○	○	○	○	○	A5C.1091-100
DIC	Polarizer For Transmit Light Source	○	○	○	○	○	○	A5P.1090-TP
	Turret DIC Condenser	○	○	○	○	○	○	A5C.1095
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	○	○	○	○	○	○	A5C.1095-10
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	○	○	○	○	○	○	A5C.1095-2040
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	○	○	○	○	○	○	A5C.1095-10
	DIC Slide With Analyzer 10x-20x	○	○	○	○	○	○	A5C.1095-1020P
	DIC Slide With Analyzer 40x-100x	○	○	○	○	○	○	A5C.1095-40100P
NIS60 N-PLFN Semi-APO Fluorescent Objective For DIC	10x/0.3, W.D.8.1, Cover Glass 0.17mm	○	○	○	○	○	○	A5F.1091-10
	20x/0.5, W.D.2.1, Cover Glass 0.17mm	○	○	○	○	○	○	A5F.1091-20
	40x/0.75, W.D.0.7, Cover Glass 0.17mm	○	○	○	○	○	○	A5F.1091-40
	100x/1.3, W.D.0.15, Cover Glass 0.17mm	○	○	○	○	○	○	A5F.1091-100
Other Accessories	Working Stage Holder Bracket	●	●	●	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	○	○	○	A54.1096-A2
	Immersion Oil	●	●	●	●	●	●	A50.1090-01
	Allen Wrench	●	●	●	●	●	●	A50.1090-02
	Power Cord	●	●	●	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	○	○	○	A50.1090-07
	USB Cable	○	○	○	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable
