A31.0923 |
M2M |
B2M |
Head |

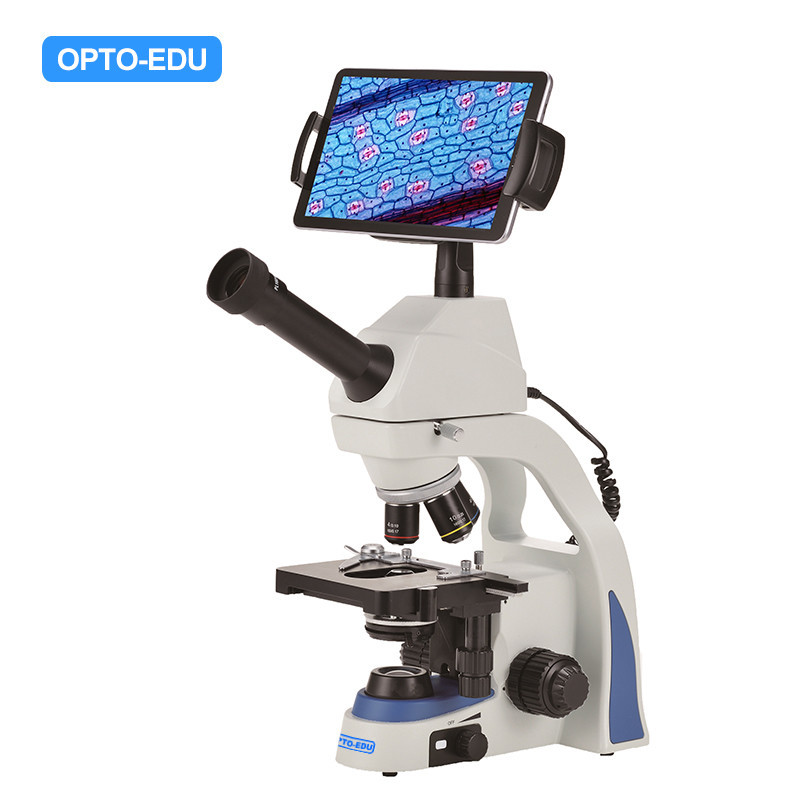

Monocular Head 30° Inclined, Built-in WIFI Camera, 2MP. With Pad Holder |
● |
|

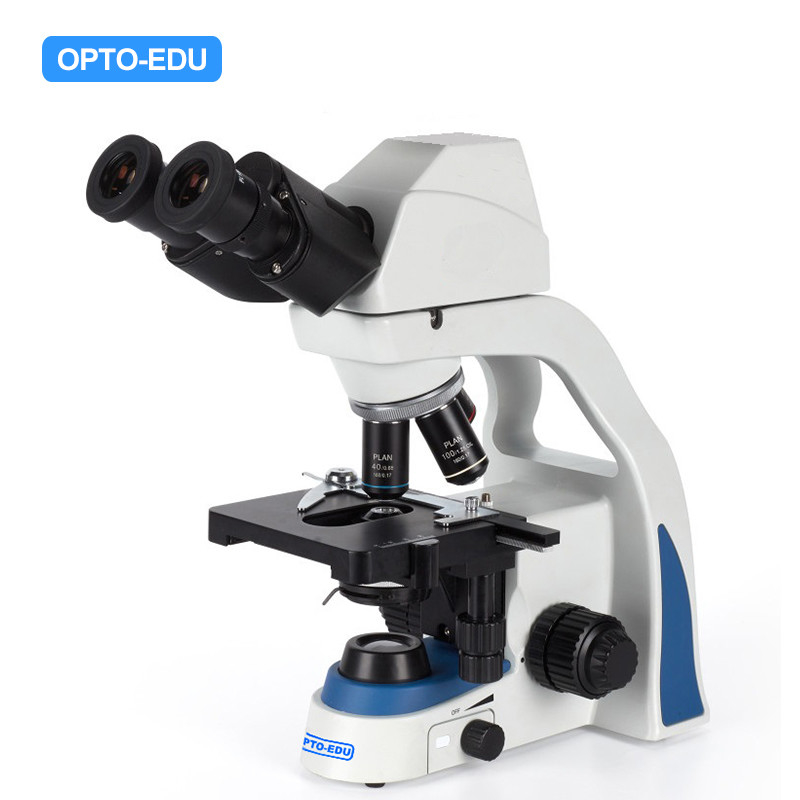

Binocular Head 30° Inclined, 360° Rotatable,
Inter-pupillary Distance 50~75mm,

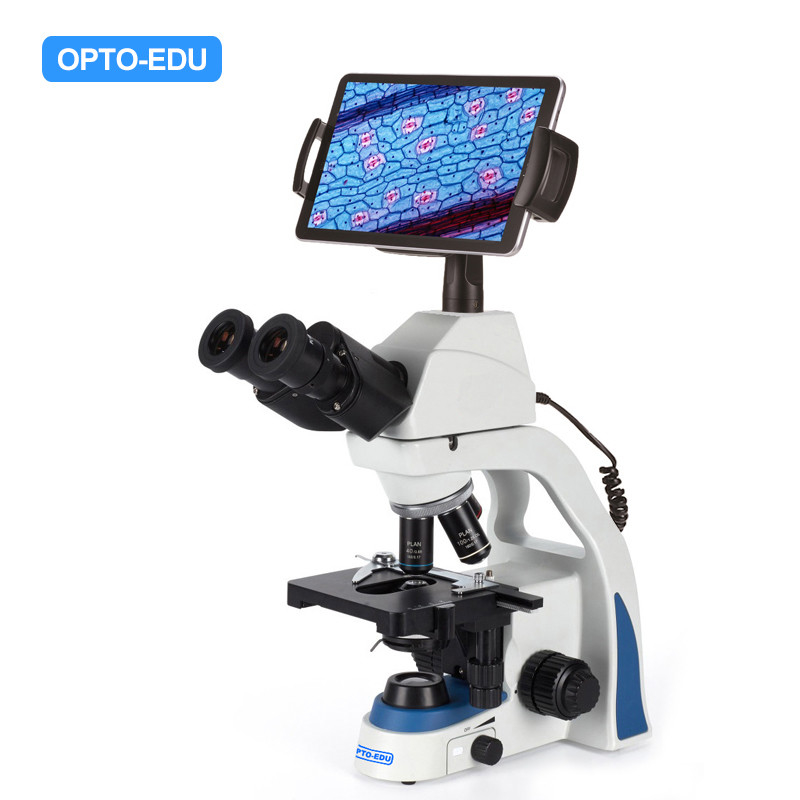

Built-in WIFI Camera, 2MP. With Pad Holder |
|
● |
Eyepiece |
Plan Eyepiece 10x/18mm With Eye Guard |
● |
● |
Nosepiece |
Built-in Quadruple Nosepiece |
● |
● |
Objective |
Achromatic Objectives 4x/0.10(Black) |
● |
● |
Achromatic Objectives 10x/0.25(Black) |
● |
● |
Achromatic Objectives 40xS/0.65(Black) |
● |
● |
Achromatic Objectives 100xS/1.25(Oil)(Black) |
● |
● |
Stage |
115x125mm Double Layers Mechanical Stage, With N.A.1.25 Abbe Condenser, With Iris Diaphragm & Filter Holder, Moving Range 22mm-71mm |
● |
● |
Focusing |
Coaxial Coarse & Fine Focus, With Coarse Adjustment Stop Screw And Tightness Adjustment, Focusing Range 13mm With Clip Stage, (7mm With Mechnical Stage), Fine Precision 0.004mm |
● |
● |
Light |
0.2W LED(5700-6500K), Intensity Adjustable |
● |
● |
Power |
Adapted Power Supply 100-240V/12V 3.3A |
● |
● |
