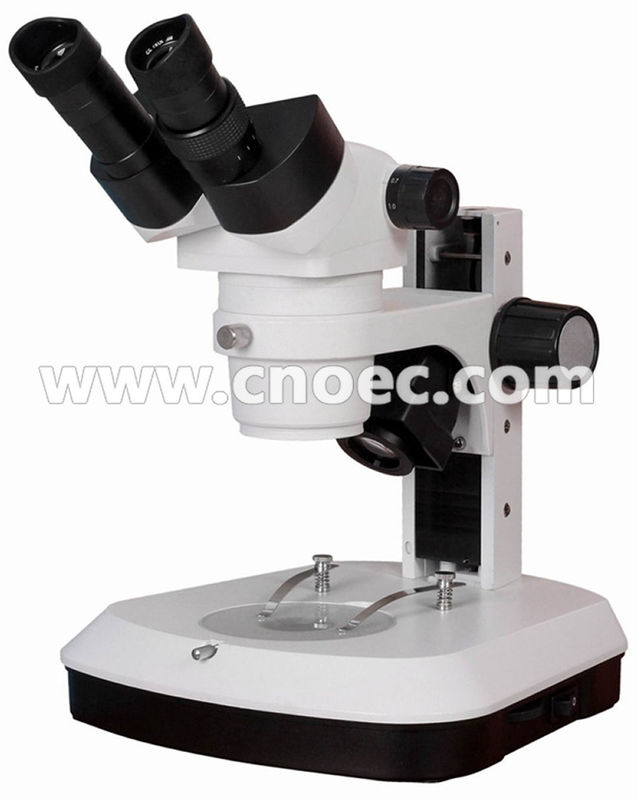

Industry Zoom Optical Stereo Microscope Wide Field Microscopes A23.2601

Industry Zoom Optical Stereo Microscope Wide Field Microscopes A23.2601

  • High Light

    stereo zoom microscopes

    ,

    stereo dissecting microscope

  • Applications
    Industry
  • Certification
    CE, Rohs
  • Drawtube
    Binocular, Trinocular
  • Illumination
    LED
  • Product Name
    Stereo Zoom Microscope
  • Theory
    Stereo Microscope
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A23.2601
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

Industry Zoom Optical Stereo Microscope Wide Field Microscopes A23.2601



Industry Zoom Optical Stereo Microscope Wide Field Microscopes A23.2601



Specifications:

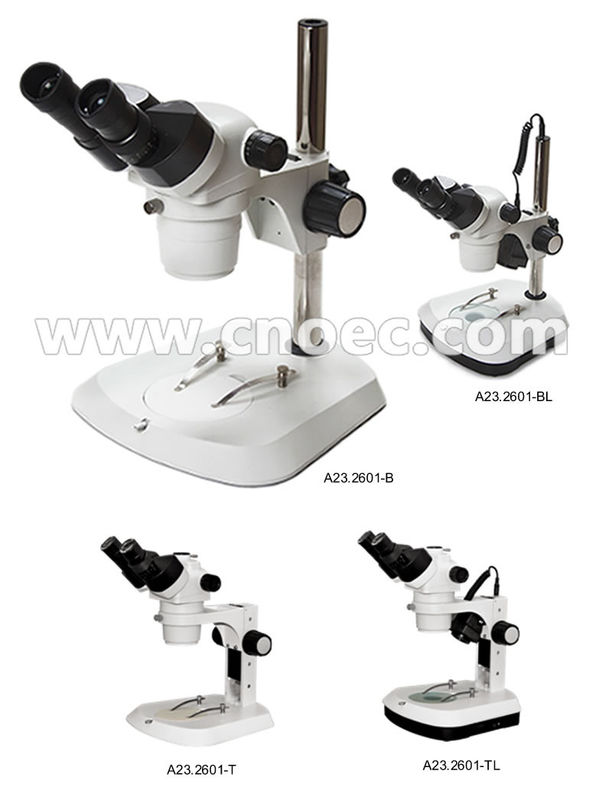

A23.2601 Series Zoom Stereo Microscope

BL-A2

B-P3

BL-P4

T-A1

TL-A2

Eyepiece

WF10x/22mm, high eyepoint (with eyecup)

Viewing Head & Zoom Body

Binocular head, inclined 45°, rotatable 360°,

Interpupillary Distance 54mm-76mm,

Zoom Ratio 1:6.6





Trinocular head, inclined 45°, rotatable 360°,

 Interpupillary

Distance 54mm-76mm, Zoom Ratio 1:6.6







Zoom range

 0.7x-4.6x

Objective

Built-in 1x

Magnification

7x-46x

Working Distance

110mm

Focusing

Focus unit

Stand

Pillar stand







Arm stand





Illumination

Reflecting lamp 3W LED (optional :

12V/15W halogen)





Transmitting lamp 3W LED (optional :

12V/15W halogen)





Stage

Black & white plate

Glass plate





A23.2601 Series Zoom Stereo Microscope Optical Data

Auxiliary Objectives

0.5x

0.75x

1x(built in)

2x

Working distance (mm)

189mm

122mm

110mm

36mm

Eyepiece
WF10x/22mm

Magnification

3.5~23x

5.3~34.5x

7~46x

14~92x

Field dia. (mm)

62.86~9.57

41.90~6.38

31.43~4.78

15.71~2.39

Eyepiece
WF15x/17mm

Magnification

5.3~34.5x

7.9~51.8x

10.5~69x

21~138x

Field dia.(mm)

48.57~7.39

32.38~4.93

24.29~3.70

12.14~1.85

Eyepiece
WF20x/13mm

Magnification

7~46x

10.5~69x

14~92x

28~184x

Field dia.(mm)

37.14~5.65

24.76~3.77

18.57~2.83

9.29~1.41



A23.2601 Series Zoom Stereo Microscope Combination List

Item No.

Eyepiece

WF10x/22mm

A51.2621-10

Viewing Head & Zoom Body

Binocular head & zoom body (1:6.6)

without eyepiece

A53.2611-2

Trinocular head & zoom body (1:6.6)

without eyepiece

A53.2612-2

Focus Unit

Focus unit without illumination

A54.2608-1

Focus unit with 3W LED reflecting illumination

A54.2608-2

Stand

Arm stand with focus unit, without Light

A54.2609-01

Arm stand with focus unit and 3W LED illumination

A54.2609-02

Pillar stand without illumination

A54.2609-03

Pillar stand with 3W LED transmitting illumination

A54.2609-04

Stand with mirror

A54.2609-05

Universal stand

A54.2609-06

Rectangular big base,3W-LED transmitting

illumination,
base size: 330×300mm

A54.2609-07

Rectangular big base,without illumination,

base size:330×300mm

A54.2609-08



Complete set

is composed of Eyepiece + Head &

zoom body + Focus unit + Stand

A23.2601-BL-A2

A51.2621-10 + A53.2611-2 + A54.2608-2 + A54.2609-02

A23.2601-B-P3

A51.2621-10 + A53.2611-2 + A54.2608-1 + A54.2609-03

A23.2601-BL-P4

A51.2621-10 + A53.2611-2 + A54.2608-2 + A54.2609-04

A23.2601-T-A1

A51.2621-10 + A53.2612-2 + A54.2608-1 + A54.2609-01

A23.2601-TL-A2

A51.2621-10 + A53.2612-2 + A54.2608-2 + A54.2609-02

And More Combinations As Per Your Request



Optional Accessories

Item No.

Eyepiece

WF15x/17mm

A51.2621-15

WF20x/13mm

A51.2621-20

Auxiliary Objective

0.5x W.D.189mm

A52.2621-05

0.75x W.D. 122mm

A52.2621-75

2x W.D. 36mm

A52.2621-20

CCD Adapter

0.35x, focusing adjustable

A55.2601-SZ35

0.5x

A55.2601-SZ05

0.7x

A55.2601-SZ07

For NIKON or SONY or CANON or OLYMPUS

SLR digital camera

A55.2621
