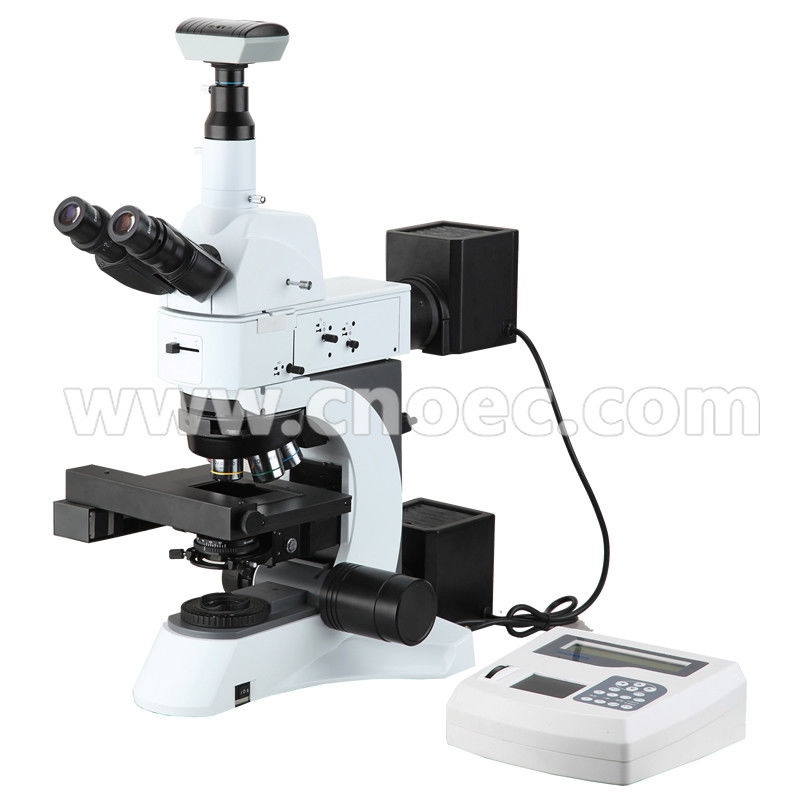

Motorized Metallurgical Laboratory Microscopes 50X - 1000X A13.1010
Description:
A13.1010 Motorized Auto-Focus BF/DF Metallurigcal Microscope, is an ideal instrument for industry inspecition and science research laboratory.
● Intergrate the advantages of modern aesthetics and the edge of disciplines to achieve the automation of microscopes in lab.
● Four motor drive, objective nosepiece, stage and coarse & fine adjustment can be controled manually or motorized.
● Adoption of progressive technological digitl dimmer, which divided the brightness of halogen lamp into 100 step.
● Megapixels camera system, USB 2.0 plugs and play, real time preview is up to 30 fps
● Built-in dynamic focusing system, auto-focus without computer
● Auto-Focusing, High precision positioning leading screw stage, quickly receiveing the clearest images by auto-focus.
● Auto slice scanning, recognizing are controlled by the computer
● Bright/Dark Field Metallurgical microscope
● Full range BF/DF Objectives included
● Polarization system optional
● Powerful transmitted and reflected system with Kohler illumination.
● Network remote control system for real-time teaching etc.
Specifications:
|
A13.1010 Specification
|
A
|
B
|
|
Optical System
|
Infinity optical system |
|

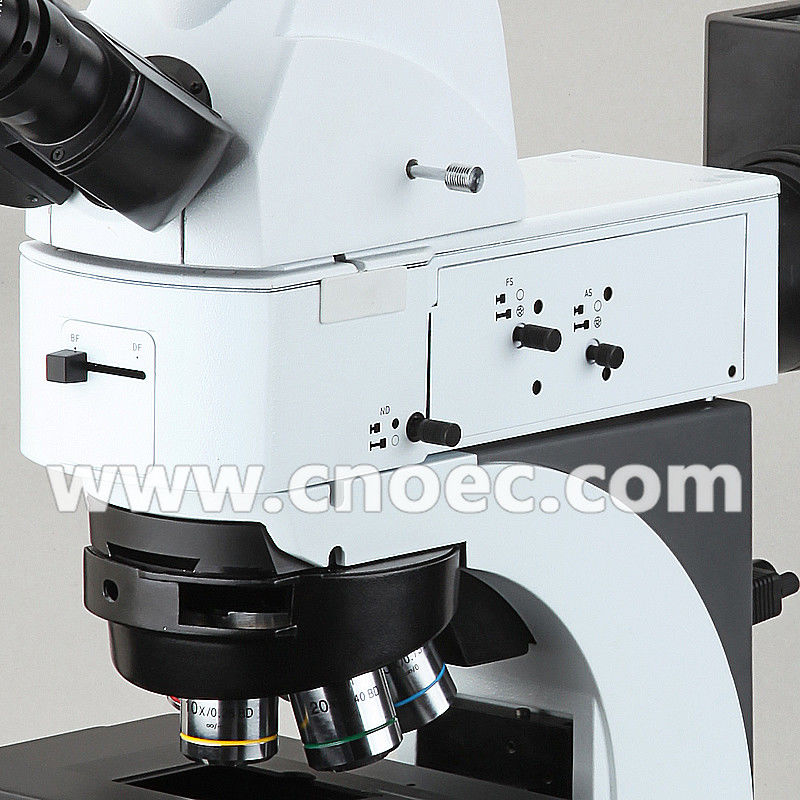

Head
|
Seidentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm |
|
Eyepiece
|
Extra Wide Field Eyepiece EW 10x/22 |
|
Objective
|
Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF) |
|
Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF) |
|
Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/ 0 (BF/DF) |
|
Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/ 0 (BF) |
|
Infinity Plan Achromatic Objectives100x/0.9/∞/0 (BF) |
|
Infinity Plan Achromatic Objectives 40x/0.66/∞/0.17 |
|
●
|
|
Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17 |
|
●
|
|

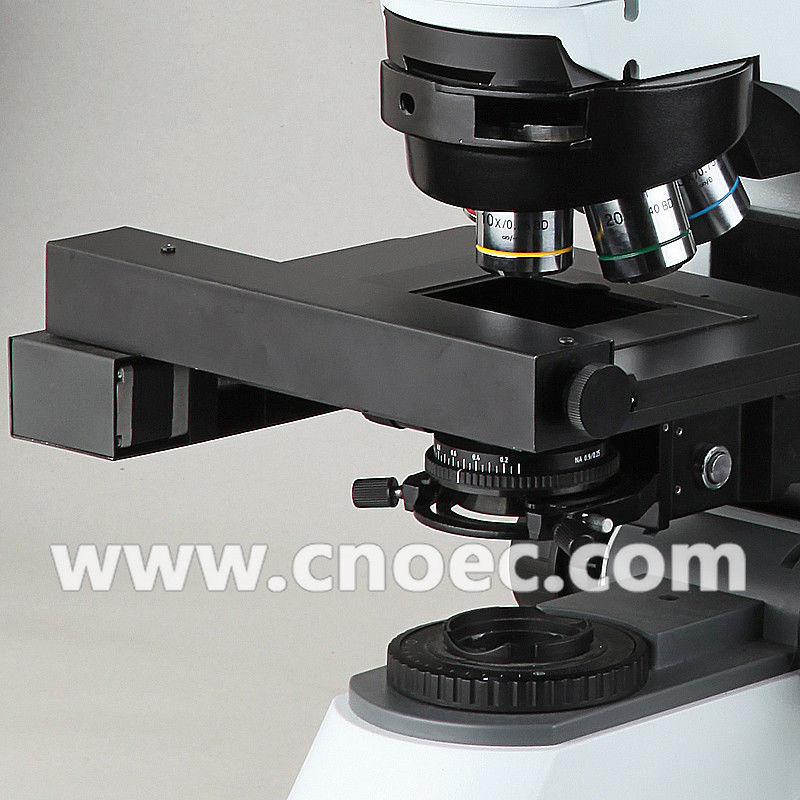

Stage
|
Leading screw stage precision＜1μm |
|
Specimen holder |
|
Specimen preparation plate |
|
Slide glass |
|
●
|
|
Nosepiece
|
Quintuple nosepiece |
|
Camera
|
1.3 Mega Pixels CMOS Chip |
|
Resolution ratio:1280x1024 |
|
Maximum frame rate: 1280x1024 15f/s |
|
Maximum frame rate: 1024x960 20f/s |
|
Maximum frame rate: 600x480 30f/s |
|
Maximum frame rate: 352x288 30f/s |
|
Maximum frame rate: 320x240 30f/s |
|
Maximum frame rate: 176x144 30f/s |
|
Maximum frame rate: 160x120 30f/s |
|
Responsivity: 1.8v@550um/lux/s |
|
Exposure: Manuanl or auto exposure,time adjustable (1-500ms) |
|
SNR:＞45dB |
|
Adapter
|
3 BF/DF adapter |
Maximum Sample Height 30mm
|
|
Hardware
|
USB2.0 cable |
|
USB DOG |
|
The control box of N-800D motorized auto-focus microscope |
|
9-PIN control port line |
|
25-PIN control port line |
|
9-PIN serial port line |
|
Motorized auto-focus microscope control software |
|
Adapter |
|
3.5mm auto focus signal cable |
|
Focusing
|
Auto focus resolution ＜1μm |
|
Reflected Illumination
|
24V/100W Halogen light, lightness adjustable |
|
Kohler illumination and aspherical condenser |
|
Blue,Green,Yellow and Ground glass |
|
Transmitted
Illumination
|
Swing-out condenser N.A.0.9/ 0.25 |
|
●
|
|
24V/ 100W Halogen light and aspherical condenser |
|
●
|
|
Blue filter |
|
●
|
|
|
Optional Accessories
|
Item No.
|
|
Objective
|
Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF) |
A5M.1036-40 |
|
Infinity Plan Achromatic Objectives 50x/0.75/ ∞/ 0 (BF/DF) |
A5M.1036-50 |
|
Infinity Plan Achromatic Objectives 100x/ 0.8/ ∞/ 0 (BF/DF) |
A5M.1036-100 |
|
Filter
|
ND25 |
A5F.1011-25 |
|
ND6 |
A5F.1011-6 |
|
Video Attachment |
C Mount 1x |
A55.1002-10 |
|
C Mount 0.5x |
A55.1002-05 |
|
Other
|
Specimen Presser |
A50.1010 |
|
