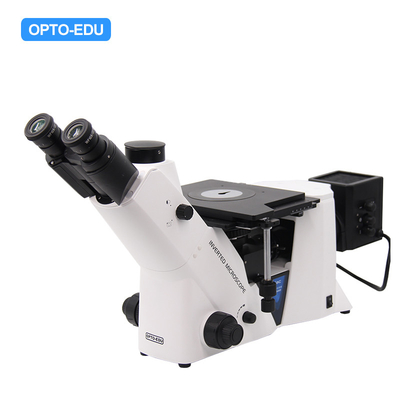

OPTO-EDU A13.2606 Invered Metallurgical Microscope, Reflect Light, BF

Products - Metallurgical Optical Microscope

Highlight

digital trinocular microscope
,
usb digital microscope
Place of Origin

China
Brand Name

CNOEC, OPTO-EDU
Certification

CE, Rohs
Model Number

A13.2606
Document

Product Brochure PDF
Minimum Order Quantity

1 pc
Price

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A13.2606 Invered Metallurgical Microscope, Reflect Light, BF

Name: OPTO-EDU A13.2606 Invered Metallurgical Microscope, Reflect Light, BF
Brand: Opto-Edu (Beijing) Co., Ltd.
SKU: A13.2606
Price: 500.00 USD
Availability: InStock

button button

Get Price Contact Now

Invered Metallurgical Microscope, Reflect Light, BF

Professional Metallurgical Microscope For Bright Field, Dark Field, Polarizing Observation
Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80
Metallurgical LWD Infinity Plan BF (Bright Field) & BD (Bright & Dark Field) Objectives
Large Working Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm
High Brightness Reflect Light Halogen 12V50W Koehler Illumination

Items	A13.2606 Invered Metallurgical Microscope	A13.2606	A13.2606-BD	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	A53.2643
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable	●	●	A51.2621-1022
	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable, With Micrometer X-0.1mm*180 Div / Y-Single Line	●	●	A51.2622-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○	○	A51.2621-2012
Nosepiece	Quintuple	●	-	A54.2610-N925
Nosepiece	Quadruple(Specially For Bright&Dark Field objectives)	-	●	A54.2610-N924
Metallurgical LWD Infinity Plan BF (Bright Field) Objectives	LPL 5x/0.13, W.D.=16.04mm	●	○	A5M.2633-5
	LPL 10x/0.25, W.D.=18.48mm	●	○	A5M.263310
	LPL 20x/0.40, W.D.=8.35mm	●	○	A5M.2633-20
	LPL 50x/0.70, W.D.=1.95mm	●	○	A5M.2633-50
	LPL 80x/0.80, W.D.=0.85mm	○	○	A5M.2633-80
	LPL 100x/0.90(Dry), W.D.=1.10mm	○	○	A5M.2633-100
Metallurgical LWD Infinity Plan BD (Bright & Dark Field) Objectives	LPL 5x/0.13BD, W.D.=16.04mm	-	●	A5M.2634-5
	LPL10x/0.25BD, W.D.=18.48mm	-	●	A5M.2634-10
	LPL 20x/0.40BD, W.D.=8.35mm	-	●	A5M.2634-20
	LPL 50x/0.70BD, W.D.=1.95mm	-	●	A5M.2634-50
Working Stage	Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm	●	●	A54.2601-S11T
Working Stage	Round Plate With Oval Hole	○	○	A54.2601-MD400
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm	●	●
Polarizing	Analyzer + Polarizer Set	●	●	A5P.2602
Illumination	Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V	●	●	A56.2613-12V50W
Illumination	Koehler Illumination 5W LED, Input Voltage 100V~240V	○	○	A56.2651-5W
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	A56.2616-34B
	Green, Dia.34mm	○	○	A56.2616-34G
	Amber, Dia.34mm	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	A56.2616-34N
Adapter	SLR Digital Camera Adapter For Canon, 100% Light For Camera Portt	○	○	A55.2622-BC
	SLR Digital Camera Adapter For Nikon, 100% Light For Camera Port	○	○	A55.2622-BN
	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
Package	Packing Size: 660mmx590mmx325mm
Weight	Gross Weight: 17 kgs, Net Weight: 12.5 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
