Description:
A13.0906 Metallurgical Microscope, provide superior image and reliable mechanical structure, easy operating, various of accessories, widely used in teaching and research metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering surveying fields.
--Color Corrected Infinity Optical System, Better Image and Higher Resolution
--High Eyepoint Widely Plan Eyepiece PL10x/22mm
--Professional Infinity Plan Achromatic LWD metallurgical Objective, No Cover Glass Design
--Low Hand Position Coaxial & Fine Focusing Mechanism
--Reflected Illuminator with Iris Diaphragm and Centerable Field Diaphragm
--90~240V Voltage, 12V50W Halogen Bulb
Specifications:
|
A13.0906 Metallurgical Microscope |
A |
B |
|
|
Head |

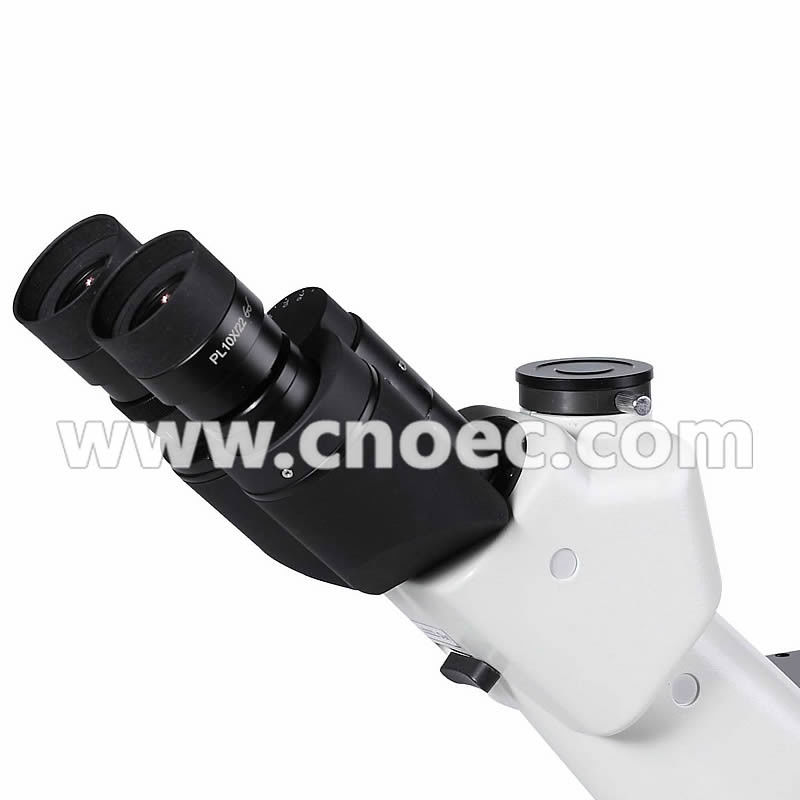

Compensation Free Binocular Head, 45° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable, Light Split 8:2 |
o |
|
|
Compensation Free Trinocular Head, 45° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable, Light Split 8:2 |
|
o |
|
|
Eyepiece |
High Eyepoint Plan PL10x/22mm, |
||
|
Objective |
Long Working Distance Infinity Plan Metallurgical Achromatic |
LMPL5X/0.15 WD10.8MM |
|
|
LMPL10X/0.3 WD10MM |
|||
|
LMPL20X/0.45 WD4MM |
|||
|
Long Working Distance Infinity Plan Metallurgical Achromatic, Semi-APO |
LMPL50X/0.55 WD7.8MM |
||
|
Nosepiece |
Quintuple Nosepiece |
||
|
Stage |

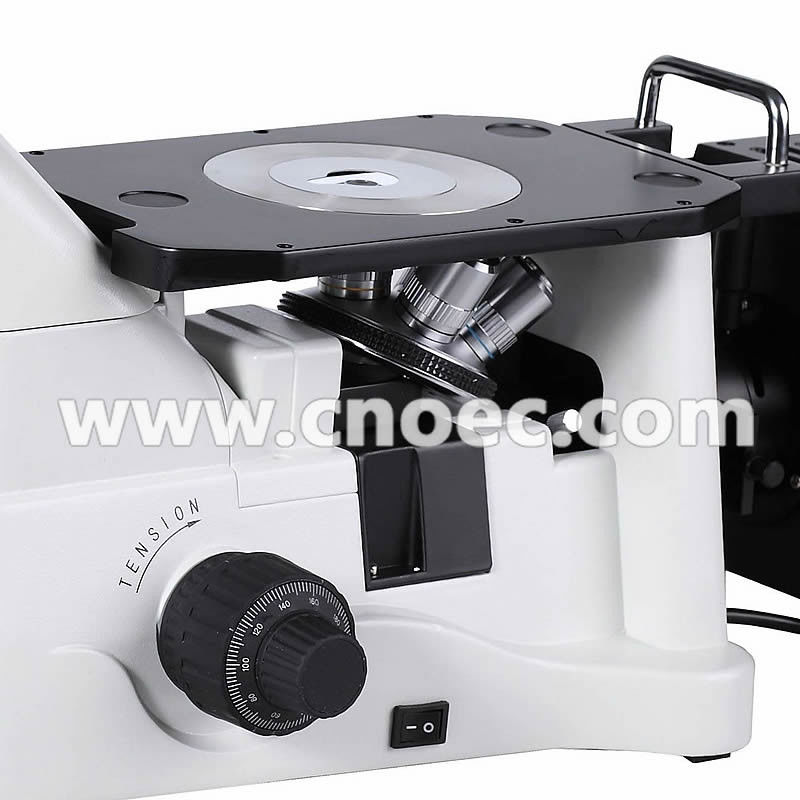

Fixed Working Stage, Size 160*250mm, Retangle Plate with Mechanical Mobile Ruler, Moving Range 120*78mm, with Stage Extention Plate, |
||
|
Metal Plate, Center Hole Dia.12mm |
|||
|
Focusing |
Low Position Coaxial Coarse & Fine Focusing, Coarse Focus Range 38mm, Fine Focusing Precision 0.002mm, with Tension Adjustment |
||
|
Filter |
Blue Filter, Dia.32mm |
||
|
Yellow Filter,Dia.32mm |
|||
|
Polarizing |
Polarizer |
||
|
Analyser,360° Rotatable |
|||
|
Illumination |
Reflect Kohler Illumination, with View Field Diaphragm, with Iris Diaphragm, Center Adjustable, 12V50W Halogen, Brightness Control |
||
|
Power |
90-240V Wide Range Power Supply |
||
|
A13.0906 Metallurgical Microscope Optional Accessories |
|||
|
Eyepiece |
High Eyepoint Plan PL15x/16mm |
A51.0903-1513 |
|
|
High Eyepoint Plan PL10x/22mm, Diopter Adjustable |
A51.0904-1020T |
||
|
High Eyepoint Plan PL10x/22mm, with Cross PL10x18 |
A51.0905-1022R |
||
|
Objective |
Long Working Distance Infinity Plan Metallurgical Achromatic, Semi-APO LMPL100X/0.8 WD2.1MM |
A5M.0936-100 |
|
|
Working Stage |
Metal Plate, Center Hole Dia.25mm |
A54.0945-M1 |
|
|
Slide Holder (Dia.54 and 26.5x76.5), Use with Mechanical Specimen Holder |
A54.0945-H2 |
||
|
Terasaki Holder (Dia.65 and 56x81.5),Use with Mechanical Specimen Holder |
A54.0945-H3 |
||
|
Filter |
Green,Dia.32mm |
A56.0935-XDG |
|
|
Netural,Dia.32mm |
A56.0935-XDF |
||
|
Adapter |
1.0x C-Mount |
A55.0927-10 |
|
|
0.5x C-Mount, for 1/2" CCD |
A55.0927-50 |
||
|
Digital Camera Adapter with Photo Eyepiece |
A55.0910 |
||
|
Photo Adapter with 3.2x Photo Eyepiece, PK or MD Mount |
A55.0901-4 |
||
