A33.5121-M Digital Lcd Microscope Teaching Head Quarduple LED 1600X OPTO EDU

Large Image : A33.5121-M Digital Lcd Microscope Teaching Head Quarduple LED 1600X OPTO EDU

Product Details:

Place of Origin:	China
Brand Name:	CNOEC, OPTO-EDU
Certification:	CE, Rohs
Model Number:	A33.5121-M

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	FOB $1~1000, Depend on Order Quantity
Packaging Details:	Carton Packing, For Export Transportation
Delivery Time:	5~20 Days
Payment Terms:	T/T, West Union, Paypal
Supply Ability:	5000 pcs/ Month

Contact Now

Detailed Product Description

Head:	Teaching Head, 45°+90° Inclined, 360° Rotatable	Sensor:	1/2.75" CMOS
Resolution:	2.0M 1920x1080p, With 0.3x C-Mount	Pixel Size:	2.8x2.8um
Frame Rate:	30 Fps	Output:	USB 2.0, Output To LCD, PC Or Mobile Phone
High Light:	digital lcd microscope opto edu , digital lcd microscope 1600x , 1600x portable lcd microscope

Dual Optical System: 7"/9" LCD Digital Camera + USB Portable Digital Microscope
Totol Magnification 40x-1000x Achromatic Optical System
Double Layer Mechancial Stage 115x125mm With Abbe N.A.1.25 Condenser
Coaxial Coarse & Fine Focusing Knob LED Light Source Brightness Adjustable
With 10 Prepared Slides, With Experiment Kit, Pack In Hand Carry Case+Carton

A33.5121 7" LCD Biological + USB Portable Dual Lens Digital Microscope, 5.0M		-M	-MH	-T	-TH
Head	Teaching Head, 45°+90° Inclined, 360° Rotatable	o	o
	Binocular Head, 30° Inclined, 360° Rotatable
	Trinocular Head, 30° Inclined, 360° Rotatable			o	o
LCD Camera	7" IPS LCD Screen Resolution 800x480
Sensor	1/2.75" CMOS
Resolution	2.0M 1920x1080p, With 0.3x C-Mount
Pixel Size	2.8x2.8um
Frame Rate	30 fps

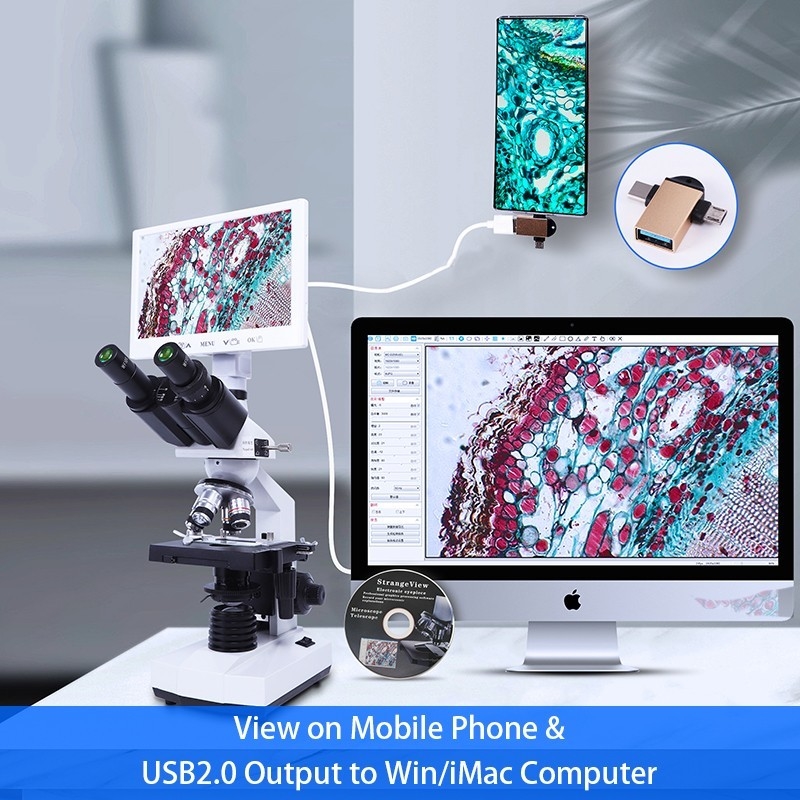

Output	USB 2.0, Output to LCD, PC or Mobile Phone
Power	DC5V/2A, Power Port 3.5/1.35 DC
Storage	Micro SD Card Slot, Support Class 10 Max 32G
LCD Menu	One Key Switch Image From Main Camera & Hand-held Camera
	One Key Take Photo, Video, Record, Save to SD Card
	Set Color, Contrast, White Balance Auto/Manual Adjust
	Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video
	Set Date, Time
	Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic
	Playback Photo, Video
PC Software	CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language Chinese, English, Russia, Ukrian

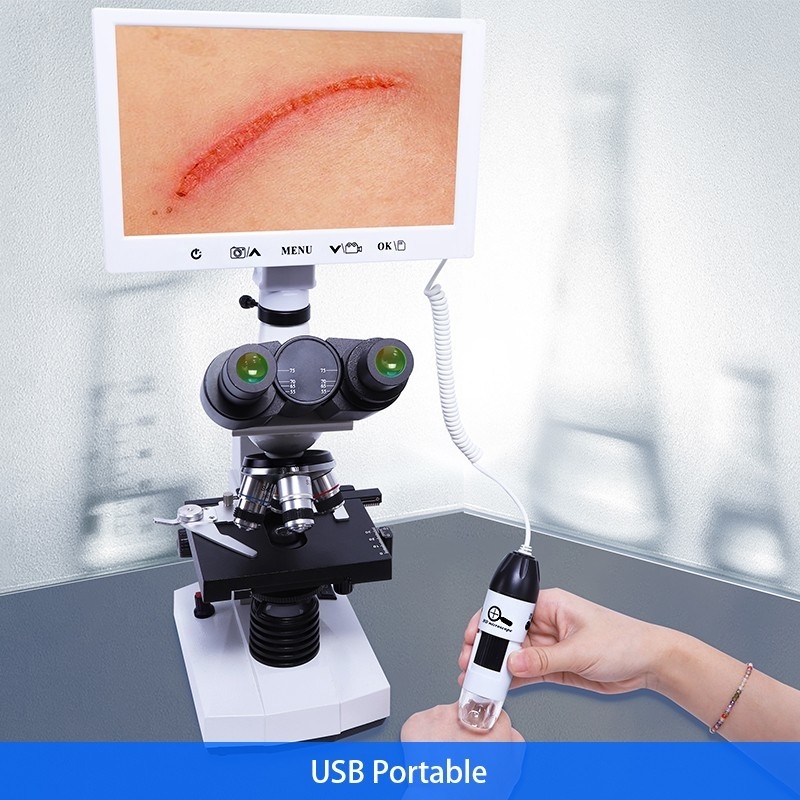

Hand-held	USB Portable Digital Microscope 1.3M, 1.5x-25x	-	o	-	o
Eyepiece	WF10x, WF16x
Nosepiece	Quadruple Nosepiece, Ball Bearing Inner Locating
Objective	Achromatic 4x,10x,40x(s), 100x(s, oil)
Working Stage	Double Layer Mechanical Stage 115*125mm
Focusing	Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm
Condenser	Abbe Condenser N.A.1.25, With Iris Diaphragm Filter
Light Source	LED, Brightness Adjustable
Accessory	Prepared Slide 10pcs in Box, Experiment Kit, Mobile Phone Connector Power Adapter Power Cord USB Cable Software CD
Packing	Hand Carry Box + Master Carton

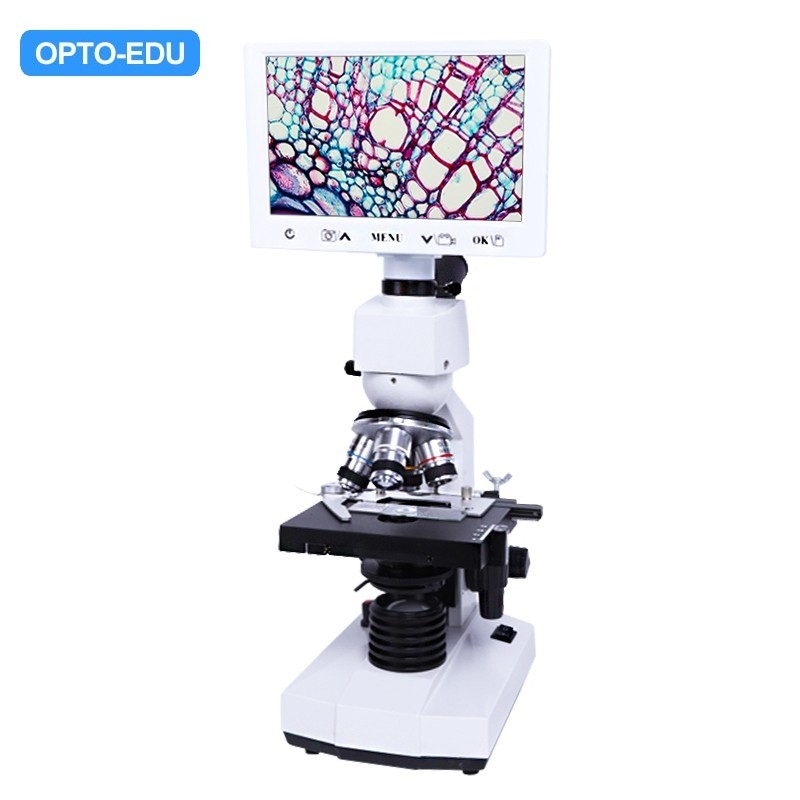

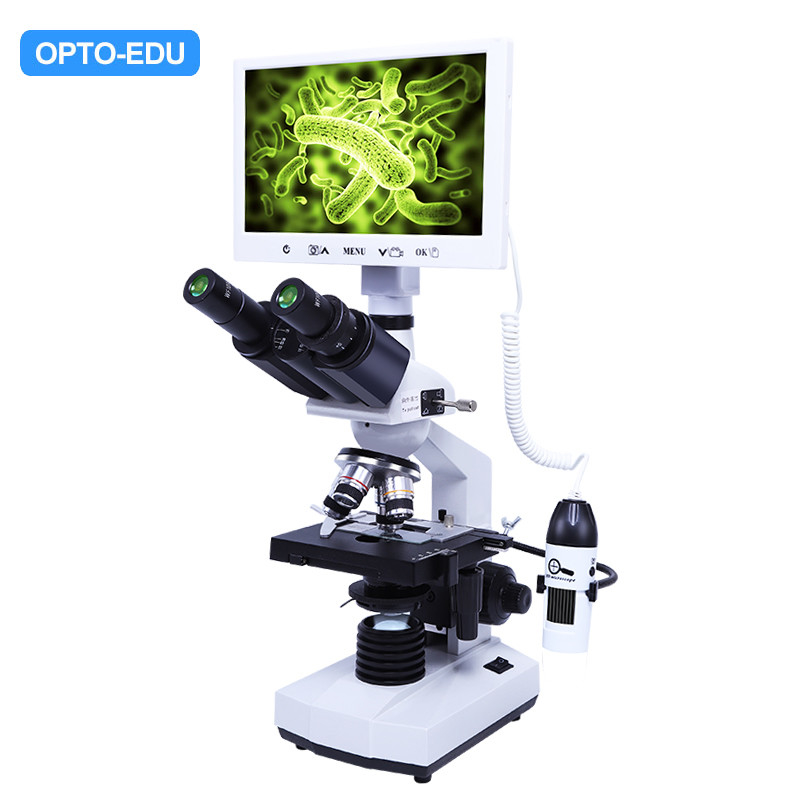

A33.5121-M Digital Lcd Microscope Teaching Head Quarduple LED 1600X OPTO EDU 0

A33.5121-M Digital Lcd Microscope Teaching Head Quarduple LED 1600X OPTO EDU 2
