| Features | A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work. A34.4970 --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4970 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4971 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily --Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting |
|||
| Features | A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work. A34.4970 --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4970 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle --Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting A36.4971 --12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. --Professional Multi-Function Image Processing Software Support Measure Function On Computer --Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm. --Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily --Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) --Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable --One Power Cord For All Microscope & LCD Makes Desk Clean And Clear. --Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space --Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting |
|||
| A34.4970, A36.4970 HDMI +USB LCD Digital Microscope | A34.4970 | A36.4970 | A36.4971 | |
| Data Outpu | 5G WIFI Output | - | - | - |
| HDMI Output | ● | ● | ● | |
| USB Output | ● | ● | ● | |
| Manification | 5.3x-39.4x, On 12.5" LCD Monitor | ● | ||
| 3.6x-39.4x, On 12.5" LCD Monitor | ● | |||
| 6.0x-39.4x, On 12.5" LCD Monitor | ● | |||
| Resolution | 2.0M | ● | ● | ● |
| Sensor | SONY CMOS IMX291 | ● | ● | ● |
| Max Pixels | 1920x1080 (2,073,600 Pixels) | ● | ● | ● |
| Sensor Size | 1/2.8'' (6.058mm(H) x 4.415mm(V)) | ● | ● | ● |
| Pixel Size | 2.9μm x 2.9μm | ● | ● | ● |
| Dynamic Range | 128dB | ● | ● | ● |
| SNR | 30dB | ● | ● | ● |
| Spectral Response | 380~650nm | ● | ● | ● |
| Exposure | Real-time Auto, Single Auto, Manual Adjustment | ● | ● | ● |
| White Balance | Real-time Automatic, Single Automatic, Manual R/G/B Adjustment | ● | ● | ● |
| HDM Port | Output Image Max 1920x1080P, 60fps, Auto-adaptive Display | ● | ● | ● |
| USB Type C Port | Support 2 Modes: Power In, Or USB Image Output To Computer | ● | ● | ● |
| Storage | TF Card, Max Support 128G | ● | ● | ● |
| Remote Control | Support Photo, Record, Digital Zoom In/Out, Menu Setting | ○ | ○ | ○ |
| Record Format | Photo 1920x1080 Format JPG Video: 1920X1080P, 60fps1920X1080P30,1280x720P120,1280x720P60 Format MOV |
● | ● | ● |
| Power By | DC 5V 900mA, By USB Port | ● | ||
| DC 12V 3A, By Adapter Connected To LCD Screen | ● | ● | ||
| Working Distance | 44mm~230mm | ● | ● | ● |
| Depth of View | 0.8mm~6.5mm | ● | ● | ● |
| Field of View | 7mmx4mm (At The Highest Magnification 39.4x) to 45.7mmx25.8mm (At The Lowest Magnification 6x) |
● | ● | ● |
| Focus | Extra Back Focus Knob, Focus To Clear Image Quickly And Easily In Large Range, Extend Working Distance To 44mm~230mm | |||
| Light Source | Dual LED Ring Light Built-in, Vertical Illumination And Diffuse Illumination Independent Switch, Both Brightness Adjustable | |||
| LCD Screen | Size: 12.5" Full HD 1080p Display Type: a-Si TFT-LCD/IPS/Fog Screen Number of Pixels: 1920x1080 Display Color: 16.7M Panel Brightness: 300 nits Contrast: 800:1 Viewing Angle: Horzontal/Vertical 170° Adjustable |
- | ● | ● |
| Stand | 360° Universal Hinge Bracket Design, Supports Arbitrary Hovering, Flexible And Easy To View Object From Any Angle | ● | ● | |
| Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily | ● | |||
| Metal Plate Size 180x215mm, Large Size For Mobile Repair Work | ● | ● | ● | |
| Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable | ||||
| Opto-Edu New Arrival 2021! A34.4970, A36.4970, A36.4971 Series All-in-One Designed Digital HDMI+USB LCD Microscope! |
|
| ● 12.5" Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically. ● Professional Multi-Function Image Processing Software With Measure Function On Computer ● Unique Design Back Focus Knob On Camera Extends Working Distance To 44~230mm ● Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily ● Real Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display) |
These newly designed digital microscope come with BACK FOCUS knob, which can focus quickly and enlarged working distance up to 44-230mm, combined DUAL LED RING LIGHT, to supply oblique & coaxial light for different observation requirements. |
| A34.4970 camera is compact size mini microscope, with HDMI + USB port, can show image directly on your monitor which has HDMI port; or export the image to USB port of computer, to work with professional software for measuring, image stitching, depth of field combine function. |

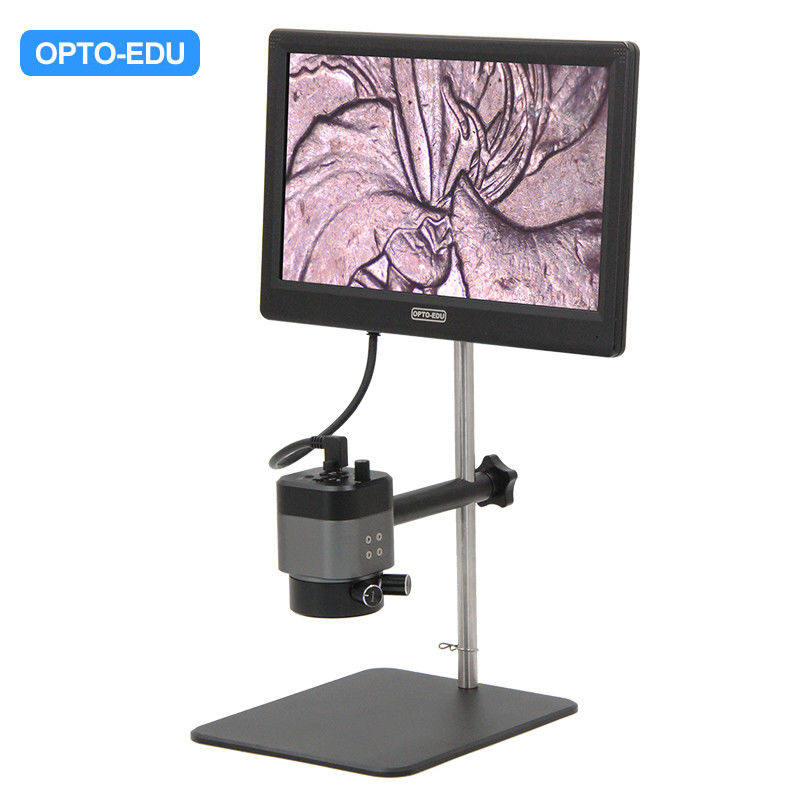

| A36.4970 & A36.4971 combined high quality 12.5” LCD screen, all-in-one design makes it more convenient for your work. Just plug the power, the image will show on screen directly, no need to adjust too much. |
|
A36.4970 with universal angle adjustable joint holder to move camera easily, can view the object from any angle as you like. A36.4971 use the stainless steel pole and camera holder to assure the light path strictly along with vertical line, is more suitable for production line to inspect some components in large number quickly, but no need to view multi-angles. This series digital camera has very high quality 2.0M CMOS sensor and high speed 30fps image transport, can show the image in real color by switching between Halogen/LED modes, and Biological/Stereo modes. |
| It also support remote wire control to make sure camera keep still when taking a picture or video. There is TF card slot on the camera, support up to 32G TF card to store the captured image & video. |
| Have a look on the work video, and contact us now for more information! |
