3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970

3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970

  • High Light

    3.6x digital optical microscope

    ,

    2.0m digital optical microscope

    ,

    sony cmos digital optical microscope

  • Manification
    3.6x-39.4x, On 12.5" LCD Monitor
  • Resolution
    2.0M
  • Sensor
    SONY CMOS IMX291
  • Max Pixels
    1920x1080 (2,073,600 Pixels)
  • Sensor Size
    1/2.8'' (6.058mm(H) X 4.415mm(V))
  • Pixel Size
    2.9μm X 2.9μm
  • Dynamic Range
    128dB
  • SNR
    30dB
  • Spectral Response
    380~650nm
  • Exposure
    Real-time Auto, Single Auto, Manual Adjustment
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A36.4970
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970

Features A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work.

A34.4970
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.

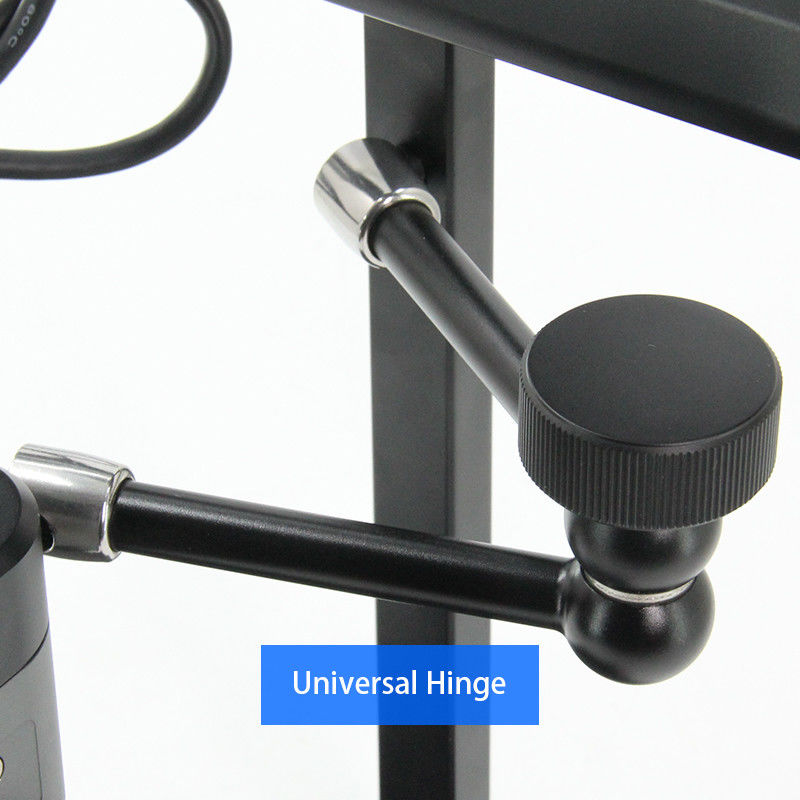

--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

A36.4970

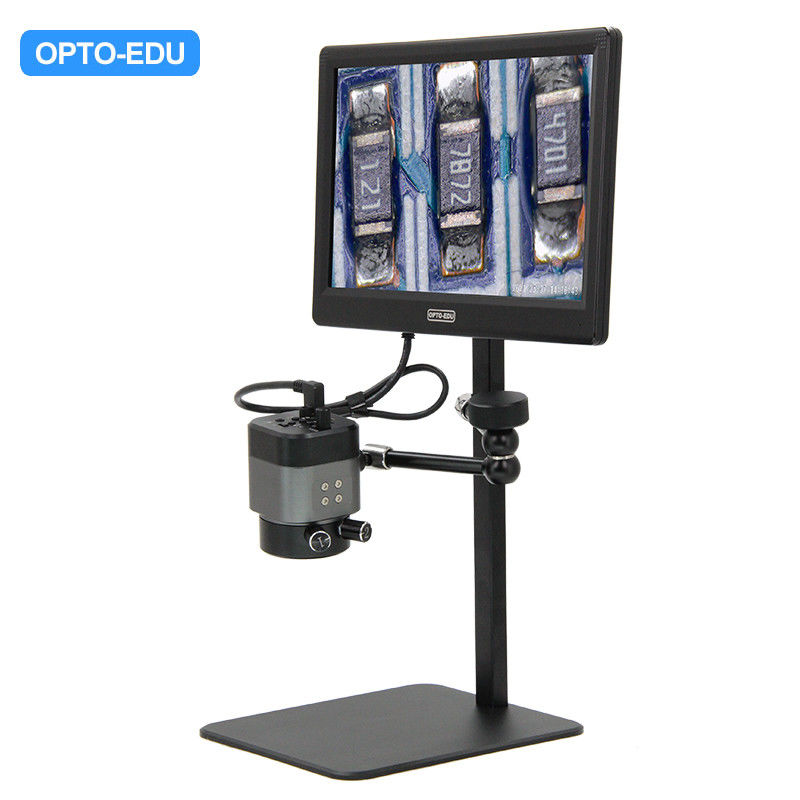

--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.

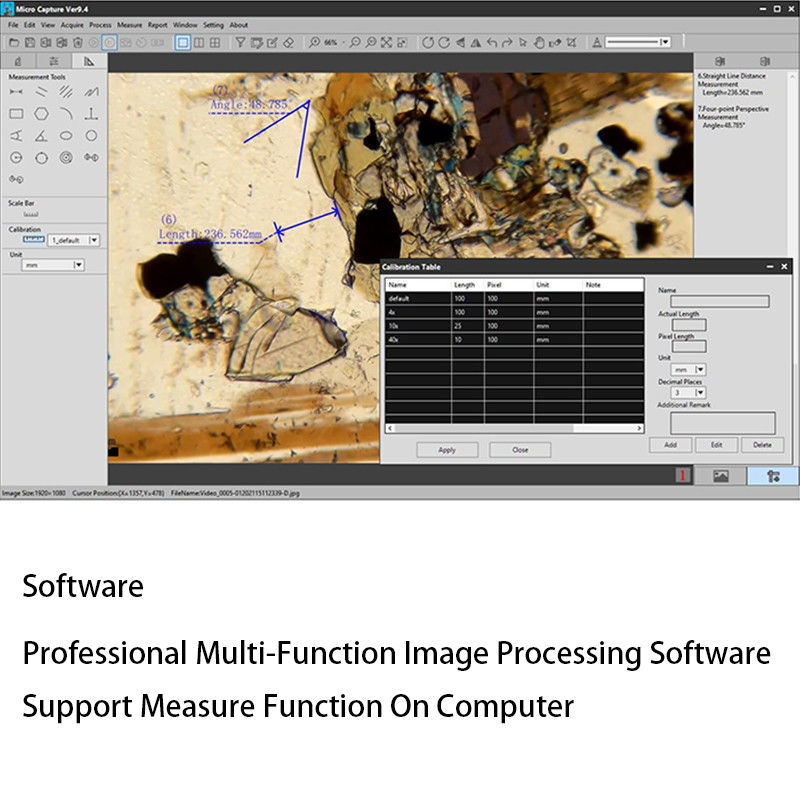

--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

A36.4971
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
--Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting

3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 0
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 1
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 2


3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 3
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 4
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 5
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 6


3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 7
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 8
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 9
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 10
3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 11


3.6x - 39.4x 2.0m Sony Cmos Digital Optical Microscope A36.4970 12

Features A34.4970, A36.4970, A36.4971 Series HDMI+USB LCD Digital Microscope, is newly developed in 2021 for industry inspection, mobile repair and etc. work.

A34.4970
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design
Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 5.3x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting


A36.4970
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--360° Universal Hinge Bracket Design Supports Arbitrary Hovering, Flexible To View Any Angle
--Comprehensive Magnification 3.6x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting


A36.4971
--12.5 " Full HD 1080P Display LCD Screen, Plug & Play Design Show Live Image Automatically.
--Professional Multi-Function Image Processing Software Support Measure Function On Computer
--Unique Design Back Focus Knob On Camera Extends Working Distance To 44 ~ 230mm.
--Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
--Comprehensive Magnification 6.0x~ 39.4x (Based on Actual Measurement On 12.5" LCD Display)
--Dual LED Ring Light With Independent Control Switch Both Brightness Adjustable
--One Power Cord For All Microscope & LCD Makes Desk Clean And Clear.
--Full Metal High Quality Body With Light Weight & Compact Size To Save Desk Space
--Control Panel & Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting
A34.4970, A36.4970 HDMI +USB LCD Digital Microscope A34.4970 A36.4970 A36.4971
Data Outpu 5G WIFI Output - - -
HDMI Output
USB Output
Manification 5.3x-39.4x, On 12.5" LCD Monitor
3.6x-39.4x, On 12.5" LCD Monitor
6.0x-39.4x, On 12.5" LCD Monitor
Resolution 2.0M
Sensor SONY CMOS IMX291
Max Pixels 1920x1080 (2,073,600 Pixels)
Sensor Size 1/2.8'' (6.058mm(H) x 4.415mm(V))
Pixel Size 2.9μm x 2.9μm
Dynamic Range 128dB
SNR 30dB
Spectral Response 380~650nm
Exposure Real-time Auto, Single Auto, Manual Adjustment
White Balance Real-time Automatic, Single Automatic, Manual R/G/B Adjustment
HDM Port Output Image Max 1920x1080P, 60fps, Auto-adaptive Display
USB Type C Port Support 2 Modes: Power In, Or USB Image Output To Computer
Storage TF Card, Max Support 128G
Remote Control Support Photo, Record, Digital Zoom In/Out, Menu Setting
Record Format Photo
1920x1080
Format JPG

Video:
1920X1080P, 60fps1920X1080P30,1280x720P120,1280x720P60
Format MOV
Power By DC 5V 900mA, By USB Port
DC 12V 3A, By Adapter Connected To LCD Screen
Working Distance 44mm~230mm
Depth of View 0.8mm~6.5mm
Field of View 7mmx4mm (At The Highest Magnification 39.4x) to
45.7mmx25.8mm (At The Lowest Magnification 6x)
Focus Extra Back Focus Knob, Focus To Clear Image Quickly And Easily In Large Range, Extend Working Distance To 44mm~230mm
Light Source Dual LED Ring Light Built-in, Vertical Illumination And Diffuse Illumination Independent Switch, Both Brightness Adjustable
LCD Screen Size: 12.5" Full HD 1080p Display
Type: a-Si TFT-LCD/IPS/Fog Screen
Number of Pixels: 1920x1080
Display Color: 16.7M
Panel Brightness: 300 nits
Contrast: 800:1
Viewing Angle: Horzontal/Vertical 170° Adjustable
-
Stand 360° Universal Hinge Bracket Design, Supports Arbitrary Hovering, Flexible And Easy To View Object From Any Angle
Stainless Pole Stand With Metal Holder, Assure Vertical 180° And Move Up/Down Easily
Metal Plate Size 180x215mm, Large Size For Mobile Repair Work
Note:""In Table Is Standard Outfits,"" Is Optional Accessories "-" Is Unavailable
