Optical EF10X Binocular 	Stereo Optical Microscope Electron Pcb Repair Rotatable 360° Head

Optical EF10X Binocular Stereo Optical Microscope Electron Pcb Repair Rotatable 360° Head

  • High Light

    stereo zoom microscopes

    ,

    stereo binocular microscopes

    ,

    stereo dissecting microscope

  • Head
    Rotatable 360°, Inclination 45° Binocular, With Locked-in Eyepiece, Left & Right Diopter Adjustable ±5°, Head Interpupillary 55-75mm
  • Eyepiece
    Extra Wide Field, Plan WF10x/22mm, High Eyepoint, Eyepiece Tube Φ 30mmWF10X
  • Objective
    Three Kind Of Objective 90° Rotatable For Selection: 1X2X, 1X3X, 2X4X
  • Working Stage
    Φ60 White/Black And Φ60 Frosted Glass
  • Power Supply
    AC 100V-240V Wide Range, CE Approval
  • Light Source
    No Light Source Or Reflect 1WLED, Transmit 7x20mA
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE,
  • Model Number
    A22.1235
  • Minimum Order Quantity
    1 pc
  • Price
    Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

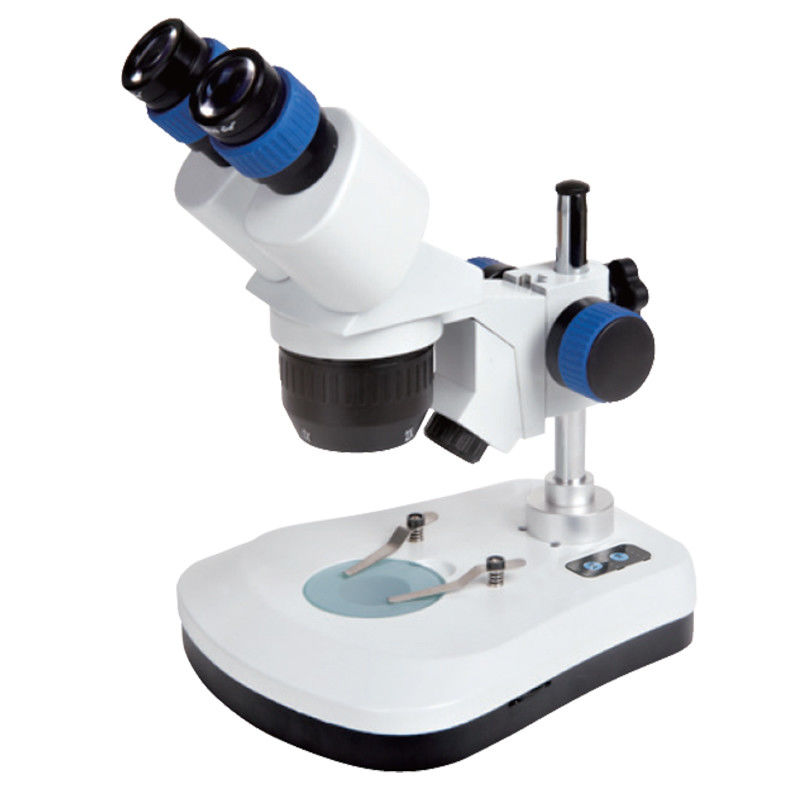

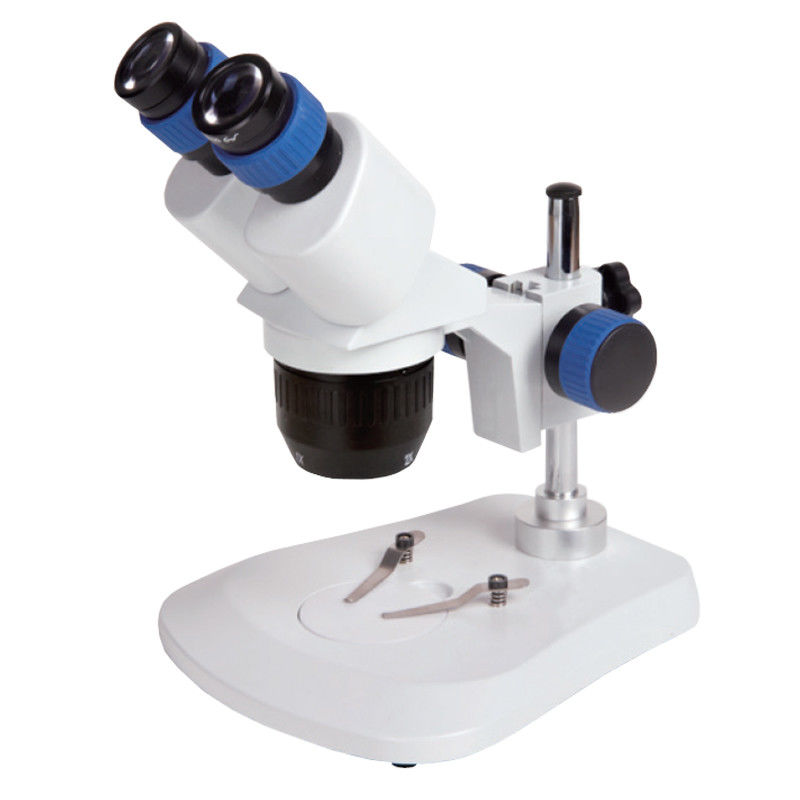

Optical EF10X Binocular Stereo Optical Microscope Electron Pcb Repair Rotatable 360° Head

OPTO-EDU Cheap Student Boom Stand Inspection Electron Pcb Repair Optical 20x 40x Binocular Stereo Microscope Sunshine



Stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A22.1235 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.







Model P PA PB TA TB
Head Rotatable 360°, Inclination 45° Binocular, With Locked-in Eyepiece, Left & Right Diopter Adjustable ±5°, Head Interpupillary 55-75mm
Eyepiece WF10X
Objective Three Kind Of 90°Rotatable Objective For Selection: 1X2X, 1X3X, 2X4X
Light Source No Light Source Reflect 1WLED, Transmit 7x20mA

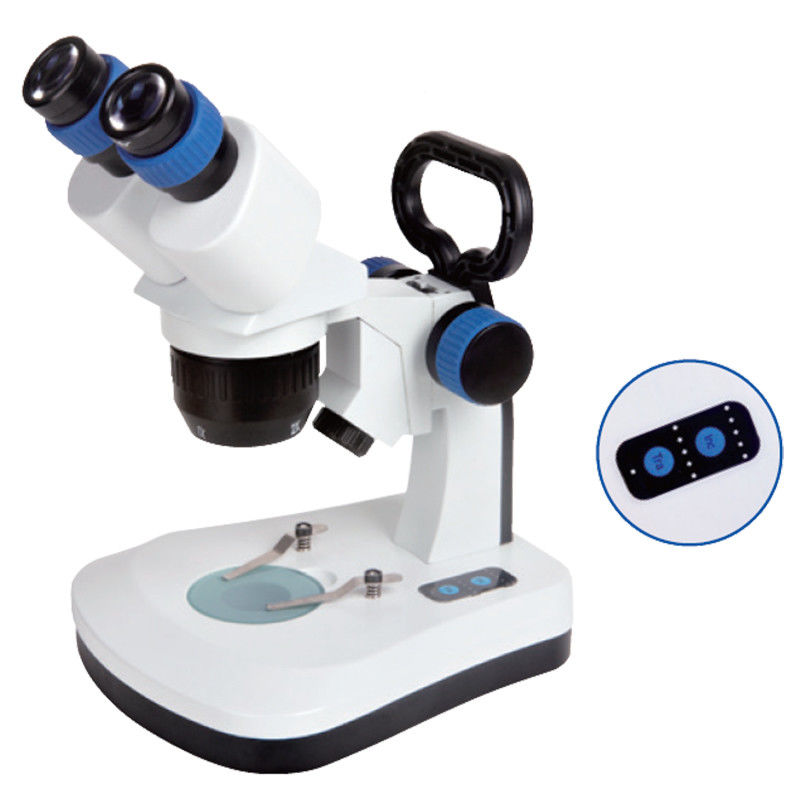

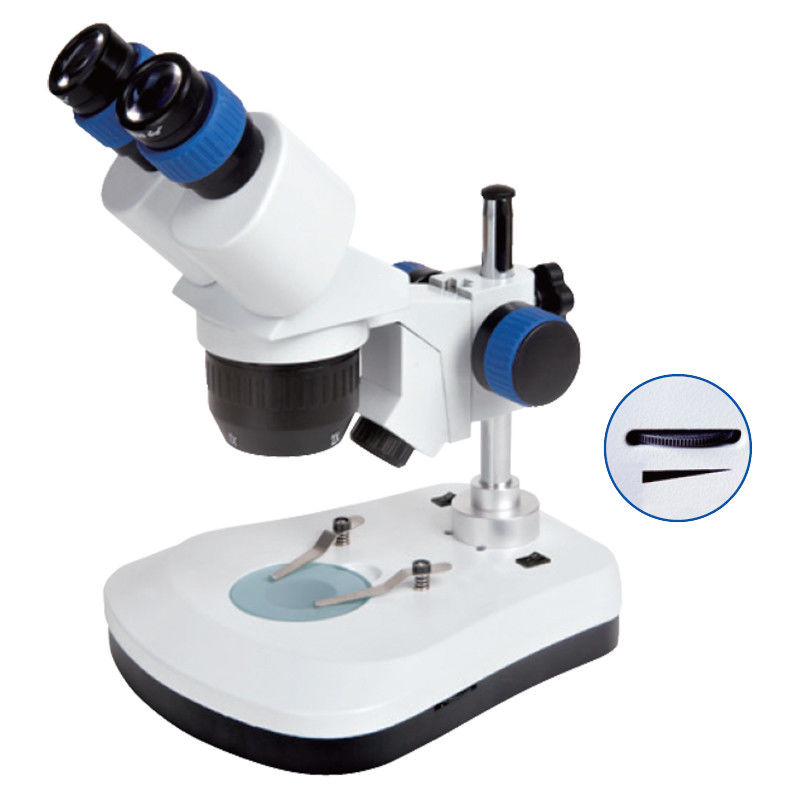

Stand Pole Stand Pole Stand Touch Switch Pole Stand Dial Switch Track Stand Touch Switch Track Stand Dial Switch
Working Stage Φ60 White/Black Φ60 Frosted Glass
Power Supply AC 100V-240V Wide Range, CE Approval

Optional Accessories
Eyepiece WF5X
SWF10X
WF15X
WF20X
Working Stage Φ60 White/Black
