LCD Standalone Inspection Digital Microscope 600x Brightness Adjustable A33.5006

LCD Standalone Inspection Digital Microscope 600x Brightness Adjustable A33.5006

  • High Light

    digital trinocular microscope

    ,

    usb digital microscope

    ,

    infinity plan microscope

  • Magnification Ratio
    600x
  • Still Capture Resolution
    8M, 5M, 3M, 1.3M, VGA
  • Focus Range
    Manual Focus From 5mm To 80mm
  • Frame Rate
    Max 30f/s Under 600 Lus Brightness
  • Video Format
    AVI
  • Photo Format
    JPEG
  • Light Source
    LEDs (Brightness Adjustable)
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A33.5006
  • Minimum Order Quantity
    1 pc
  • Price
    Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

LCD Standalone Inspection Digital Microscope 600x Brightness Adjustable A33.5006

OPTO-EDU Digital Microscope 4.3-inch LCD 600x LED Brightness Adjustable A33.5006


The 4.3-inch LCD Standalone Inspection Digital Microscope is a fantastic microscope that provides a good way for you to share high definition microscopic observation with others. The4.3" quality LCD panel brings vivid crystal image.
Equipped with professional microscopic lens, it helps you to see tiny objects easily. The magnification can be up to 600x. Built-in rechargeable Li-ion battery provides a 6-7rs standalone working time. The 8 bright LEDs, with brightness adjustable, are bright enough for perfect observation.

A33.5006 4.3-inch LCD Inspection Microscope Specification
Magnification Ratio600x
Still Capture Resolution8M, 5M, 3M, 1.3M, VGA
Focus RangeManual Focus From 5mm To 80mm
Frame RateMax 30f/s Under 600 Lus Brightness
Video FormatAVI
Photo FormatJPEG
Light SourceLEDs (Brightness Adjustable)
BatteryBuilt-in Li-ion Battery
DC Input5V/1A
TV-outTo Any Monitor With TV-in
StorageMicro-SD Card
Bundle SoftwarePortable Capture Plus With Measurement

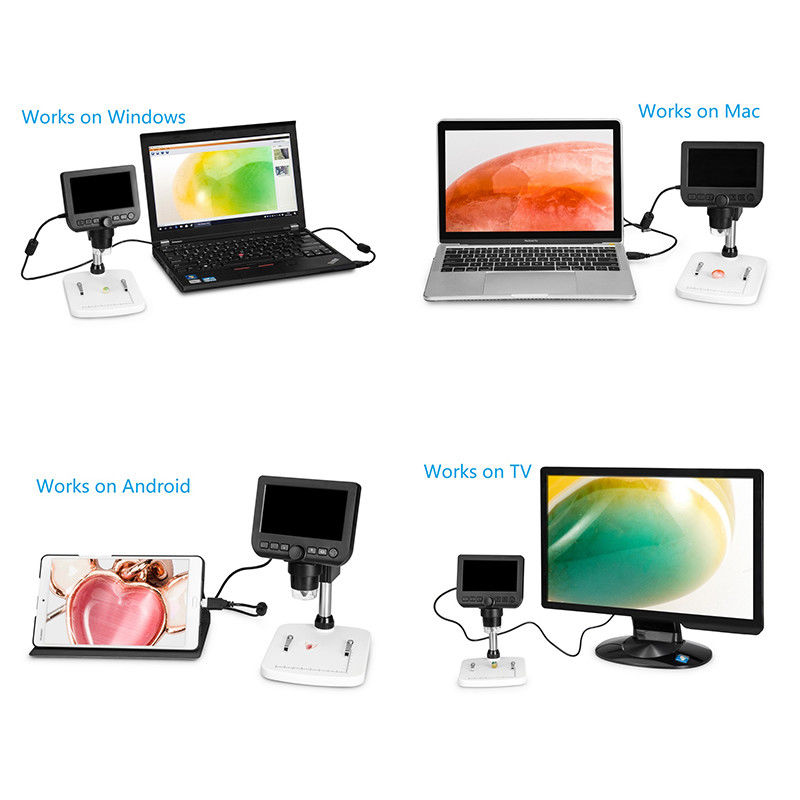

Operation System For Bundle SoftwareWindows 7/8/10
Mac OS X 10.12 Or Above
Android Smartphone/Tablet
Product Size116mm (L) x 95mm (W)
WeightMicroscope-220g; Stand-220g
Package
Contents
Microscope
Observation Stand
Software CD
USB Cable
TV Cable
Micro-SD Card (1GB)
User’s Manual


LCD Standalone Inspection Digital Microscope 600x Brightness Adjustable A33.5006 4

1Focus Knob9Micro-SD Card Slot
2Menu10Digital Transform Multiples
3Video, Photo Capture, Playback Switch11Battery Charging Indicator Light (Red For Charging, Full Of Rear Light Out)
4Up
5Down12Television Outlet
6Video & Photo Capture13Charging Port: Charge The Internal Battery
USB Connected Computer: Read The Card, Or Enable Live Video On Your PC/Android Device
7Boot to Turn It Off
8LED Source Adjust
