0.7 - 4.5x Zoom Handheld Digital Microscope Stereo Optical Microscope

0.7 - 4.5x Zoom Handheld Digital Microscope Stereo Optical Microscope

  • High Light

    digital usb microscope

    ,

    portable digital microscope

  • Head
    Seidentopf Binocular Head Inclined 40°, Interpupilary Distance 50-75mm
  • Eyepiece
    WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
  • Zoom Lens
    0.7~4.5x
  • Zoom Ratio
    '1:6.5
  • Working Distance
    108mm, With Standard 1x Lens
  • Stand
    Large Track Stand, Base Size 330x300cm
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE,
  • Model Number
    A23.2603
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

0.7 - 4.5x Zoom Handheld Digital Microscope Stereo Optical Microscope

Binocular pcb used 0.7~4.5x zoom Stereo Microscope Zoom Ratio 1:6.5









Items A23.2603 Zoom Stereo Microscope Specification -B -BL Cata. No.
Head Seidentopf Binocular Head Inclined 40°, Interpupilary Distance 50-75mm A23.2603-BH
Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable ●● ●● A51.2621-1022
Zoom Lens 0.7~4.5x
Zoom Ratio 1:6.5
Magnification 7x~45x, Max 3.5x~180x With Optional Eyepiece & Auxiliary Lens A54.2601-S04
Working Distance 108mm, With Standard 1x Lens

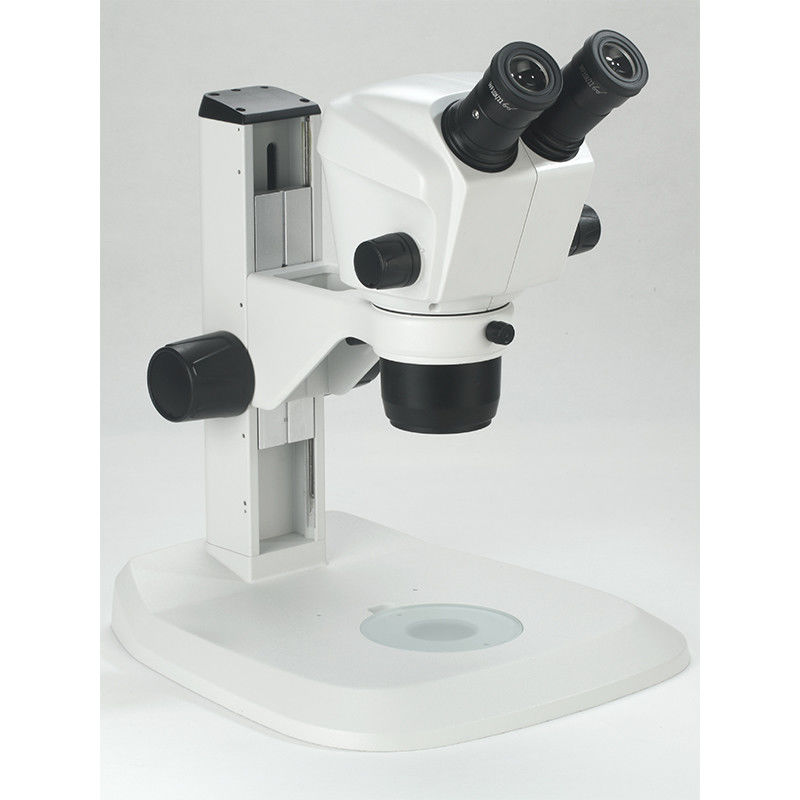

Stand Large Track Stand, Base Size 330x300cm, No Light
Track Stand Focusing Range 80mm
A54.2609-T

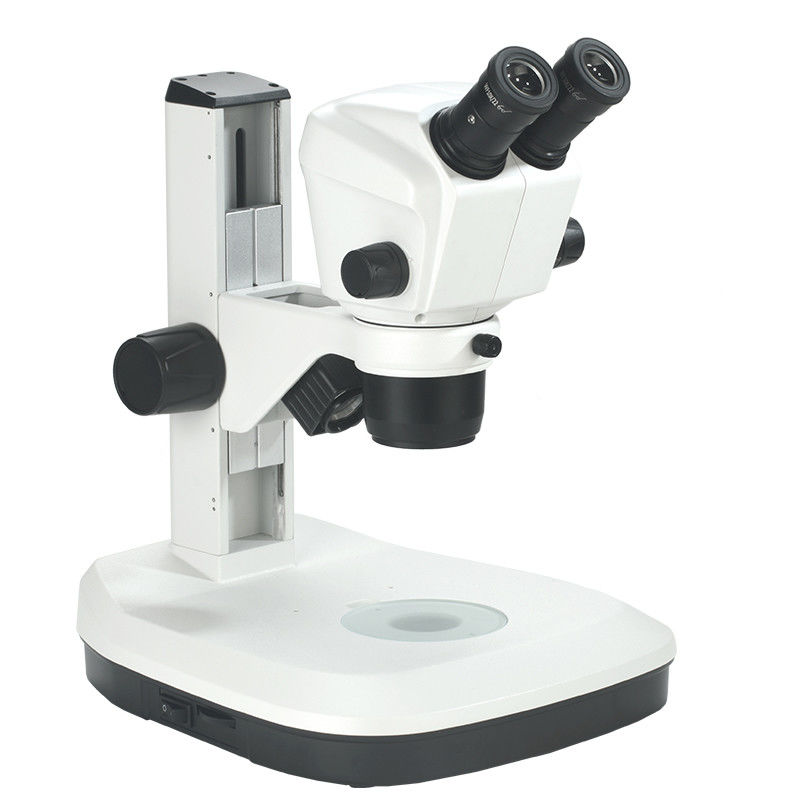

Large Track Stand, Base Size 330x300cm, Up/Bottom 3W LED
Track Stand Focusing Range 80mm
A54.2609-TL
Package Carton Size 480×370×475mm, 1 Unit/Ctn
Weight Gross Weight: 8 kgs, Net Weight: 6.5 kgs
Remark: ◎ With additional objective 0.5X , arm stand bracket should be removed to high position.
◎ No matter how much zoom magnification is, working distance is constant.
◎ According to the following formula for total magnification and actual field of view:
◎ Total magnification = Zoom magnification×Eyepiece magnification×Additional objective magnification
◎ Actual field of view=Eyepiece field of view / Zoom magnification×Additional objective magnification.
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
Items A23.2603 Zoom Stereo Microscope Optional Accessories Cata. No.
Eyepiece WF15X/16mm,Diopter Adjustable A51.2621-1516
WF20X/12mm,Diopter Adjustable A51.2621-2012
Auxiliary Lens 0.5x, W.D.189mm A52.2621-05
0.75x, W.D.128mm A52.2621-75
2.0x, W.D.36mm A52.2621-20

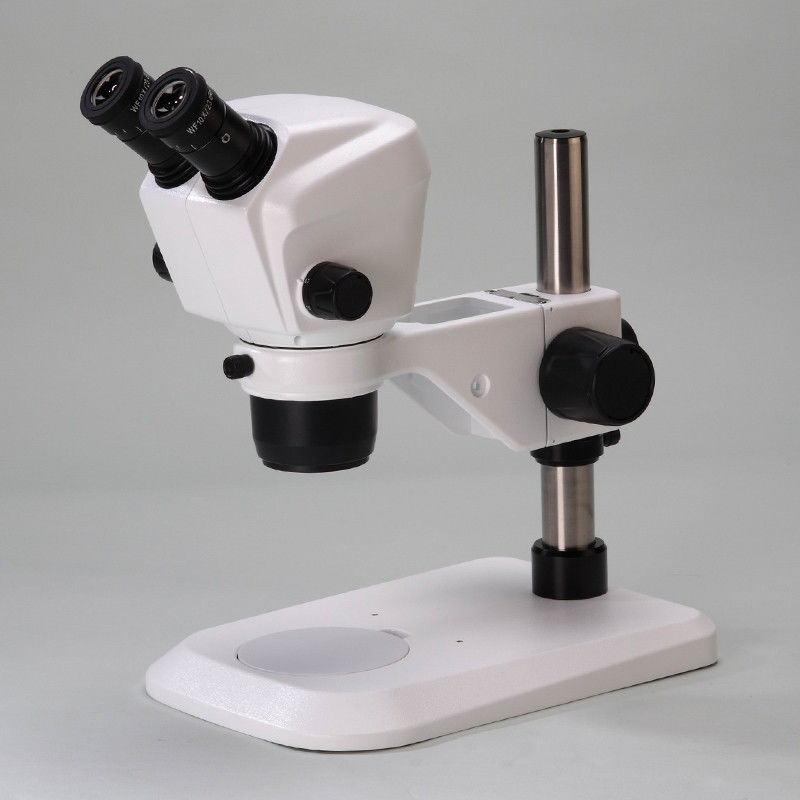

Stand Small Pole Stand, Base Size 300x220cm, No Light
Pole Stand Focusing Range 115mm
A54.2609-P
Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light
Track Stand Focusing Range 80mm
A54.2609-TF
Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light
Track Stand Focusing Range 80mm
A54.2609-TFL
CCD Adapter 1.0x, Focus Adjustable A55.2601-SZ10
0.7x, Focus Adjustable A55.2601-SZ07
0.5x, Focus Adjustable A55.2601-SZ05
Polarizing Polarizer + Analyzer, For Stereo Microscope A5P.2604
Connect Ring LED Light Connect Ring A56.2602-R
