Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular

China Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular supplier
Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular supplier Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular supplier Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular supplier Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular supplier

Large Image :  Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular

Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.0900

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Application: Research|Learning|Metallurgical Certification: CE|Rohs
Drawtube: Binocular Illumination: LED
Magnification: 50X - 500X Theory: Metallurgical Optical Microscope

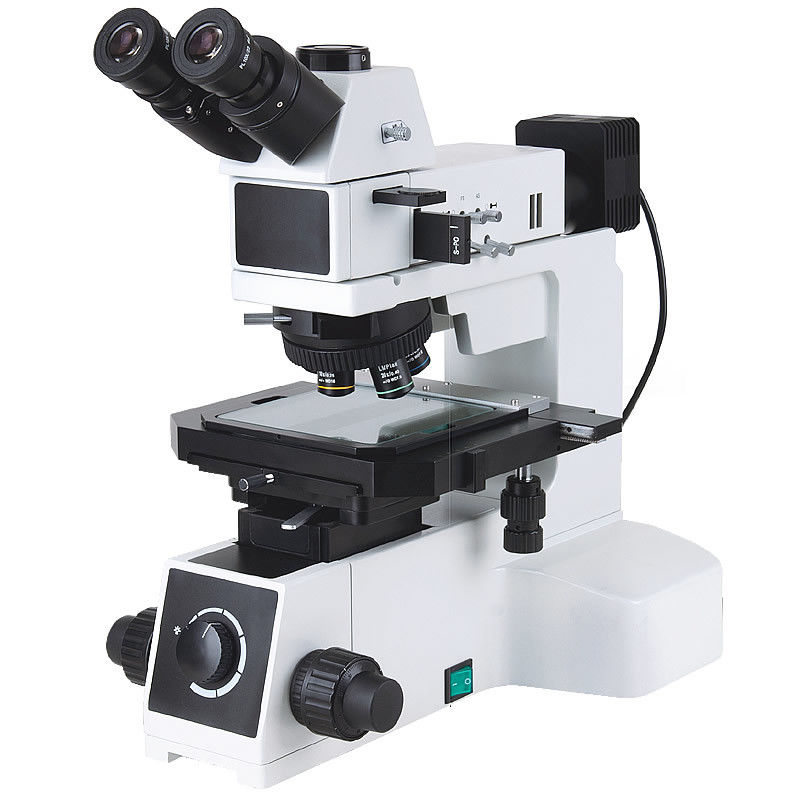

Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular





A13.0900 DIC Metallurgical Microscope, with flexible system, excellent imaging performance and stable system achritecure. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.

--Intergrated Bright Field/ Oblique Illumination, Polaraizing, DIC Differential Interference
--4" Double Layer Mechanical Stage X/Y Moving Range Achieve 105*105mm
--New Deisgn Long Working Distance Professional Metallurgical Objetives
--High Power Semi-Apochromatic Techanlogy Objective
Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
--Accessories Complete, Well Equipped, The System Can be Flexibly Combined
--Ergonomic Design, Reliable System Architecture







Specifications:

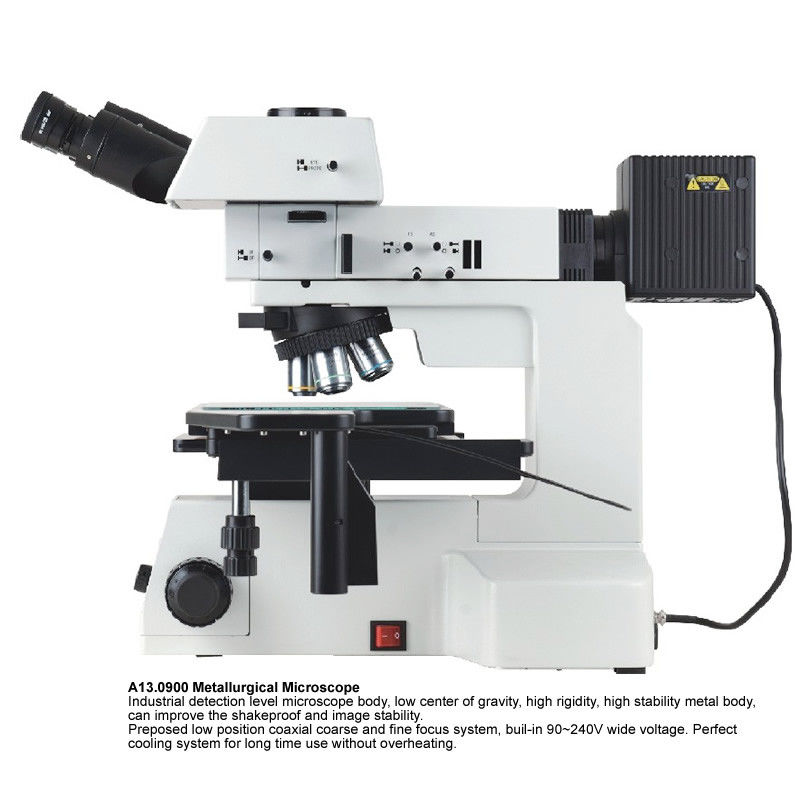

A13.0900 DIC Metallurgical Microscope

A



B

Optical System

Bright Field/Oblique Light, Polarizig, DIC

o



Bright Field/Oblique Light, Polarizig, DIC , Transmit Light



o

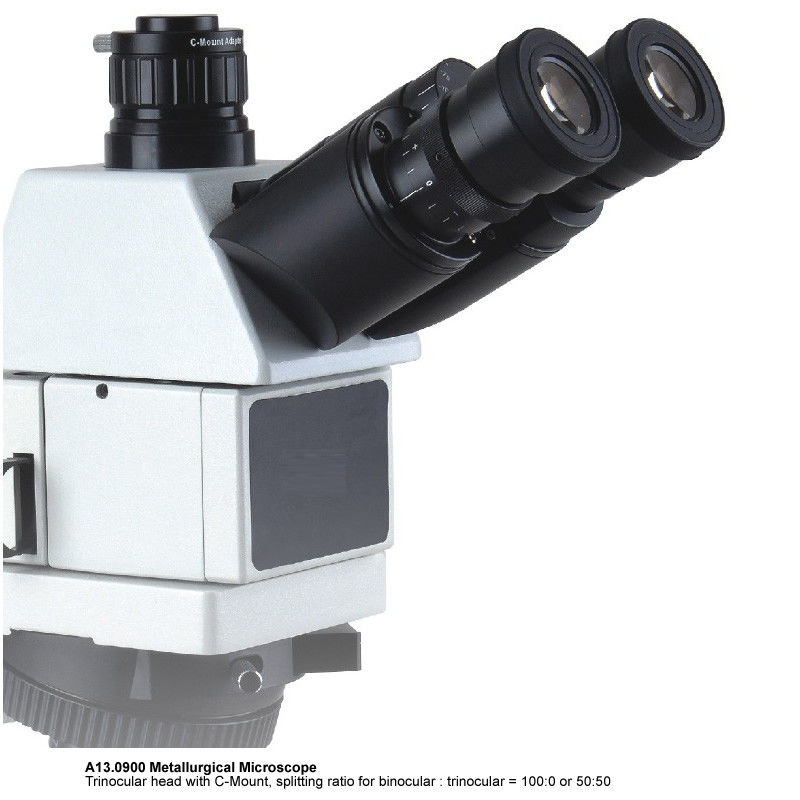

Head

30° Inclinded Trinocular, Spiltting Ratio 100:0 or 50:50

Eyepiece

High Eyepoint Plan PL10x/22mm

Objective

Long Working Distance Infinity Plan Metallurgical
DIC Achromatic

LMPL5X/0.15

WD10.8MM

LMPL10X/0.3

WD10MM

LMPL20X/0.45

WD4MM

Long Working Distance Infinity Plan Metallurgical
Semi-APO

LMPL50X/0.55

WD7.8MM

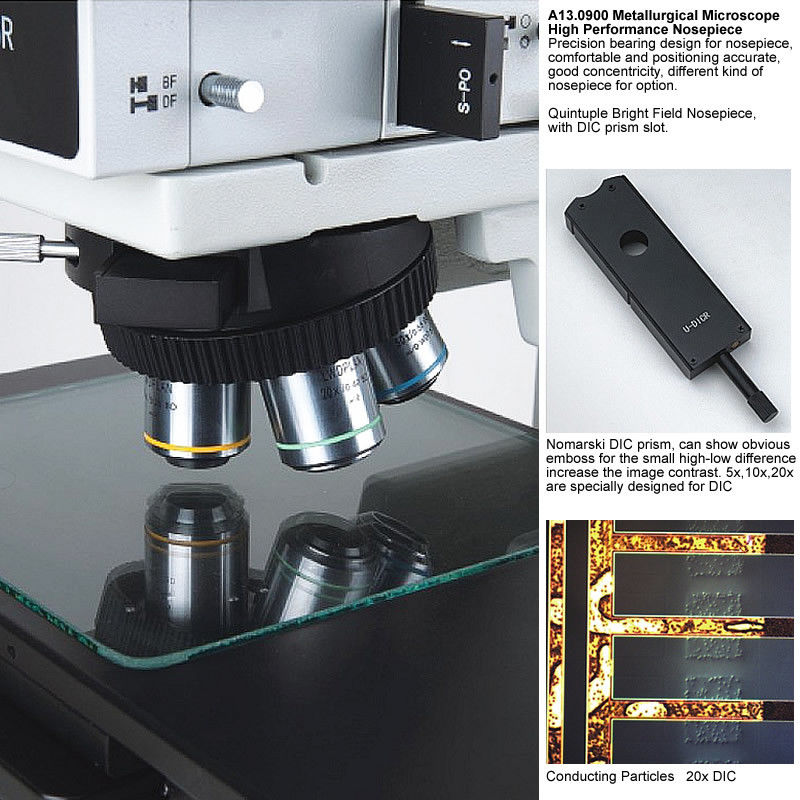

Nosepiece

Intilted, Quintuple, With DIC Slot

Stage

4" Double Layer Mechanical Stage, Moving Range 105*105mm,

with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel,

with Stage Adaptor

o



4" Double Layer Mechanical Stage, Moving Range 105*105mm,

with Glass Stage, Right Hand Position, XY Moving Hand Wheel,

with Stage Adaptor



o

Focusing

Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm,

Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop

and Tightness Adjustment

Illumination

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm,

Central Adjustable, with Filter SLot and Polarizing Slot, With Oblique

Illumination Switch. Single High Power 5W LED, White, Brightness Adjustable

Transmitted Illumination, SIngle High Power 5W LED, White Brightness

Adjustable, N.A.0.5 Condenser, with Iris Diaphragm



o

Power

90-240V Wide Voltage, One Way Power Output

o



90-240V Wide Voltage, Double Way Power Output



o

A13.0900 DIC Metallurgical Microscope Optional Accessories

Eyepiece

High Eyepoint Plan PL15x/16mm PL15x16

A51.0903-1516

High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,

A51.0905-1022R

High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T

A51.0904-1022T

Objective

Long Working Distance Infinity Plan Metallurgical Semi-

APOLMPL100X/0.8 WD2.1MM

A5M.0938-100

DIC

DIC Attachment Set

A5M.0950

Filter

Interface Filter For Reflect illumination

Blue, <480nm

A5M.0951-B

Green, 520~570nm

A5M.0951-G

Red, 630~750nm

A5M.0951-R

Netural, for White Balance

A5M.0951-LBD

Other

Specimen Presser

A5M.0920

Polarizing

Fixed Polarizer Flashboard, Dia.30mm

A5P.0920-RP

360° Rotatable Analyser Flashboard

A5P.0920-TA

Fixed Analyser Flashboard,Dia.30mm

A5P.0920-RA

Adapter

0.5x C-Mount, for 1/2" CCD, Focus Adjustable

A55.0928-50

1.0x C-Mount, Focus Adjustable

A55.0928-10

Digital Camera Adapter with Photo Eyepiece

A55.0910





Oblique Illumination Metallurgical Optical Microscope 50X - 500X BinocularOblique Illumination Metallurgical Optical Microscope 50X - 500X BinocularOblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular

Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular

Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular

Oblique Illumination Metallurgical Optical Microscope 50X - 500X Binocular
