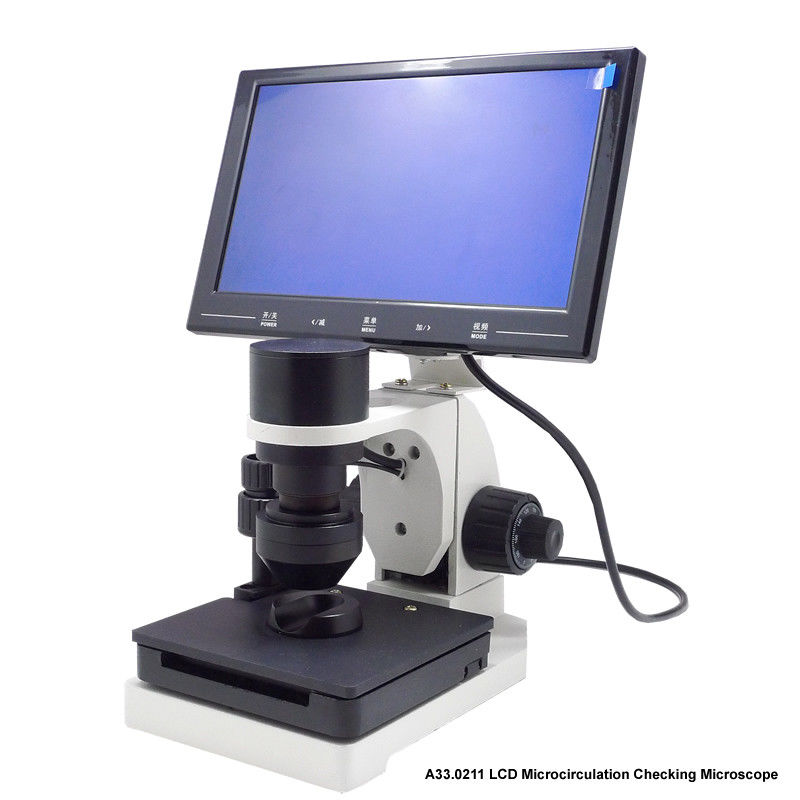

A33.0211 LCD Microcirculation Checking Microscope
A33.0211 LCD Microcirculation Checking Microscope, also named as Nailfold Checking Color LCD Microscope, is an ideal tools to check human body's microcirculation condition. This model include 7" or 9" LCD monitor to shown checking image easily and with portable high quality aluminium case for convient moving.
--1/3" Color CMOS Sensor
--7" Or 9" LCD Monitor High Resolution
--Total Magnification 120x Or 150x
--Low Temperature LED Light Source
--Double Layer Mechancial Working Stage
--Finger Stage Fix Position For Easy Observation
--Portable Alumium Case Included, Size 12*25*36cm
|
A33.0211 LCD Microcirculation Checking Microscope
|
-7
|
-9
|
|
|---|---|---|---|
| Screen Size |
7" LCD Screen, Total Magnification 120x
|
o
|
|
| 9" LCD Screen, Total Magnification 150x |
o
|
||
| Digital Camera | Color Sensor 1/3" CMOS 420 TV Lines Resolution Automatic White Balance Minimum Illumination 3 Lux |
||
| Objective | Achromatic 4x/0.10, Working Distance 37.4mm, AntiFungus Optical System | ||
| Working Stage | Double Layer Mechanical Stage, Moveing Range 25*70mm, With Finger Stage 360 Degree Rotatable |
||
| LED Illumination | High Quality LED, Brightness & Illuminate's Angle Adjustable, Low Tmperature, Long Working Time Over 10000 Hours | ||
| Focusing | Coaxial Coarse & Fine Focusing Knob | ||
| Power | AC Input 100~240V, AD/DC Adapter | ||
| Packing | Portable Alumium Case Included, Size 12*25*36cm 1 pc/ctn, Carton Size 37*29*21cm, G.W. 5.0 Kgs |
||
