Product Details:

Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A36.4932

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Contact Now
Detailed Product Description
Product Name: 12.5 Inch Digital LCD HD Scanning Electron Microscope Resolution: 3.5M, 1080p
Output: USB,HD, TF Card Stand: Attached Mechanical Stage
Light Source: Dual Coaxial LED Power Supply: CE, Rohs
Certificate: CE, Rohs Magnification: 4.8x~220x
LCD Screen: 12.5" Service: Feedback Wihtin 12 Hours After Sale Service Assured

OPTO- EDU A36.4932 12.5 Inch Digital LCD HD Scanning Electron Microscope With Best Price





Product Parameter
A36.4932 HD Digital Microscope
Hardware Configuration
Image Sensor Aptina AR0330 CMOS Sensor
Expose Mode Rolling Shutter
Maximum Resolution 3.5M 2304*1536 (3,538,944 Pixels)
Sensor Optical Format 1/3'' (5.07mm(H)*3.38mm(V), Diagonal 6.09mm)
Pixel Size 2.2μm*2.2μm
Dynamic Range 69.5dB
SNR(Signal Noise Ratio) 39dB
Spectral Characteristics 380-650nm
Exposure Capability Real-time auto, Single auto, Manual Adjustment
White Balance Real-time Auto, Single Auto, Manual Adjust R G B separately
Display (preview ) Resolution HD:1920*1080i60, 1920*1080P30, 1280*720P60, 640*480P60(Auto fit by the monitor )
Record Format

Snapshot

Picture Format: JPG

Resolution:

HD: 2304*1536, 2304*1296, 1920*1080, 1280*720, 800*480

Record
Video Format: MOV

Resolution:

HD: 1280*720@30FPS, 800*480@30FPS

Record Route HD: TF card (Maximum support 64G)
Power Supply Power adapter: Input:AC 100~240V/50~60Hz;Output DC 12V/5A/60W
Monitor: USB-A-Output:DC5V/2A×3
Lens Specifications
Working Distance 33mm~320mm
Depth Of Field 0.8mm~7mm
Magnification 4.8x~220x, with 12.5 LCD, including digital magnification
Horizontal × vertical 5mmx2.8mm( on the highest magnification)~57mmx32mm( on the lowest magnification 55x)



Monitor Parameters
Size 12.5
Type a-Si TFT-LCD/IPS
Resolution 1920×1080
Color Display 16.7M
Brightness 300 Nit
Contrast 800:1
Visible Angle 170° horizontal&vertical

Product Display

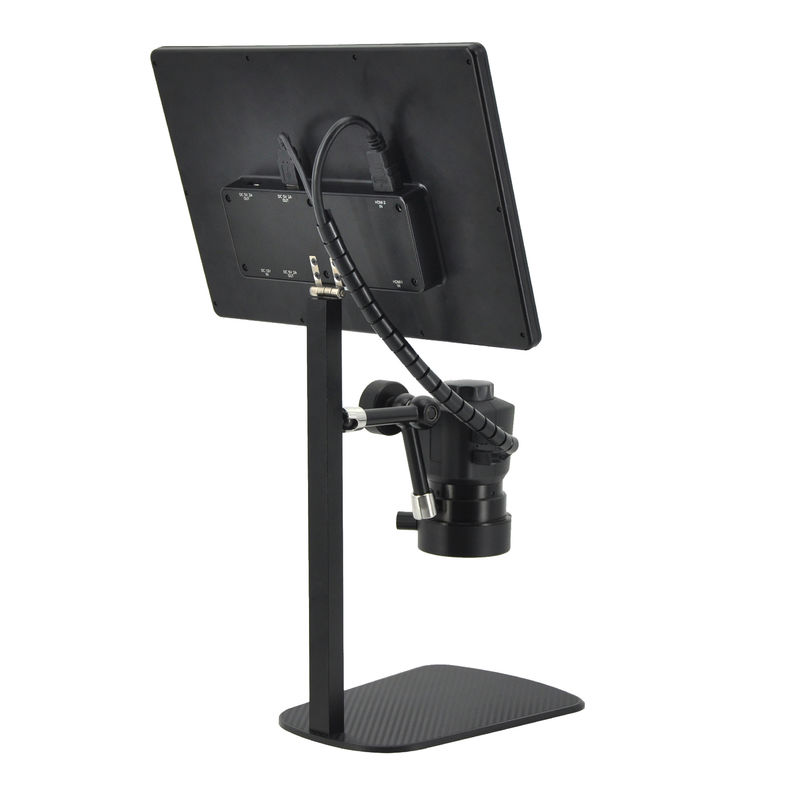

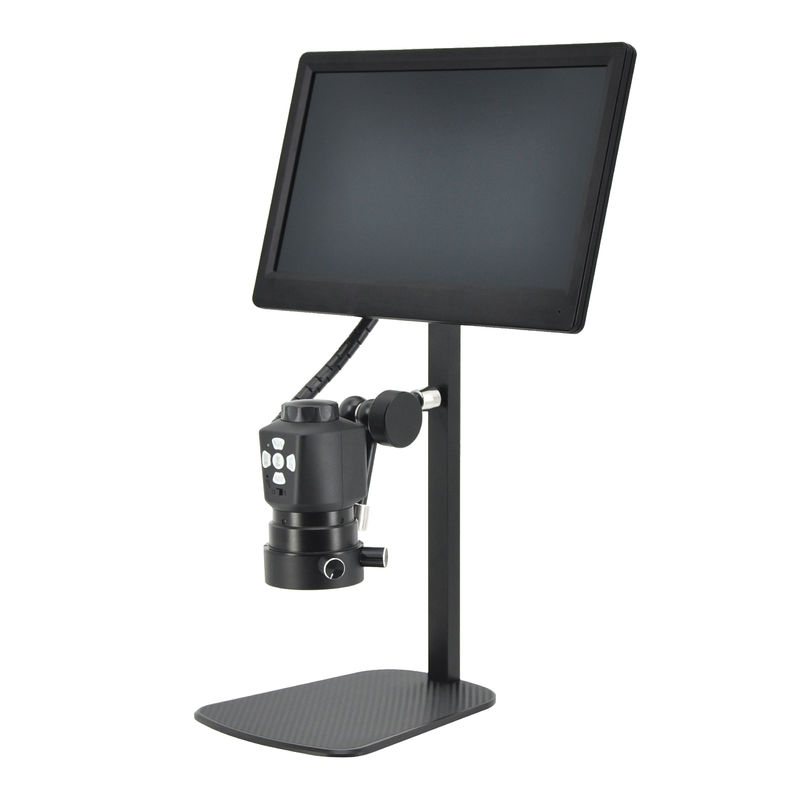

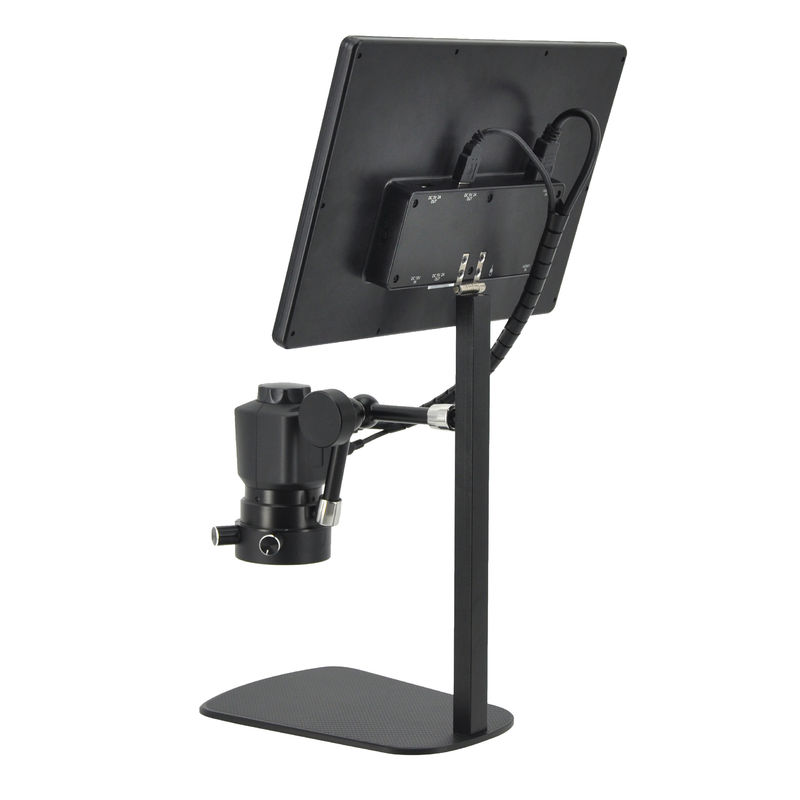

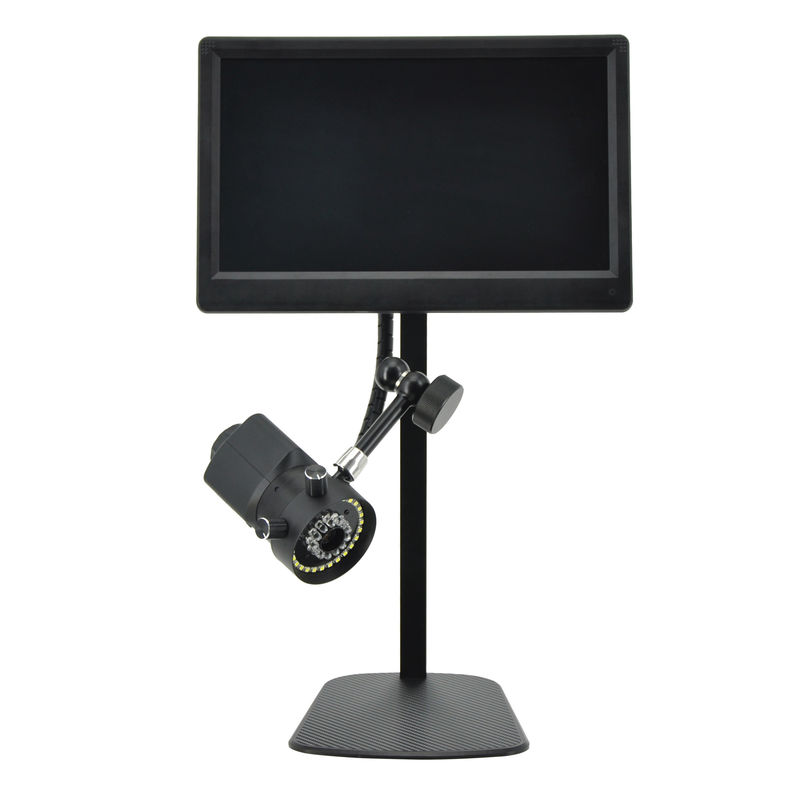

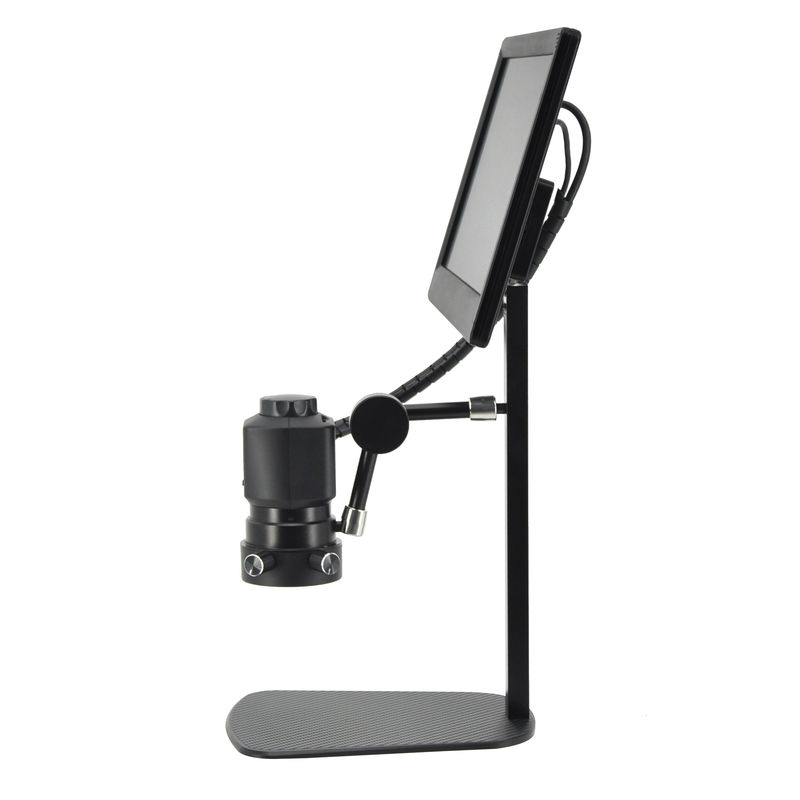

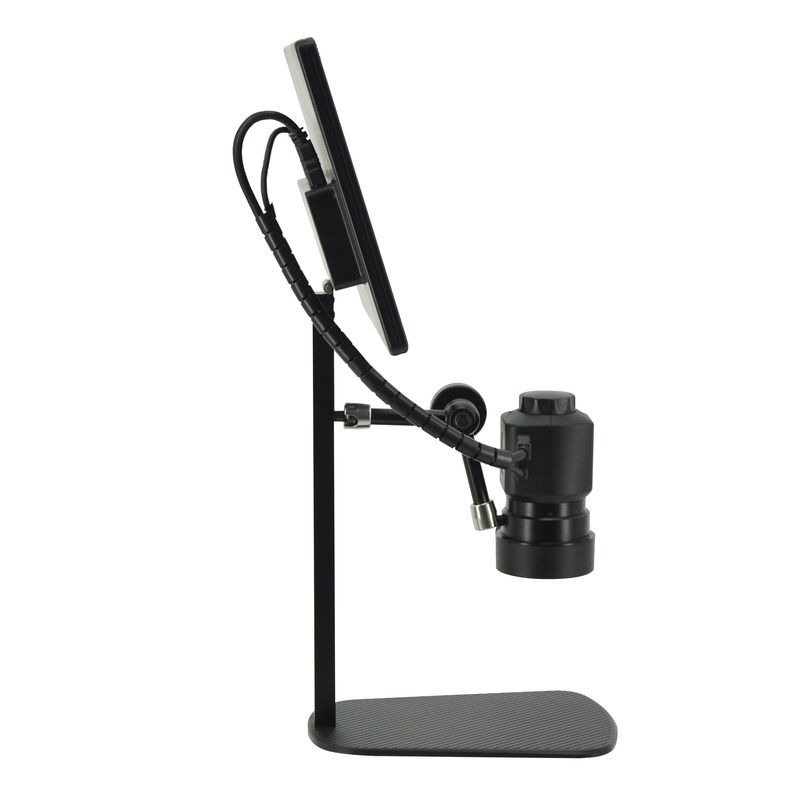

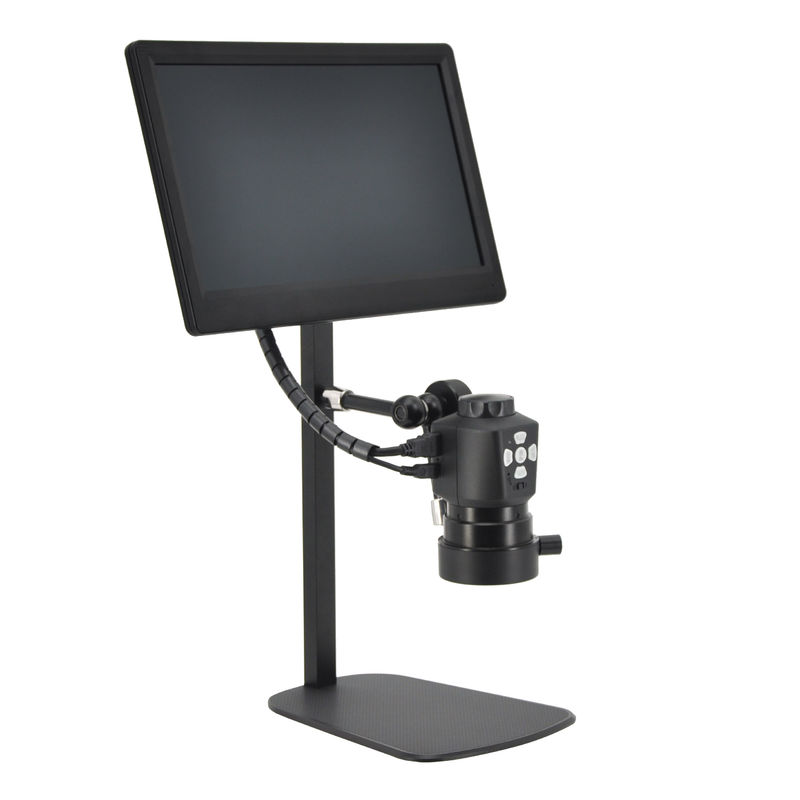

A36.4932 HD microscope is compact in size, is comprised of a video microscope, HD camera, LED lighting and monitor. Offering truly imaging plus the flexibility and convenience of digital image capture. Combining the ergonomic benefits of this unique integration, it eliminates the vision limitations of traditional microscope, allowing operators freedom of head movement, providing superb ergonomics and hand-eye co-ordination.



1.It has unique manual focus knob on top of camera helps you to product the sharpest image within the working distance (33mm~320mm) when the observation object size changed from small to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope.


2.4.8x~5.5x overall magnification (Based on actual measurement on 12.5 monitor ).It is ideal complete solution for low magnification inspection, operation, repairing and reporting .



3.With a factory integrated 3.5MP 1080i 60pfs digital camera and 8.0MP HD lens.



4.Fatigue-free optical observation under excellent diffuse light & external coaxial light.




5. Outstanding ergonomics design with 360° universal shaft bracket, to hover randomly. It is flexible and easy to use, convenient for operator to view from different angles. Free up the operators head and body , the work efficiency can be improved and fatigue can be reduced effectively .



6. Integrated solution -one device can achieve multiple function of low magnification tasks; Equipped with all-in-one 12.5 monitor, when needed, operator can fine-tune screen angle to look up ( max 90 °) or look down (max 24°)



7.Simple ,easy to use image and video capture software is included as standard to allow you to use it instantly .
