HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display

HD 9.7 Inch 5.0MP Digital LCD Microscope Binocular A33.1502 1000X Digital Display

  • High Light

    digital trinocular microscope

    ,

    usb digital microscope

    ,

    infinity plan microscope

  • Authenticate
    CE
  • Export Area
    Europe & North America
  • Monthly Sales
    5000 Units
  • Application Field
    Efficient And Laboratory
  • Magnification
    1000x
  • Resolution
    5.0M
  • Place of Origin
    China
  • Brand Name
    CNOEC, OPTO-EDU
  • Certification
    CE, Rohs
  • Model Number
    A33.1502
  • Minimum Order Quantity
    1 pc
  • Price
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

HD 9.7 Inch 5.0MP Digital LCD Microscope Binocular A33.1502 1000X Digital Display

profissional HD 9.7 Inch 5.0MP Resolution Video Android Digital Display LCD Microscope Binocular A33.1502



--Infinity Optical System

--9.7" LCD Screen With High Resolution
--Binocular And Trinocular Head Available, Interpupillary Distance 48~75mm
--Eyepiece Diopter Adjustable
--Wide Field Eyepiece WF10X/F.N.22mm
--Infinite High Contrast Chromatic-free Full Plan Objectives
--Double Layer Mechanical Graphite 143*132mm, Graphite Surface, Moving Range75mmx55mm
--External Illumination, 3W/LED

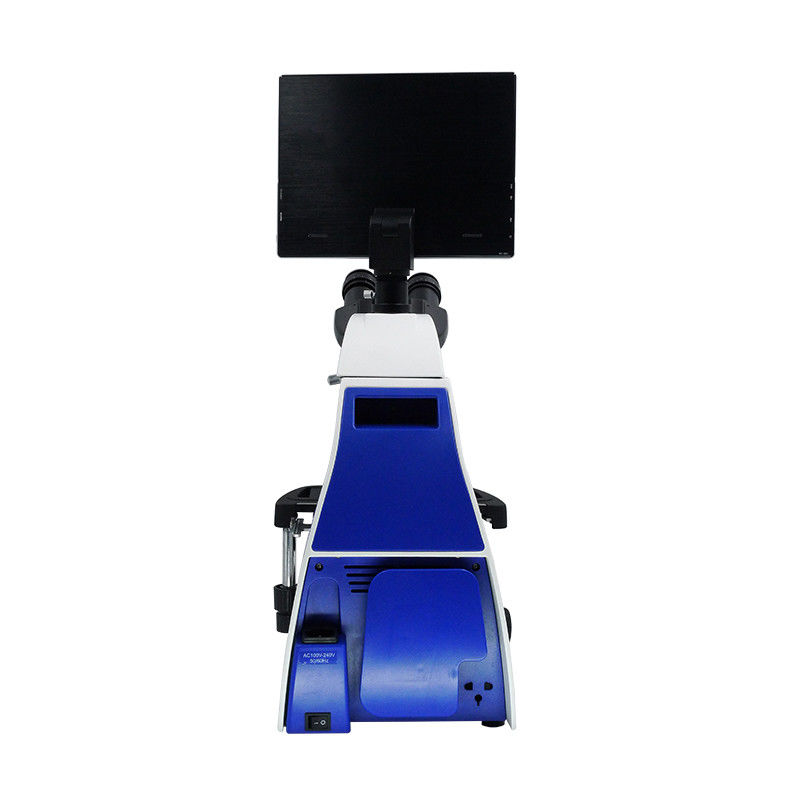

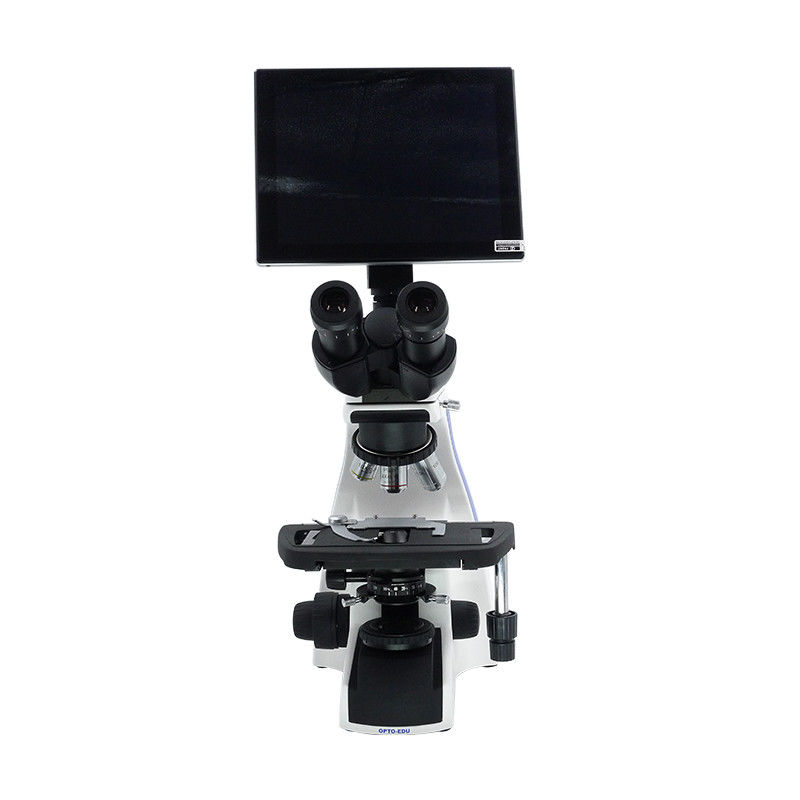

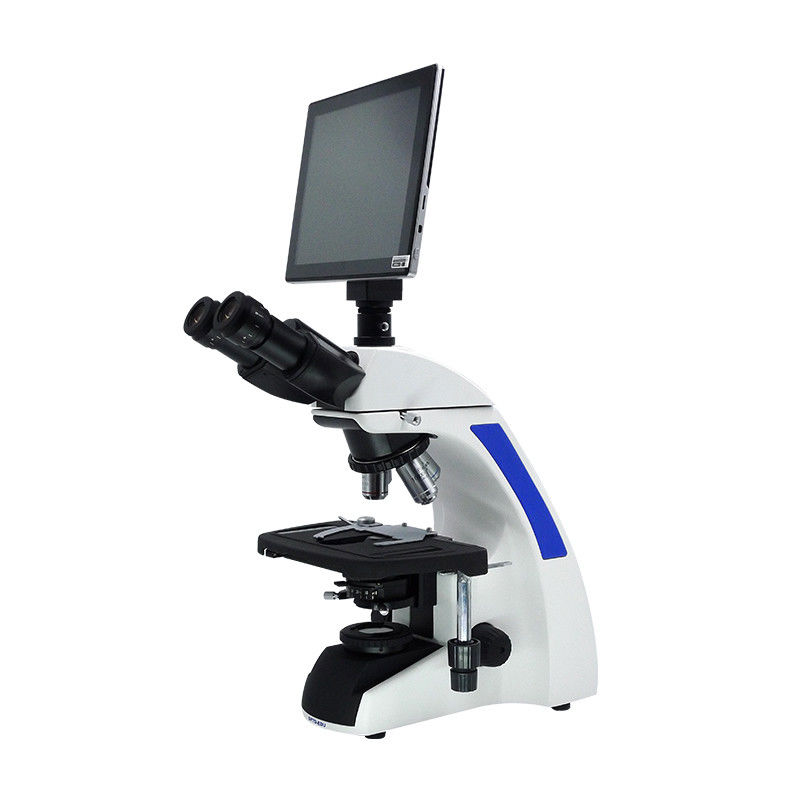

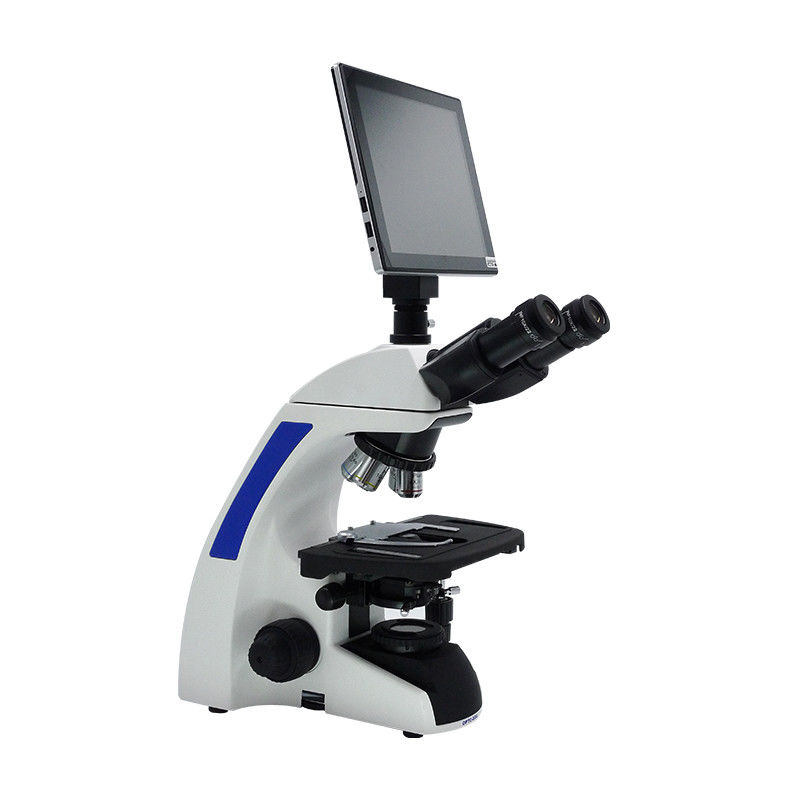

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 0

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 1

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 2

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 3



A33.1502 is a type of professional LCD biological microscope for laboratory or hospital, equipped with 9.7" LCD high resolution screen, provides excellent optical performance. Because of the streamline figure and pastel color, it has more beautiful appearance. With the large size double layer mechanical stage, it can provides the more comfortable operation and operational room.


Specification

A33.1502 9.7" LCD Biological Microscope

Head 9.7" HD Diagonal IPS LCD, Backlight Screen, Resolution 1024*768
Five Point Touch Screen, With Hardware Power Switch
Trinocular head,30° inclined, interpupillary distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
Eyepiece WF10x/20mm,
Objective High Contrast Chromatic-free 4X,10X,40X,100X
Focus System Coaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm
Nosepiece Quadruple, reversed type with positive click stops
Stage Large Size Double Layer Mechanical Stage 142x132mm , Graphite Surface, Moving Range75mmx50mm
Condenser Abbe Condensor NA1.25
Filter Blue filter Φ 38, (not available for led illumination)
Light Source External Illumination, 3W/LED
Adapter
C-Mount 1.0x
Packing Size 370x320x510mm
G.W. 8.5kgs
Specification
Specification of Pad

CPU 1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count

Both Software Chinese/English Version, With Instruction Manual Installed
Button Power Switch
WIFI Support WIFI, Support Bluetooth
Power External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
Power Mode : Normal, Sleep, Power Off
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Click to See More Details of A59.3520 9.7" LCD Pad Digital Camera
Optional Accessories
Eyepiece WF16x/15mm
WF20x/12MM
Nosepiece Backward Quintuple Nosepiece
Adapter 0.5x C-Mount



HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 4

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 5



LCD digital microscope is based on biological microscope, which widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects. It is not only clear but also convenient to observe.

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 6

HD 9.7 Inch 5.0MP  Digital LCD Microscope Binocular A33.1502 1000X Digital Display 7
